SKM300GB063D: A Deep Dive into a 600V Half-Bridge IGBT Module

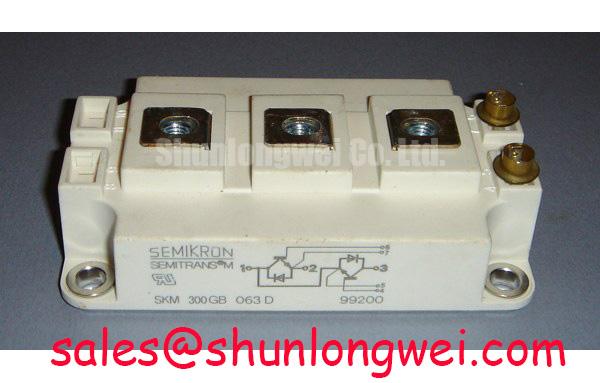

The SKM300GB063D from SEMIKRON is a high-performance IGBT module engineered for robust power conversion in demanding industrial environments. It delivers a core specification of 600V and 300A (nominal) within the industry-proven SEMITRANS 3 package. Key benefits include optimized switching performance due to Superfast NPT IGBT technology and enhanced thermal stability. This module is specifically designed to address the challenge of achieving high efficiency and long-term reliability in high-current, switched-mode applications. For systems requiring higher blocking voltage for 690V line applications, the related SKM400GB128D offers a 1200V capability.

Application Scenarios & Value

Achieving System-Level Benefits in High-Frequency Power Conversion

For design engineers working on high-power systems, the SKM300GB063D provides a compelling solution for balancing efficiency and durability. Its primary value is demonstrated in applications like industrial AC inverter drives, Uninterruptible Power Supplies (UPS), and high-frequency welding inverters. In a Variable Frequency Drive (VFD), for instance, the module's low collector-emitter saturation voltage (VCE(sat)) of 2.4V (typical at 125°C) directly translates to lower conduction losses. This is critical during high-torque motor operation, as it reduces the thermal load on the module, allowing for a more compact heatsink design and ultimately a higher power density for the entire inverter cabinet. The half-bridge configuration simplifies the design of 3-phase inverter legs, reducing component count and assembly complexity. The module's robust construction ensures reliable performance even under the strenuous electrical and thermal cycling conditions typical of industrial automation.

Key Parameter Overview

Decoding the Specs for Enhanced Thermal Reliability

The technical specifications of the SKM300GB063D are tailored for reliable operation in high-power applications. The module's performance is anchored by its thermal and electrical characteristics, which are critical for system-level design and longevity.

Download the SKM300GB063D datasheet for detailed specifications and performance curves.

Technical Deep Dive

The Engineering Behind NPT Technology and CAL Diodes

The SKM300GB063D leverages Non-Punch-Through (NPT) IGBT technology, a key differentiator for robust, high-voltage switching. Unlike earlier punch-through designs, NPT IGBTs feature a thicker, lightly doped n-drift region, which results in a positive temperature coefficient for VCE(sat). This characteristic is crucial for paralleling modules, as it naturally promotes current sharing and prevents thermal runaway—where one device carries a disproportionate amount of current, heats up, and conducts even more. Think of it like two parallel hoses filling a bucket; if one hose gets slightly warmer and its diameter (conductivity) shrinks, more water (current) is automatically diverted to the cooler hose, maintaining a balanced flow. This self-balancing act significantly enhances the reliability of high-current inverter systems.

Furthermore, the module integrates a fast and soft inverse CAL (Controlled Axial Lifetime) diode. The "soft" recovery characteristic is vital for reducing voltage overshoots and electromagnetic interference (EMI). A hard-recovery diode snaps off abruptly, causing high di/dt, which induces voltage spikes across stray inductances—a primary source of EMI that can disrupt control circuits. The CAL diode's soft recovery acts like a hydraulic dampener, ensuring a smooth transition and cleaner switching waveforms, which simplifies the design of Snubber Circuit and filtering stages.

Industry Insights & Strategic Advantage

Meeting the Demands for Higher Efficiency and Power Density

In the landscape of industrial automation and power conversion, regulations and competitive pressures continuously push for higher efficiency and smaller footprints. The SKM300GB063D directly addresses these trends. Its low switching losses, a hallmark of its Superfast NPT technology, enable operation at higher Pulse Width Modulation (PWM) frequencies. This allows designers to use smaller, lighter, and less expensive magnetic components (inductors and transformers), contributing to a higher overall power density. The use of Direct Copper Bonding (DCB) technology for the isolated baseplate provides excellent thermal conductivity while ensuring high electrical isolation, a critical factor for safety and reliability in industrial-grade equipment. This construction not only improves thermal performance but also enhances the module's resilience to mechanical stress and thermal cycling, leading to a longer operational lifetime and a lower total cost of ownership.

Frequently Asked Questions (FAQ)

What is the primary benefit of the SKM300GB063D's NPT IGBT technology?
Its Non-Punch-Through (NPT) design provides a positive temperature coefficient for VCE(sat), which enables safer paralleling of modules by ensuring automatic current balancing and preventing thermal runaway in high-current applications.

How does the integrated CAL diode improve system reliability?
The CAL (Controlled Axial Lifetime) inverse diode features "soft" recovery characteristics, which minimize voltage overshoots and oscillations during switching. This reduces EMI generation and lowers the stress on the IGBTs, leading to a more reliable and stable system with simplified filter design.

For engineering teams looking to develop or upgrade power conversion systems, the SKM300GB063D offers a foundation of proven technology. For a detailed analysis of your application's specific requirements, our technical specialists are available to provide support.
