Preventing Spurious Faults: Current-Limit Mode vs Linear Voltage Ramp Guidelines for SKT1200/16E

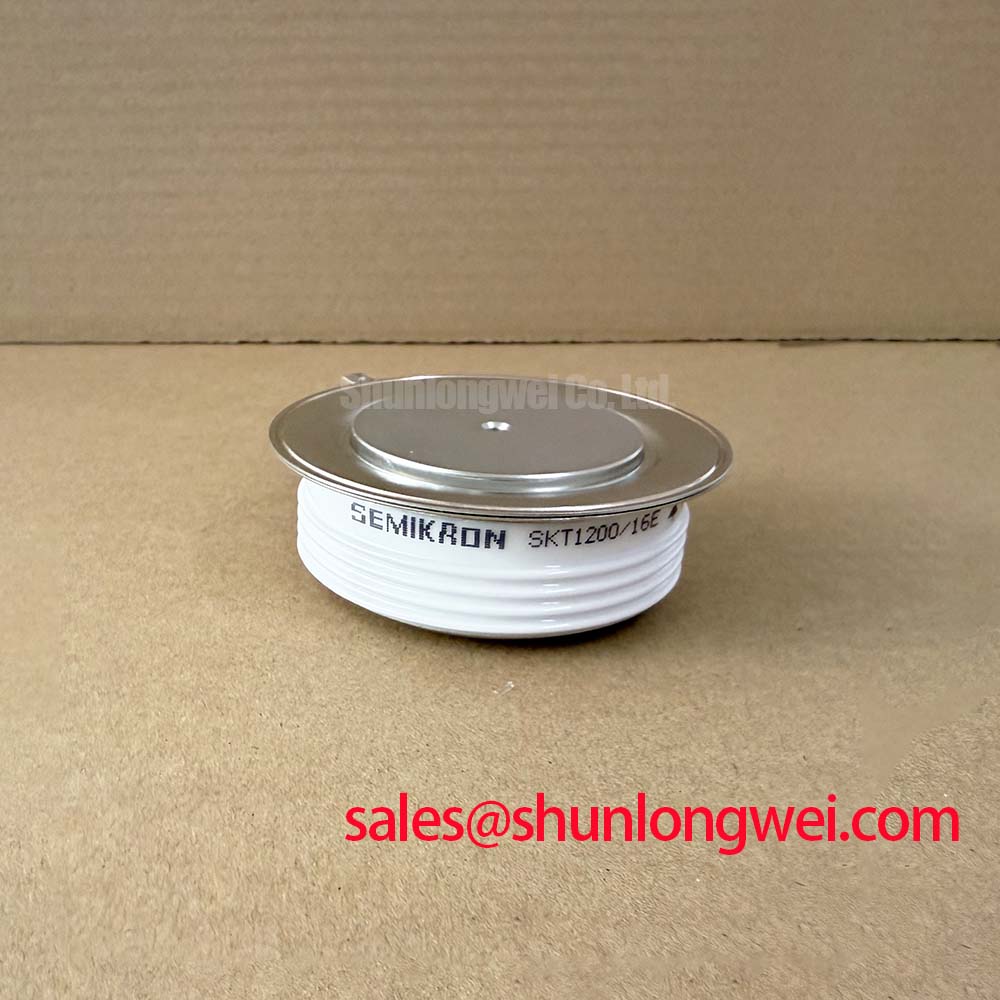

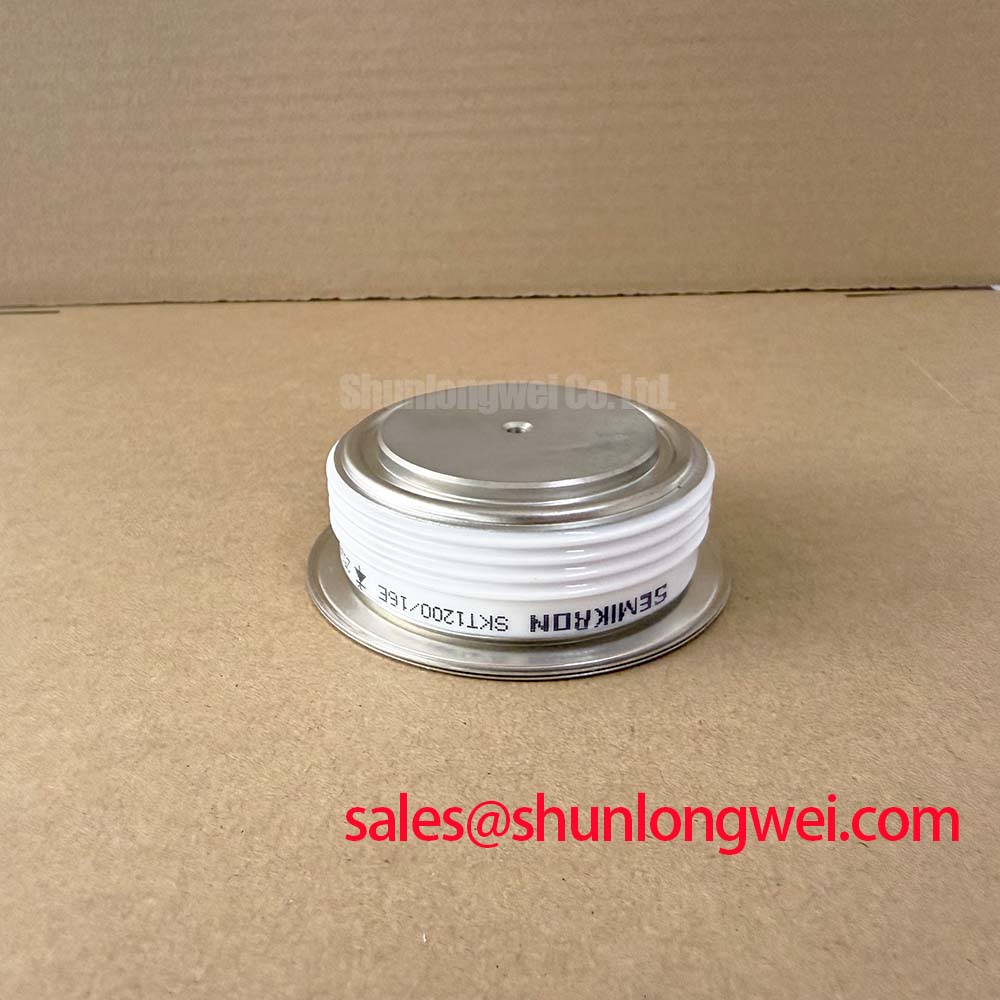

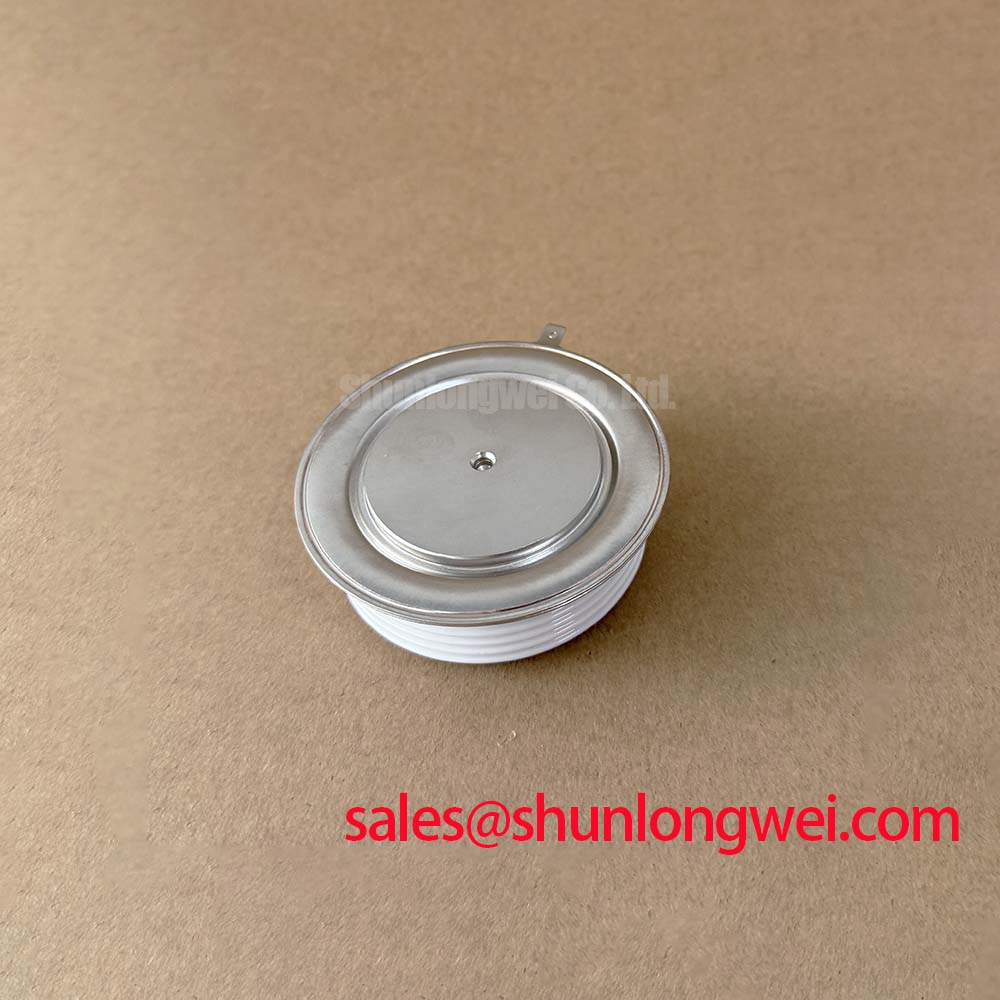

With the soft starter isolated and discharged, verify the terminal identification against the original power schematic and confirm that the installed device is rated 1600V VDRM/VRRM before reconnecting phase conductors. The Semikron SKT1200/16E is a thyristor module specified for high-current controlled AC power paths, with an official average on-state current rating of 1200A at Tc = 85°C, an ITRMS of 2800A, and a peak surge current capability of 30kA ITSM.
| Official Specification | Value | Integration Relevance |
|---|---|---|
| Repetitive peak off-state voltage, VDRM/VRRM | 1600V | Electrical blocking boundary for the phase-controlled power circuit. |
| Average on-state current, ITAV at Tc = 85°C | 1200A | Thermal reference point for heatsink and continuous-duty assessment. |
| RMS on-state current, ITRMS | 2800A | Current capability reference under stated cooling conditions. |
| Peak surge current, ITSM | 30kA | Short-duration fault and inrush withstand reference. |
| Junction-to-case thermal resistance, Rth(j-c) | 0.021 K/W | Indicates the importance of a controlled thermal path to the heatsink. |
| Maximum junction temperature, Tj | 125°C | Absolute semiconductor thermal limit. |
For a high-voltage three-phase motor solid-state soft starter, the first commissioning task is to establish whether the controller uses current-limit operation, a linear voltage ramp, or a staged transition between both. A locked-rotor event can draw several times the motor rated current; system specifications sometimes target a reduction from approximately six to eight times rated current toward a lower controlled level. That target belongs to the motor, load, supply impedance, and controller protection design, not to the SKT1200/16E module rating alone.
The 1200A ITAV at Tc = 85°C is an Official Datasheet Specification and should be treated as the thermal boundary reference when evaluating repetitive starting duty. Designers should record phase current, firing-angle stability, heatsink temperature, and start duration during a supervised trial. If current oscillates despite a stable command, inspect the trigger distribution, phase-voltage sensing reference, and terminal contact condition before changing the ramp profile.
Terminal and heatsink mounting are Design Considerations. Use the torque, contact hardware, creepage distances, and conductor arrangement specified by the original starter manufacturer. ⚠️ Field Alert: Isolate all stored energy and verify a discharged power circuit before removing or reconnecting any SKT1200/16E terminal cable.
Where a lower-current reference is needed for a separate installation, SKT240/18E provides a neutral comparison point for checking voltage class, current requirement, package interface, and system documentation; it is not an automatic replacement recommendation.
Benchtop Waveform Tuning: Mitigating Stress via Semiconductor Protection Fuse Selection on SKT1200/16E
Protection-fuse coordination begins with the starter’s documented prospective short-circuit current and the module manufacturer’s applicable surge and I²t coordination information. The official 30kA ITSM figure identifies short-duration surge capability, but it does not independently define a fuse selection. Engineers should compare the fuse pre-arcing and total-clearing I²t data with the complete protection coordination table for the assembled circuit, including conductor, busbar, contactor, and upstream protection contributions.
On the bench, capture current and line-to-line voltage during controlled triggering, then repeat the measurement through the expected transfer sequence. A distorted current waveform can arise from unequal phase firing, a supply imbalance, transformer saturation, or an unsuitable snubber path. It should not be attributed to the thyristor module without measurements from the known-good signal and power path.
💡 Pro Tip: Keep the phase busbar paths physically balanced and verify turn-on and fault-clearing waveforms under controlled test conditions before releasing a high-current starter to service.
Heat removal must also remain part of fuse coordination because repeated near-limit starts raise junction temperature before a fault occurs. The official 0.021 K/W Rth(j-c) supports efficient junction-to-case heat transfer only when the external interface and heatsink assembly are correctly prepared. General thermal-packaging principles are discussed by Semikron sintering technology, although that reference should not be read as confirmation of the internal construction of this specific module.
SKT1200/16E Circuit Protection & Reliability: Calibrating AC-to-DC Transfer Characteristics across Firing Angles
In phase-controlled power circuits, firing angle changes the portion of each AC waveform delivered to the load and therefore changes current, displacement power factor, and reactive-power demand. When assessing operation from near-zero delay through delayed firing approaching 150 degrees, use oscilloscope captures and power-analyzer data from the actual line frequency, load, and control board. A calculated transfer curve is an Engineering Calculation only when its assumptions, measurement points, and circuit topology are stated.
The SKT1200/16E 1600V blocking rating is an Official Datasheet Specification, not a declaration that every AC network transient is acceptable. Verify the peak repetitive and nonrepetitive voltage observed across each installed device against the applicable system limits. Consider line commutation behavior, inductive load current, synchronization loss, and the condition of any bypass contactor during transition.
Where the soft starter includes an associated rectifier or controlled front-end section, the SKT340/18E can be reviewed as a related thyristor-module reference while the electrical drawing determines whether its ratings and terminal arrangement are relevant. Semiconductor carrier recombination is part of the underlying switching physics; general background is available from carrier lifetime and recombination in power semiconductor P-N junctions.
Transient Dynamics & Electrical Design: AC Input Transient Overvoltage Clamping on SKT1200/16E
Measure transient voltage at the module terminals with an appropriately rated differential measurement method before selecting or revising an MOV or RC snubber network. MOV coordination and RC damping are Design Considerations intended to limit surge exposure and commutation-related overshoot; their final values depend on line voltage, source impedance, wiring inductance, load behavior, and measured waveform energy. The 1600V VDRM/VRRM rating supplies the blocking-voltage boundary that the system must respect during these tests.
For surge assessment, use the applicable installation and test requirements, such as IEC 61000-4-5 where relevant to the equipment category, rather than assuming that the module itself provides system-level EMC compliance. Maintain the original enclosure insulation layout, phase separation, and conductor clearances. Inspect snubber capacitors, resistors, MOV condition, grounding continuity, and trigger-circuit reference routing after a transient event.
When switching stress, thermal cycling, or protection coordination needs broader review, the practical methods in IGBT Design & Integration provide useful system-level test principles. For this thyristor module, the final acceptance decision should remain based on the SKT1200/16E ratings, the original starter documentation, and measured electrical and thermal margins.
