How Can Engineers Mitigate Input-Stage Power Losses While Maintaining High Isolation in a Compact Footprint?
The Strategic Value of the VBO125-12NO7 in Modern Power Conversion

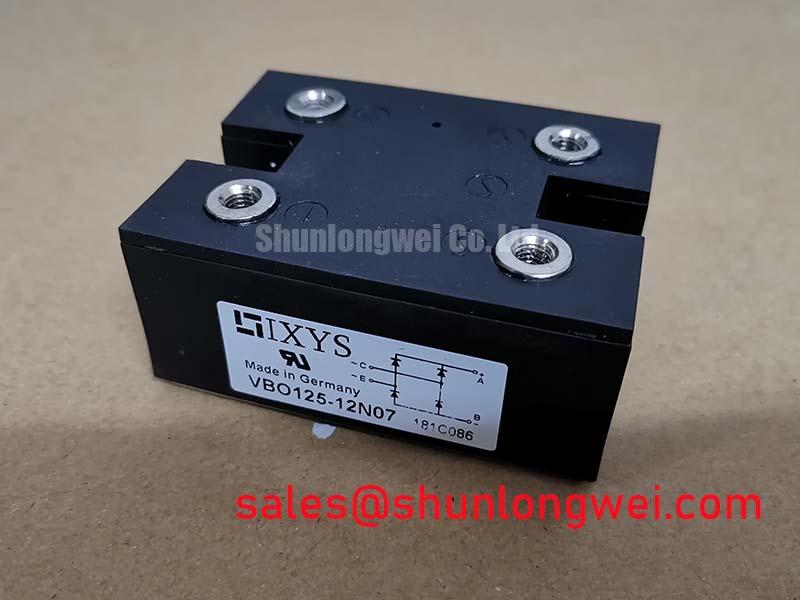

The IXYS VBO125-12NO7, a high-performance Single Phase Diode Bridge Rectifier, addresses the critical demand for robust power rectification in industrial environments. Featuring a 1200V maximum repetitive reverse voltage and a 125A average forward current rating, this module is engineered for efficiency. Its planar passivated chips provide a significant advantage in long-term stability compared to standard glass-passivated alternatives. What is the primary benefit of the VBO125-12NO7's planar passivated chips? Enhanced long-term stability and lower leakage currents under high thermal stress. For industrial drives requiring 1200V blocking and 125A throughput, the VBO125-12NO7 is the optimal choice.
Frequently Asked Questions
Addressing Key Engineering Design Considerations
How does the 3000V~ isolation voltage rating of the VBO125-12NO7 influence chassis safety and EMI design?
The 3000V~ isolation between the internal semiconductors and the PWS-E copper base plate allows for direct mounting on grounded heatsinks without additional insulation pads. This simplifies mechanical assembly while ensuring compliance with stringent safety standards like UL (File E72873). By providing a high dielectric barrier, it also assists in reducing common-mode noise coupling to the chassis.
Why is the 10ms surge current rating (Ifsm) of 1800A critical for input-stage rectifier reliability?
Input rectifiers frequently encounter high inrush currents during the initial charging of DC-link capacitor banks. The 1800A Ifsm rating at 45°C ensures that the VBO125-12NO7 can withstand these transient surges without junction degradation. This headroom is vital for preventing catastrophic failure in systems that lack sophisticated soft-start circuitry or encounter frequent power cycling.
Key Parameter Overview
Functional Grouping of Technical Specifications
| Category | Parameter | Typical Value |
|---|---|---|
| Voltage & Current | Vrrm (Max Repetitive Reverse Voltage) | 1200V |
| Idav (Average Output Current @ Tc=85°C) | 125A | |
| Static Characteristics | Vf (Forward Voltage Drop @ If=150A) | 1.28V |
| Ir (Reverse Leakage Current @ Vrrm) | 0.2mA | |
| Thermal & Mechanical | Rthjc (Thermal Resistance, Junction to Case) | 0.50 K/W |
| Visol (Isolation Voltage for 1 Minute) | 3000V~ |
Download the VBO125-12NO7 datasheet for detailed specifications and performance curves.
Technical Deep Dive
The Engineering Significance of the PWS-E Package and Planar Technology
The VBO125-12NO7 utilizes a PWS-E package, which is designed for optimized heat dissipation and high current density. The use of a copper base plate ensures a low thermal resistance (Rthjc) of 0.50 K/W per diode, which is equivalent to a high-speed highway for thermal energy, allowing heat to escape the semiconductor junction with minimal impedance. This is crucial in maintaining a safe operating temperature during continuous 125A operation.
Furthermore, the planar passivation technology employed on the silicon chips acts like a protective shield against moisture and ionic contaminants. Unlike traditional glass-passivated mesas, planar junctions offer superior stability in high-temperature environments (up to 150°C junction temperature). For engineers, this translates to predictable reverse bias safe operating area (RBSOA) characteristics and reduced risk of thermal runaway. Understanding the nuances of IGBT Module input stages is essential when pairing this bridge with downstream power switches.
Application Scenarios & Value
Achieving System-Level Benefits in Industrial Power Supply Units
In the design of Variable Frequency Drives (VFD) and Uninterruptible Power Supplies (UPS), the VBO125-12NO7 serves as the critical primary rectification stage. A frequent challenge for engineers is managing the heat generated during full-load operation in enclosed cabinets. By leveraging the low forward voltage drop (Vf) of 1.28V at 150A, designers can significantly reduce total conduction losses, thereby downsizing the cooling requirements and improving the overall efficiency of the power conversion system.
In battery charging systems for electric material handling equipment, the module's 1200V rating provides ample margin against line voltage transients. For systems requiring even higher current handling or phase control, the related MCC200-16IO1 offers expanded capabilities within the Thyristor Module family. For those performing maintenance or prototyping, a practical field guide on component testing is often a valuable resource for ensuring long-term system reliability.
Whether integrated into a DC power supply for welding or a solar inverter input stage, the VBO125-12NO7 provides a high-reliability, UL-certified solution that streamlines compliance and accelerates time-to-market for demanding industrial projects.
