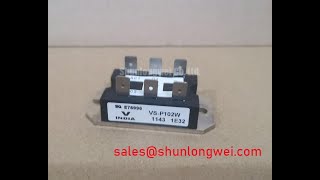

Vishay VS-P102W Thyristor/Diode Module: Engineering Reliability into Power Control Circuits
M2. Introduction & Key Highlights
A Foundation for Simplified, Reliable Power Design
The Vishay VS-P102W is a robust Thyristor/Diode module designed for superior reliability and simplified thermal management in demanding power control applications. It delivers a balanced performance with key specifications of 600V | 25A | 375A ITSM. Core engineering benefits include a streamlined assembly process and enhanced operational stability. This module directly answers the need for simplified mounting of bridge rectifiers by incorporating an electrically isolated baseplate, eliminating the need for separate insulating hardware. For industrial battery chargers and power supplies requiring proven long-term performance, the VS-P102W's construction offers an optimal design choice.
B3. Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
The technical specifications of the VS-P102W highlight its suitability for controlled AC/DC conversion where reliability is paramount. The combination of its voltage rating, current handling, and thermal characteristics makes it a stable component for industrial environments.
| Key Electrical & Thermal Specifications | |
|---|---|
| Parameter | Value |
| Output Characteristics | |
| Repetitive Peak Reverse Voltage (VRRM) / Off-State Voltage (VDRM) | 600 V |
| Rated Average On-State Current (IT(AV)) | 25 A |
| Surge & Overload Capability | |
| Surge Current Rating (ITSM) @ 60 Hz | 375 A |
| I²t for Fusing | 580 A²s |
| Control & Triggering | |
| Maximum Gate Trigger Current (IGT) | 60 mA |
| Maximum Gate Trigger Voltage (VGT) | 2 V |
| Thermal & Mechanical | |
| Operating Junction Temperature Range (TJ) | -40 °C to 125 °C |
| Package Type | PACE-PAK (D-19) |
Download the VS-P102W datasheet for detailed specifications and performance curves.
B2. Application Scenarios & Value
Achieving System-Level Benefits in Industrial Power Conversion
The VS-P102W is engineered for applications where controlled power and long-term dependability are critical. Its primary value lies in simplifying the thermal design of medium-power systems. For OEM engineers developing industrial battery chargers, a key challenge is managing the heat generated by power components while keeping the assembly process efficient. The VS-P102W's electrically isolated baseplate directly solves this. What is the primary benefit of its isolated base? It allows the module to be mounted directly to a heatsink without needing fragile and thermally inefficient insulating pads, reducing both assembly time and thermal resistance.
This design makes it an excellent fit for:
- Industrial and commercial battery charging systems
- AC/DC converters for power supplies
- Motor soft starters and other AC phase control circuits
- Regulated power sources for welding equipment
The inherent robustness of the glass-passivated SCR junctions ensures stable performance even with fluctuating line and load conditions typical in these environments. For systems requiring higher current handling in a similar package, the related SKKD162/16 offers a significantly higher current rating.
B7. Frequently Asked Questions (FAQ)
Engineering Insights for Practical Implementation
How does the electrically isolated baseplate on the VS-P102W impact thermal design and assembly?
The isolated baseplate significantly simplifies the manufacturing process. It eliminates the need for a separate, often fragile, insulating wafer between the module and the heatsink. This not only reduces the bill of materials (BOM) and assembly time but also creates a more direct and reliable thermal path, improving heat dissipation and overall system reliability. It's a key feature for achieving a cost-effective and robust thermal solution.
What is the significance of the 375A surge current rating (ITSM) for a 25A module?
The high surge current rating is a critical reliability feature. Think of it as the module's ability to withstand a brief, powerful punch of current, such as the inrush current when a large capacitor bank is charged or a motor starts. A robust ITSM like 375A ensures the device survives these predictable but stressful events without degradation, which is essential for the long service life expected in applications like industrial power supplies and motor controllers. For more information on device ruggedness, a leading manufacturer like Vishay provides extensive application support.
Final Engineering Considerations
For engineers and procurement specialists seeking a reliable, field-proven SCR module that simplifies manufacturing and enhances thermal performance, the VS-P102W presents a compelling solution. Its integrated design and robust electrical characteristics provide a solid foundation for a wide range of medium-power control applications.
