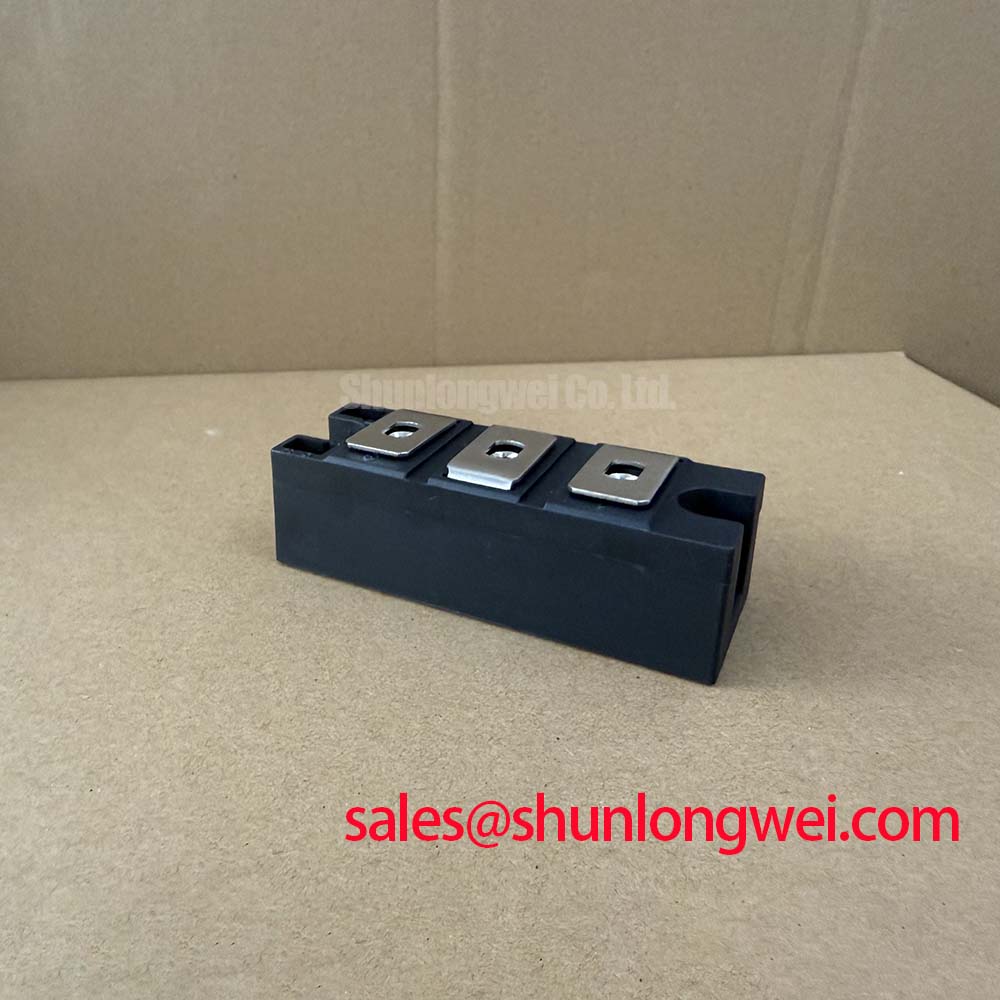

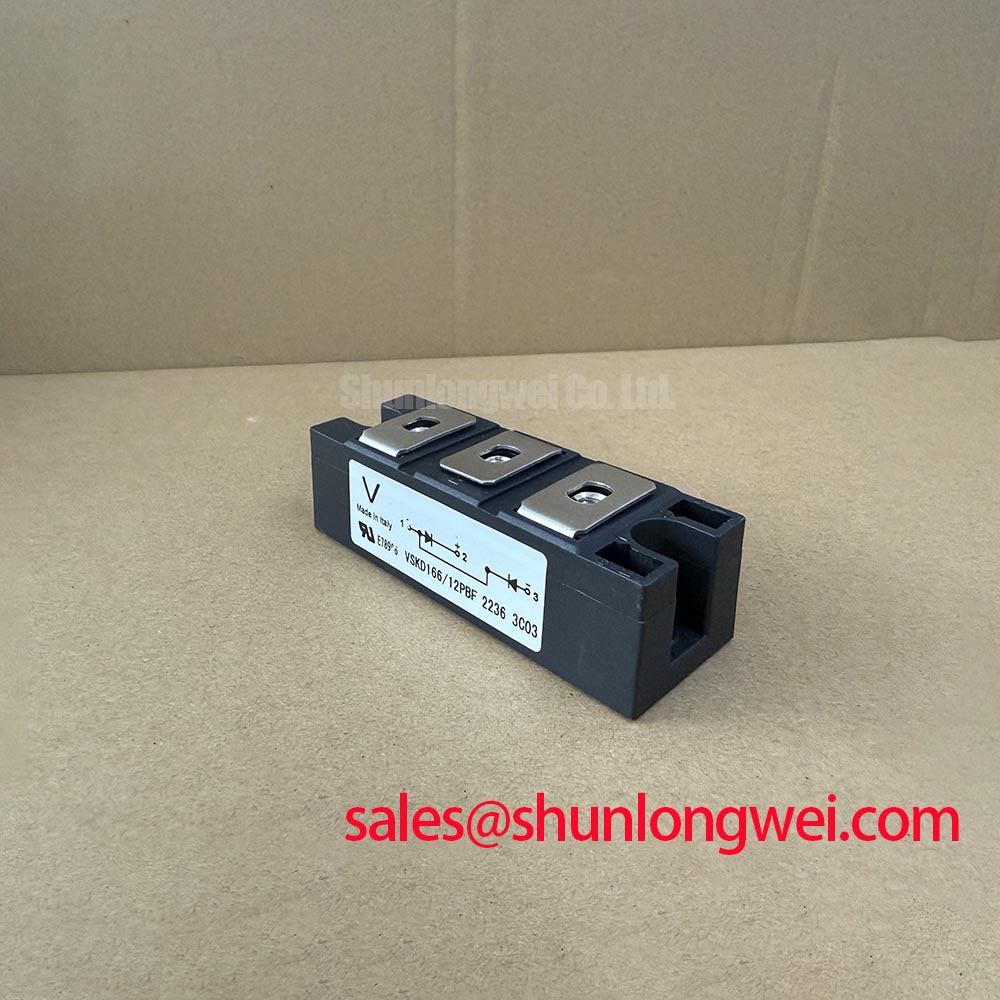

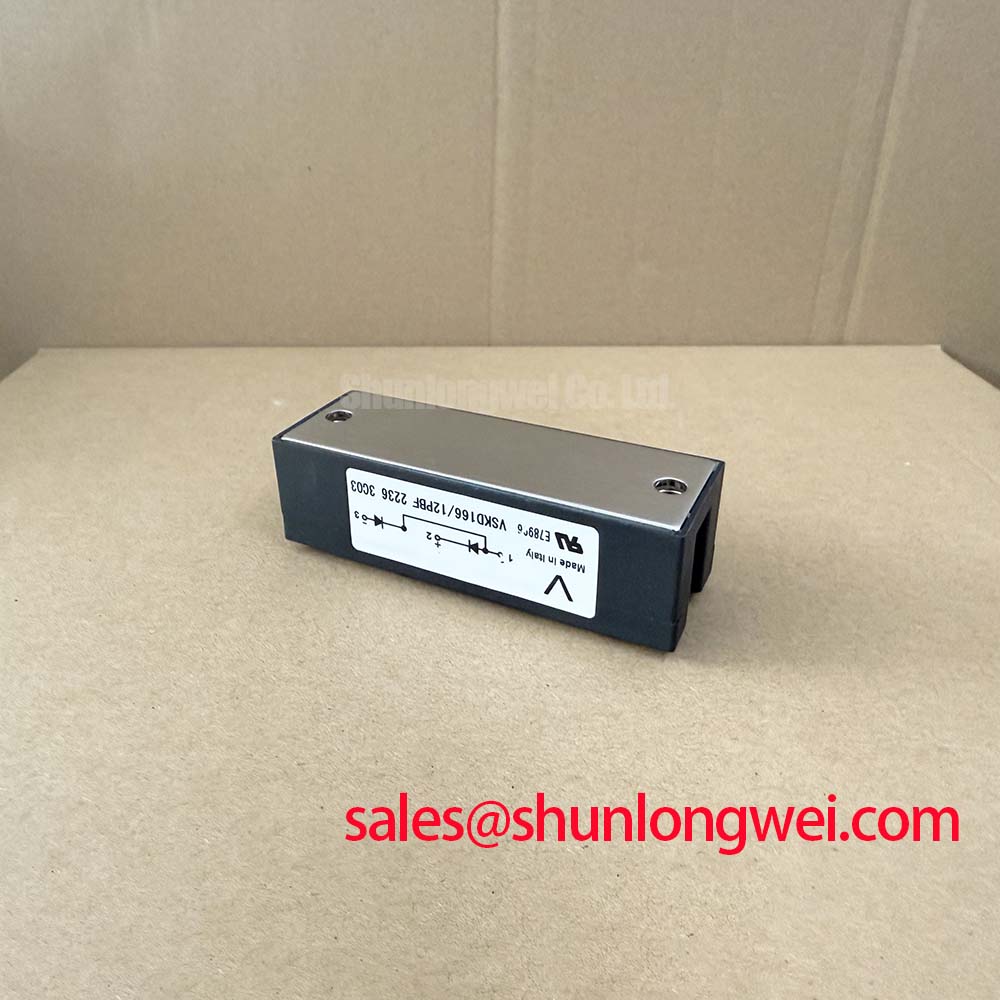

VSKD166/12PBF Vishay 1200V 165A Standard Recovery Dual Diode Module
The VSKD166/12PBF leverages the rugged INT-A-PAK design to deliver robust 1200V, 165A rectification for heavy-duty industrial power networks. 1200V VRRM | 165A IFAV | 3000V RMS Isolation. Eliminates thermal fatigue. Simplifies heatsink mounting. For engineers replacing legacy components, this module serves as the exact drop-in replacement for the IRKD166/12PBF, guaranteeing identical thermal and electrical properties. What is the primary benefit of the INT-A-PAK design? It provides exceptional thermal cycling capability to prevent fatigue in high-stress applications.
Application Scenarios & Value
Solving High-Surge Challenges in Heavy-Duty Rectification
For 400V to 480V line rectifiers prioritizing thermal margin, this 1200V, 165A module is the optimal choice. Engineers often face severe inrush currents when designing front-end rectification for heavy machinery. When an induction motor starts, the initial current draw can easily exceed normal operating levels by several multiples. The VSKD166/12PBF addresses this directly with its high forward surge capability, preventing junction degradation during these harsh starting phases.
This component is widely deployed in topologies such as the AC motor soft starter and the VFD rectifier front-end. In a VFD rectifier block, the diode bridge is tasked with converting the incoming alternating current into a stable direct current bus. The VSKD166/12PBF handles the continuous ripple current effortlessly while minimizing conduction losses. Furthermore, it operates efficiently within UPS bypass circuits where reliability is paramount. While this model provides 165A capability, systems requiring lower current handling might utilize the related MDD95-12N1B. Conversely, for alternative 1600V packaging, the SKKD162/16 presents a viable option.
Technical Deep Dive
Decoding the INT-A-PAK Thermal Cycling Advantage
Thermal degradation remains a primary failure mode in power semiconductors. The VSKD166/12PBF counters this through its specialized INT-A-PAK packaging. This architecture features an isolated baseplate rated at 3000V RMS. You can think of this isolated baseplate as a thermal highway with a built-in electrical toll booth—it allows heat to pass freely into the heatsink while completely blocking the hazardous electrical voltage. This structural advantage allows multiple modules to be mounted on a common heatsink, simplifying system-level thermal management and reducing overall footprint.
Internally, the die attach methodology is optimized for extreme load variations. During operation, heavy industrial loads cause rapid heating and cooling cycles. Think of the internal bonding as a shock absorber in a heavy-duty truck, expanding and contracting dynamically with load changes without breaking. This is vastly superior to rigid connections that snap under continuous thermomechanical stress. The junction-to-case thermal resistance is kept strictly minimized. By reducing the thermal impedance path, heat dissipates rapidly into the ambient environment, preventing localized hot spots on the silicon die. Consequently, the module delivers superior longevity in demanding environments compared to standard solder-based alternatives. You can explore more on reliability testing in our field engineer's handbook.
Key Parameter Overview
Critical Specifications for 1200V Line Rectification
To support rapid evaluation, the table below highlights the most critical metrics defining the operational boundaries of this dual diode module.
| Core Metric | Value | Engineering Impact |
| Repetitive Peak Reverse Voltage (VRRM) | 1200V | Provides sufficient overhead for 480V AC industrial grids, resisting line transients. |
| Average Forward Current (IFAV) | 165A | Supports continuous heavy loads in motor drives without exceeding thermal limits. |
| Isolation Voltage (Visol) | 3000V RMS | Ensures safe mounting on grounded heatsinks, simplifying compliance and assembly. |
| Package Type | INT-A-PAK | Delivers superior thermomechanical stability for repetitive high-stress cycles. |
Download the VSKD166/12PBF datasheet for detailed specifications and performance curves.
Frequently Asked Questions
Expert Answers on the VSKD166/12PBF Diode Performance
- What is the difference between the VSKD166/12PBF and the legacy IRKD166/12PBF?
There is no technical difference. Following corporate acquisitions, Vishay transitioned the legacy International Rectifier prefix to VS. The specifications, dimensions, and thermal capabilities remain completely identical. - How does the 1200V VRRM rating impact its deployment in 480V AC networks?
A 480V AC line possesses a peak voltage of approximately 678V. The 1200V rating provides a substantial safety buffer against voltage spikes and switching transients, ensuring the diodes do not enter avalanche breakdown. - Why is the INT-A-PAK isolated baseplate critical for system integration?
It allows designers to mount multiple active power modules directly onto a single, uninsulated metallic heatsink. This dramatically lowers assembly time and enhances the thermal design efficiency of the entire rectifier block.
As industrial automation scales, the demand for zero-downtime manufacturing processes accelerates. By anchoring high-power rectifier stages with resilient components like the VSKD166/12PBF, organizations can secure long-term operational continuity. Selecting appropriately rated INT-A-PAK modules ultimately fortifies industrial infrastructure against unpredictable thermal and electrical stresses, optimizing total lifecycle returns.
