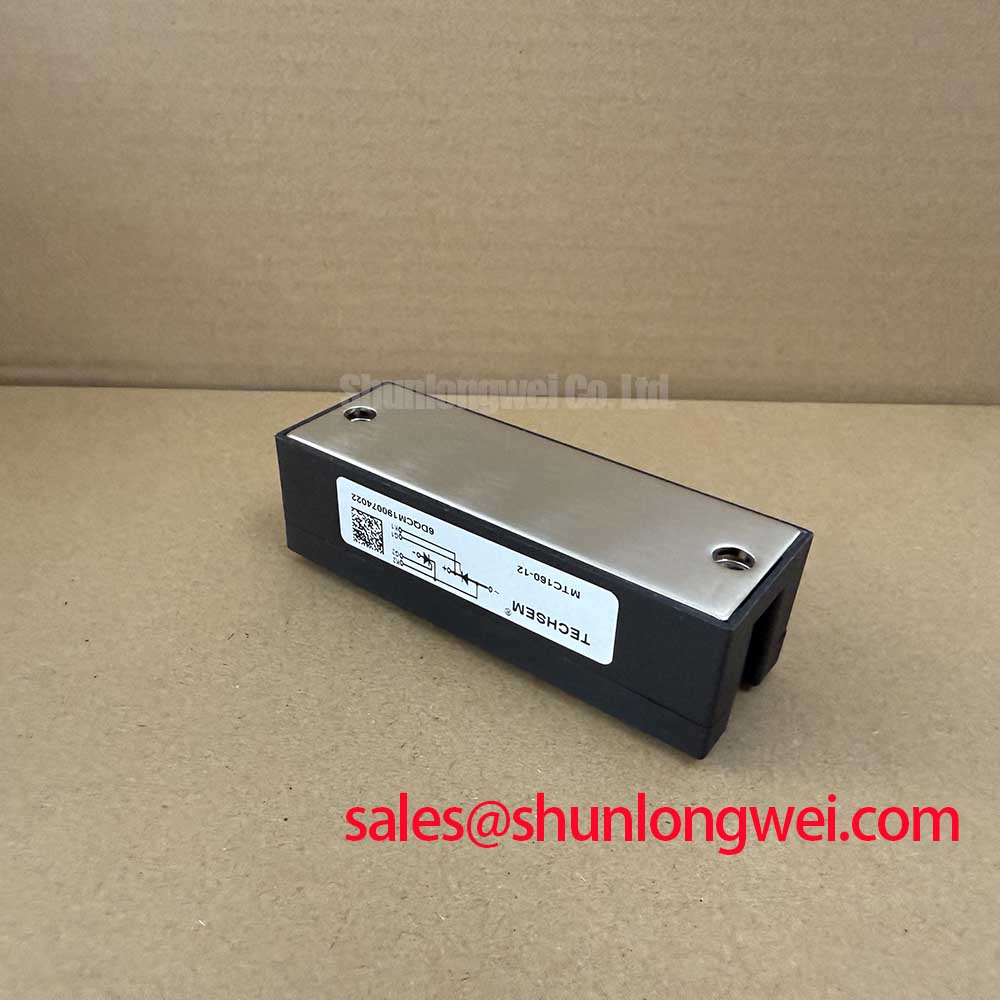

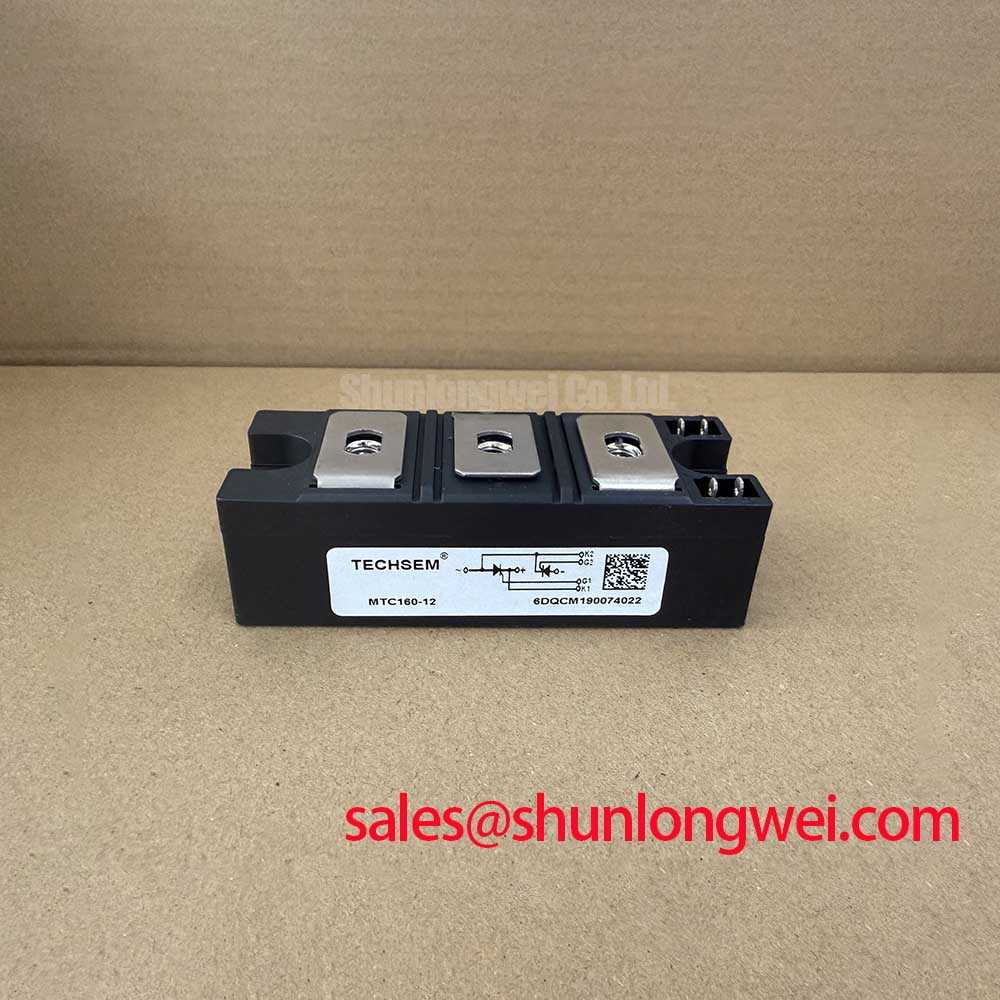

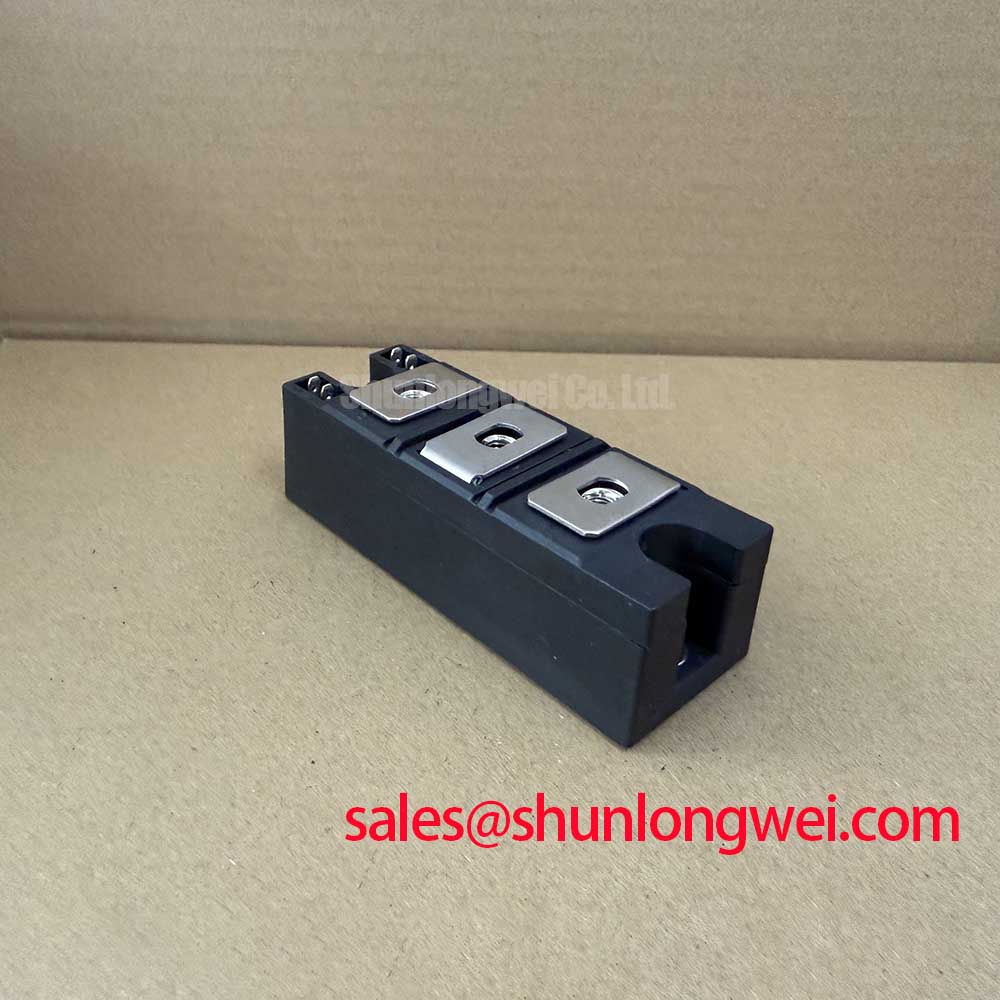

TECHSEM MTC160-12 Thyristor Module: High-Performance SCR Solution for Industrial Phase Control
The MTC160-12 is a robust dual-thyristor (SCR) module designed for high-efficiency power conversion and precise phase control in demanding industrial environments. Featuring a 1200V repetitive peak off-state voltage and a 160A average on-state current rating, this module is specifically engineered to handle the rigorous thermal cycling and surge requirements of industrial automation and power supplies. By utilizing pressure-contact technology, the MTC160-12 offers superior reliability and a significant reduction in thermal fatigue compared to conventional soldered alternatives. For industrial heating applications requiring precise phase control under cyclic thermal loads, the MTC160-12 remains a benchmark for reliability.
Top Specifications: 1200V | 160A | Viso 2500V
Key Benefits: Optimized thermal cycling durability for long-term field stability; simplified mounting with an isolated baseplate for higher power density.
What is the primary benefit of its pressure-contact design? It significantly enhances long-term reliability by eliminating solder fatigue during frequent load changes.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
The following technical data represents the core operational boundaries of the MTC160-12. These parameters are critical for engineers calculating safety margins and thermal management requirements for 400V to 480V AC line applications.
| Symbol | Parameter Description | Value / Rating |
|---|---|---|
| V_RRM/V_DRM | Repetitive Peak Reverse/Off-state Voltage | 1200V |
| I_T(AV) | Average On-state Current (Tc=85°C) | 160A |
| I_TSM | Surge On-state Current (50Hz, half-sine) | 5400A |
| V_TM | Maximum Peak On-state Voltage | 1.55V |
| I_GT | Gate Trigger Current (Max) | 150mA |
| V_ISO | Isolation Voltage (A.C. 1 minute) | 2500V |
| Tj | Operating Junction Temperature Range | -40 to +125°C |
Download the MTC160-12 datasheet for detailed specifications and performance curves via the manufacturer's official technical portal.
Application Scenarios & Value
Achieving System-Level Benefits in Industrial Power Conversion
Engineers often face the challenge of managing high-inrush currents when starting inductive loads, such as large AC motors. The MTC160-12 addresses this through its high I_TSM (Surge On-state Current) of 5400A, which provides a substantial safety buffer during motor starting or transformer primary-side switching. In a typical soft-starter application, the ability to withstand these transient surges without degradation is the difference between a system that lasts for years and one that fails prematurely.
Beyond motor drives, the MTC160-12 is widely utilized in Industrial Heating Control and UPS (Uninterruptible Power Supply) systems. Its 1200V rating makes it ideal for 400V industrial lines, offering enough overhead to withstand common line voltage fluctuations and spikes. For systems requiring even higher power handling, the SKKT250/16E offers an increased current rating, while for lower power auxiliary circuits, the SKKH106/16E provides a more compact footprint.
The integration of Thyristor Modules like the MTC160-12 into modern Industrial Applications ensures compliance with strict power quality standards. By utilizing high-precision gate triggering, these modules enable smooth phase-angle control, reducing harmonic distortion in the grid. This level of control is essential for sensitive equipment in the Medical Imaging and Advanced Manufacturing sectors.
Technical Deep Dive
A Closer Look at the Pressure-Contact Design for Long-Term Reliability
One of the defining technical characteristics of the MTC160-12 is its internal construction based on Pressure-Contact Technology. Unlike traditional modules that rely on solder layers to connect the silicon die to the substrate, pressure-contact modules use mechanical force. Imagine the difference between a soldered pipe and a heavy-duty compression fitting: under extreme temperature swings (thermal expansion and contraction), solder can develop micro-cracks—a phenomenon known as "solder fatigue." In contrast, the pressure-contact interface in the MTC160-12 remains constant, providing stable Thermal Resistance (Rth) over thousands of power cycles.
This mechanical robustness is a critical factor in Thermal Management. By maintaining a uniform contact pressure across the entire surface of the thyristor chip, the MTC160-12 ensures efficient heat dissipation into the Heatsink. This stability is particularly important in Battery Charging infrastructure and Welding Power Supplies, where the load profile is highly intermittent. For a deeper understanding of how these thermal dynamics affect semiconductor lifespan, designers should consult resources on Mastering Thermal Management.
Furthermore, the MTC160-12 architecture minimizes parasitic inductance. In high-speed switching or high-frequency phase control, stray inductance can lead to voltage overshoots that threaten the Safe Operating Area (SOA). The compact internal layout of this module helps mitigate these risks, allowing for cleaner waveforms and reduced stress on snubber circuits. This makes it an excellent choice for Power Stage Design where reliability cannot be compromised.
FAQ
How does the V_ISO rating of 2500V impact system safety and design?
The 2500V isolation rating ensures that the internal electrical components are safely separated from the metal baseplate. This allows multiple MTC160-12 modules to be mounted on a single common Heatsink without the risk of short circuits between the phase control circuitry and the chassis, simplifying mechanical design and ensuring compliance with international safety standards like UL and IEC.
Can the MTC160-12 be used for 690V AC line applications?
The 1200V V_RRM rating is optimized for 400V-480V lines. For a 690V system, the peak line voltage (including a safety margin) often exceeds 1200V. In such cases, a module with a higher voltage rating, such as the MTC400A/1800V, is recommended to ensure adequate protection against voltage transients.
What is the significance of the 150mA Gate Trigger Current (I_GT)?
A maximum I_GT of 150mA defines the requirements for the gate drive circuit. It ensures that the SCR will reliably turn on even at lower temperatures. Designers must ensure that the gate pulse generator can provide a current higher than this value with a steep rise time to prevent localized "hot spots" on the silicon during the turn-on phase.
How does the surge current rating (I_TSM) relate to fuse selection?
The 5400A I_TSM rating is used to calculate the I²t value of the module. To protect the MTC160-12 against short-circuit conditions, a high-speed semiconductor FUSE must be selected with an I²t clearing value lower than the module's rated I²t. This ensures the fuse blows before the thyristor junction reaches its critical failure temperature.
The strategic selection of the MTC160-12 provides engineers with a proven solution for high-power phase control where long-term thermal stability is paramount. By aligning its 1200V and 160A capabilities with robust Pressure-Contact engineering, the module ensures maximum uptime in critical industrial processes. As global industries shift toward more efficient energy use, the precision control offered by these SCR modules becomes an essential component of the modern power electronic landscape.
