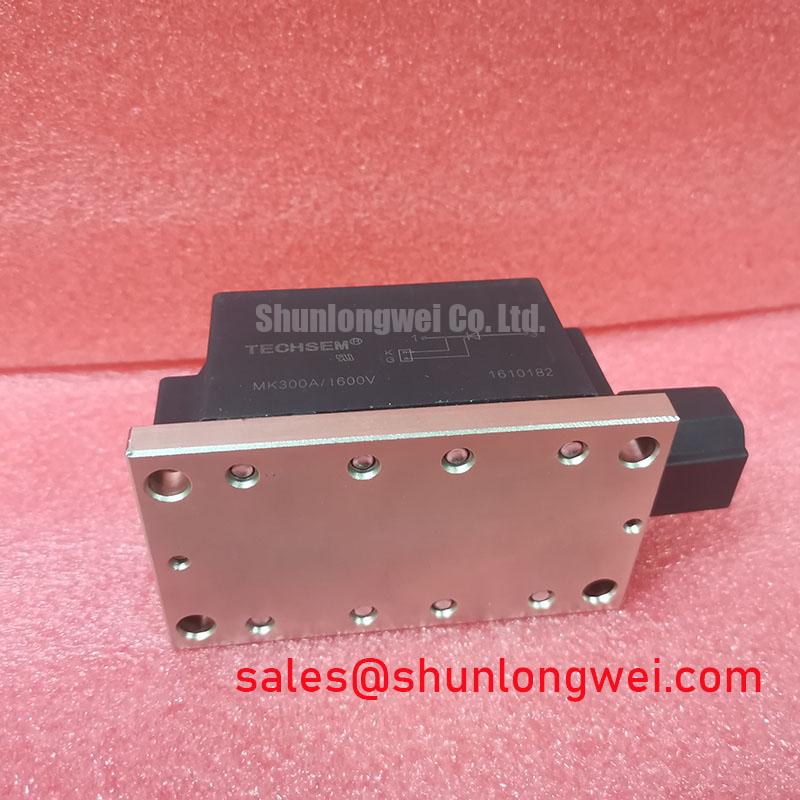

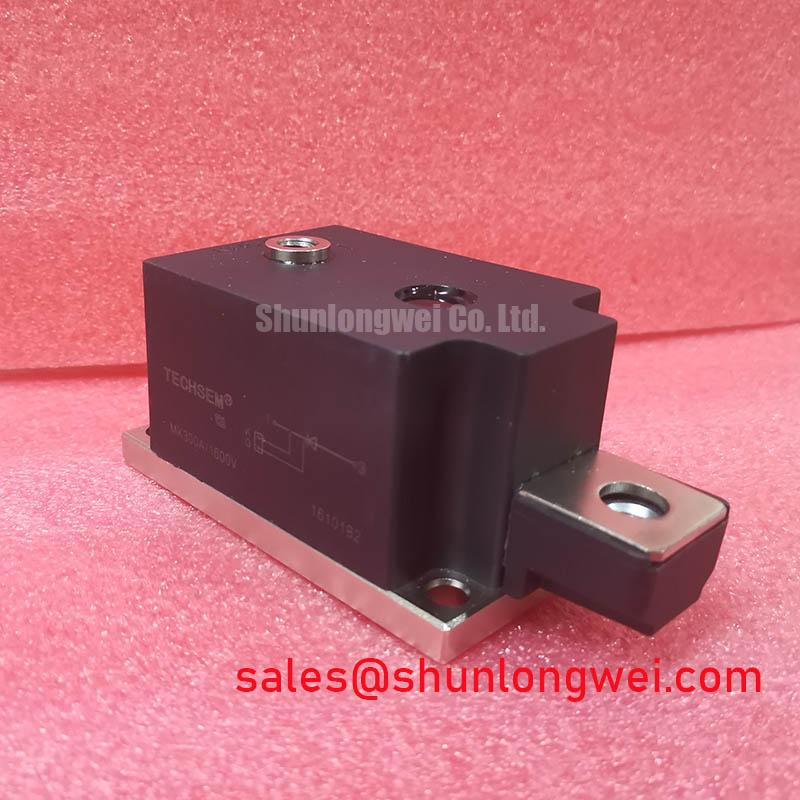

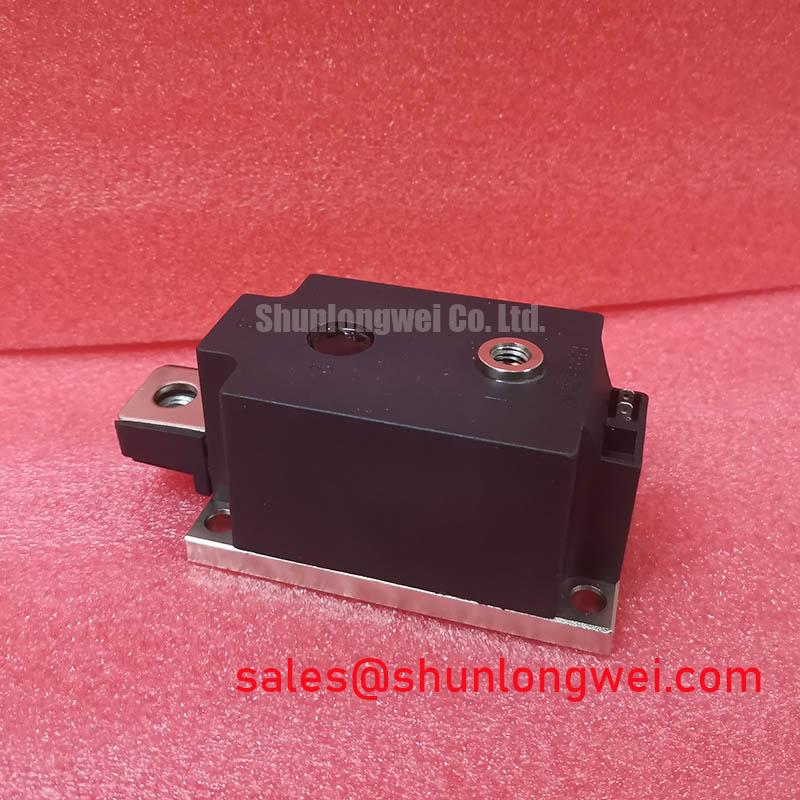

MK300A/1600V: High-Reliability Thyristor/Diode Module for Demanding Power Control
Product Overview & Key Specifications
Engineered for Thermal Stability and Simplified System Integration
The MK300A/1600V is a robust Thyristor/Diode module delivering reliable high-power phase control through superior thermal design and electrical isolation. It integrates a high-voltage silicon controlled rectifier (SCR) and a diode in a single, consolidated package, providing an essential building block for industrial power conversion systems. With its key specifications of 1600V | 300A (IT(AV)) | Electrically Isolated Baseplate, this module offers the distinct engineering benefits of simplified thermal management and enhanced operational reliability. By featuring an isolated mounting base, it directly addresses the challenge of integrating high-power components onto a common heatsink, reducing assembly complexity and improving thermal transfer efficiency. For high-power AC voltage controllers and motor soft starters requiring durable and thermally stable phase control, the MK300A/1600V provides a robust, design-friendly solution.
Application Scenarios & Value
Delivering Robust Performance in Industrial High-Current Environments
The MK300A/1600V is engineered for applications where precise control over large AC loads is critical for performance and equipment longevity. Its high voltage and current ratings make it a primary component in demanding industrial systems.
- Motor Soft Starters: In industrial motor applications, managing the high inrush current during startup is a significant challenge. The MK300A/1600V's 300A average current rating and high surge current capability (ITSM) allow it to safely manage these transient loads, providing a smooth ramp-up of motor speed. This controlled start reduces mechanical stress on gears and belts and minimizes electrical disturbances on the power line, directly contributing to extended system life and reliability.
- AC Voltage Controllers & Industrial Heaters: For processes like industrial heating, electroplating, or lighting control, maintaining a stable power output is essential. This module enables the design of efficient AC voltage controllers that can precisely regulate power delivery. Its low thermal resistance ensures that waste heat is efficiently dissipated, a critical factor for systems operating continuously at high power levels.
- Controlled Rectifiers: When used in a bridge configuration, the MK300A/1600V is fundamental to building high-current DC power supplies and battery chargers. Its 1600V blocking voltage provides a significant safety margin when operating on 380V or 480V three-phase industrial lines.
What is the benefit of the MK300A/1600V's isolated baseplate? It simplifies mounting and improves system thermal performance. While this module is ideal for a broad range of industrial loads, for systems with even greater power demands, the related MDS500A/1600V offers a higher current handling capability for scaling up system designs.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
The technical specifications of the MK300A/1600V are tailored for robust performance and long-term reliability. The following table highlights the critical parameters that engineers and procurement managers must consider for system design and component evaluation.
| Parameter | Typical Value | Significance |
|---|---|---|
| Repetitive Peak Off-State Voltage (VDRM/VRRM) | 1600V | Ensures safe operation on high-voltage industrial AC lines with a substantial margin against transient voltage spikes. |
| Average On-State Current (IT(AV)) | 300A | Defines the module's capacity for continuous high-current operation, suitable for large industrial motors and heating elements. |
| Peak On-State Voltage (VTM) | ~1.6V @ 942A | Indicates low conduction losses, which translates directly to higher energy efficiency and reduced heat generation. |
| Thermal Resistance, Junction-to-Case (Rth(j-c)) | ~0.08 °C/W (per arm) | A critical measure of heat transfer efficiency. The low value allows for effective cooling, enabling higher power density and improved reliability. |
| Isolation Voltage (Viso) | >2500V AC | The electrically isolated baseplate simplifies assembly, improves safety, and allows multiple modules to be mounted on a single, non-isolated heatsink. |
| Operating Junction Temperature (Tj) | -40 to 125°C | A wide operating range ensures reliable performance across diverse and challenging industrial environments. |
Download the MK300A/1600V datasheet for detailed specifications and performance curves.
Frequently Asked Questions (FAQ)
Engineering Considerations for the MK300A/1600V Module
How does the 1600V VDRM rating of the MK300A/1600V contribute to system reliability in industrial environments?
A 1600V rating provides a robust safety margin for systems operating on 380V or 480V AC mains. Industrial power lines are prone to voltage transients and spikes caused by switching large loads. This high blocking voltage capability ensures the module can withstand these events without breakdown, preventing catastrophic failures and enhancing overall system uptime.
What is the primary engineering advantage of the electrically isolated baseplate in the MK300A/1600V?
The main advantage is simplified thermal design and assembly. It eliminates the need for separate, often fragile, insulating pads between the module and the heatsink. This allows for direct mounting to a common, grounded heatsink, which improves heat transfer, reduces parts count, lowers assembly costs, and minimizes the risk of insulation failure over the product's lifetime.
What are the typical applications for a thyristor/diode module configuration like the MK300A/1600V?
This half-bridge configuration is highly versatile. It is commonly used in single-phase AC phase controllers, as one leg of a three-phase controlled rectifier bridge for DC power supplies, in Motor Soft Starter circuits, and for temperature control in high-power industrial ovens and furnaces. Its combination of a controllable SCR and a passive diode makes it an efficient and cost-effective solution for these applications.
Why is a low thermal resistance (Rth(j-c)) critical for a 300A module like this one?
At 300A, the module generates significant heat due to conduction losses. Thermal Resistance dictates how effectively this heat can be moved from the active silicon chip to the module's case. A low Rth(j-c) value, like ~0.08 °C/W, is crucial because it keeps the junction temperature lower for a given power dissipation. This directly translates to higher reliability, a longer operational lifespan, and the ability to operate closer to the maximum current rating without exceeding thermal limits. For a practical guide on this topic, consider reading about unlocking thermal performance.
Industry Insights & Strategic Advantage
Ensuring Uptime and Compliance in Modern Industrial Automation
In the landscape of Industry 4.0, system uptime and reliability are paramount. Unplanned downtime in an automated production line can lead to significant financial losses. The MK300A/1600V, with its robust construction and dependable performance, serves as a cornerstone component for building resilient power control systems. Its design aligns with the industry's push for durable, long-life components that minimize maintenance cycles. The module's straightforward, rugged technology provides a reliable alternative to more complex solutions in applications where precise, high-speed switching is not the primary requirement. By enabling compliance with standards for low-voltage industrial equipment, such as aspects covered under IEC 60947, this module helps engineers design systems that are not only powerful but also safe and compliant with international norms.
Application Vignette
Design Analysis: Implementing the MK300A/1600V in a Regulated DC Power Supply
Consider the design of a high-current DC power supply for an electroplating application, which requires a stable and adjustable DC voltage. A common approach is a Phase Control Rectifier circuit built with thyristor/diode modules. The engineering challenge is to achieve precise voltage regulation while managing the substantial heat generated by continuous, high-current operation. This is where the specific parameters of the MK300A/1600V provide a distinct advantage. Its low on-state voltage (VTM) acts like low friction in a mechanical system; it minimizes the energy lost as heat for every ampere of current flowing through it. This directly reduces the thermal load. Paired with its low Rth(j-c), the module efficiently transfers this reduced heat to the heatsink. This synergy allows engineers to design a more compact system, potentially using a smaller, more cost-effective heatsink, without compromising the long-term reliability required for continuous industrial operation.
Strategic Outlook
Building Cost-Effective and Reliable Power Systems
The MK300A/1600V thyristor/diode module represents a strategic choice for engineers developing high-power control systems. Its design philosophy prioritizes durability, thermal efficiency, and ease of integration, addressing the core requirements of industrial applications. By leveraging a proven technology in a thermally optimized package, this module provides a dependable and cost-effective foundation for building power stages that are designed to last. For further reading on selecting power components, a practical guide to voltage, current, and thermal management offers valuable insights applicable across power semiconductor technologies.
