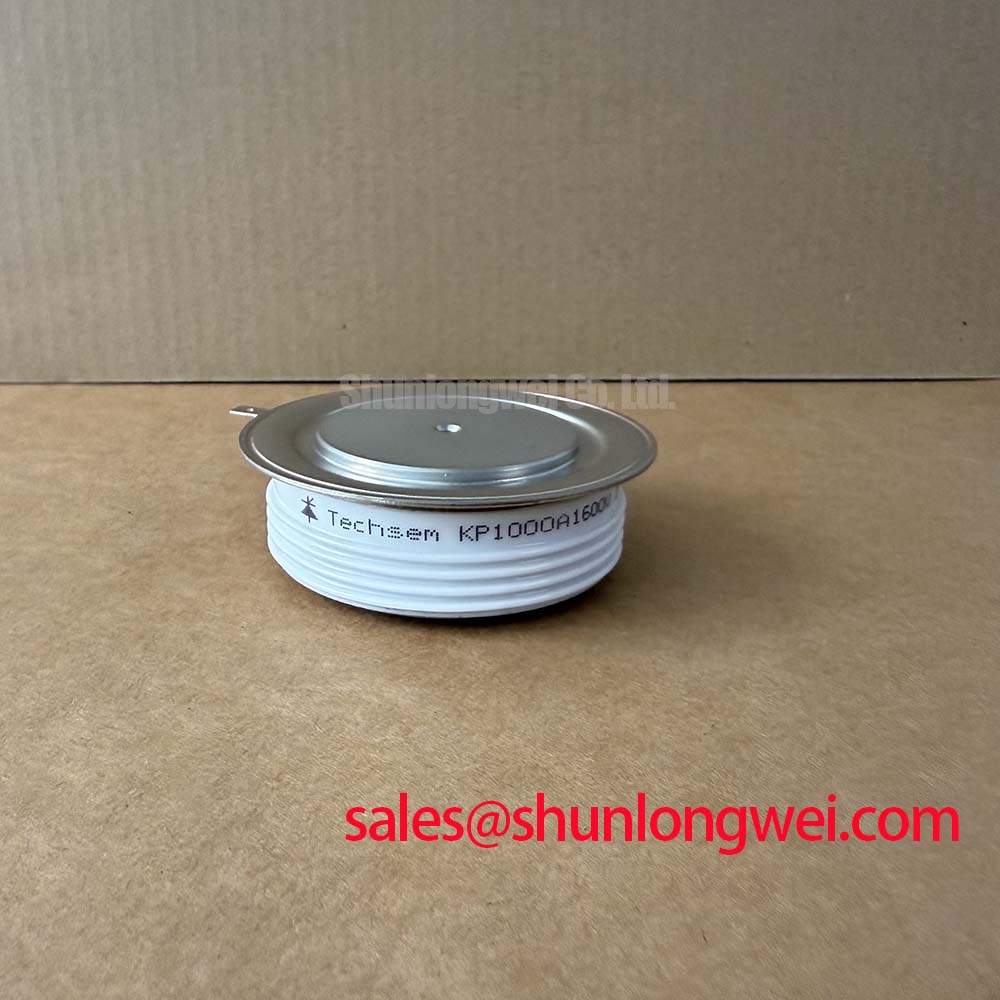

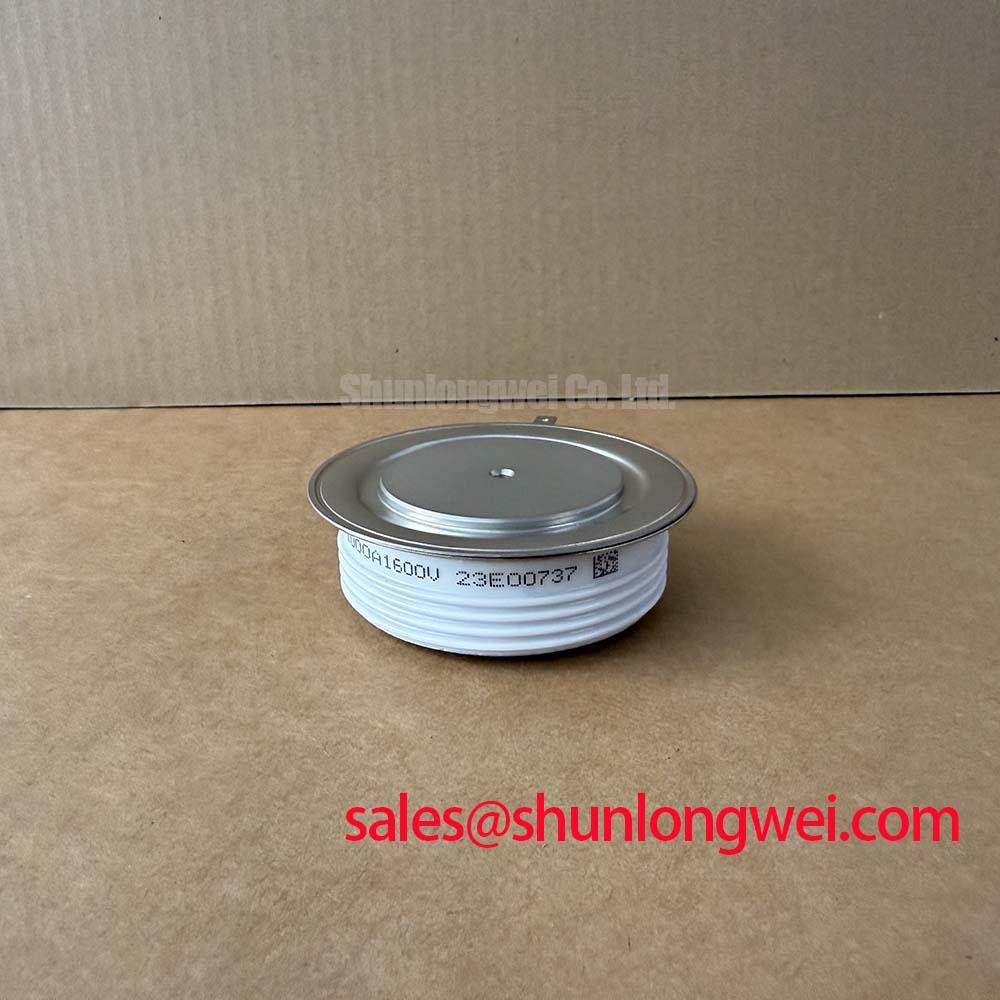

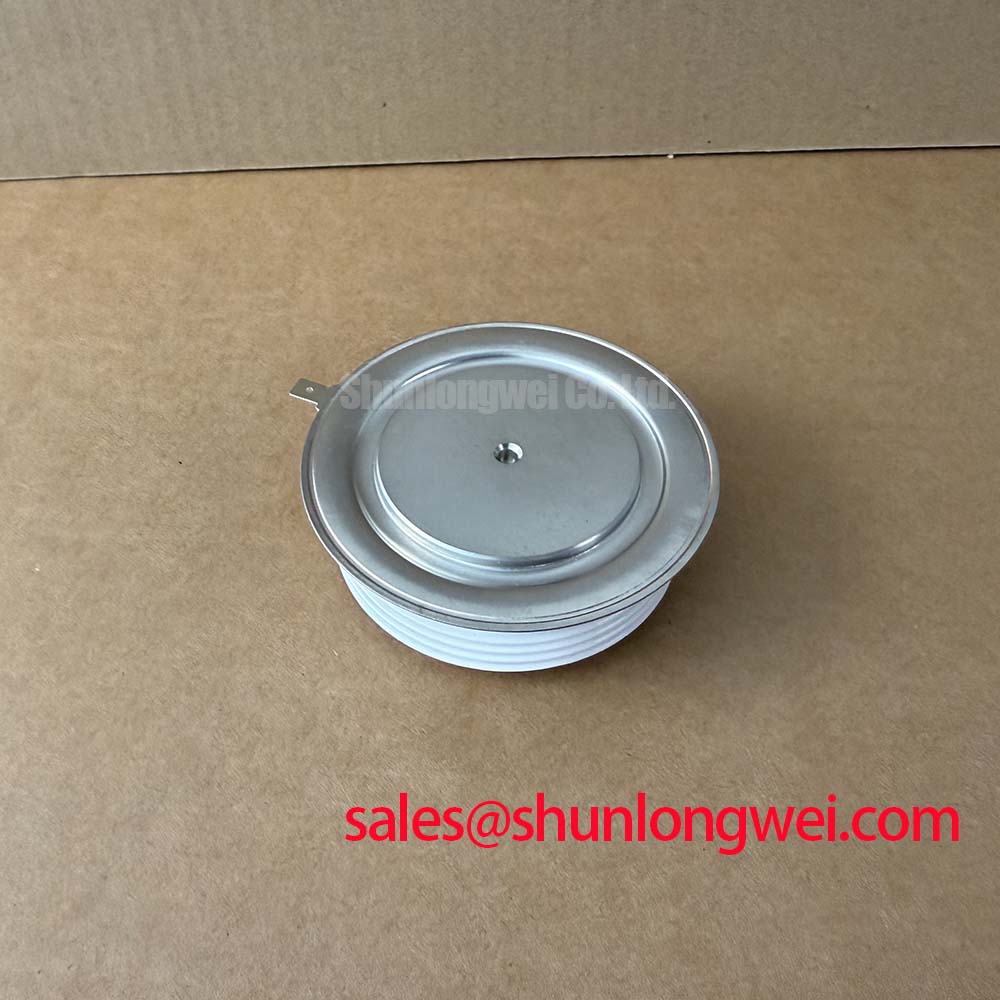

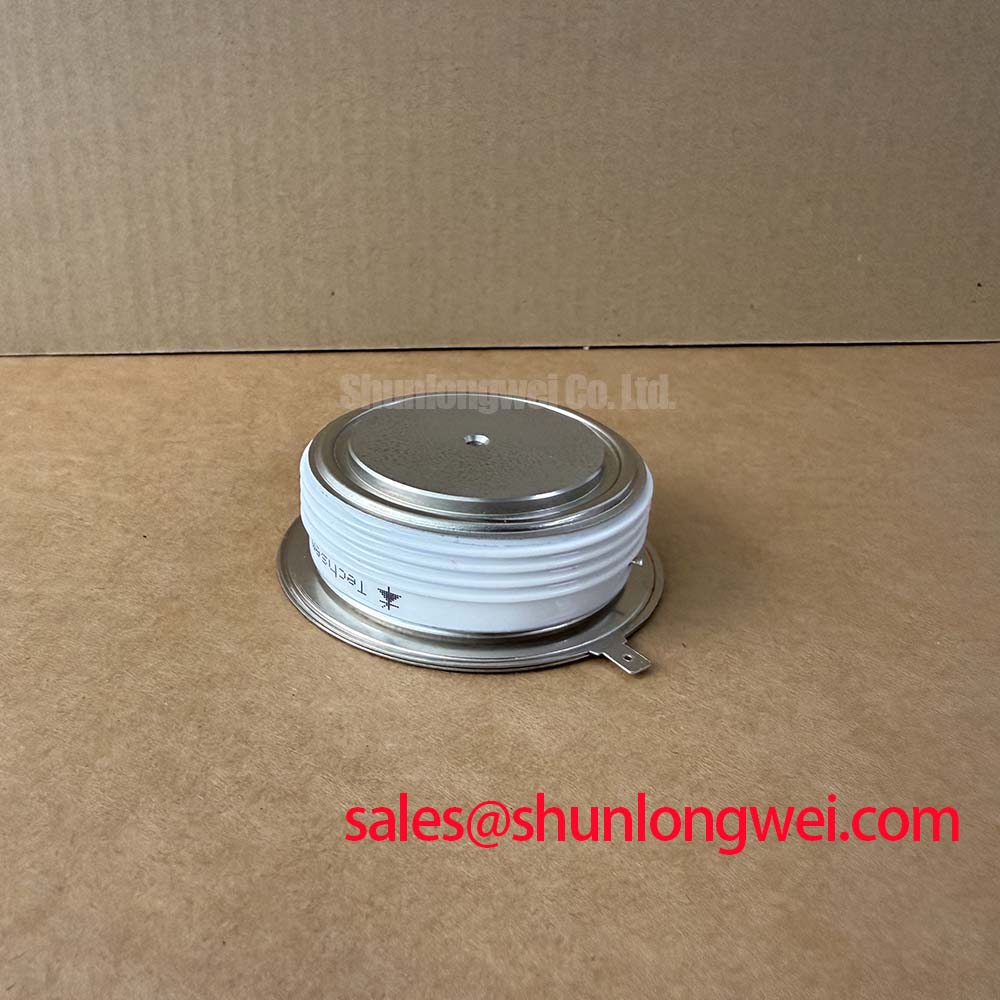

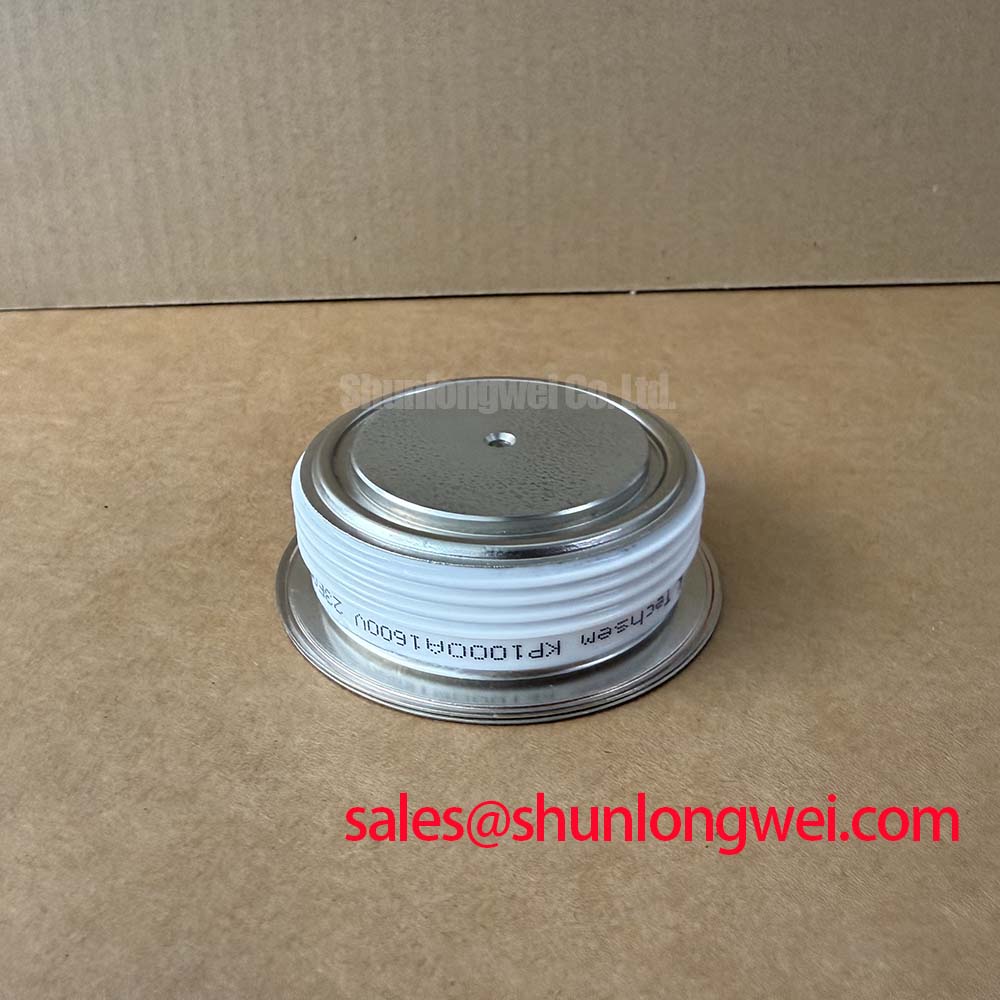

KP1000A1600V Phase Control Thyristor | High-Power 1600V 1000A Capsule SCR
How can heavy industrial systems maintain high-power rectification efficiency while ensuring long-term thermal stability under extreme current surges? This is the central challenge for engineers designing high-capacity soft starters and industrial DC drives. The KP1000A1600V addresses this through a high-reliability pressure-contact capsule design, offering a 1600V peak blocking voltage and a 1000A average on-state current. By utilizing double-side cooling, this device minimizes thermal fatigue and maximizes power density in constrained enclosures. For 400V-480V industrial line systems prioritizing voltage headroom and current margin, the KP1000A1600V is the optimal choice.
Frequently Asked Questions
Addressing Core Engineering Concerns for High-Current Applications
How does the pressure-contact capsule design of the KP1000A1600V impact long-term reliability compared to soldered modules?
The pressure-contact technology used in the KP1000A1600V eliminates the solder layer between the silicon wafer and the molybdenum buffer. In high-power cycling applications, this prevents solder fatigue—a common failure mode in standard power modules. This design ensures consistent thermal resistance ($R_{thjc}$) over thousands of cycles, making it ideal for heavy-duty industrial environments. What is the primary benefit of its pressure-contact design? It significantly enhances long-term reliability by eliminating solder fatigue and accommodating thermal expansion.
Why is a 1600V rating critical for systems operating on a standard 480V AC line?
In industrial power grids, voltage transients and inductive kickback from large motors can easily exceed twice the nominal peak voltage. A 1600V $V_{RRM}$ provides a robust safety margin, preventing catastrophic breakdown during switching events or grid instability. This rating allows the KP1000A1600V to operate reliably without requiring oversized snubber circuits, thereby simplifying the overall system layout.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
| Technical Parameter | Value / Specification | Engineering Significance |
|---|---|---|
| Repetitive Peak Reverse Voltage (VRRM) | 1600V | Ensures high voltage headroom for 400-600V AC industrial lines. |
| Mean On-State Current (IT(AV)) | 1000A | Designed for high-capacity power conversion and motor control. |
| Peak Surge Current (ITSM) | 14kA (typical) | High ruggedness against short-circuit events and startup inrush. |
| Maximum Junction Temperature (Tjmax) | 125°C | Standard industrial operating range for stable performance. |
| Mounting Force | 12–15 kN | Requires specific clamping pressure for optimal thermal contact. |
Industry Insights & Strategic Advantage
The Role of Phase Control Thyristors in Modern Power Infrastructure
As industrial automation shifts toward higher efficiency and "smarter" grid interaction, the demand for robust power semiconductor selection becomes a strategic priority. The KP1000A1600V represents a mature, high-reliability solution in the SCR (Silicon Controlled Rectifier) category. Unlike IGBTs, which are optimized for high-frequency switching, phase-control thyristors like this 1000A device excel in line-frequency applications where conduction losses and surge robustness are the dominant design constraints.
To understand the surge current rating ($I_{TSM}$), one might use the analogy of a dam's emergency spillway. While the average current (1000A) is the normal "river flow," the surge rating (14kA) is the spillway's capacity to handle a massive storm. The KP1000A1600V is designed to survive these "storms"—such as downstream short circuits—without internal damage, ensuring system uptime. Incorporating advanced failure analysis and reliability protocols into the hardware design ensures that these components remain the backbone of heavy industry for decades.
Application Scenarios & Value
Achieving System-Level Benefits in High-Power Infrastructure
Engineers often face the challenge of managing immense heat in high-current rectification stages. The KP1000A1600V is specifically designed for integration into the following high-fidelity engineering scenarios:
- Large Motor Soft Starters: Handling the massive inrush current during the startup of multi-megawatt motors. The 1000A rating provides the necessary thermal mass to absorb transient energy.
- Industrial DC Drives: Providing controllable power for steel rolling mills and mining equipment where the Safe Operating Area must be strictly maintained under variable load conditions.
- HVDC and Static VAR Compensators: Serving as the switching element in grid-scale power quality systems, where the 1600V blocking capability is essential for series-connected configurations.
For systems requiring higher current handling or different package footprints, the related MDS200A1600V offers bridge-rectified performance in a module format. Additionally, for specialized high-current thyristor needs, the SKKH106/16E and SKKT250/16E serve as complementary solutions for auxiliary power control within the same system architecture.
The KP1000A1600V ensures that high-current paths remain efficient and thermally managed. By adhering to strict clamping force requirements, designers can achieve the lowest possible contact resistance, directly translating into reduced cooling costs and a smaller total cost of ownership (TCO) for the end-user.
For procurement professionals and lead engineers evaluating power semiconductors, the KP1000A1600V stands as a benchmark for high-current reliability. Ensuring proper thermal interface management is the key to unlocking its full 1000A potential in any demanding industrial application.
