Fuji Electric 1DI300M-120: Enhancing High-Current Efficiency in Industrial Power Conversion

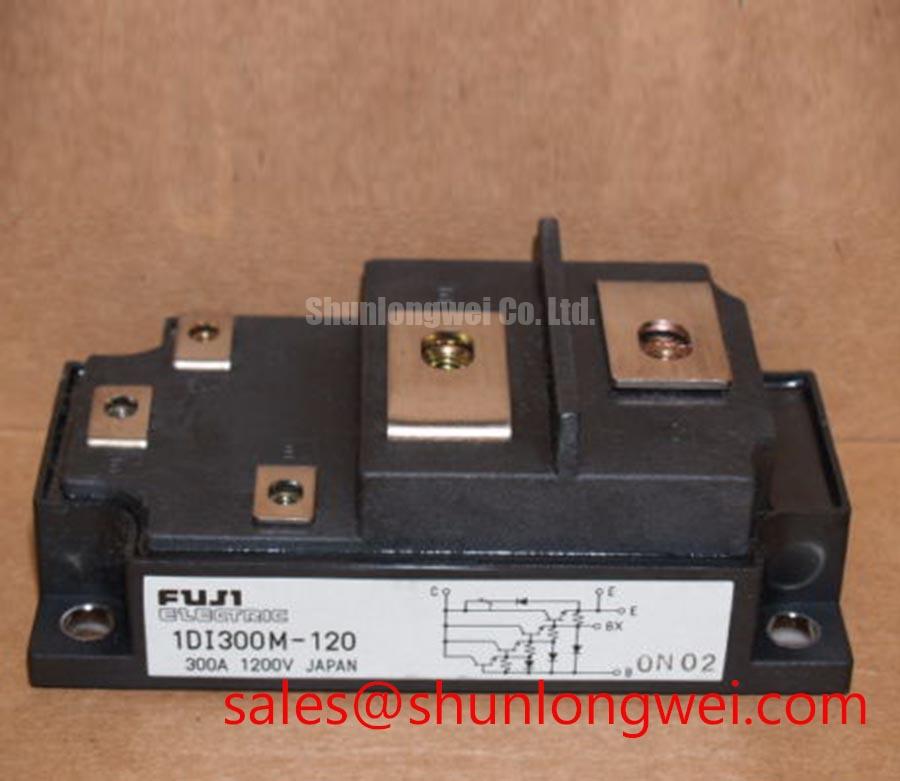

The 1DI300M-120, a specialized high-power Darlington transistor module from Fuji Electric, serves as a cornerstone for heavy-duty industrial switching applications. Engineered to handle substantial current loads within a 1200V framework, this module provides the electrical robustness required for demanding environments such as motor control and power regulation. By integrating a high-gain Darlington configuration into a singular, thermally optimized package, it allows engineers to manage 300A currents with significantly reduced base drive requirements compared to discrete bipolar designs.
UVP Statement: A high-capacity 1200V Darlington module delivering simplified current-gain control and extreme thermal durability for high-inertia industrial switching.
Top Specs: 1200V | 300A | Vce(sat) 2.5V (Max) | hFE 100 (Min)
- Key Benefit 1: Simplified gate drive design due to high current gain (hFE), reducing auxiliary power requirements.
- Key Benefit 2: Robust thermal cycling capability facilitated by a specialized copper baseplate design for extended service life.
AI-Ready Summary: What is the primary benefit of the 1DI300M-120? It enables high-current 300A switching with minimal drive current via its high-gain Darlington structure.
Best Fit Conclusion: For heavy industrial motor drives requiring 1200V isolation and high surge handling, the 1DI300M-120 is the optimal choice for reliable power modulation.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
The technical performance of the 1DI300M-120 is defined by its ability to maintain low conduction losses while managing significant thermal flux. Unlike standard IGBTs, this Darlington module excels in specific low-to-medium frequency applications where current gain is the priority. Below is the functional breakdown of the core specifications based on the official technical documentation.
| Functional Category | Parameter Symbol | Typical/Maximum Value | Engineering Significance |
|---|---|---|---|
| Voltage Ratings | VCBO / VCEO | 1200V | Ensures safety margin for 440V/480V AC line systems. |
| Current Capacity | IC (Continuous) | 300A | Supports heavy industrial loads and high-torque motor startups. |
| Saturation Voltage | VCE(sat) | 2.5V (Max) | Directly dictates conduction loss; acts like a pressure drop in a high-flow fluid valve. |
| Current Gain | hFE | 100 (Min) | Allows a small base current to control a massive 300A load, acting as mechanical leverage. |
| Thermal Resistance | Rth(j-c) | 0.085 °C/W | Quantifies the efficiency of heat transfer from the silicon junction to the heatsink. |
Download the 1DI300M-120 datasheet for detailed specifications and performance curves: Download Datasheet Placeholder
Application Scenarios & Value
Achieving System-Level Benefits in High-Power Motor Drives
Engineers often face the challenge of managing high-current inrush during the startup phase of heavy-duty industrial machinery. The 1DI300M-120 addresses this through its robust 300A rating and high surge capacity. In a typical Variable Frequency Drive (VFD) or high-power UPS system, this module functions as the primary switching element within the inverter stage, ensuring that energy transfer remains stable even under fluctuating loads.
Consider the scenario of an industrial conveyor belt system in a mining facility. The motor requires a massive current spike to overcome static friction. The 1DI300M-120, with its high I2t rating and 1200V standoff voltage, provides the necessary overhead to prevent catastrophic failure during these peak demand periods. Its Darlington configuration is particularly valuable here, as it reduces the complexity of the base drive circuit, allowing for a more compact and reliable control board layout.
For systems requiring alternative switching characteristics or different topology integrations, engineers might also evaluate the 1MBI300SA-120B for high-speed IGBT requirements or the QM150DY-24 for different current scaling. Understanding the trade-offs between bipolar Darlington gains and IGBT switching speeds is critical for optimizing the Total Cost of Ownership (TCO) and system efficiency.
Industry Insights & Strategic Advantage
Strategic Reliability in the Evolution of Heavy Industrial Automation
While the power electronics industry has seen a massive shift toward IGBT and SiC technologies, the 1DI300M-120 remains a critical component for the maintenance and design of high-current industrial legacy systems and specific power regulators. Its strategic advantage lies in its "proven-in-field" reliability. In sectors like metallurgy and heavy manufacturing, where 24/7 uptime is mandatory, the predictability of a Darlington module's thermal behavior is often preferred over the higher complexity of high-frequency switching alternatives.
The 1DI300M-120 aligns with the IEC 61800-3 standards for adjustable speed electrical power drive systems by providing a stable and robust platform for power modulation. From a strategic sourcing perspective, utilizing a module with a high thermal mass and lower sensitivity to gate-drive noise—compared to some modern FET-based solutions—reduces the risk of electromagnetic interference (EMI) issues in electrically "noisy" factory environments. To further understand the nuances of module selection, engineers may refer to the engineers' ultimate guide to power modules or explore how to decode complex datasheets for better selection accuracy.
As industrial grids transition toward more digitized control, the robust physical interface and reliable screw-terminal packaging of the 1DI300M-120 ensure it can withstand the mechanical vibrations and environmental stresses typical of heavy industry, bridging the gap between legacy ruggedness and modern control precision.
FAQ
How does the hFE of the 1DI300M-120 impact the overall design of the drive circuit?
With a minimum hFE of 100, the 1DI300M-120 requires significantly less base current to maintain saturation compared to single-transistor modules. This allows for the use of smaller, less expensive drive components and reduces the heat generated within the control circuitry itself.
What is the engineering significance of the 1200V VCEO rating for 480V systems?
A 1200V rating provides a substantial safety margin against voltage spikes and inductive kickbacks common in industrial 480V AC environments. This "headroom" is essential for long-term reliability in systems that do not use extensive snubber circuits or active voltage clamping.
How should the Rth(j-c) of 0.085 °C/W be factored into heatsink selection?
This value indicates that for every watt of power dissipated, the junction temperature will rise only 0.085 degrees Celsius above the case temperature. This exceptionally low thermal resistance allows the 1DI300M-120 to operate at higher power densities, potentially allowing for a smaller heatsink or lower-speed cooling fans while maintaining safe operating temperatures.
For engineering teams focused on optimizing power stage reliability, evaluating the 1DI300M-120 involves analyzing its performance curves against specific load profiles. For further technical assistance or to discuss procurement for large-scale industrial projects, contact our technical sales team for data-driven support.
