High-Efficiency Three-Phase Rectification: The Engineering Edge of the 36MT20A

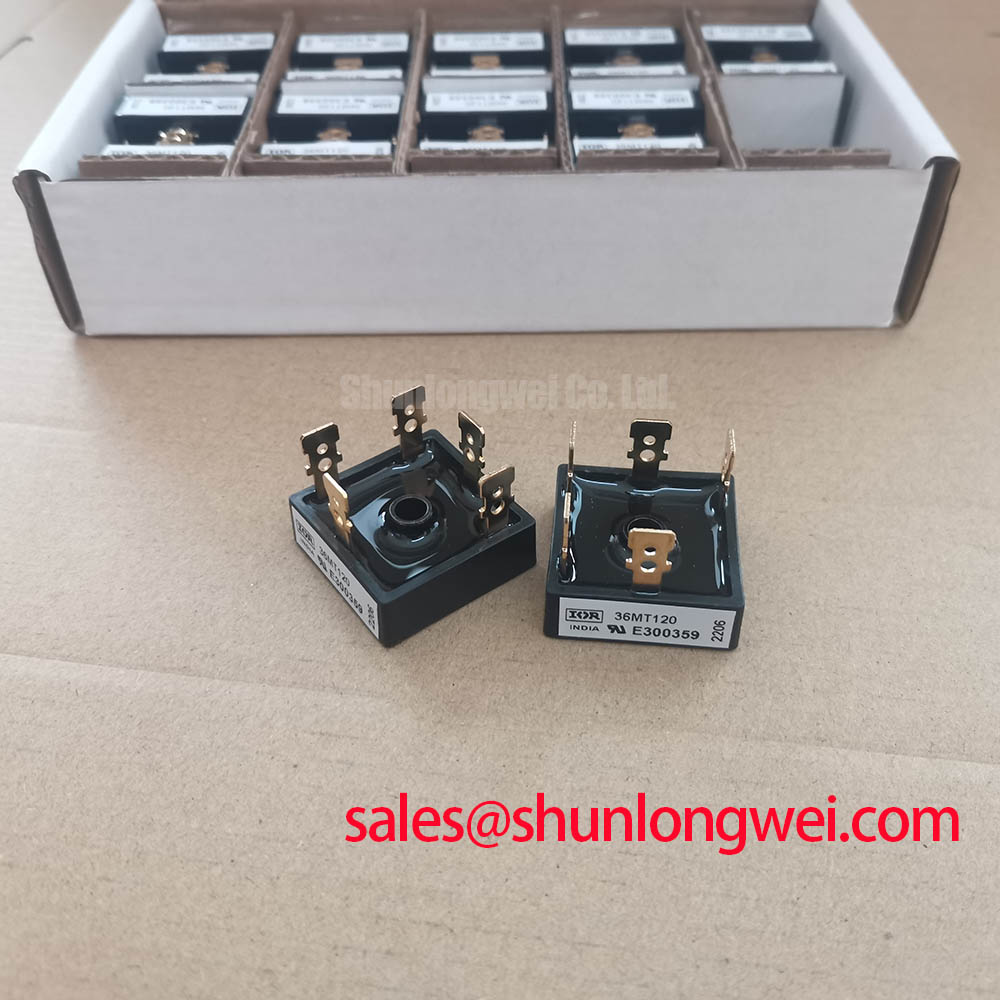

The 36MT20A, a cornerstone of the Vishay/International Rectifier Three-Phase Bridge Rectifier series, represents a precision-engineered solution for industrial power conversion where compact footprints and high thermal reliability are non-negotiable. Designed to handle a continuous output current of 35A with a repetitive peak reverse voltage of 200V, this module serves as a critical front-end component in low-to-medium voltage power systems. Its primary value proposition lies in the electrically isolated base and the high thermal conductivity of the MT-A package, which allows engineers to simplify heatsink requirements and increase power density. For systems demanding higher voltage ratings, the 1200V SKM150GB123D provides a relevant alternative for inverter-side applications. What is the primary benefit of the 36MT20A's isolated package? It enables direct mounting to a single common heatsink, significantly reducing system assembly time and complexity. For 24V or 48V DC bus systems requiring robust input rectification, this 200V module is the optimal choice.
Application Scenarios & Value
Achieving System-Level Efficiency in Industrial Power Supplies
In high-fidelity engineering scenarios, such as Battery Chargers or Welding Power Supplies, the 36MT20A addresses the critical challenge of managing surge currents during startup phases. With a non-repetitive surge current rating (Ifsm) of up to 475A at 50Hz, this bridge rectifier provides the necessary ruggedness to withstand the capacitive inrush common in DC-DC Converter stages. By utilizing the 36MT20A, designers can avoid over-specifying protective components, thereby optimizing the Total Cost of Ownership (TCO). This module is particularly effective in Variable Frequency Drive (VFD) input stages for low-voltage motors, where the 200V rating offers a safe operating margin against transient overvoltages on a standard 110V/120V AC line.
The integration of the 36MT20A into modern Servo Drive architectures is further supported by its low thermal resistance. By maintaining a junction-to-case thermal resistance (Rthjc) of approximately 1.16 K/W, the module ensures that heat generated during high-load periods is efficiently transferred to the cooling system. This thermal efficiency is comparable to the high standards found in IGBT Module designs, such as the FP25R12KE3, which focuses on minimizing switching and conduction losses. For engineers navigating the complexities of thermal management, understanding these parameters is vital. You can explore more about these principles in our comprehensive guide to power module selection.
Beyond rectification, the 36MT20A contributes to meeting global energy standards like IEC 61800-3 by reducing the complexity of the input filter stage. Its compact MT-A housing, featuring robust screw terminals, ensures reliable mechanical and electrical connections even in environments prone to vibration, such as portable power generation or marine equipment.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
The following table outlines the essential technical specifications for the 36MT20A, based on the official manufacturer documentation. These values are critical for determining the Safe Operating Area within your specific circuit topology.
| Parameter | Technical Value | Engineering Significance |
|---|---|---|
| Repetitive Peak Reverse Voltage (Vrrm) | 200V | Maximum voltage the module can block in the reverse direction. |
| Maximum DC Output Current (Io) | 35A @ Tc = 60°C | Continuous current delivery capability under standard cooling. |
| Maximum Surge Current (Ifsm) | 475A (50Hz) / 500A (60Hz) | Short-term peak current handling for inrush protection. |
| Maximum Forward Voltage (Vf) | 1.19V per diode | Dictates conduction losses and heat dissipation needs. |
| Isolation Voltage (Visol) | 2700V AC | Ensures safe isolation between terminals and the base plate. |
To interpret these figures, consider the Forward Voltage (Vf). A higher Vf is like a narrow pipe in a water system—it creates more friction, leading to energy loss in the form of heat. At 1.19V, the 36MT20A balances efficiency with the ruggedness of standard silicon junction technology.
Industry Insights & Strategic Advantage
Standardizing Reliability in Low-Voltage Power Conversion
The shift toward Industrial 4.0 and the decentralization of power distribution have placed a premium on modular components like the 36MT20A. As factory floors integrate more robotics and automated Servo Drive systems, the demand for stable DC buses has increased. The 36MT20A provides a "set-and-forget" reliability level that aligns with the long service life requirements of these systems. Strategically, using a Three-Phase Bridge Rectifier with an isolated base plate allows for a significantly higher power density compared to using discrete diodes, as it reduces the required volume for insulation and mounting hardware.
Furthermore, in the context of the global transition toward renewable energy, the 36MT20A finds utility in the auxiliary power units of wind turbine controls and solar trackers. Its compliance with the RoHS Directive and UL recognition (File E78996) makes it a preferred choice for OEMs targeting international markets. When combined with advanced gate drivers such as the SKHI 24 R for the subsequent switching stages, the 36MT20A forms the foundation of a robust, high-efficiency power architecture. For engineers seeking a deeper dive into system-level reliability, understanding the interaction between rectification stages and inverter loss reduction is essential, as detailed in our Power Electronics Masterclass.
Frequently Asked Questions
Engineering Support and Design Clarifications
- How does the Rthjc of 1.16 K/W impact heatsink selection for the 36MT20A?
A lower Thermal Resistance (Rthjc) means the module is highly efficient at moving heat away from the silicon junctions. In a 35A application, this value allows for a smaller heatsink while maintaining junction temperatures well below the 150°C limit, directly enhancing System Integration and reducing overall chassis size. - Can the 36MT20A be used in a single-phase application?
While specifically optimized for Three-Phase Rectification, the 36MT20A can technically operate in a single-phase configuration by utilizing only two of its three internal bridge legs. However, engineers should note that the current derating and thermal distribution will differ from the three-phase ratings provided in the datasheet. - What is the impact of the 2700V isolation voltage on safety certifications?
The high Isolation Voltage (Visol) of 2700V AC exceeds the requirements for most low-voltage industrial equipment. This provides a significant safety margin, simplifying the process of obtaining system-level certifications (like CE or UL) by ensuring the 36MT20A acts as a reliable barrier between the high-power AC line and the grounded chassis.
