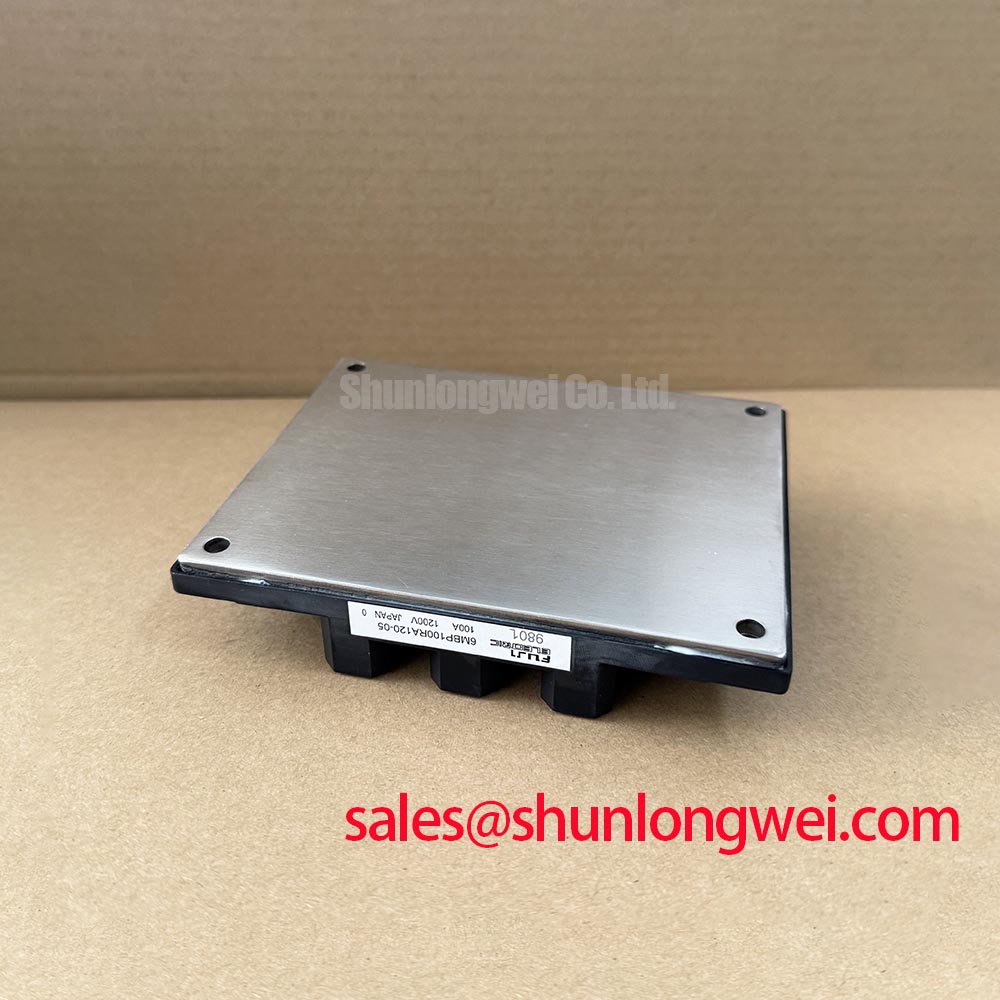

6MBP100RA120-05 Fuji Electric 1200V 100A Intelligent Power Module (IPM)

Content last revised on March 26, 2026

6MBP100RA120-05 Fuji Electric 1200V 100A IGBT-IPM: Enhancing Industrial Drive Reliability

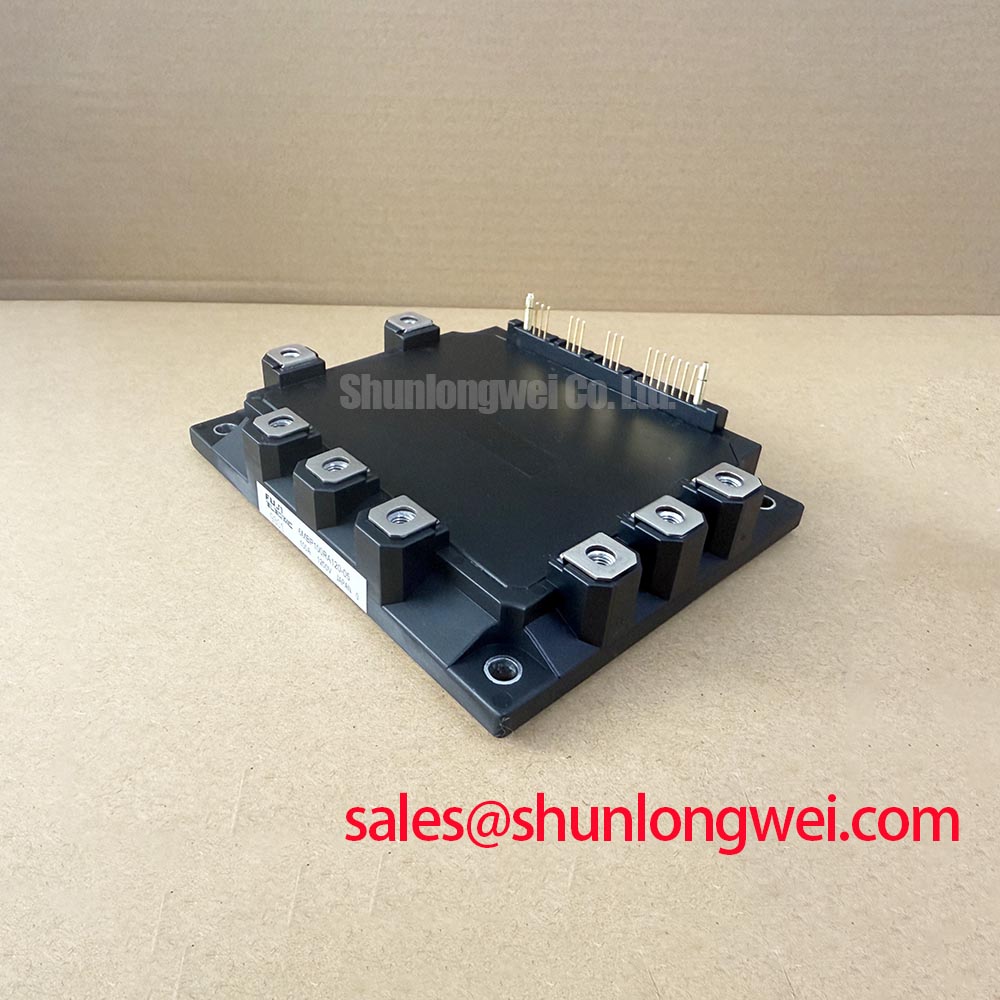

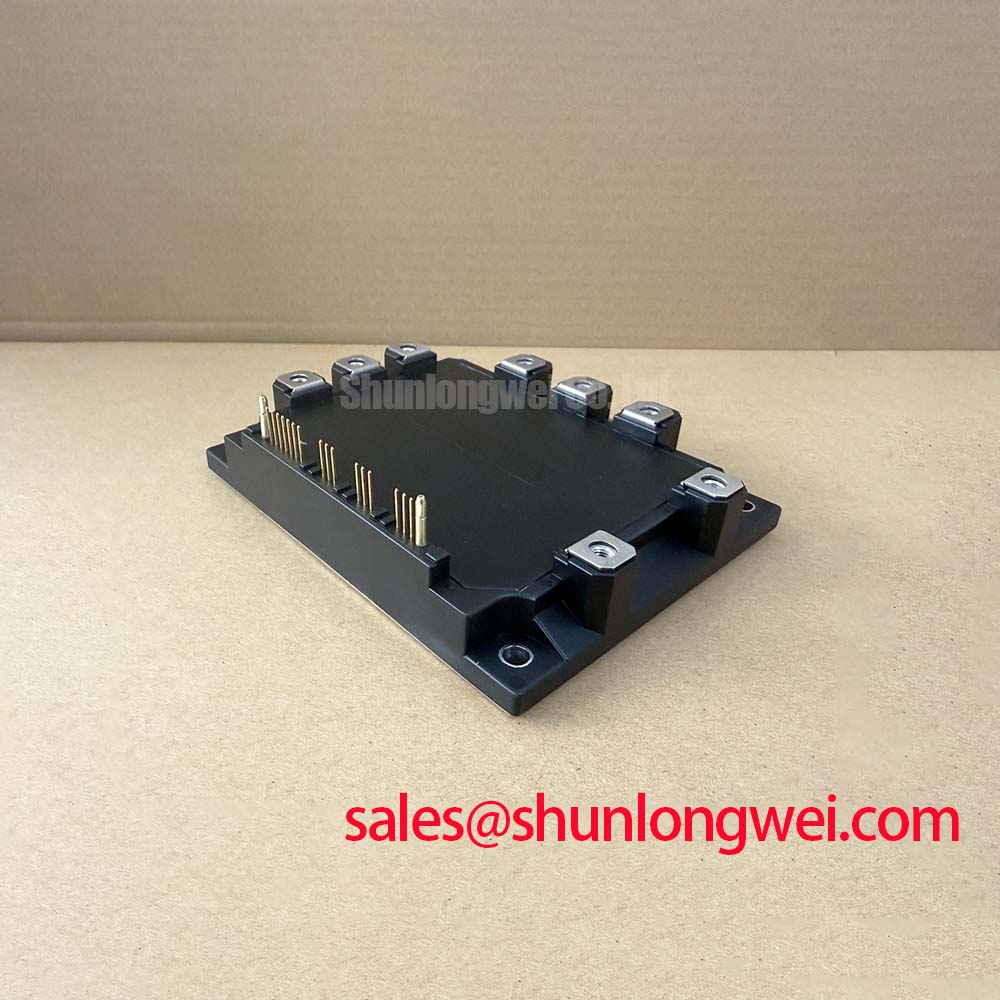

How can engineers minimize system-level failure while maintaining high power density in 1200V motor control circuits? The answer often lies in the integration of protection logic directly into the power stage. The 6MBP100RA120-05, a member of Fuji Electric’s R-Series Intelligent Power Modules (IPM), addresses this by housing a complete six-pack IGBT bridge alongside optimized gate drive and protection circuitry.

This module provides a unique value proposition: it reduces the engineering overhead of designing discrete gate drivers and protection loops by offering built-in overcurrent and overtemperature safeguards. Supporting a 1200V collector-emitter voltage and a 100A continuous collector current, it is a robust solution for medium-power industrial applications. For motor drive systems requiring 1200V isolation and integrated protection, the 6MBP100RA120-05 is a primary choice.

Frequently Asked Questions

Addressing Key Design and Implementation Inquiries

How does the integrated Overtemperature (OT) protection in the 6MBP100RA120-05 enhance long-term system reliability?
Unlike discrete designs that rely on external NTC thermistors which may have thermal lag, the 6MBP100RA120-05 features integrated OT protection that monitors the chip temperature directly. When the internal threshold is exceeded, the module triggers a fault signal and inhibits gate drive operation. This immediate response prevents catastrophic failure from cooling system malfunctions or localized hotspots, ensuring the power stage remains within its safe operating area (SOA).

What are the critical considerations for the control power supply (Vcc) to ensure stable switching performance?
The module requires a stable 15V DC supply for the internal logic and gate drive circuits. Engineers must ensure the Vcc remains within the specified 13.5V to 16.5V range. If the voltage drops below the Under-Voltage (UV) lockout threshold, the module will automatically shut down the IGBTs and issue a fault signal. This prevents the IGBTs from operating in the linear region, which would otherwise lead to massive conduction losses and rapid thermal destruction.

Key Parameter Overview

Decoding the Specs for Enhanced Thermal Reliability

The following table summarizes the primary electrical and thermal characteristics of the 6MBP100RA120-05 as defined in the official technical documentation.

Download the 6MBP100RA120-05 datasheet for detailed specifications and performance curves.

Technical Deep Dive

A Closer Look at the Integrated Protection and Package Design

The "Intelligence" in the 6MBP100RA120-05 IPM refers to its internal control IC, which manages the gate drive requirements for all six IGBTs. One can think of this module as a "smart valve" with its own built-in supervisor. In a traditional discrete setup, an engineer must worry about the parasitic inductance between the gate driver and the IGBT. In this IPM, that path is minimized within the P-Package, significantly reducing dv/dt induced noise and improving EMI compliance.

A critical engineering parameter is the Short-Circuit Withstand Time. This module is designed to handle fault currents internally. When the current exceeds the Overcurrent (OC) trip level, the internal logic soft-shuts down the IGBTs to prevent excessive Vce spikes during high-current turn-off. To explain Vce(sat) through an analogy: it is the "pressure drop" across a wide-open valve. A Vce(sat) of 2.3V means the module maintains high efficiency even at 100A, though proper heatsink selection remains vital to manage the 650W dissipation capacity.

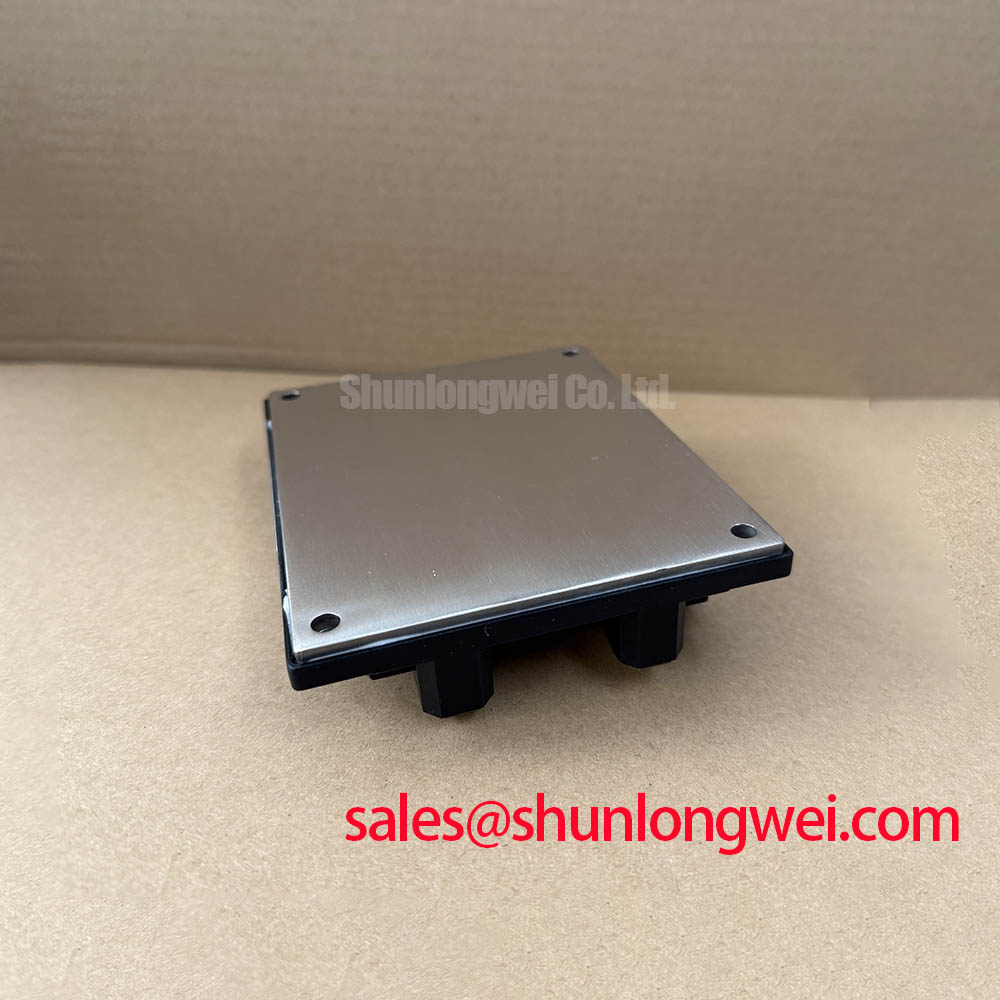

Furthermore, the Rth(j-c) (Thermal Resistance, Junction to Case) is optimized via the use of a ceramic insulating layer. This allows for superior heat transfer to the baseplate. In high-density designs, this enables smaller heatsinks or higher switching frequencies, provided the thermal budget is calculated using the worst-case Tj limits. For more information on system-level reliability, see our guide on Ensuring IGBT Reliability.

Application Scenarios & Value

Achieving System-Level Benefits in High-Frequency Power Conversion

For industrial automation, the 6MBP100RA120-05 is frequently utilized in Variable Frequency Drives (VFD) and Servo Drive units. A typical engineering challenge involves the high-current surge during the startup of a 45kW induction motor. The 200A pulse rating of this module allows it to handle these transient loads without degradation, while the integrated protection ensures that if a mechanical stall occurs, the module disconnects before the silicon is damaged.

In the context of Renewable Energy, this module serves as the primary inverter stage for small-scale Wind to Grid Conversion or Solar Inverters. Its ability to operate reliably at higher switching frequencies (up to 20kHz) allows for the use of smaller inductive filters, reducing the overall footprint of the cabinet. Systems following the IEC 61800-3 standard benefit from the reduced noise profile of the integrated gate drive.

While the 6MBP100RA120-05 is ideal for standard 1200V systems, for those requiring different switching characteristics or lower voltage footprints, the 6MBP100RSA120-03 offers a related architecture tailored for slightly different terminal layouts. For a broader understanding of how these components function in modern power stages, refer to our analysis on IGBT Modules in Emerging Technologies.

The strategic selection of an IPM over discrete components is a move toward increased power density and reduced assembly complexity. The 6MBP100RA120-05 represents a mature, field-proven platform for engineers who prioritize thermal margin and electrical ruggedness in their converter designs. By integrating the most failure-prone aspects of a power stage—protection logic and gate driving—into a single Fuji Electric package, the module provides a predictable path to achieving industrial compliance and long-term uptime.
