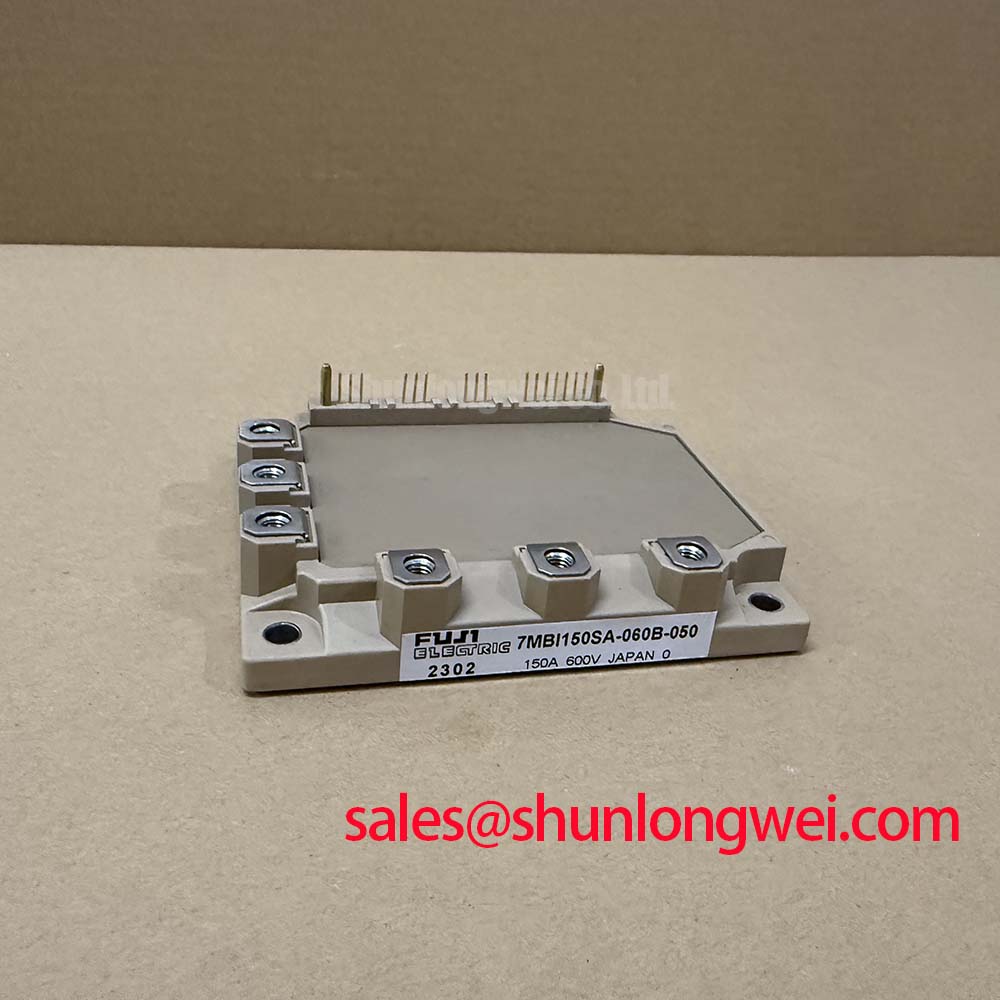

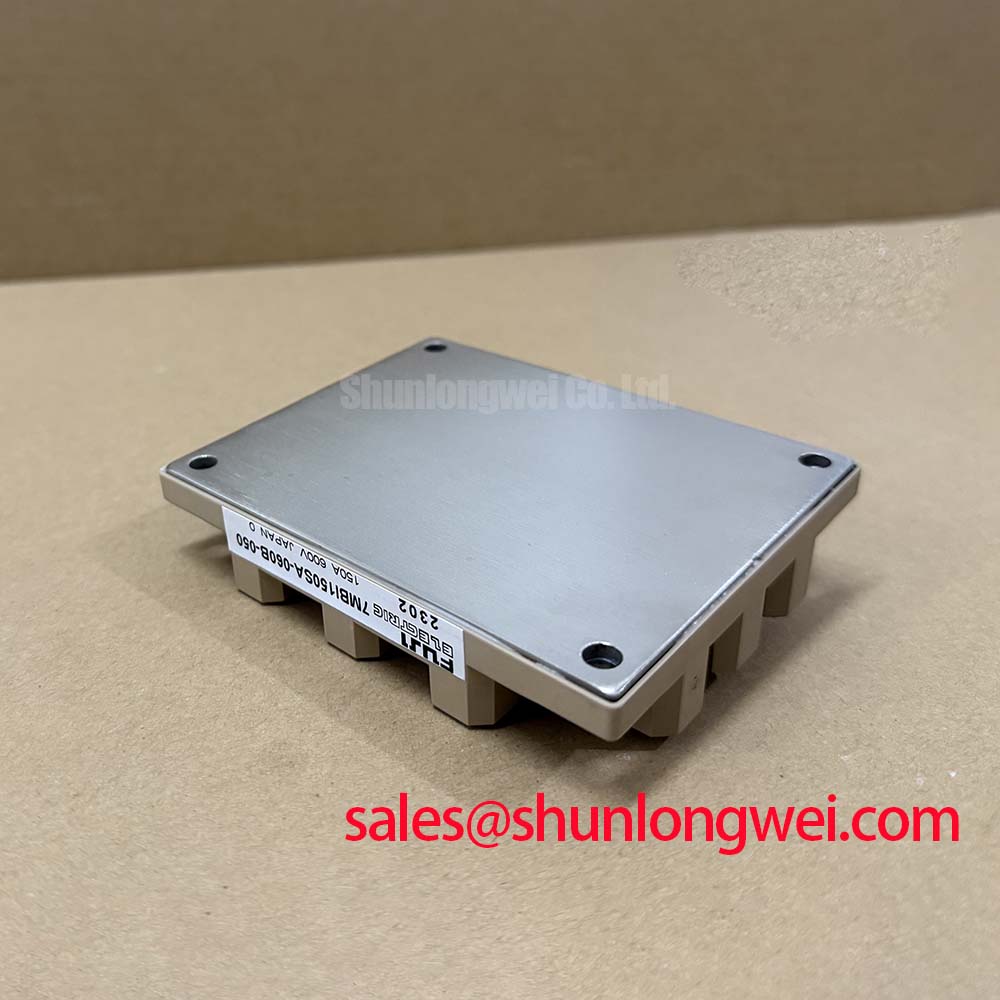

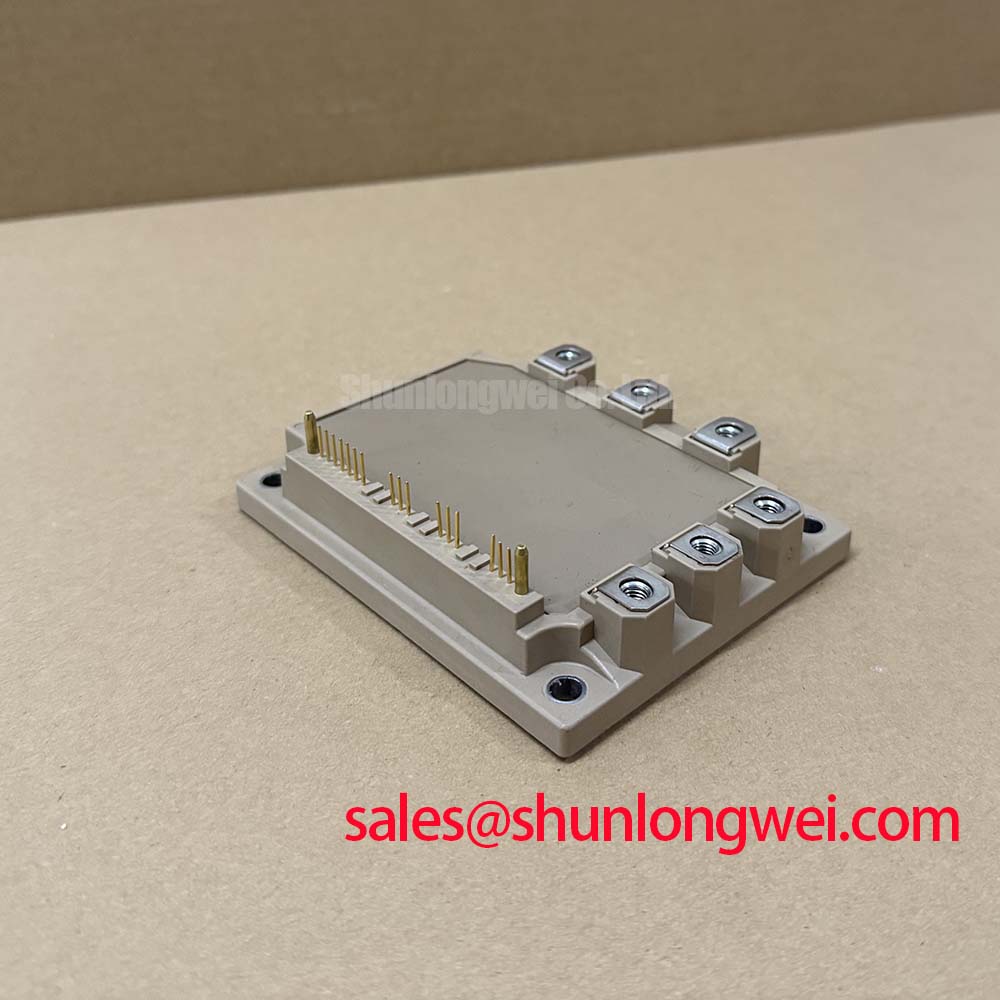

Fuji Electric 7MBI150SA-060B-050: Engineering High-Density Power Conversion
How do power system designers effectively manage high-current switching while maintaining a compact footprint in 600V industrial inverter applications? The 7MBI150SA-060B-050 provides a decisive answer through its integrated 7-pack topology, combining a three-phase inverter bridge with an auxiliary brake chopper. This Fuji Electric module is engineered to provide high current density without the thermal compromises often found in discrete-heavy designs.
The 7MBI150SA-060B-050 delivers a robust 600V collector-emitter voltage and a 150A continuous collector current rating. Key benefits include a significant reduction in stray inductance due to its integrated structure and enhanced thermal cycling capability. For industrial inverters requiring integrated braking and high current density, the 7MBI150SA-060B-050 is the engineered solution for thermal reliability. By consolidating power stages into a single SA package, it simplifies the Gate Drive layout and reduces overall bill-of-materials complexity.
Frequently Asked Questions
Engineering Insights for System Implementation
How does the Vce(sat) of the 7MBI150SA-060B-050 directly impact the efficiency of a 600V motor drive?
The 7MBI150SA-060B-050 features an optimized collector-emitter saturation voltage (Vce(sat)) typical of Fuji Electric's S-series technology. A lower Vce(sat) directly translates to reduced conduction losses during the "on" state of the IGBT. In high-duty cycle applications like Variable Frequency Drives (VFD), this reduction in heat generation allows for smaller Thermal Management solutions and increases the overall power density of the inverter stage.
What is the primary benefit of the integrated brake chopper in the 7MBI150SA-060B-050 architecture?
The inclusion of a dedicated brake stage within the 7MBI150SA-060B-050 module eliminates the need for external discrete transistors to handle regenerative energy. This integration significantly reduces the PCB area and simplifies the Gate Drive isolation requirements. By sharing the same DC-bus terminals within the module, it also minimizes the risk of voltage spikes caused by parasitic inductance during rapid braking sequences.
Key Parameter Overview
Decoding Specs for Enhanced System Reliability
| Functional Category | Technical Parameter | Value/Rating |
|---|---|---|
| Absolute Maximum Ratings | Collector-Emitter Voltage (Vces) | 600V |
| Continuous Collector Current (Ic) | 150A (at Tc=80°C) | |
| Repetitive Peak Collector Current (Icp) | 300A | |
| Electrical Characteristics | Vce(sat) at 150A (Inverter) | 2.1V (Typical) |
| Gate-Emitter Threshold Voltage (Vge(th)) | 6.0V to 9.0V | |
| Thermal & Mechanical | Thermal Resistance (Rth(j-c)) IGBT | 0.13°C/W (Maximum) |
| Isolation Voltage (Viso) | 2500V AC (1 minute) |
Technical Deep Dive
Thermal Resistance and the Physics of S-Series Performance
The 7MBI150SA-060B-050 utilizes Fuji Electric's advanced S-series chip technology, which employs a optimized planar structure designed for a superior trade-off between switching speed and durability. To understand the engineering value, consider the Thermal Resistance (Rth(j-c)) of 0.13°C/W. In thermal design, Thermal Resistance acts much like electrical resistance in Ohm's Law; it determines how much the junction temperature will rise for every watt of power dissipated. A lower Rth(j-c) allows the IGBT Module to operate at higher power levels while maintaining the junction temperature (Tj) within safe limits, typically up to 150°C.
For systems that require even higher current handling or different voltage margins, engineers may evaluate the 2MBI200VA-060, which offers a 200A rating in a dual-pack configuration. However, the 7MBI150SA-060B-050 remains the preferred choice for space-constrained 7-pack requirements. Detailed thermal management strategies are essential when paralleling or pushing modules to their SOA (Safe Operating Area) limits, especially in harsh industrial environments where cooling efficiency may vary.
Application Scenarios & Value
Achieving System-Level Benefits in Industrial Motion Control
The 7MBI150SA-060B-050 is a fundamental component in high-performance Variable Frequency Drive (VFD) and Servo Drive systems. Its 7-pack configuration is particularly valuable in applications involving high-inertia loads, such as industrial centrifuges or heavy-duty conveyors. When these systems decelerate, the integrated brake chopper within the 7MBI150SA-060B-050 manages the energy return, preventing overvoltage conditions on the DC-link capacitor bank. This functionality is critical for complying with IEC 61800-3 EMC standards and ensuring long-term system stability.
In addition to motor control, this module serves effectively in Uninterruptible Power Supply (UPS) units and welding power sources where 600V isolation and high-frequency switching (typically 10kHz to 20kHz) are required. By leveraging the SA package, engineers can implement more compact heatsink designs. For those transitioning from discrete designs, understanding IPM vs. discrete IGBT tradeoffs can highlight why an integrated module like the 7MBI150SA-060B-050 offers superior reliability through reduced interconnect failures. For systems requiring alternative topologies, the 7MBR50SA060 provides a lower current alternative within the same design philosophy.
Selecting the right IGBT Module requires balancing voltage headroom, thermal dissipation, and switching losses. The 7MBI150SA-060B-050 remains a benchmark for 600V, 150A performance in the fuji power semiconductor portfolio, providing the reliability demanded by modern industrial automation.
