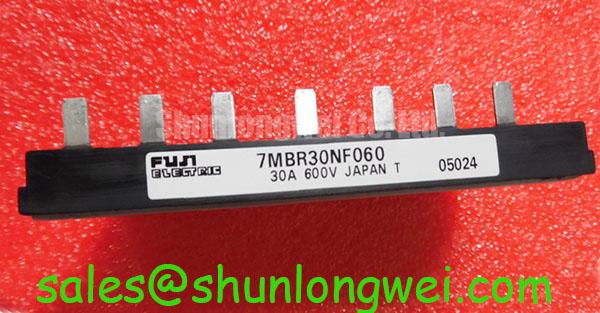

7MBR30NF060 Description
Target_Applications
7MBR30NF060 could be used in Inverter for Motoe Drive AC and DC Servo Drive Amplifier Uninterruptible Power Supply
Features
High Speed Switching Voltage Drive Low Inductance Module Structure Converter Diode Bridge Dynamic Brake Circuit
Absolute maximum ratings (Tc=25°C unless without specified)
Collector-Emitter voltage Vces:600V
Gate-Emitter voltage VGES:±20V
Collector current Ic Continuous Tc=25°C :30A
Collector current Icp 1ms Tc=25°C :60A
Collector power dissipation Pc:120W
Isolation Voltage VIsol (AC 1 minute) :2500V
Operating junction temperature Tj:+150°C
Storage temperature Tstg :-40 to +125°C
Mounting screw torque 1.7 N·m
