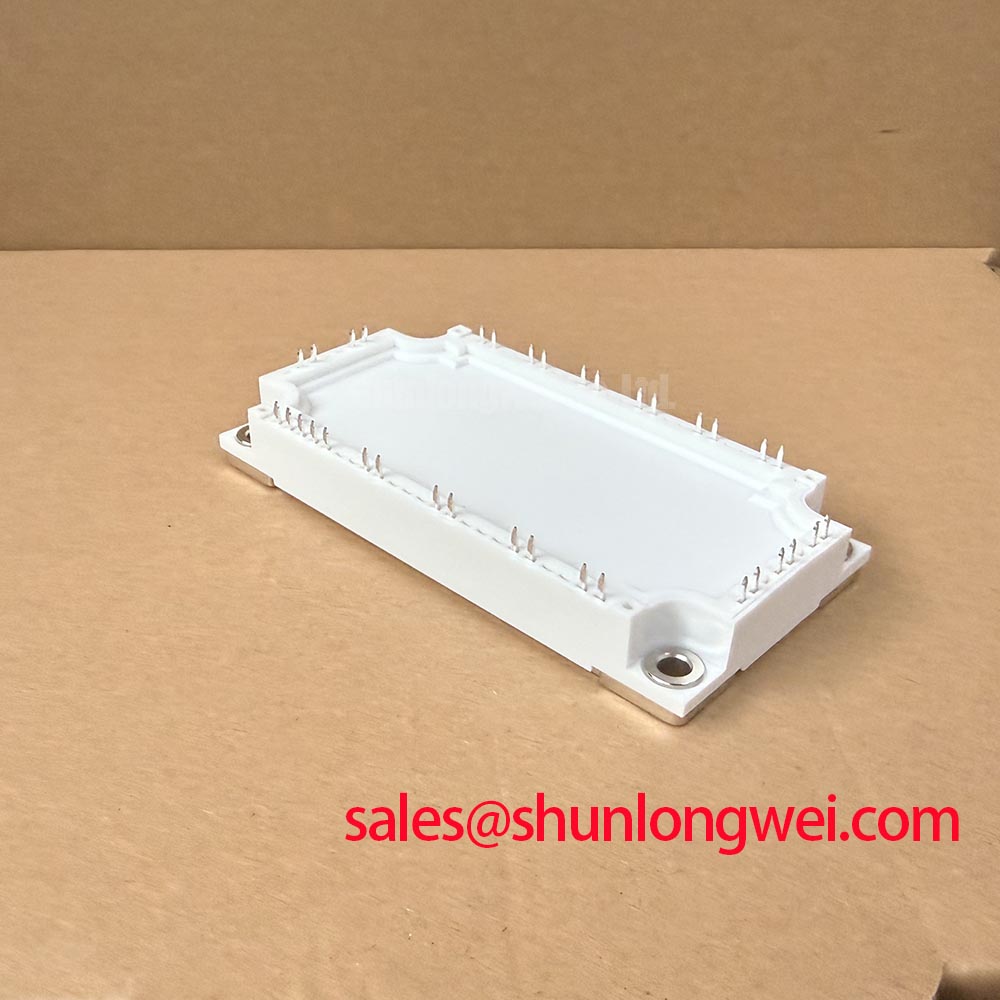

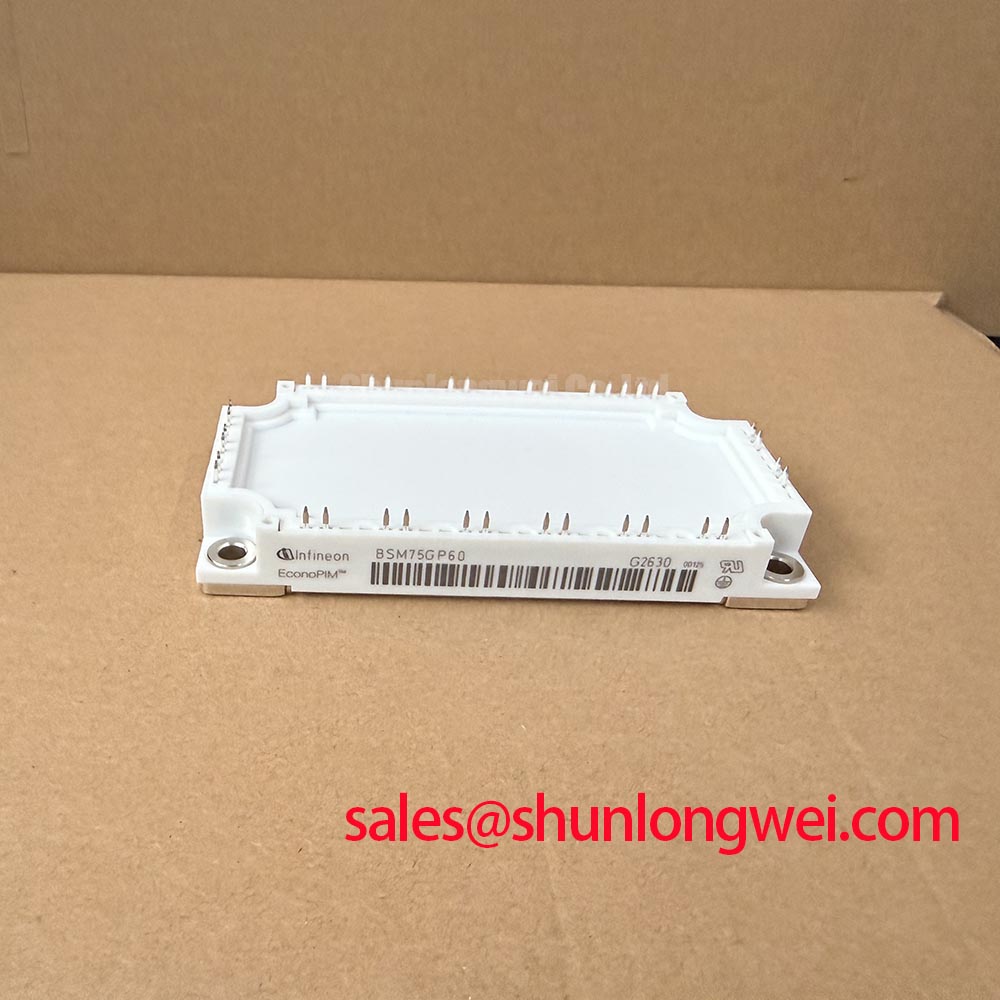

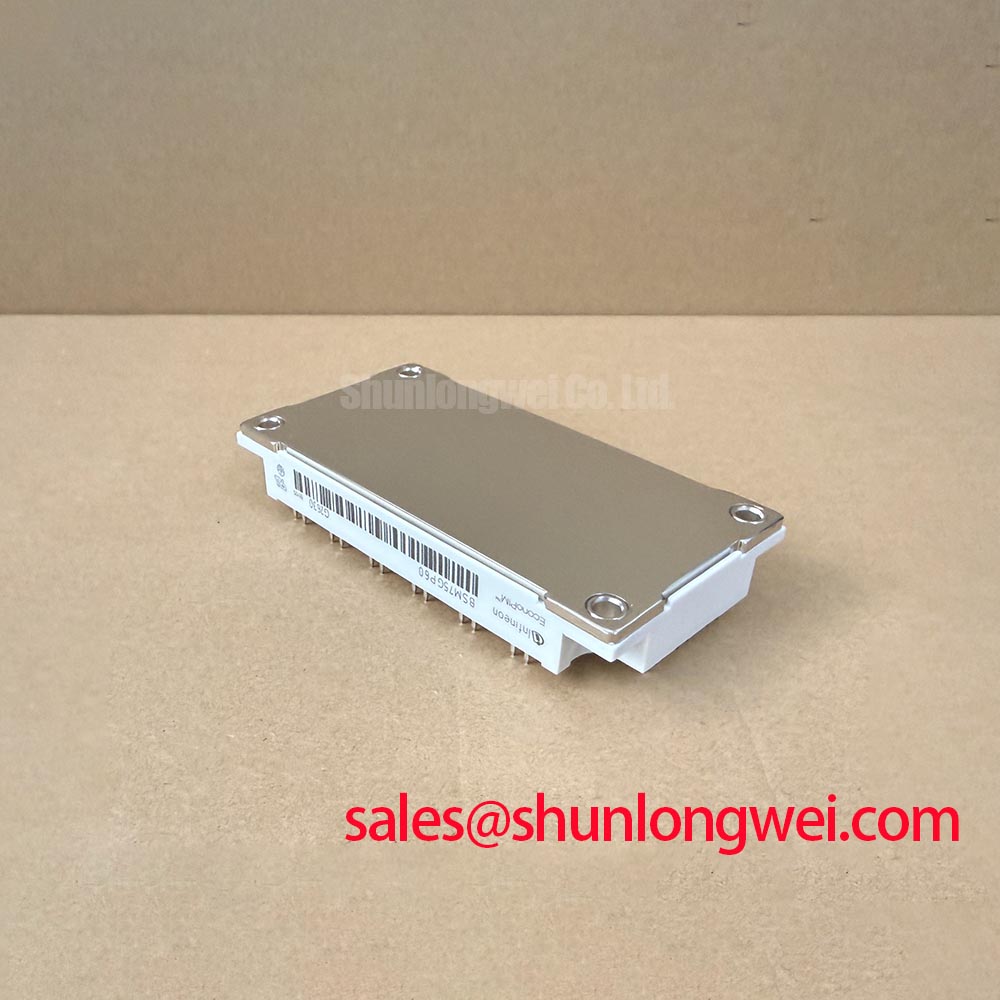

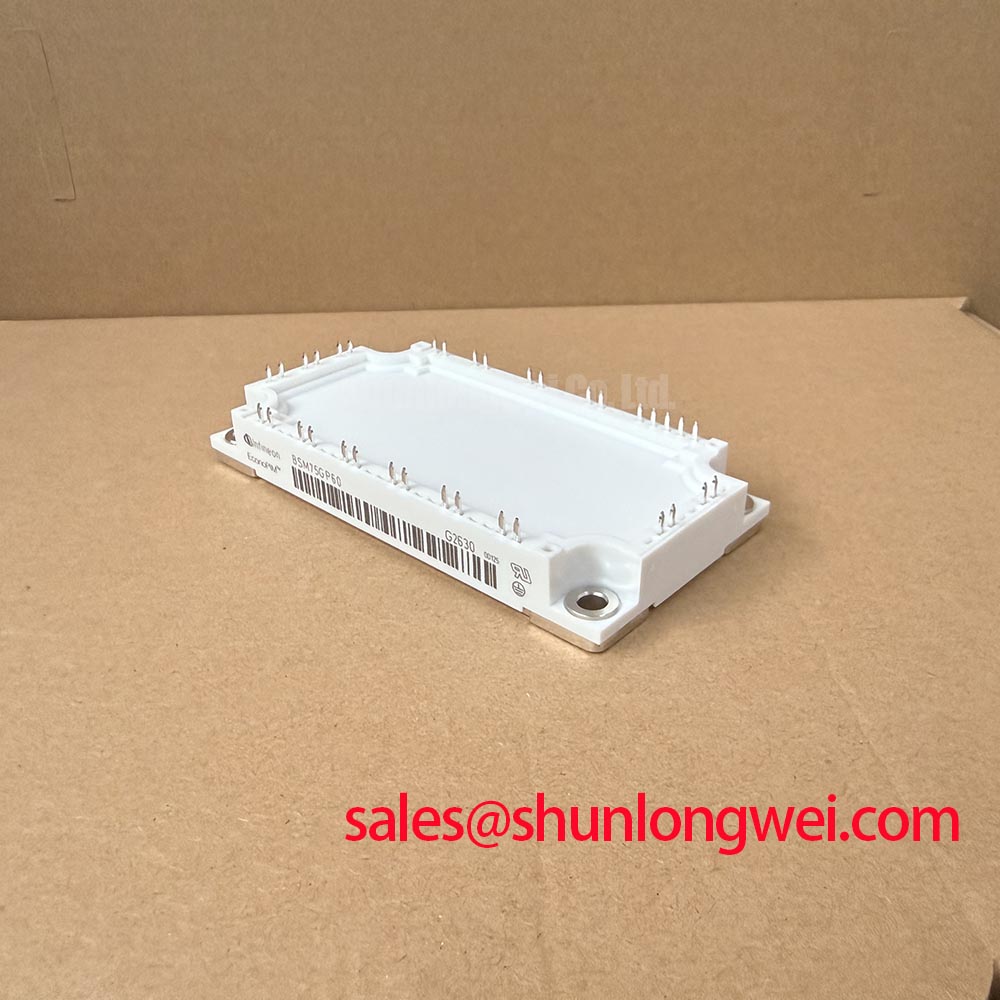

Manufacturer Part Number: BSM75GP60
Rohs Code: Yes
Part Life Cycle Code: Obsolete
Ihs Manufacturer: Infineon TECHNOLOGIES AG
Part Package Code: MODULE
Package Description: MODULE-24
Pin Count: 24
ECCN Code: EAR99
Manufacturer: Infineon Technologies AG
Risk Rank: 5.63
Case Connection: ISOLATED
Collector Current-Max (IC): 100 A
Collector-Emitter Voltage-Max: 600 V
Configuration: COMPLEX
Gate-Emitter Voltage-Max: 20 V
JESD-30 Code: R-XUFM-X24
Number of Elements: 7
Number of Terminals: 24
Operating Temperature-Max: 150 °C
Package Body Material: UNSPECIFIED
Package Shape: RECTANGULAR
Package Style: FLANGE MOUNT
Peak Reflow Temperature (Cel): NOT SPECIFIED
Polarity/Channel Type: N-CHANNEL
Power Dissipation-Max (Abs): 310 W
Qualification Status: Not Qualified
Subcategory: Insulated Gate BIP Transistors
Surface Mount: NO
Terminal Form: UNSPECIFIED
Terminal Position: UPPER
Time
Insulated Gate Bipolar Transistor, 100A I(C), 600V V(BR)CES, N-Channel, MODULE-24
