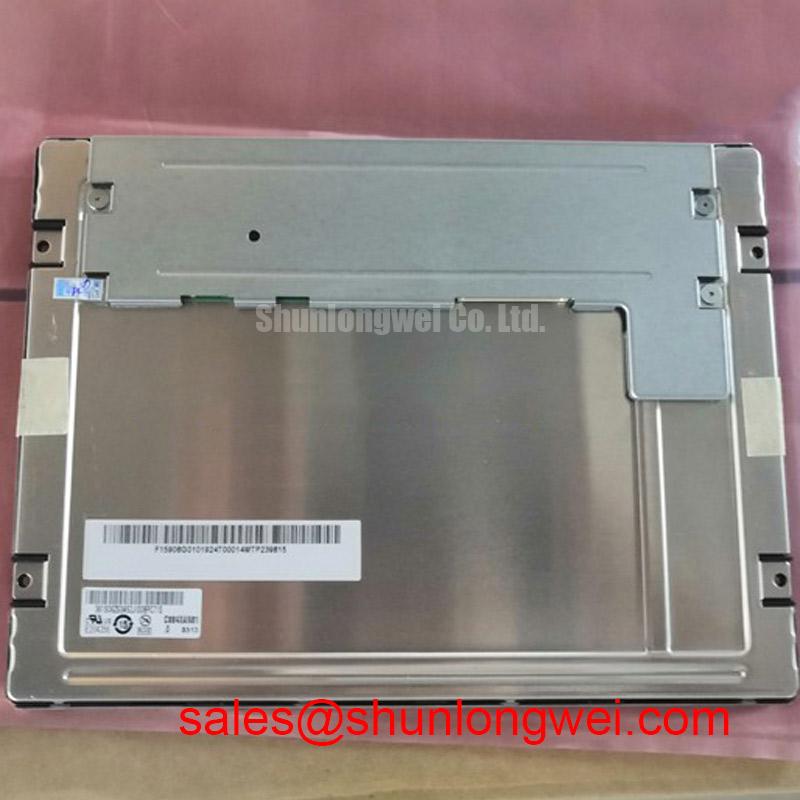

AUO C084XAN01.0: Elevating Industrial HMI with AHVA Technology and Extreme Temperature Resilience
The AUO C084XAN01.0 is a high-performance 8.4-inch industrial LCD module designed to bridge the gap between high-definition visual clarity and rugged environmental endurance. Featuring XGA (1024 x 768) resolution and AUO's proprietary AHVA technology, this display ensures color consistency and readability across an ultra-wide viewing field. With an operating temperature range of -30°C to 85°C, it is engineered for mission-critical deployments where standard consumer-grade panels would fail.
Top Specs: 1024 x 768 Resolution | 450 cd/m² Brightness | -30 ~ 85°C Operating Temperature
Key Benefits: Superior off-axis viewing with AHVA technology; reliable performance in extreme thermal environments.
One common concern for engineers is whether a high-resolution 8.4-inch panel can maintain contrast in fluctuating temperatures. The C084XAN01.0 addresses this through industrial-grade liquid crystal chemistry that prevents "clearing" or "pooling" effects even at the 85°C threshold. For industrial HMIs prioritizing wide-angle visibility and thermal ruggedness, the C084XAN01.0 is the optimal choice.
Key Parameter Overview
Decoding the Specs for Enhanced Industrial Reliability
The technical architecture of the C084XAN01.0 centers on balancing pixel density with power efficiency. The use of a 6/8-bit LVDS interface allows for a rich 16.2M color palette while maintaining a low EMI profile, which is essential for medical and precision control environments.
| Technical Specification | Value / Detail | Engineering Impact |
|---|---|---|
| Screen Size | 8.4-inch | Compact form factor for space-constrained industrial consoles. |
| Resolution | 1024 x 768 (XGA) | High pixel density (153 PPI) for sharp UI and detailed data visualization. |
| Luminance | 450 cd/m² (Typical) | Provides clear readability in indoor and semi-outdoor environments. |
| Contrast Ratio | 1000:1 | Deep blacks and vibrant colors for improved diagnostic clarity. |
| Viewing Angle | 89/89/89/89 (CR≥10) | Eliminates color inversion regardless of the operator's position. |
| Operating Temperature | -30°C to +85°C | Withstands extreme cold startups and high-heat enclosures. |
| Interface Type | LVDS (1 ch, 6/8-bit) | Standardized integration with long-distance signal integrity. |
Download the C084XAN01.0 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Benefits in Harsh Industrial Environments
The AUO C084XAN01.0 is frequently integrated into outdoor charging stations, heavy machinery cockpits, and medical monitoring systems. In an outdoor EV charging scenario, the display must survive the intense midday heat (solar loading) and the sub-zero temperatures of winter nights. The C084XAN01.0 utilizes a high-efficiency WLED backlight system that generates minimal internal heat while providing the 450 nits of brightness required for daylight visibility.
Consider the challenge of "washout" in traditional TN-type panels when viewed from below in a tall rack-mounted industrial server. The AHVA (Advanced Hyper-Viewing Angle) technology in this module functions like a premium window; whether the technician is standing, sitting, or looking from the side, the data remains perfectly legible without the "negative image" effect common in cheaper alternatives. This is critical for safety in environments where a misread value can lead to system failure.
While this model is ideal for high-resolution XGA requirements, for systems that can utilize a lower SVGA resolution to reduce processing overhead, the related G084SN05 V9 offers a compatible 8.4-inch footprint. However, for modern information-dense interfaces, the C084XAN01.0 remains the superior selection. For engineers designing for extreme mechanical stress, exploring AA084XA02 may provide additional mounting considerations.
Technical Deep Dive
The Engineering Behind AHVA and Thermal Management
The C084XAN01.0 leverages AHVA technology, which is functionally similar to IPS (In-Plane Switching). Unlike traditional displays where liquid crystals twist vertically, AHVA crystals rotate within the plane of the substrate. This prevents light leakage and ensures that the 1000:1 contrast ratio is maintained across all 178 degrees of visibility. This is particularly advantageous in medical HMIs where multiple practitioners may need to view the same screen simultaneously.
Furthermore, the thermal management of the C084XAN01.0 is achieved through a optimized LED driver design and a ruggedized frame that acts as a heat sink. In industrial electronics, heat is the primary enemy of LED longevity. By maintaining a 50,000-hour LED life (to half-brightness) even in high-ambient conditions, AUO ensures that the Total Cost of Ownership (TCO) remains low for the OEM. For further insights into high-reliability display selection, refer to the ultimate guide to TFT-LCD or our industrial touchscreen guide.
FAQ
How does the AHVA technology in C084XAN01.0 benefit handheld industrial devices?
Handheld devices are often held at unpredictable angles. AHVA ensures the operator sees consistent color and brightness, reducing errors in data entry or reading, unlike TN panels that suffer from significant color shifting.
What is the primary benefit of its wide temperature range for cold-start applications?
At -30°C, standard LCDs suffer from extremely slow response times (ghosting). The C084XAN01.0 is characterized for faster liquid crystal switching at low temperatures, ensuring the UI remains responsive immediately upon power-up.
Does this display require a separate inverter for the backlight?
The C084XAN01.0 features an integrated WLED backlight system. However, engineers should verify the specific LVDS controller's capability to drive the backlight strings directly or if a small external LED driver board is required based on the system voltage.
Can the C084XAN01.0 be used in direct sunlight?
With 450 nits, it is classified as "high brightness" for indoor use and "readable" in shaded outdoor areas. For direct, high-intensity sunlight, further enhancement like optical bonding or a higher nit-rated backlight might be necessary.
Is the 6/8-bit LVDS interface switchable via hardware?
Yes, the C084XAN01.0 typically allows the selection between 6-bit (262K colors) and 8-bit (16.2M colors) through a specific pin configuration on the LVDS connector, allowing for flexibility with various graphics processors.
From an engineering perspective, the C084XAN01.0 represents a stable, high-availability solution for long-lifecycle industrial projects. Its combination of high pixel density and extreme temperature tolerance makes it a versatile building block for the next generation of robust human-machine interfaces. When designing for longevity, the mechanical consistency provided by AUO ensures that your enclosure design remains valid through multiple production cycles.
