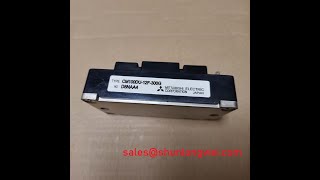

Mitsubishi CM100DU-12F-300G | A Robust 1200V, 100A Dual IGBT Module for Industrial Power Conversion
The Mitsubishi CM100DU-12F-300G stands as a testament to engineering endurance and reliability in the world of power electronics. This dual IGBT module, part of Mitsubishi's established U-Series, is a workhorse designed for high-power industrial applications where long-term performance and robustness are non-negotiable. It integrates two IGBTs in a half-bridge configuration, providing a foundational building block for a wide array of inverter and converter designs.
For engineers designing or maintaining systems in demanding environments, the CM100DU-12F-300G offers a compelling combination of proven technology and performance. Its key attributes include:
- Versatile Half-Bridge Topology: The 2-in-1 (dual) configuration simplifies the design of single-phase and three-phase inverter legs, reducing component count and simplifying PCB layout and busbar connections.
- Substantial Power Handling: With a 1200V collector-emitter voltage (V_CES) and a 100A continuous collector current (I_C), this module is perfectly suited for systems operating on 400/480V AC mains.
- Proven Field Reliability: As a mature product, its performance characteristics and failure modes are well-understood, making it a low-risk choice for critical applications and a reliable component for MRO (Maintenance, Repair, and Operations).
- Robust Thermal Design: Housed in a standard industrial package with an isolated baseplate, it facilitates straightforward and effective mounting to a heatsink, crucial for managing heat dissipation under heavy loads.
Key Parameters Overview
The following table outlines the critical electrical and thermal specifications that define the operational capabilities of the CM100DU-12F-300G. For comprehensive data, including characteristic curves and safe operating areas, we recommend consulting the official product datasheet.
| Parameter | Symbol | Value |
|---|---|---|
| Collector-Emitter Voltage | V_CES | 1200 V |
| Gate-Emitter Voltage | V_GES | ±20 V |
| Continuous Collector Current (Tc=25°C) | I_C | 100 A |
| Collector-Emitter Saturation Voltage (Tj=125°C, Ic=100A) | V_CE(sat) | 2.7 V (Typ.) |
| Maximum Power Dissipation (Tc=25°C) | P_C | 694 W |
| Operating Junction Temperature | T_j | -40 to +150 °C |
Engineered for Demanding Industrial Applications
The specifications of the CM100DU-12F-300G are not just numbers; they translate directly into tangible advantages in specific industrial contexts. This module consistently demonstrates its value in applications that prioritize uptime and resilience over cutting-edge switching frequencies.
- Variable Frequency Drives (VFDs): In motor control, the module's 1200V rating provides a significant safety margin against the voltage spikes generated by inductive motor loads. Its robust build is ideal for the harsh electrical and thermal conditions found in industrial automation and HVAC systems.
- Uninterruptible Power Supplies (UPS): The half-bridge topology is fundamental to the inverter/rectifier stages of online UPS systems. The proven reliability of this IGBT module ensures that critical loads remain protected during power disturbances.
- Welding Power Supplies: Welding applications demand components that can withstand high current pulses and significant thermal cycling. The CM100DU-12F-300G's sturdy construction and thermal management capabilities make it a durable choice for high-power welding inverters.
Strategic Selection: Positioning in Your Design
In a landscape of ever-advancing semiconductor technology, it's crucial to select the right tool for the job. While newer-generation IGBTs, such as those with Mitsubishi CSTBT™ (Carrier Stored Trench-gate Bipolar Transistor) technology, offer lower conduction and switching losses, the CM100DU-12F-300G holds a strategic position. For applications operating at moderate frequencies (e.g., up to 15 kHz), the efficiency gains from the latest technologies may be marginal and outweighed by the cost-effectiveness and proven track record of this module. It represents an excellent balance of performance, cost, and reliability, particularly for systems where it serves as a drop-in replacement, extending the life of existing equipment without a costly redesign. For a broader comparison of power semiconductor types, see our guide to power semiconductor selection.
Engineer's FAQ for the CM100DU-12F-300G
Drawing from our experience, here are answers to common questions from engineers implementing this module.
1. What are the recommended gate drive conditions?
For optimal performance and to prevent parasitic turn-on, a gate drive voltage of +15V (V_GE(on)) is recommended for full enhancement. A negative turn-off voltage of -8V to -15V (V_GE(off)) is crucial for rapid turn-off and to provide immunity against dV/dt induced turn-on, especially in a half-bridge configuration. Always use an appropriately sized gate resistor to control the switching speed and manage EMI.
2. How can I avoid the most common failure modes with this module?
Proper thermal management is paramount. Ensure the heatsink surface is flat (typically within 50µm) and clean before applying a high-quality thermal interface material (TIM). Adhere strictly to the specified mounting torque to minimize the thermal resistance between the module baseplate and heatsink without inducing mechanical stress. Understanding and preventing common issues is key to reliability, a topic we cover in our guide to IGBT failure analysis.
For detailed inquiries or to discuss your specific application requirements, please contact our technical team for expert guidance.
