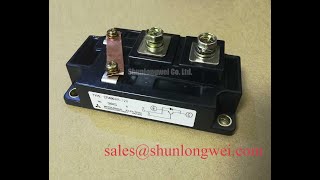

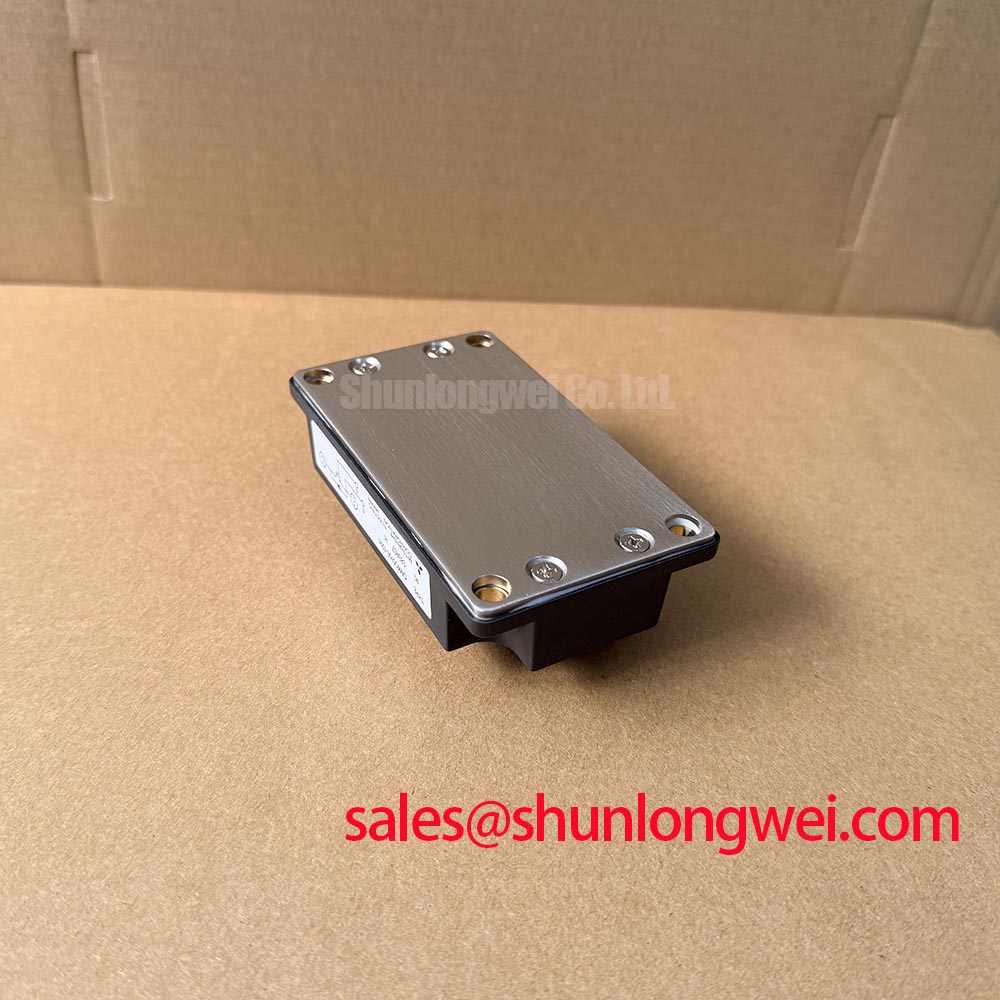

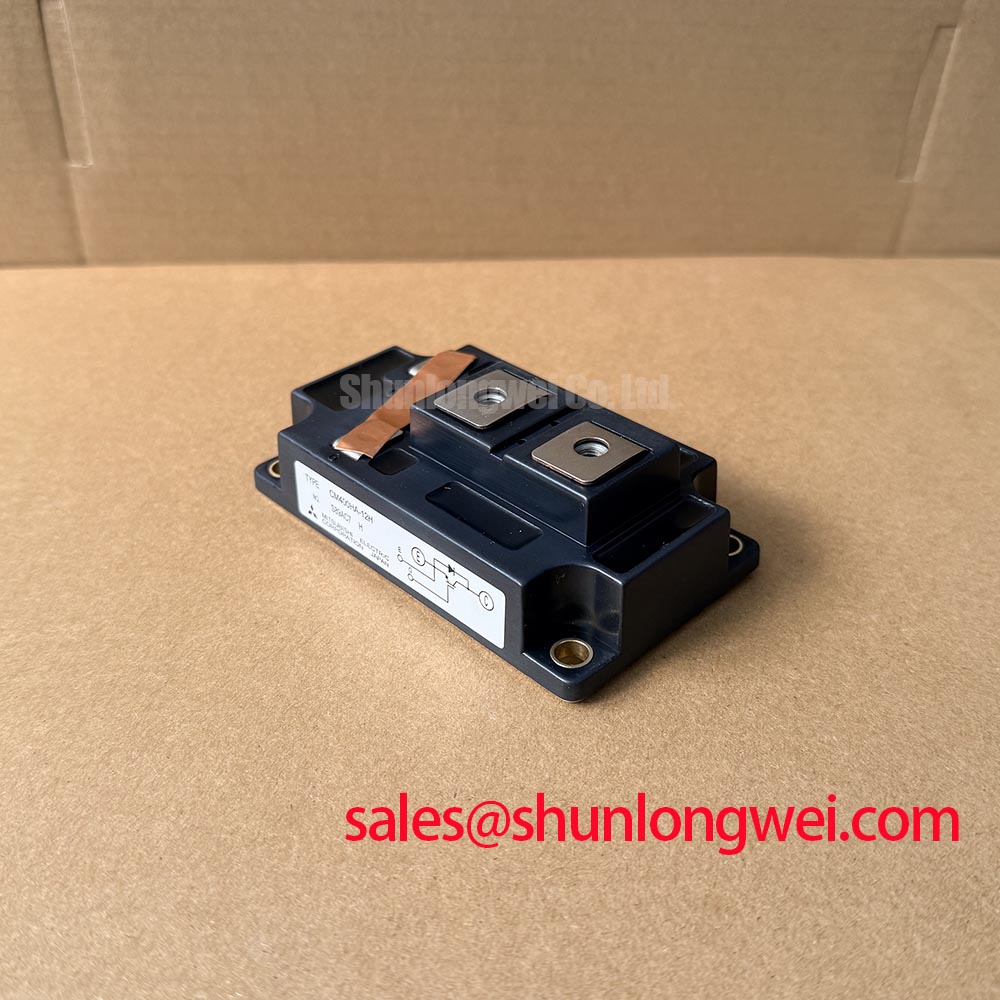

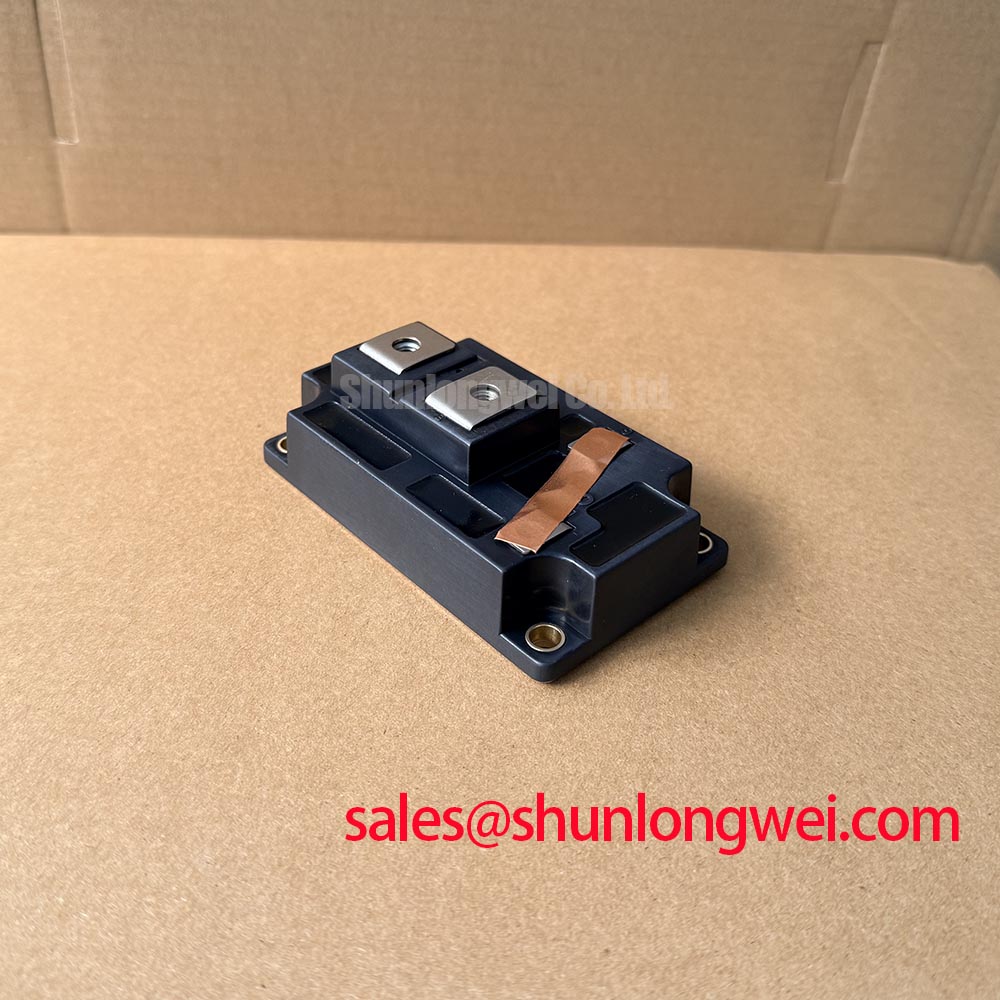

Mitsubishi CM400HA-12H IGBT Module

Mitsubishi CM400HA-12H | A Legacy of Reliability in High-Power Inverters

The Mitsubishi CM400HA-12H isn't just a component; it's a testament to robust engineering designed for relentless industrial service. As a high-current, single IGBT module, it provides the foundational building block for power electronics systems where durability and proven performance are paramount. This module is engineered for designers and maintenance engineers who prioritize long-term reliability over chasing the absolute highest switching frequencies.

• Core Function: Single IGBT Module
• Voltage/Current Rating: 600V / 400A
• Key Strength: Exceptional ruggedness and a history of field-proven reliability.
• Primary Applications: High-power motor drives, welding power supplies, and uninterruptible power supplies (UPS).

Key Parameter Overview

For engineers, the specifications tell a story of capability and design intent. The CM400HA-12H is built for high-power throughput with a focus on thermal stability. Below are the critical parameters that define its operational envelope. For a comprehensive review of all electrical and thermal characteristics, you can download the complete datasheet.

Application Scenarios & Value Proposition

The true value of the Mitsubishi CM400HA-12H is realized in its application performance. Its design characteristics make it an ideal choice for specific, demanding industrial environments.

• Variable Frequency Drives (VFDs): In motor control, especially for large induction motors, the module's high current handling and robust thermal performance ensure stable operation under heavy torque and variable load conditions. Its relatively moderate VCE(sat) is well-suited for the lower switching frequencies typical in these drives, balancing conduction losses and system reliability.
• Welding Power Supplies: The high-current pulse demands of industrial welding are unforgiving. The CM400HA-12H's excellent Safe Operating Area (SOA) provides the necessary margin to handle the intense, repetitive power cycles without degradation, a critical factor for equipment longevity.
• Uninterruptible Power Supplies (UPS): For large-scale data centers and industrial UPS systems, reliability is non-negotiable. This module’s proven design provides the bedrock for inverters that must perform flawlessly during power transitions, ensuring continuity of critical operations.

Technical Deep Dive: Engineered for Durability

While newer IGBT generations focus on minimizing switching losses for high-frequency applications, the CM400HA-12H is a masterclass in thermal management and electrical ruggedness. Its construction prioritizes the ability to withstand conditions that can cause more sensitive components to fail.

The internal layout and substantial baseplate are optimized for low thermal resistance from junction to case (Rth(j-c)). This efficient heat transfer is crucial in high-power applications, as it allows the heat generated during conduction to be evacuated effectively to the heatsink. This superior thermal design directly translates to a wider safety margin against over-temperature conditions, a common cause of IGBT failure in demanding applications. The result is a component that operates more reliably at the higher end of its current rating, giving engineers confidence in their system's long-term stability.

Frequently Asked Questions (FAQ)

Here are some common engineering considerations when specifying the CM400HA-12H:

• Is this module suitable for new, high-frequency designs like EV inverters?While technically possible, the CM400HA-12H is optimized for lower to medium switching frequencies (typically below 10-15 kHz) where conduction losses are dominant. For new high-frequency applications, newer generation IGBT modules from manufacturers like Mitsubishi or alternative technologies might offer lower total losses. This module's strength lies in its robustness for applications like industrial motor drives.
• What is the primary benefit of its "single IGBT" configuration?The single configuration offers maximum design flexibility. Engineers can use these modules to easily construct custom topologies, such as a three-phase inverter (requiring six modules) or a full H-bridge (requiring four). This is particularly useful for building high-power systems or for maintenance scenarios where only a single switch in a phase leg has failed and needs replacement.
• How critical is gate drive design for this module?As with any high-power IGBT, a robust gate drive is essential. Due to its current rating, ensuring a clean, stable gate voltage (+15V recommended) with sufficient peak current is vital for achieving full saturation and minimizing conduction losses. Proper layout to minimize stray inductance in the gate loop is also key to preventing oscillations and ensuring reliable switching, a topic we cover in our guide to IGBTs in servo drive applications.
