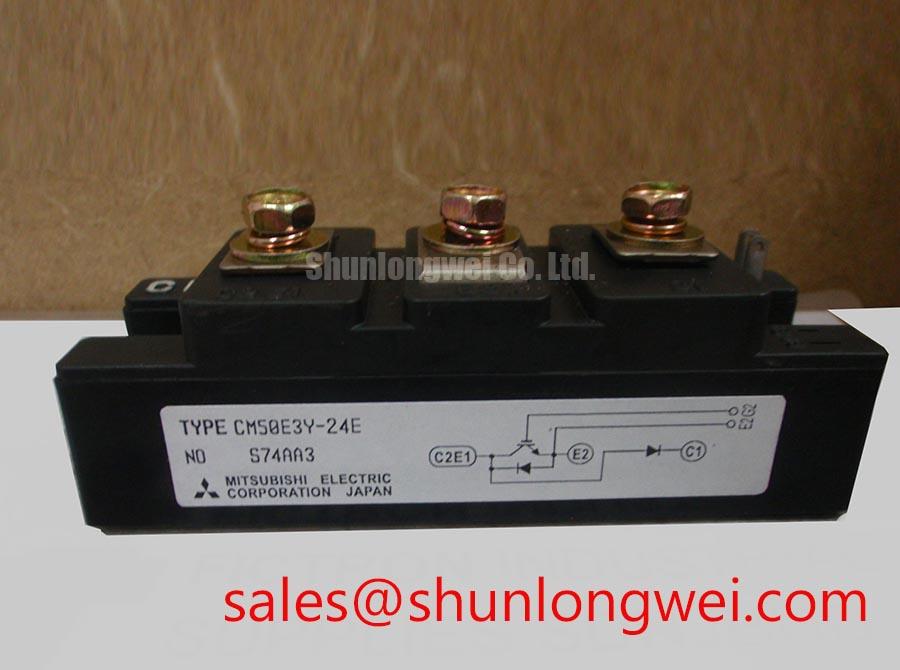

Mitsubishi CM50E3Y-24E IGBT Module: Optimizing Thermal Reliability in 1200V Systems
The CM50E3Y-24E, a high-performance member of Mitsubishi Electric's IGBT module family, represents a sophisticated 7-pack (CIB) configuration designed for high-efficiency power conversion. This module integrates a three-phase diode rectifier, a three-phase IGBT inverter, and a dedicated brake circuit into a single, thermally optimized package, significantly reducing system complexity for industrial engineers.
For industrial motor drives requiring a 1200V rating in a space-constrained CIB configuration, the CM50E3Y-24E is the optimal choice. By consolidating multiple power stages, it minimizes parasitic inductance and interconnect failure points, addressing the hidden engineering question of how to balance high power density with long-term mechanical reliability. What is the primary benefit of its integrated 7-pack design? It dramatically reduces wiring complexity and electromagnetic interference (EMI) while ensuring uniform thermal distribution across the baseplate.
Key Parameter Overview
Decoding Thermal and Electrical Ratings for Reliable Inverter Design
Understanding the interaction between electrical limits and thermal dissipation is crucial when integrating the CM50E3Y-24E into a system. Think of thermal resistance Rth(j-c) as the diameter of a drainage pipe; a lower resistance allows heat to "flow" away from the silicon junctions faster, preventing catastrophic thermal runaway during peak load conditions. The 1200V collector-emitter voltage provides a robust safety margin for 400V to 480V AC line applications, ensuring the module survives voltage spikes common in heavy industrial environments.
| Technical Specification | Value / Rating | Engineering Significance |
|---|---|---|
| Collector-Emitter Voltage (Vces) | 1200V | Ensures safety margin for 480V AC line systems. |
| Collector Current (Ic) | 50A | Suited for mid-range motor drive and servo applications. |
| Configuration | 7-Pack (CIB) | Includes Rectifier, Inverter, and Brake for compact design. |
| Vce(sat) (Typical) | 2.4V - 2.8V | Directly influences conduction losses and overall efficiency. |
| Isolation Voltage (Visol) | 2500V AC | Meets stringent safety standards for industrial equipment. |
Application Scenarios & Value
Maximizing Space Efficiency in Industrial Motor Control Applications
The CM50E3Y-24E is frequently utilized in Variable Frequency Drives (VFD) and high-precision servo amplifiers where enclosure space is at a premium. In a typical CNC machine tool application, the engineer faces the challenge of managing the high inrush currents during rapid spindle acceleration. The integrated brake circuit of the CM50E3Y-24E allows for controlled deceleration and energy dissipation, protecting the DC bus from overvoltage conditions without requiring external discrete components.
In scenarios where higher current handling is necessary, such as heavy-duty conveyor systems, the related CM100E3Y-24E offers a 100A rating while maintaining the same 1200V capability. For more information on navigating these complex choices, see our guide on decoding IGBT datasheets.
Technical & Design Deep Dive
The Engineering Behind the Integrated 7-Pack Configuration
The CM50E3Y-24E utilizes Mitsubishi’s proprietary chip technology to achieve a low Vce(sat), which is critical for reducing conduction losses. In a technical sense, the internal layout is designed to minimize the loop area between the DC link and the IGBT switches. This reduction in stray inductance is vital during high-speed PWM switching, as it suppresses voltage overshoots that could otherwise degrade the gate oxide layer over time.
Furthermore, the integration of the three-phase rectifier stage ensures that the thermal load is distributed across the module’s copper baseplate. This "thermal spreading" effect means that the module can operate closer to its maximum ratings compared to using discrete components, where localized "hot spots" often force engineers to significantly de-rate the power output. This is a core reason why IGBT modules remain the preferred choice for high-reliability industrial power stages.
Industry Insights & Strategic Advantage
Sustainability and Efficiency in the Era of Industrial Automation
As global regulations tighten regarding energy efficiency (such as the IEC 61800-3 standard for adjustable speed electrical power drive systems), the demand for modules like the CM50E3Y-24E has surged. Strategically, moving toward highly integrated CIB modules allows manufacturers to reduce the Total Cost of Ownership (TCO) by shortening assembly times and reducing the bill of materials (BOM). In the context of Industry 4.0, the reliability of the power stage is paramount; a single module failure can lead to expensive downtime in an automated production line. By utilizing a module with proven 1200V 50A performance, designers ensure their systems are compatible with modern grid standards and renewable energy inputs.
FAQ
How does the integrated NTC thermistor assist in system-level protection?
The CM50E3Y-24E typically includes an integrated Negative Temperature Coefficient (NTC) thermistor. This allows the controller to monitor the baseplate temperature in real-time, enabling proactive thermal throttling or shutdown before the silicon junctions reach their maximum rated temperature, thus extending the module's operating life.
What is the impact of the 1200V rating on gate drive circuit design?
With a 1200V Vces, the gate drive must be designed with sufficient isolation and common-mode transient immunity (CMTI). Engineers must ensure that the gate voltage remains stable despite the high dv/dt associated with switching 1200V loads, often requiring a negative gate bias to prevent parasitic turn-on.
Can the CM50E3Y-24E be used for single-phase input applications?
Yes. While the module contains a three-phase rectifier, it can operate with a single-phase input by using only two of the rectifier legs. However, engineers must account for the higher ripple current on the DC bus capacitors and the increased thermal load on the active rectifier diodes.
Does the 7-pack configuration simplify EMI compliance?
Absolutely. By keeping the rectifier, inverter, and brake components in close proximity on a shared substrate, the high-current loops are localized. This reduces the radiated emissions and simplifies the design of the external EMI filter, helping the final product meet strict regulatory requirements.
For more technical details on the latest power semiconductor innovations, visit the official Mitsubishi Electric resource center.
