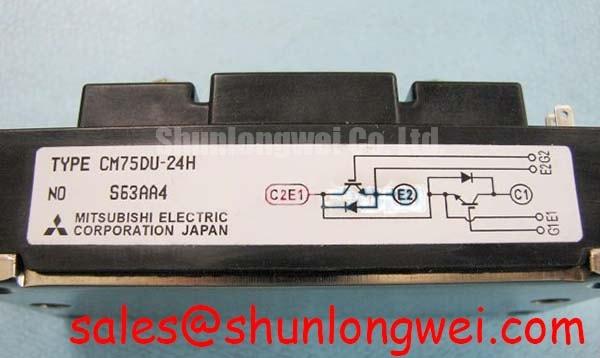

CM75DU-24H: 1200V 75A Dual IGBT Module for Robust Industrial Applications
The CM75DU-24H leverages an advanced isolated baseplate architecture to optimize thermal transfer and ensure unwavering reliability in high-voltage industrial switching systems. Delivering a core specification profile of 1200V, 75A, a maximum collector dissipation of 600W, and an isolation voltage of 2500Vrms, this component provides the essential power foundation for heavy-duty motor control. By integrating a super-fast recovery free-wheel diode, it dramatically minimizes reverse recovery losses. How does this module ensure safe high-power operation? The integrated isolated baseplate provides 2500Vrms of electrical isolation, preventing ground faults while maintaining highly efficient thermal conduction. For 400V AC industrial motor drives prioritizing thermal stability, this 1200V/75A module is the optimal choice.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
A rigorous understanding of functional specifications is pivotal for ensuring long-term system stability. The following groups detail the absolute maximum ratings and dynamic electrical characteristics.
| Functional Group 1: Absolute Maximum Ratings (Tc = 25°C) | |
|---|---|
| Collector-Emitter Breakdown Voltage (Vces) | 1200V |
| Continuous Collector Current (Ic) | 75A |
| Peak Collector Current (Icm) | 150A |
| Maximum Collector Dissipation (Pc) | 600W |
| Functional Group 2: Electrical & Isolation Characteristics | |
| Collector-Emitter Saturation Voltage (Vce(sat)) | 3.7V Max (at 15V, 75A) |
| Isolation Voltage (Viso) | 2500 Vrms (Main Terminal to Baseplate) |
| Configuration | Dual IGBT (Half-Bridge) |
Download the CM75DU-24H datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Benefits in High-Frequency Power Conversion
When engineers design a variable frequency drive (VFD), managing the initial motor startup surge is a system-defining challenge. The CM75DU-24H specifically addresses this through its 150A Peak Collector Current (Icm) capability. During the critical acceleration phase of an industrial conveyor belt, this high surge rating ensures the module sustains the requisite torque current without entering thermal runaway. Furthermore, in commercial UPS deployments where continuous switching generates relentless heat, the isolated baseplate enables direct mounting to grounded heatsinks, drastically reducing assembly complexity.
By effectively managing inductive loads, the integrated reverse-connected diode actively mitigates reverse recovery loss, directly boosting the efficiency of the inverter stage. While this module handles 75A, systems demanding higher surge capability can utilize the CM100DY-24H, whereas lighter auxiliary power configurations might favor the CM50DY-24H. To fully optimize these setups, developers should review the core trio of IGBT module selection.
Technical Deep Dive
A Closer Look at the Isolated Baseplate and FWDi Integration
The physical construction of the CM75DU-24H inherently dictates its superior performance in harsh electrical environments. The 2500Vrms Isolation Voltage (Viso) is a critical architectural advantage. Think of this isolation layer as a heavy-duty thermal firewall; it allows the "heat" (thermal energy from the silicon) to pass seamlessly to the heatsink while completely blocking the "fire" (high-voltage electrical current) from bridging the gap to the grounded chassis. This design negates the need for external isolating pads, which typically introduce unwanted thermal resistance.
Equally critical is the 600W Maximum Collector Dissipation (Pc). In practical thermal design, this specification acts like a high-flow storm drain. As the switching losses accumulate rapidly during high-frequency pulse-width modulation (PWM), this rating ensures the thermal energy is flushed out rapidly before it can exceed the junction temperature limits and damage the silicon die. The inclusion of the Super-Fast Recovery Free-Wheel Diode (FWDi) further prevents excessive heat buildup by clamping voltage spikes instantaneously during the transistor's off-state.
Frequently Asked Questions
Expert Answers on CM75DU-24H Deployment
- What is the primary benefit of its isolated baseplate design?
It simplifies heatsink integration and provides 2500Vrms electrical isolation, ensuring safe thermal management without ground faults. - How does the 150A peak current (Icm) influence motor drive reliability?
It provides massive headroom for transient events, allowing the drive to handle momentary locked-rotor conditions or heavy startup inertia without silicon degradation. - Why is the integrated Super-Fast Recovery FWDi essential for inductive loads?
Inductive loads force current to flow backwards during switching intervals; the FWDi provides a highly efficient path for this freewheeling current, preventing catastrophic voltage overshoots across the collector-emitter terminals.
Ready to upgrade your high-power motor control architecture? Procure the CM75DU-24H from our verified inventory today to ensure your systems meet the highest standards of thermal and electrical reliability.
