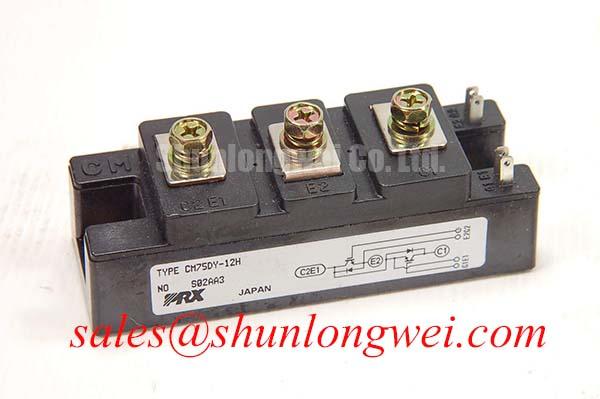

Expert Technical Analysis: Mitsubishi CM75DY-12H IGBT Module
The CM75DY-12H is a high-performance, dual-IGBT module from the H-series, specifically engineered for high-frequency switching applications where efficiency and thermal reliability are non-negotiable. Featuring a collector-emitter voltage of 600V and a collector current rating of 75A, this module serves as a critical building block for 200V-line industrial systems requiring rapid pulse-width modulation (PWM) control. Its insulated baseplate design simplifies mechanical assembly while the low inductance package minimizes voltage spikes during high-speed transitions. For engineers prioritizing switching efficiency and loss reduction, the CM75DY-12H offers a robust, industry-standard solution for precision power conversion.
Top Specs: 600V | 75A | Ptot 310W
Key Benefits: Reduced switching losses for high-frequency designs; Insulated baseplate for simplified heat sink mounting.
What is the primary benefit of the H-series switching characteristics in the CM75DY-12H? It significantly reduces turn-off energy losses (Eoff), allowing for higher PWM carrier frequencies with minimal thermal overhead. For 240V AC motor drives requiring high-speed control, this 600V module is the optimal choice.
Key Parameter Overview
Decoding the Specs for Enhanced Switching Performance
Understanding the electrical and thermal limits of the CM75DY-12H is essential for ensuring system-level stability. The parameters below highlight the module's capability to handle significant power density within a compact dual-pack footprint.
| Parameter Symbol | Technical Specification | Engineering Significance |
|---|---|---|
| Vces | 600V | Collector-Emitter voltage rating suitable for 200V/240V AC line applications. |
| Ic | 75A (at Tc = 25°C) | Continuous DC collector current capability for mid-power drive systems. |
| Vce(sat) | 2.1V (Typical) | Low saturation voltage reduces conduction losses during the "ON" state. |
| Ptot | 310W | Maximum power dissipation per element, dictating the required thermal management strategy. |
| Tj | -40 to +150°C | Wide operating temperature range ensures reliability in harsh industrial environments. |
| Viso | 2500V AC | High isolation voltage between terminals and baseplate for safety compliance. |
Download the CM75DY-12H datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Efficiency in Industrial Motor Control
The CM75DY-12H is prominently utilized in Variable Frequency Drives (VFD) and Servo Drive systems. Consider the challenge of a high-precision CNC machine where motor torque must be adjusted thousands of times per second. The high-speed switching capability of the H-series ensures that the motor receives a clean PWM signal with minimal harmonic distortion. By reducing the Eoff (Turn-off Switching Loss), the CM75DY-12H allows the inverter to operate at carrier frequencies above 15kHz without exceeding the thermal limits of the 310W power dissipation rating.
In the context of Uninterruptible Power Supplies (UPS), the module's 600V rating provides a necessary safety margin for battery-backed 200V AC output stages. The dual-pack configuration facilitates a half-bridge topology, which is the foundational architecture for modern IGBT modules. For systems requiring even higher current handling within the same voltage class, the related CM150DY-12H offers a 150V collector current rating for scaled-up industrial power needs. Additionally, for massive power requirements, engineers often look toward CM300DY-12H.
Technical Deep Dive
A Closer Look at the H-Series High-Speed Architecture
The "H" in CM75DY-12H designates Mitsubishi's High-Speed series, which employs optimized gate charge characteristics and specialized carrier distribution. To understand its value, think of the IGBT as a high-speed industrial faucet. While standard modules might take a few micro-seconds to fully close the valve (resulting in wasted "leaking" energy), the H-series closes the valve almost instantaneously. This rapid transition minimizes the time the device spends in the linear region, where losses are highest.
Furthermore, the CM75DY-12H utilizes an internal Free-Wheel Diode (FWD) with fast recovery characteristics. In an inductive load scenario, such as a motor winding, the FWD must handle the energy kickback when the IGBT turns off. The recovery speed of this diode is matched to the IGBT's switching speed to prevent EMI noise and voltage overshoot, a critical factor in IGBT vs MOSFET selection for industrial designers. This internal synchronization reduces the need for heavy-duty snubber circuits, ultimately lowering the total bill of materials (BOM) for the power stage.
FAQ
How does the Vce(sat) of 2.1V impact the selection of thermal management components for the CM75DY-12H?
The 2.1V saturation voltage directly determines the conduction loss (Pc = Vce(sat) × Ic). For a continuous 75A load, this represents significant heat generation. Engineers must calculate the total losses (Conduction + Switching) to select a heatsink with a thermal resistance low enough to keep the junction temperature (Tj) safely below 150°C under peak ambient conditions.
What are the primary considerations when using the CM75DY-12H in high-frequency PWM applications above 20kHz?
While the CM75DY-12H is optimized for speed, operating above 20kHz increases the frequency of switching events, thereby multiplying switching losses. Designers should prioritize gate drive circuit design, ensuring sufficient peak current to charge the input capacitance quickly, and utilize a Mitsubishi-approved gate resistor to balance switching speed against EMI and voltage stress.
