Mitsubishi CM75DY-28H: Engineering the Optimal Voltage Margin for 575V Industrial Systems
In many high-power industrial environments, engineers frequently encounter the limitation of standard 1200V IGBTs when dealing with 575V AC line voltages. The narrow safety margin often leads to catastrophic failures during regenerative braking or line transients. How can a power stage maintain high efficiency while ensuring a robust buffer against overvoltage? The Mitsubishi CM75DY-28H provides a decisive answer by offering a 1400V collector-emitter rating in a compact, dual-unit configuration. For industrial motor drives prioritizing voltage margin over peak current, the 1400V-rated CM75DY-28H is the optimal choice.

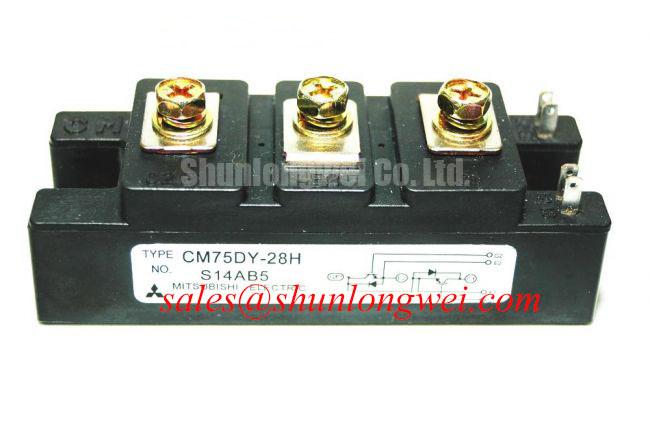

The CM75DY-28H is a 75A, 1400V dual IGBT module designed for high-reliability switching. It delivers exceptional thermal stability and a low saturation voltage of 2.1V (typical), making it a preferred choice for Variable Frequency Drive (VFD) and UPS applications. What is the primary benefit of the 1400V rating? It provides critical safety headroom for 575V AC industrial line applications, preventing overvoltage failures during transient spikes. By choosing this module, designers eliminate the need for over-specified 1700V components, optimizing both cost and board space without sacrificing Safe Operating Area (SOA) integrity.
Frequently Asked Questions
Addressing Design Challenges with 1400V IGBT Technology
Why is the 1400V Vces rating critical for 575V AC line applications compared to standard 1200V modules?
Standard 1200V modules often struggle with the DC bus voltage peaks found in 575V AC systems, which can hover around 810V and spike significantly higher during braking or load shedding. The 1400V Vces of the CM75DY-28H provides an additional 200V of safety margin, ensuring that the device operates well within its Reverse Bias Safe Operating Area (RBSOA) even during unpredictable grid fluctuations. This prevents partial discharge and voltage-induced degradation over long-term operation.
How does the Rth(j-c) of 0.21 K/W in the CM75DY-28H impact heatsink selection and system-level power density?
A Thermal Resistance of 0.21 K/W (junction-to-case) is remarkably low for a 75A module. This efficiency in heat transfer allows engineers to use smaller, lighter Thermal Management solutions or, conversely, to drive the module closer to its peak ratings without exceeding the 150°C junction temperature limit. This parameter is the "thermal highway" of the device, directly enabling higher power density in the overall inverter enclosure.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
| Parameter Symbol | Technical Specification | Engineering Value |
|---|---|---|
| Vces | 1400V | Superior safety margin for 575V-600V AC lines. |
| Ic | 75A | Optimized for medium-power motor control. |
| Vce(sat) | 2.1V (Typical) | Reduces conduction losses in high-duty cycle apps. |
| Configuration | Dual (Half-Bridge) | Simplifies inverter bridge design. |
| Rth(j-c) | 0.21 K/W (IGBT) | High-efficiency thermal path to heatsink. |
| Viso | 2500V AC | Ensures robust galvanic isolation for safety. |
Download the CM75DY-28H datasheet for detailed specifications and performance curves.
Technical Deep Dive
Analyzing the H-Series Design for Long-Term Reliability
The Mitsubishi H-series technology utilized in the CM75DY-28H represents a refined approach to power semiconductor architecture. Unlike standard trench-gate structures that focus solely on switching speed, the H-series prioritizes a balanced tradeoff between Switching Loss and Vce(sat). This is analogous to a vehicle engine designed for peak torque across a wide RPM range rather than just top speed; it provides consistent performance under the fluctuating loads typical of industrial automation.
Furthermore, the Insulated type flat base package is engineered to withstand the mechanical stresses of repeated Power Cycling. The Kelvin Emitter connection is a critical feature for high-frequency precision. By separating the signal return path from the power emitter current, the CM75DY-28H minimizes the effect of stray inductance on Gate Drive timing. This leads to cleaner switching transitions and reduces the risk of EMI-related issues in sensitive servo drive control loops. For a comprehensive understanding of these internal structures, engineers may refer to our guide on deconstructing the IGBT hybrid structure.
Application Scenarios & Value
Achieving System-Level Benefits in High-Frequency Power Conversion
The CM75DY-28H excels in environments where reliability cannot be compromised by harsh electrical conditions. In Variable Frequency Drives (VFD), the 75A current capability handles the reactive power demands of AC motor control with ease. The module’s 1400V rating is particularly advantageous in Welding Power Supply units and Solar Inverters where high-voltage DC buses are standard. By integrating this module, manufacturers can ensure compliance with IEC 61800-3 standards for EMC and reliability in industrial environments.
In high-precision applications like a Servo Drive, the low Vce(sat) directly translates to lower energy consumption and reduced cooling requirements. This efficiency is vital for maintaining the thermal stability of the entire control cabinet. For systems requiring higher current handling with similar reliability profiles, the Mitsubishi CM150DY-24H offers a 150A rating, though designers must note its 1200V Vces limit versus the 1400V provided here. For more information on optimizing these stages, see our resource on IGBTs in robotic servo drives.
Additional Engineering Considerations
What gate voltage is recommended for optimal switching performance in the CM75DY-28H?
While the data sheet specifies a Vge of +/- 20V as the absolute maximum, standard industry practice for the CM75DY-28H involves a +15V turn-on and a -5V to -10V turn-off Negative Gate Voltage. This negative bias is crucial in 1400V systems to prevent parasitic turn-on caused by high dv/dt transients coupled through the Miller Capacitance. Proper gate drive design is the primary defense against cross-conduction in half-bridge topologies.
Can multiple CM75DY-28H modules be paralleled for higher power output?
Yes, however, IGBT Paralleling requires careful attention to the Vce(sat) distribution. Because the CM75DY-28H has a positive temperature coefficient at higher currents, it naturally supports current sharing. Engineers must ensure symmetrical PCB or busbar layouts to prevent current imbalance caused by Stray Inductance. For more details on this technique, engineers can explore the mastering IGBT paralleling guide.
The integration of Mitsubishi CM75DY-28H modules into next-generation power stages represents a strategic investment in system longevity. By selecting a device that natively supports the voltage overhead required by modern industrial grids, designers reduce the complexity of active clamping and snubber circuits. This fact-based approach to component selection ensures that power conversion systems remain efficient, cool, and operational under the most demanding conditions of the global industrial landscape.
