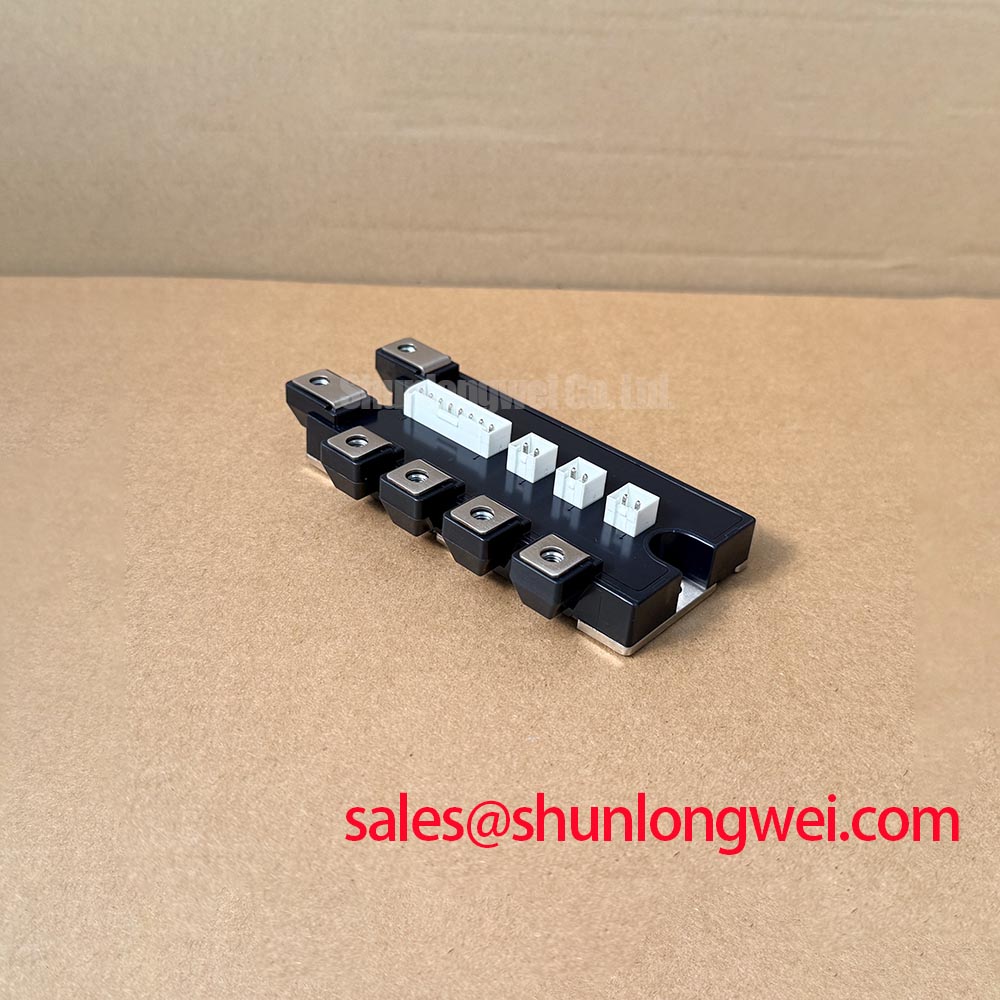

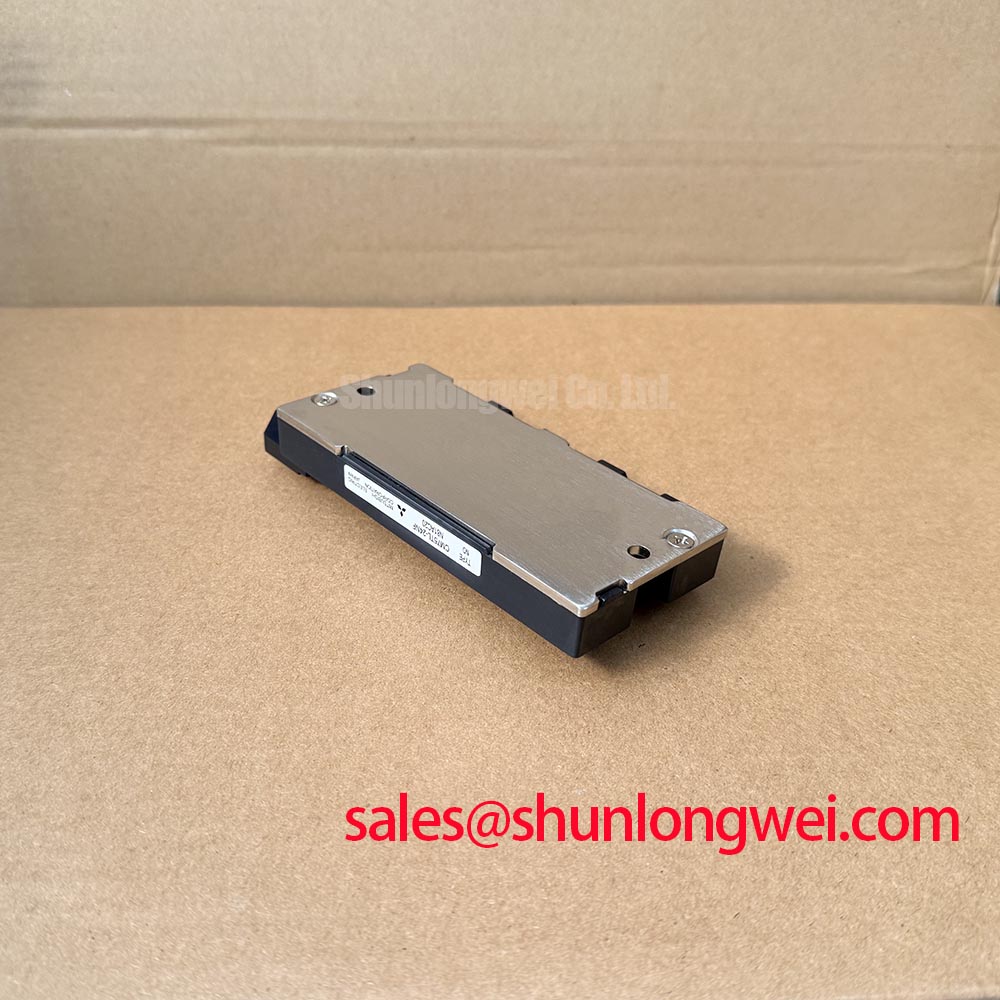

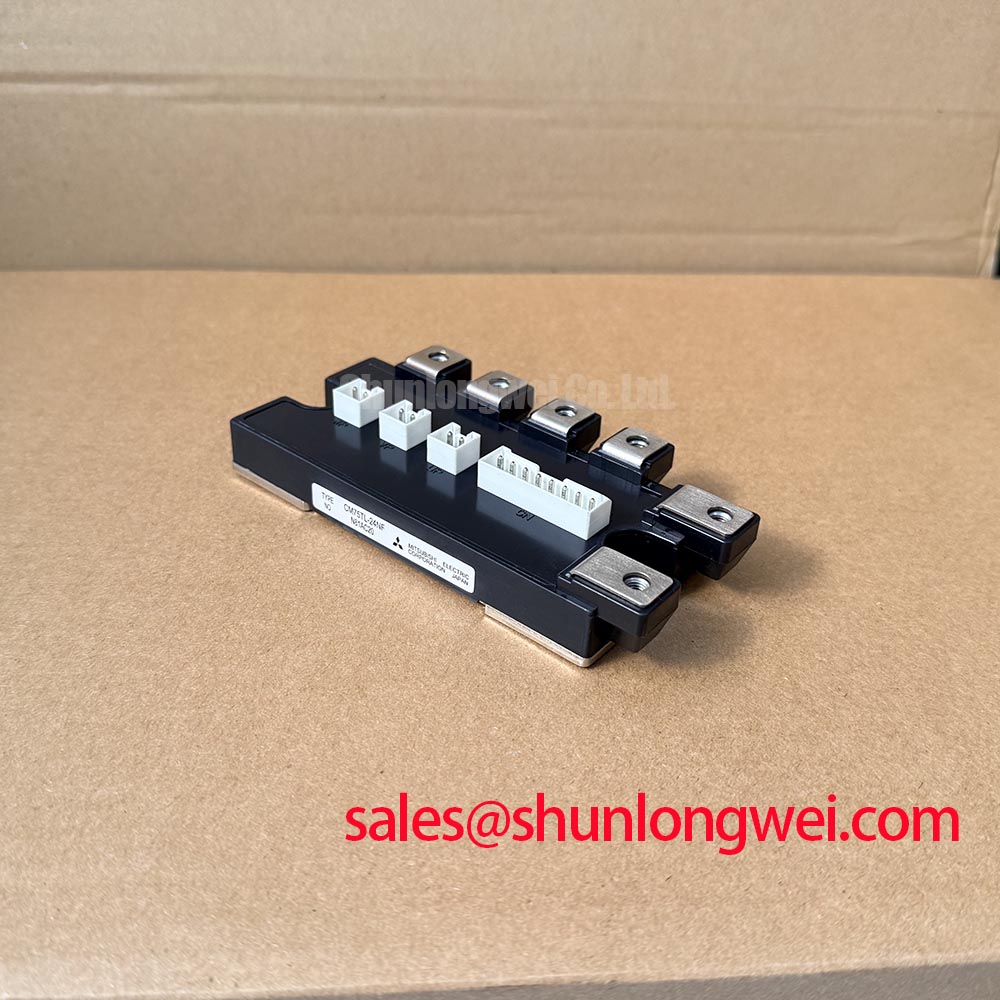

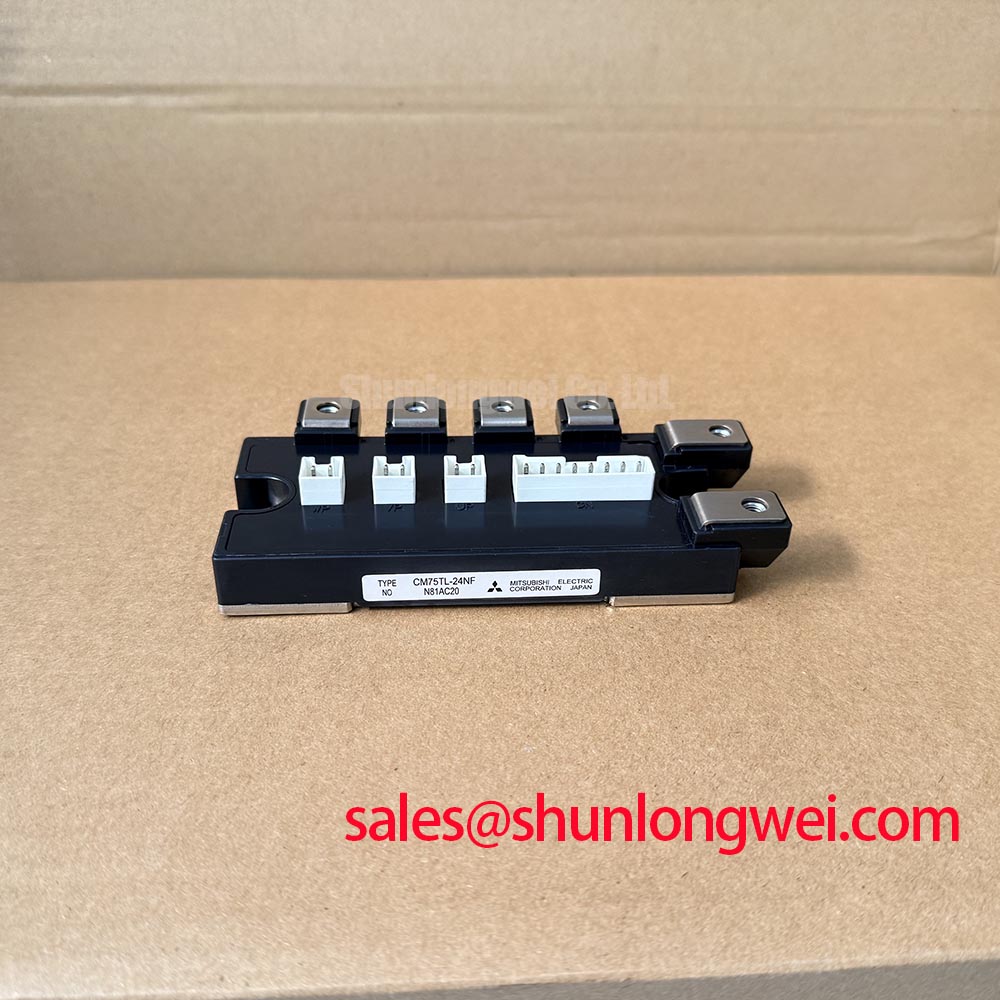

Manufacturer Part Number: CM75TL-24NF
Part Life Cycle Code: Active
Ihs Manufacturer: Mitsubishi ELECTRIC CORP
Part Package Code: MODULE
Package Description: FLANGE MOUNT, R-XUFM-X20
Pin Count: 20
Manufacturer: Mitsubishi Electric
Risk Rank: 5.21
Case Connection: ISOLATED
Collector Current-Max (IC): 75 A
Collector-Emitter Voltage-Max: 1200 V
Configuration: BRIDGE, 6 ELEMENTS WITH BUILT-IN DIODE
Gate-Emitter Voltage-Max: 20 V
JESD-30 Code: R-XUFM-X20
Number of Elements: 6
Number of Terminals: 20
Operating Temperature-Max: 150 °C
Package Body Material: UNSPECIFIED
Package Shape: RECTANGULAR
Package Style: FLANGE MOUNT
Polarity/Channel Type: N-CHANNEL
Power Dissipation-Max (Abs): 520 W
Qualification Status: Not Qualified
Subcategory: Insulated Gate BIP Transistors
Surface Mount: NO
Terminal Form: UNSPECIFIED
Terminal Position: UPPER
Transistor Application: POWER CONTROL
Transistor Element Material: SILICON
VCEsat-Max: 3 V
Insulated Gate Bipolar Transistor, 75A I(C), 1200V V(BR)CES, N-Channel, MODULE-20
