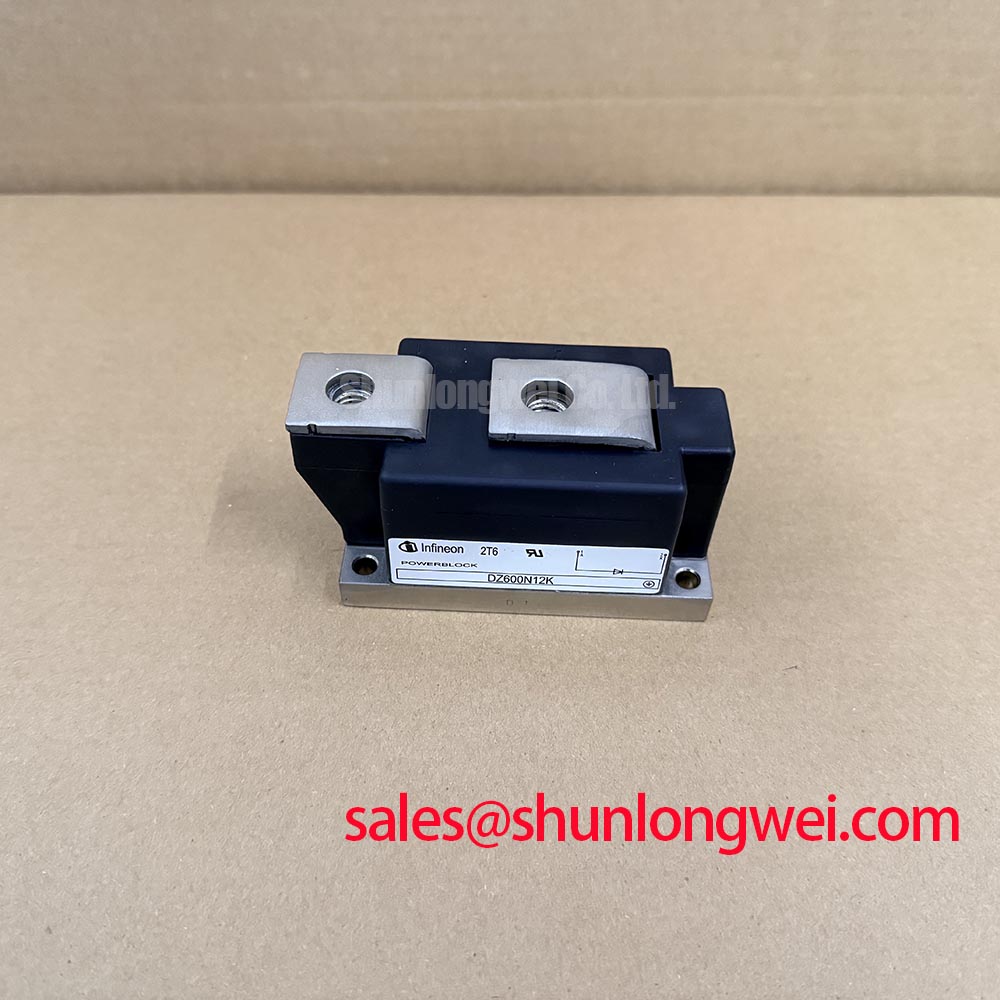

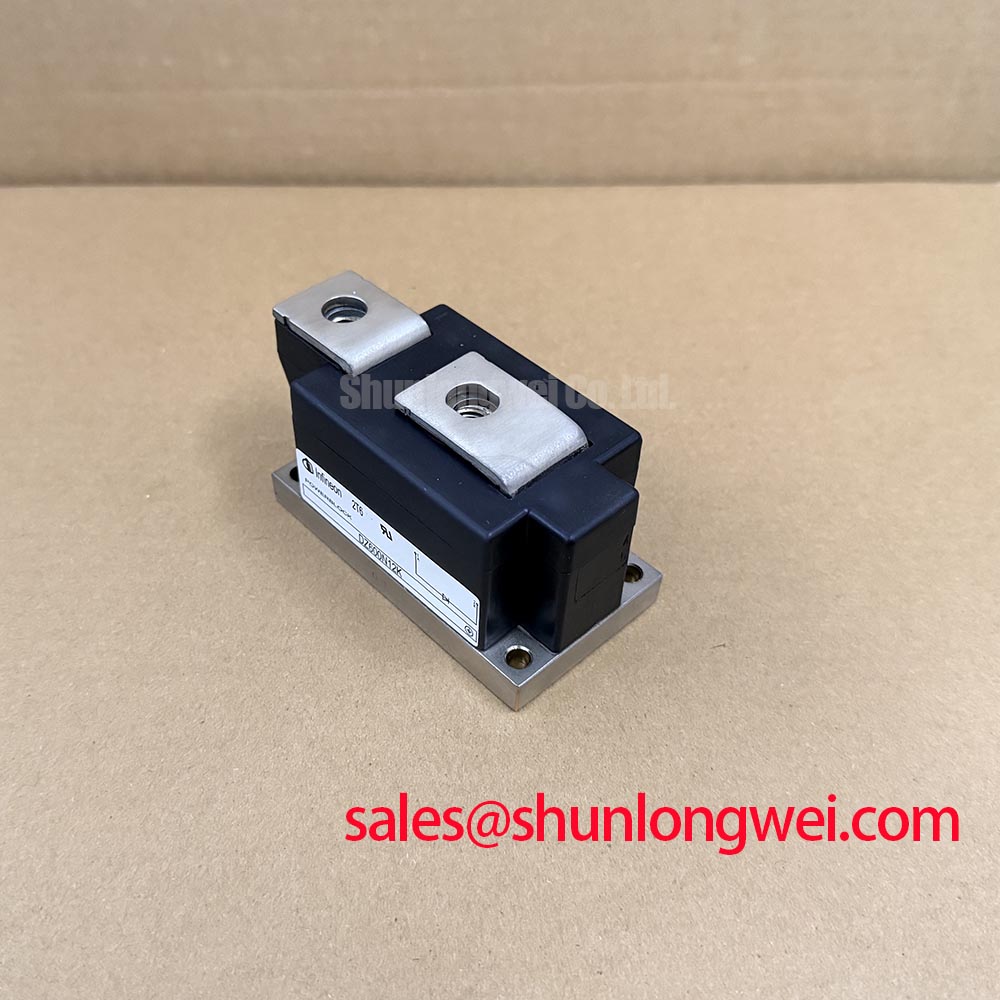

DZ600N12K Circuit Protection & Reliability: Assessing Voltage Transients
I trace the snubber connections and semiconductor fuse references before authorizing an energized test of a DZ600N12K assembly. With the equipment isolated and stored energy discharged, I check for disconnected suppression components, heat-damaged connections, and differences between the installed wiring and the equipment schematic. A resistance measurement across an assembled power stage includes parallel paths; isolating the relevant connections helps distinguish module behavior from the surrounding circuitry.
Design Consideration: In circuits that also contain thyristors, excessive off-state voltage rise can produce unintended triggering of those devices. An RC snubber addresses voltage slew and oscillation, while a series reactor addresses current rise during turn-on. These functions are related but not interchangeable. Engineers should assess snubber resistance and capacitance against measured waveforms, component pulse capability, and operating temperature. A saturable reactor also requires evaluation of its magnetic behavior over the intended current cycle, rather than selection by physical size alone.
For protection coordination, compare the semiconductor fuse’s total clearing I²t with the applicable module withstand data under corresponding conditions. Fuse current rating alone does not establish semiconductor protection. Record the fuse reference, prospective fault current, supply conditions, and manufacturer coordination guidance before accepting the installed combination.
When reviewing transient margins, Mastering Power System Dynamics provides supporting discussion of stray inductance and suppression principles. Keep the decision specific to the installed circuit: assess peak voltage and ringing with suitable measurement equipment, then validate any suppression changes across the intended operating conditions. This is a system integration check, not an additional factory rating for the module.

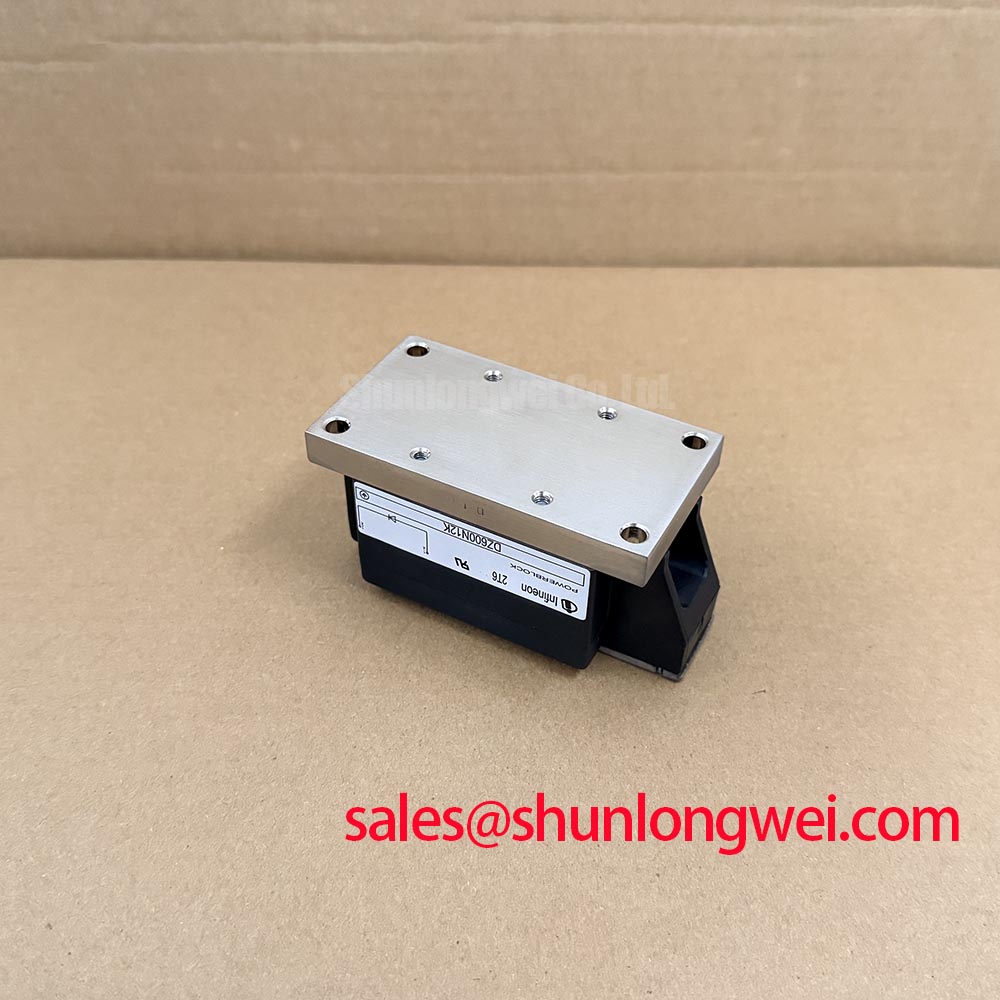

Field Diagnostics & Commissioning: Ensuring Uniform Heatsink Contact Pressure in DZ600N12K Topologies
Inspect the heatsink mating surface and mounting hardware before tightening the module. Remove residual interface material without damaging either contact surface, and check for burrs, contamination, uneven seating, or hardware that bottoms out before applying clamping force. Do not infer the baseplate material or mounting pressure from the package name.
Engineering Recommendation: Apply the specified thermal interface material using the approved assembly method, then follow the module’s mounting sequence and torque instructions. Mounting fasteners and electrical terminal fasteners perform different jobs and can have different requirements. Support attached conductors so their stiffness does not twist the package or lift one edge from the heatsink.

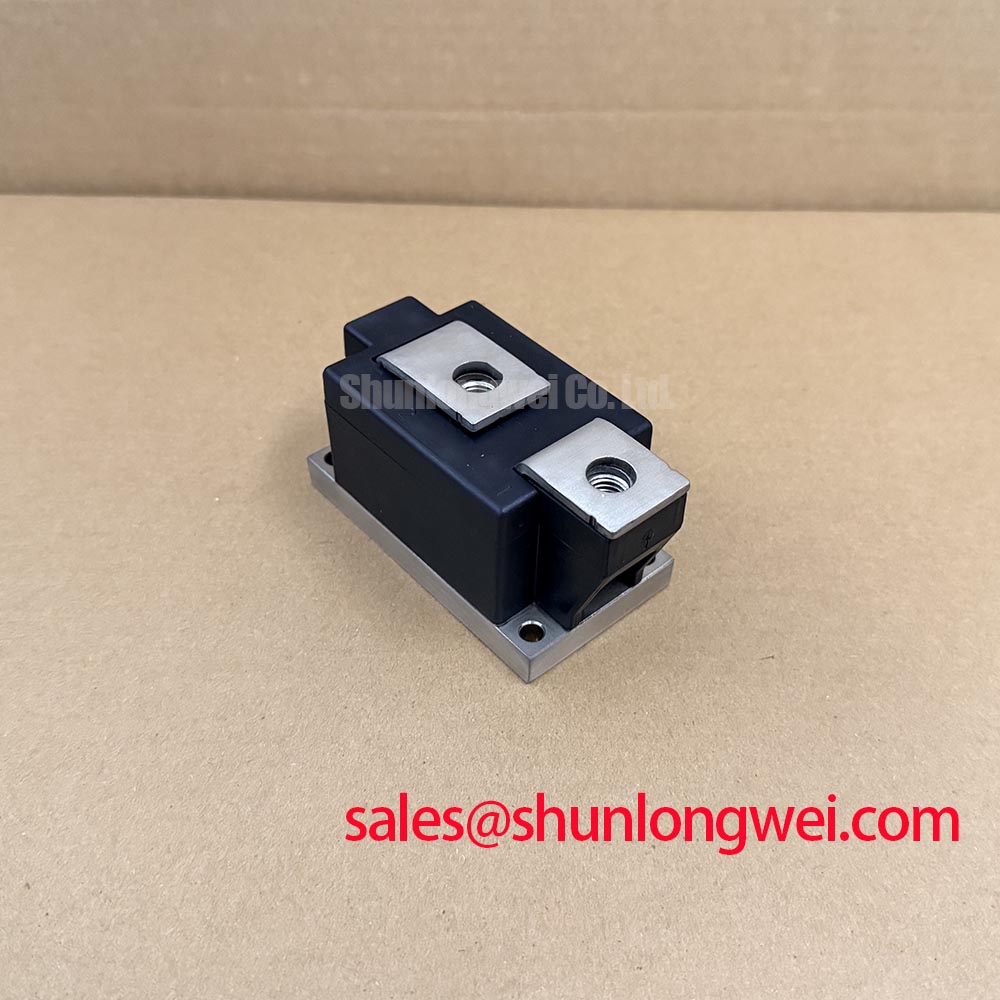

Field Alert: Do not use terminal bolts to pull misaligned busbars into position; align and support the conductors before tightening to the specified terminal torque.
The junction-to-case thermal resistance describes a defined internal heat path; it does not include the complete interface-to-heatsink and heatsink-to-ambient path. During commissioning, compare temperatures at repeatable measurement locations under comparable loading and cooling conditions. An unusual temperature pattern warrants checks of interface contact, terminal resistance, airflow, and current distribution rather than an immediate diagnosis of an internal module defect.
Replacement assessment should preserve the terminal arrangement, circuit function, mounting geometry, and thermal requirements. The TD25N12KOF is a separate device reference for comparison, not an established drop-in replacement for DZ600N12K. Package resemblance is insufficient evidence of compatibility.
Infineon’s EconoDUAL™ 3 documentation concerns a different module family. Its mechanical or terminal conventions should not be transferred to this assembly.
DZ600N12K Thermal-Electrical Optimization: Surge-Current Margins during High-Peak Operation
Match the surge-current waveform and initial junction-temperature condition before comparing an operating event with a non-repetitive surge rating. If the applicable specification defines a sinusoidal 10 ms half-cycle, that duration is a test condition—not permission to repeat the event at an arbitrary interval. A different waveform requires its own assessment of heating and protection coordination.
Design Consideration: After a high-current event, evaluate the subsequent blocking interval as well as the current peak. Reverse-voltage reapplication, recovery behavior, residual heating, and the protection sequence influence the stress imposed on the junction. Do not interpret a surge-current rating as an avalanche-energy rating or assume that a successful isolated test establishes repetitive capability.
For a potential three-phase rectifier application, engineers should compare the equipment’s phase arrangement with the module connection diagram before considering integration. Capture the relevant current and voltage waveforms during controlled commissioning, and assess repeated operating duty against the complete thermal path and protective-device coordination.
Infineon’s IGBT Discretes & Co-Pack Diodes resources cover a different device class; their gate-drive and recovery specifications are not DZ600N12K parameters. For this assembly, acceptance should rest on the applicable diode limits, correct terminal connections, and measured recovery into the required blocking state.
