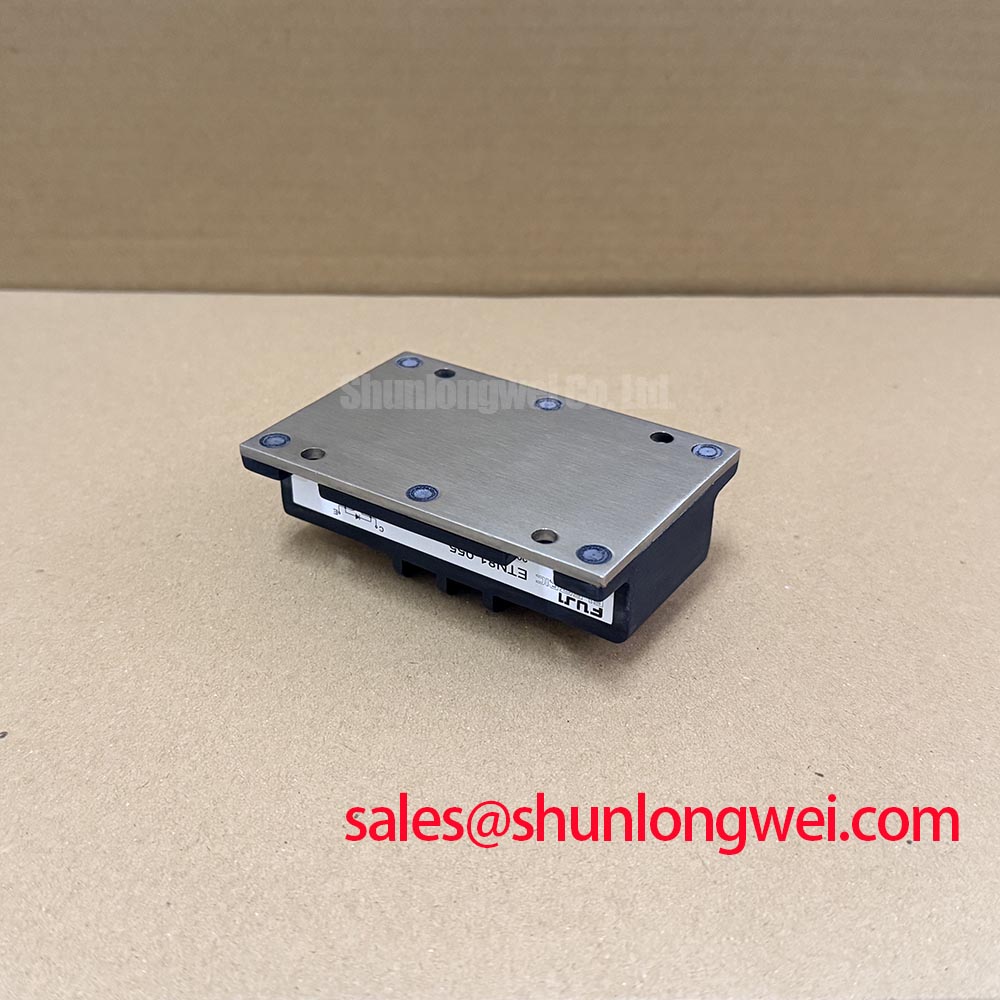

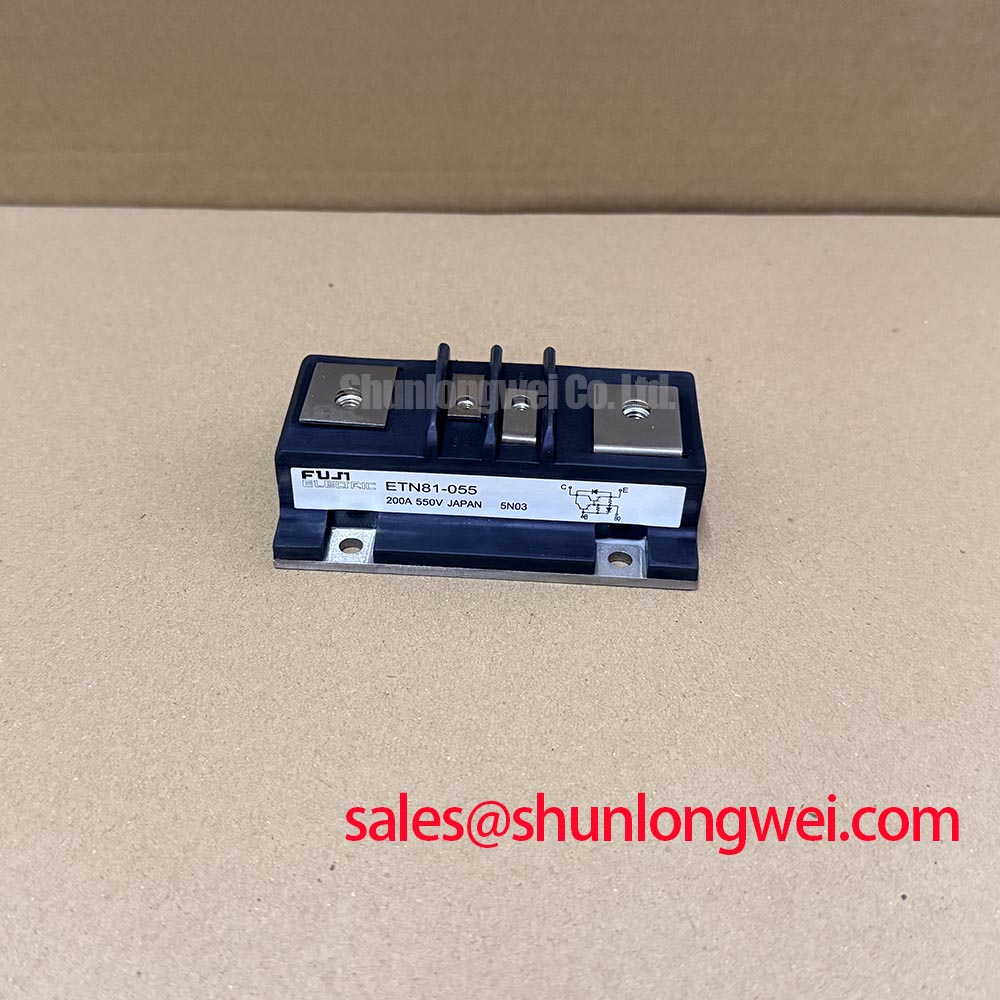

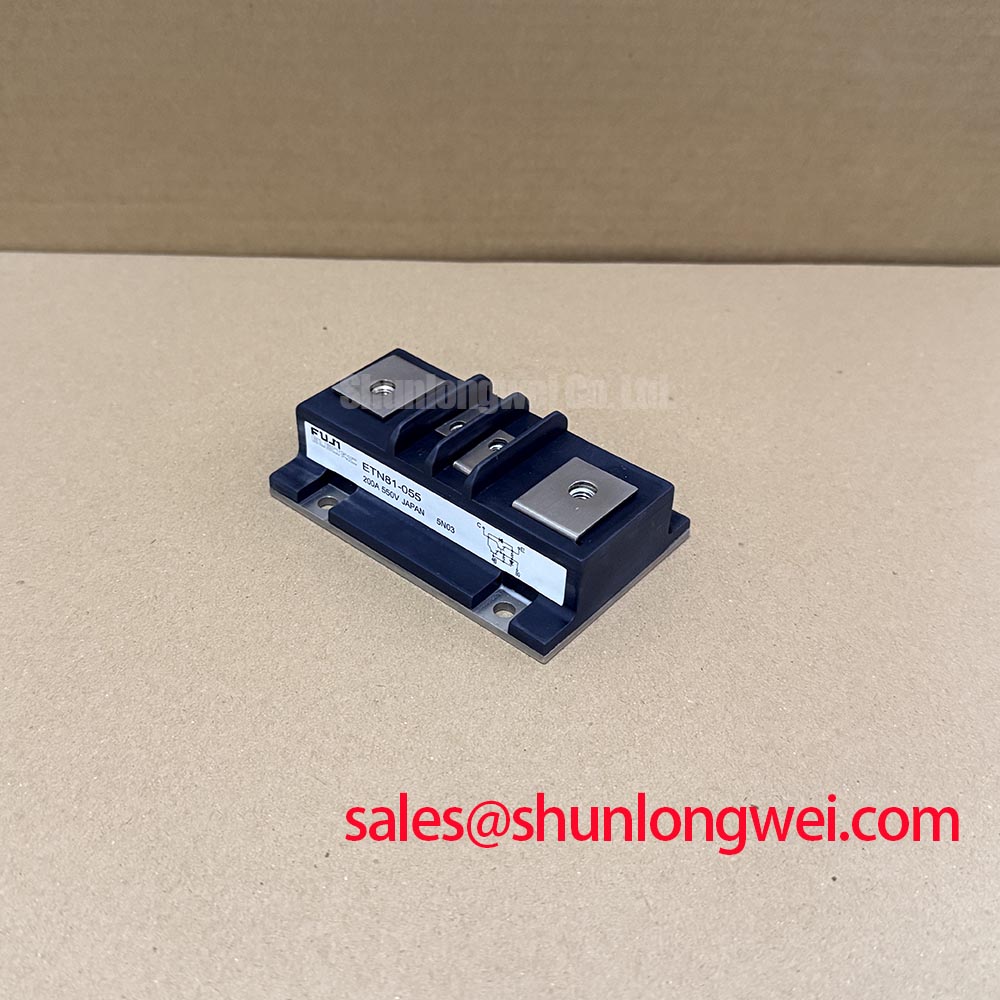

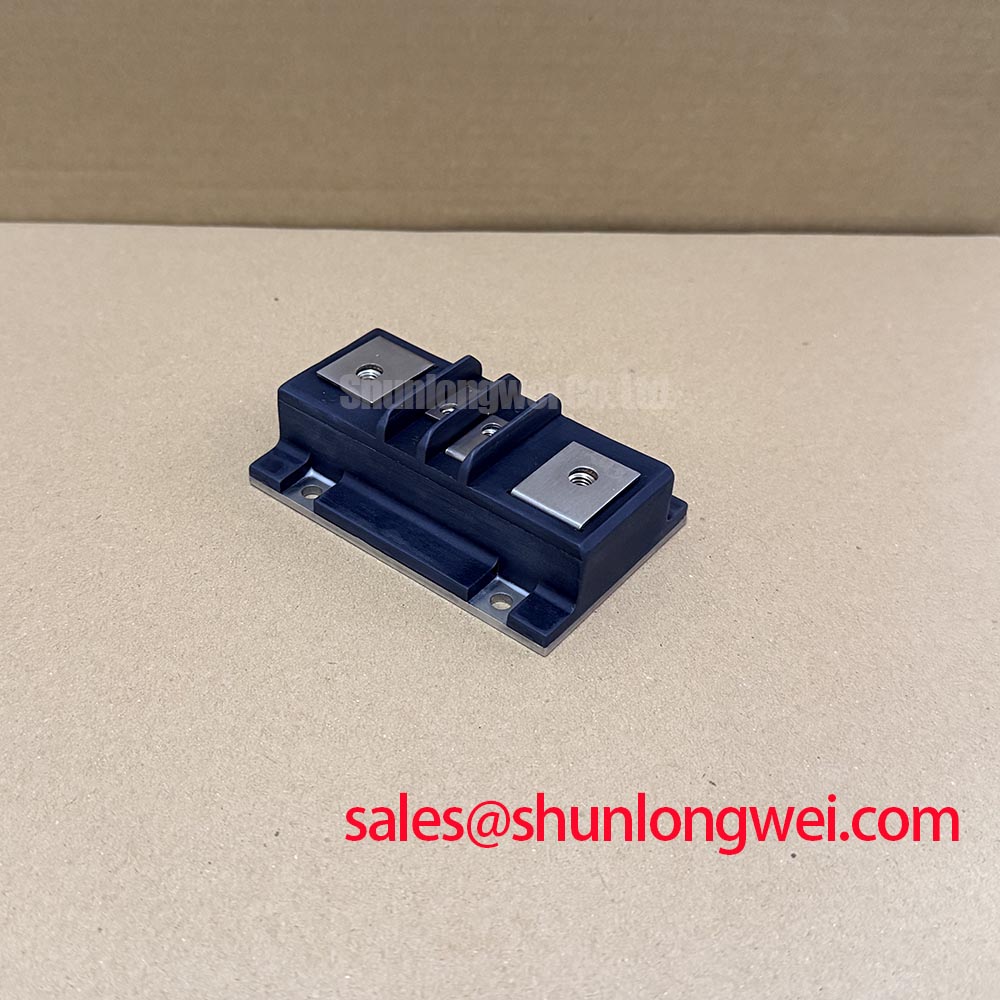

FUJI ETN81-055 IGBT Module

Including Free Wheeling Diode

High DC Current Gain

Insulated Type

600 volts class power transistor modules

Power transistors and free wheel diodes are built into one package.

All terminals are insulated from mounting plate.

Suited for motor control applications with 220 to 240 volts inputs.

All terminals are screw-clamp type.

Absolute maximum ratings (Tc=25°C unless without specified)

Collector-Emitter voltage Vces:600V

Collector-Emitter voltage Vces:550V

Gate-Emitter voltage VGES:±20V

Collector current Ic Continuous Tc=25°C :200A

Collector current Icp 1ms Tc=25°C :400A

Collector power dissipation Pc:1000W

Isolation Voltage VIsol (AC 1 minute) :2500V

Operating junction temperature Tj:+150°C

Storage temperature Tstg :-40 to +125°C
