Field Diagnostics & Commissioning: Harmonic Current Injection and Line Filter in 6RI75E-080 Topologies

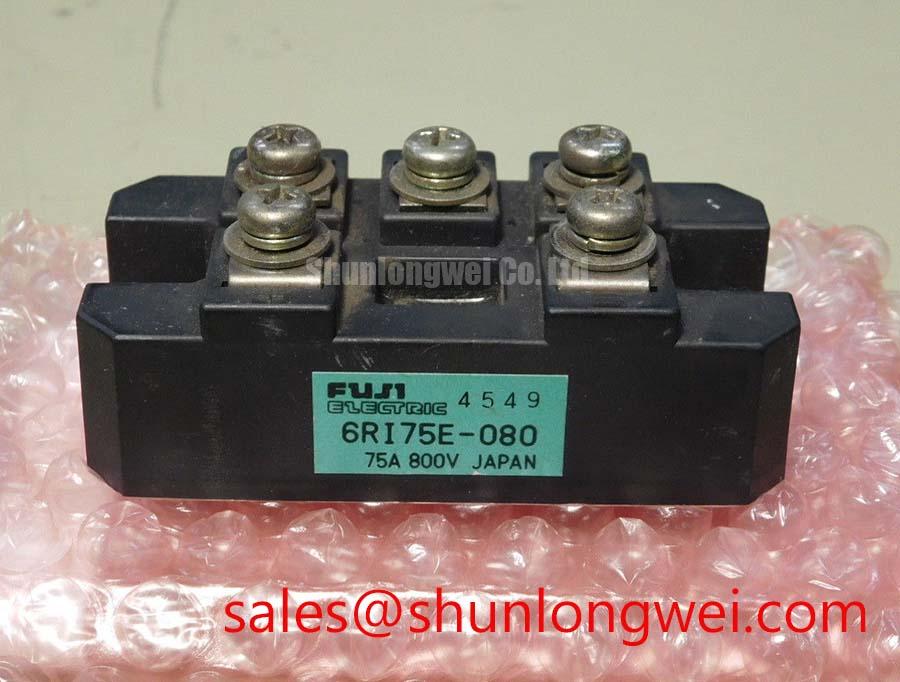

Isolate the DC link, confirm it is discharged, and check the terminal markings before testing a 6RI75E-080 in circuit. Fuji Electric identifies this part as a power diode bridge module rated at 800 V and 75 A (Official Specification). Those ratings establish its basic identity; they do not establish the allowable surge current, fuse coordination, mounting torque, terminal arrangement or suitability for a particular cabinet. Confirm those details against the original module documentation and equipment drawing before energizing the assembly.
Start at the schematic rather than at the firing controller. A diode bridge rectifies according to the applied AC waveform and load conditions; it has no commanded firing angle. An angle swept from zero to 150 degrees describes a controlled thyristor stage elsewhere in a system, not an adjustable transfer characteristic of the 6RI75E-080. If a static var compensator or thyristor-switched capacitor cabinet contains this module, identify its actual circuit position before attributing measured reactive power or harmonic current to it.
For a bridge in an auxiliary rectification path, compare the AC-side waveform, DC-link voltage and load current with the equipment’s known-good operating records. Distorted input current can reflect the downstream load and source impedance as well as the rectifier. A line filter assessment should therefore use measurements at the relevant terminals under a documented operating condition, rather than a presumed power factor derived from a thyristor firing angle. Check phase identification and terminal connections against the original wiring diagram; the supplied rating information does not define a pinout.
The 800 V and 75 A values are Official Specifications, but they are not a fuse coordination table. Before commissioning, obtain the module’s applicable surge-withstand data, the protective device’s clearing characteristics and the equipment fault-current study. As a Design Consideration, assess mounting contact and terminal tightness using the manufacturer’s mechanical instructions for the installed assembly; no model-specific torque value is established here. When comparing the linked 2DI75A-140, treat it as a separate reference model, not a drop-in replacement: circuit function, terminals, mechanical fit and all relevant ratings require independent verification.
Preventing Spurious Faults: Separating Gate-Firing Diagnostics from 6RI75E-080 Checks
Do not connect a gate-firing lead to the 6RI75E-080 on the assumption that every device in a compensator cabinet is a thyristor. A diode bridge has no gate input, so gate-current rise time, back-porch current and multi-pulse firing schedules are not module settings. If service records mention these controls, trace them to the thyristor-switched stage and keep its diagnostics separate from the bridge’s AC and DC connections.
A useful bench distinction is whether an unexpected current pulse follows a firing command or follows a change in line or DC-link conditions. Capture synchronized voltage and current waveforms at documented test points, then compare them with the equipment schematic and a known-good operating state. A pulse coincident with a firing command warrants inspection of the controlled stage; current through the diode bridge still needs evaluation against its own path and load. Neither observation alone identifies a failed component.
Bench diagnostic: Do not attach a gate-test lead until the terminal identity has been confirmed from the equipment drawing. In cabinets that use optical links for nearby control or monitoring circuits, optoelectronics provides background on those interfaces, but it does not turn this diode module into an optically triggered device. Keep control-signal checks and rectifier power-path checks distinct in the service record.
Benchtop Waveform Tuning: Mitigating Transient Stress Around 6RI75E-080
Measure the bridge’s voltage waveform at the operating point that produces the largest observed transient, using a probe and measurement arrangement appropriate to the circuit. Compare the peak with the 800 V Official Specification while accounting for the meaning and conditions of that rating in the complete Fuji Electric documentation. A DC-link reading alone will not reveal a brief line-side or commutation transient.
As a Design Consideration, minimize avoidable loop inductance where switching current can produce voltage overshoot, then verify the result with measured waveforms. Snubber resistance and capacitance must be determined from the actual source impedance, load, transient energy and thermal behavior; the supplied module data provide no values from which to prescribe them. A series saturable reactor likewise needs a circuit-specific justification and validation. The diode bridge cannot undergo spurious gate turn-on, although excessive voltage or current transients can still stress its rectifying path.
A transient-voltage-suppression diode illustrates a different method of limiting transients; its presence or suitability cannot be inferred from the bridge rating. For a separate rectification or complementary circuit comparison, the 2DI75M-120 is another model to evaluate against the schematic, not evidence that the devices share connections or protection requirements. Engineers assessing resonant equipment can also consult Resonant Topologies in Home Appliances for topology context, while using this module’s own specifications for its limits.
Short-Circuit Review: Fuse I²t and Surge Withstand for 6RI75E-080
For a short-circuit review, obtain the candidate fuse’s total-clearing I²t at the available fault current and compare it with the module’s applicable surge-withstand information under the specified conditions. The provided 75 A Official Specification is a rated-current value, not an I²t withstand figure. Without the relevant device data and installation fault study, a numerical coordination result cannot be calculated responsibly.
Record the prospective fault-current path, fuse location and upstream protective devices before interpreting a benchtop event. Fuse pre-arcing data alone may omit energy delivered during clearing, while wiring and source impedance affect the current the bridge actually experiences. Check the equipment manufacturer’s protection requirements as well as the semiconductor and fuse documentation. Even a documented I²t comparison cannot guarantee the absence of enclosure damage during a dead short.
After a protective-device operation, keep the circuit isolated and compare cold-state terminal measurements with the service procedure and an appropriate reference unit. Inspect the mounting interface and connections, then resolve the initiating fault before applying power again. This sequence addresses what can be measured on the 6RI75E-080 without assigning an unsupported surge rating, fuse size or mounting torque to the module.
