Infineon FF150R12RT4 | High-Efficiency 1200V IGBT Module for Demanding Drives

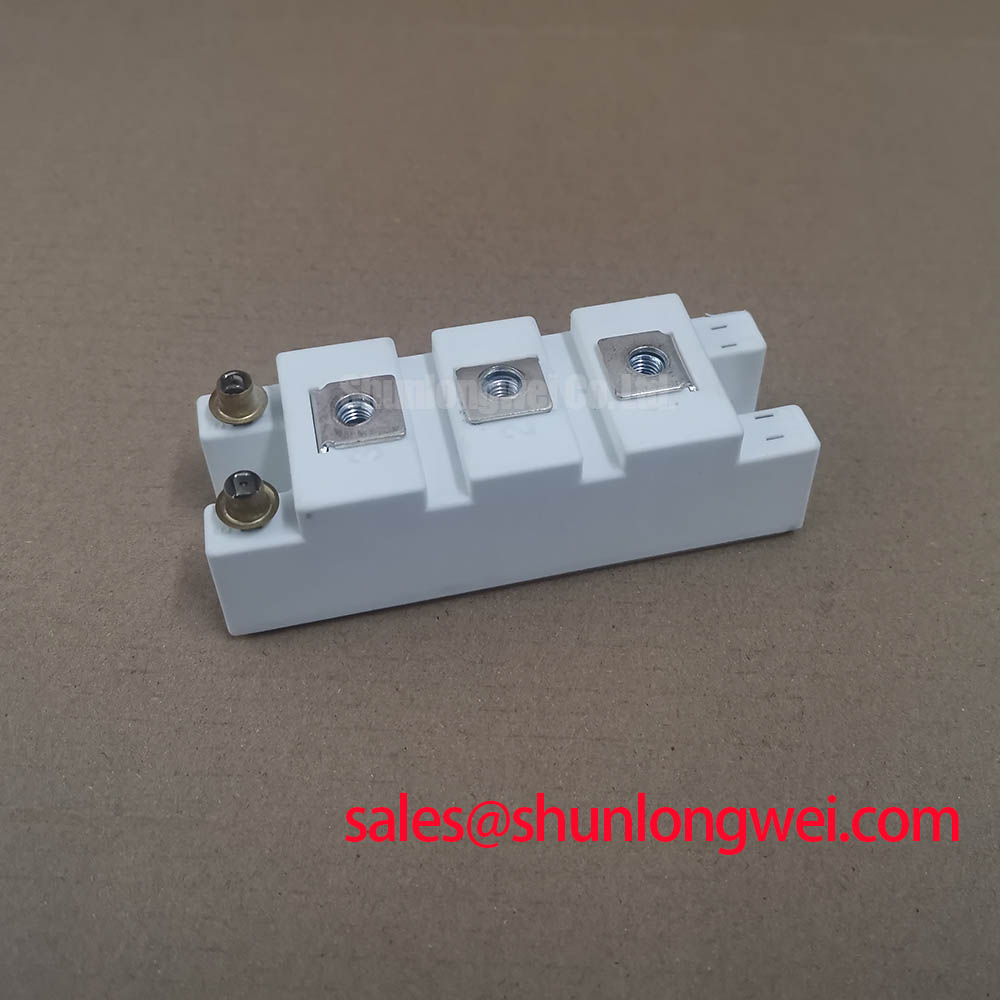

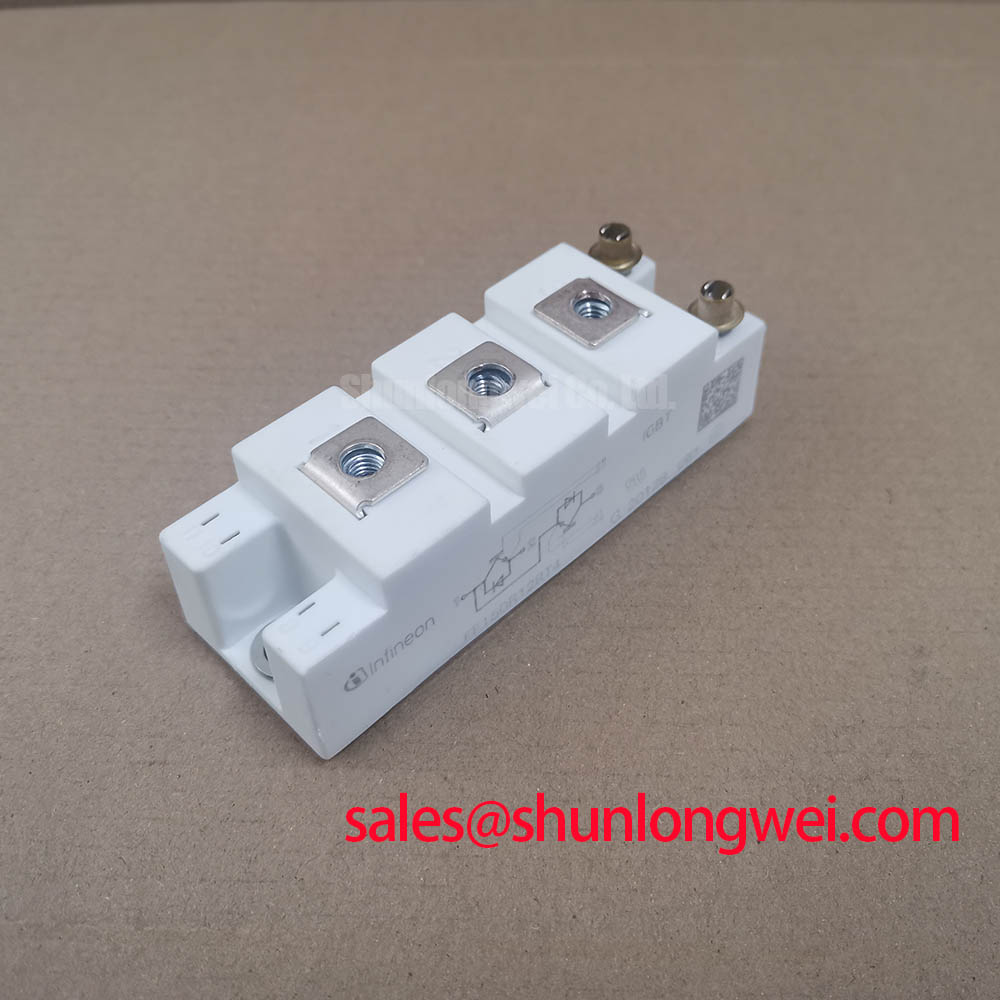

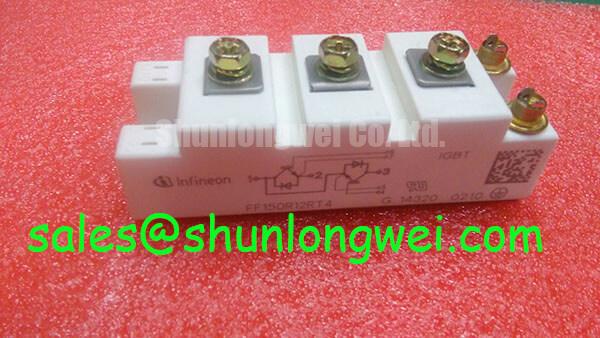

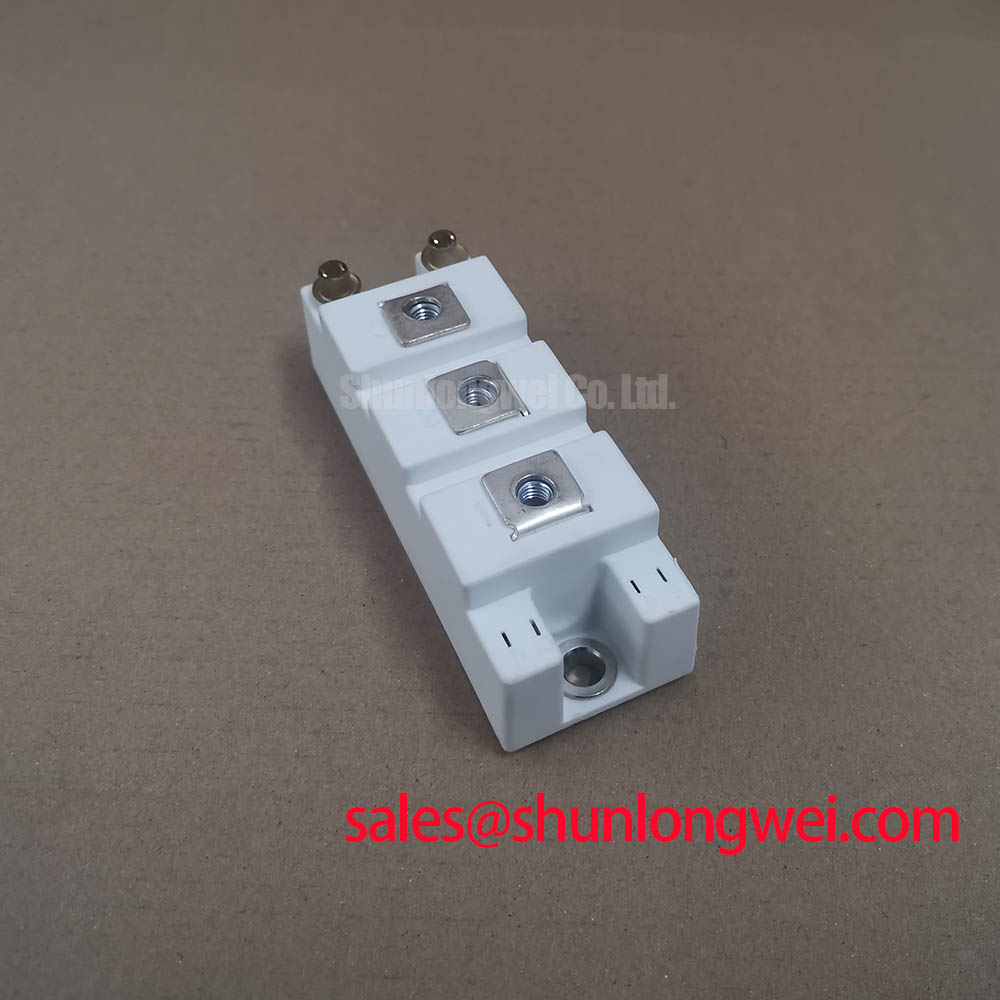

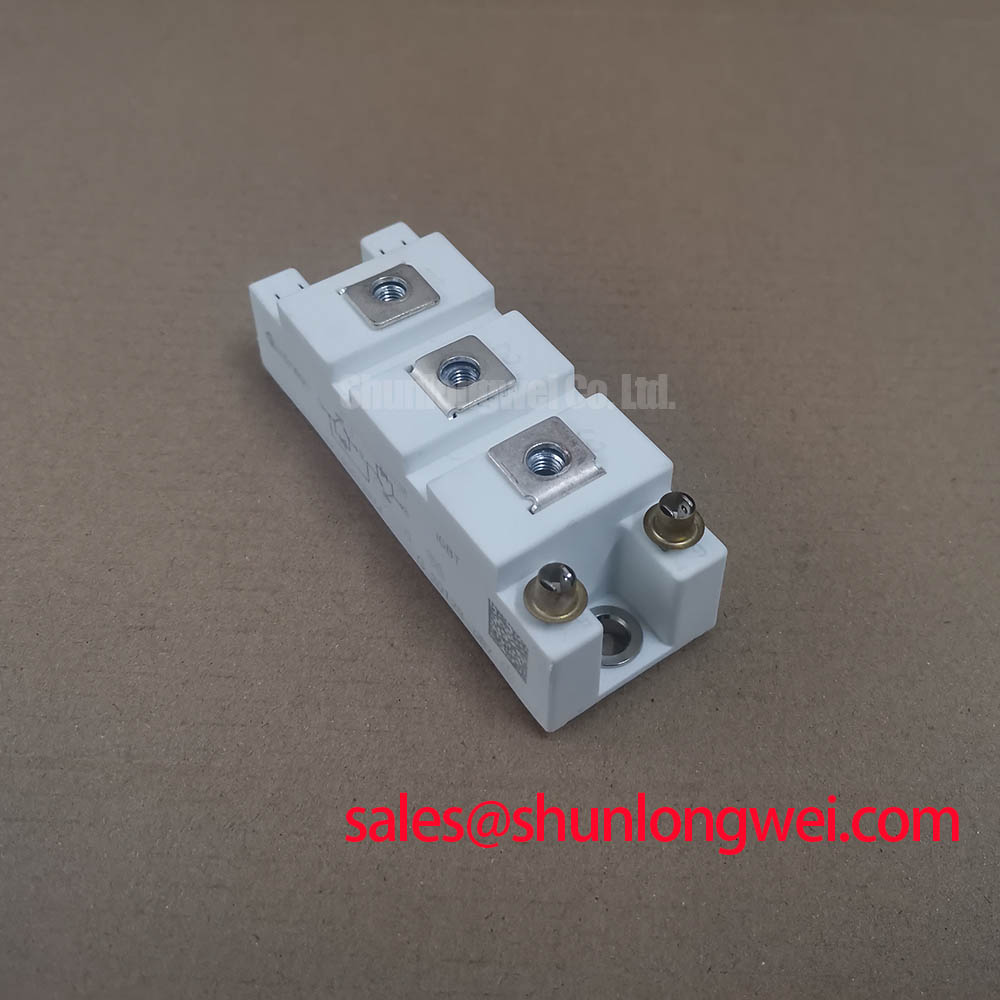

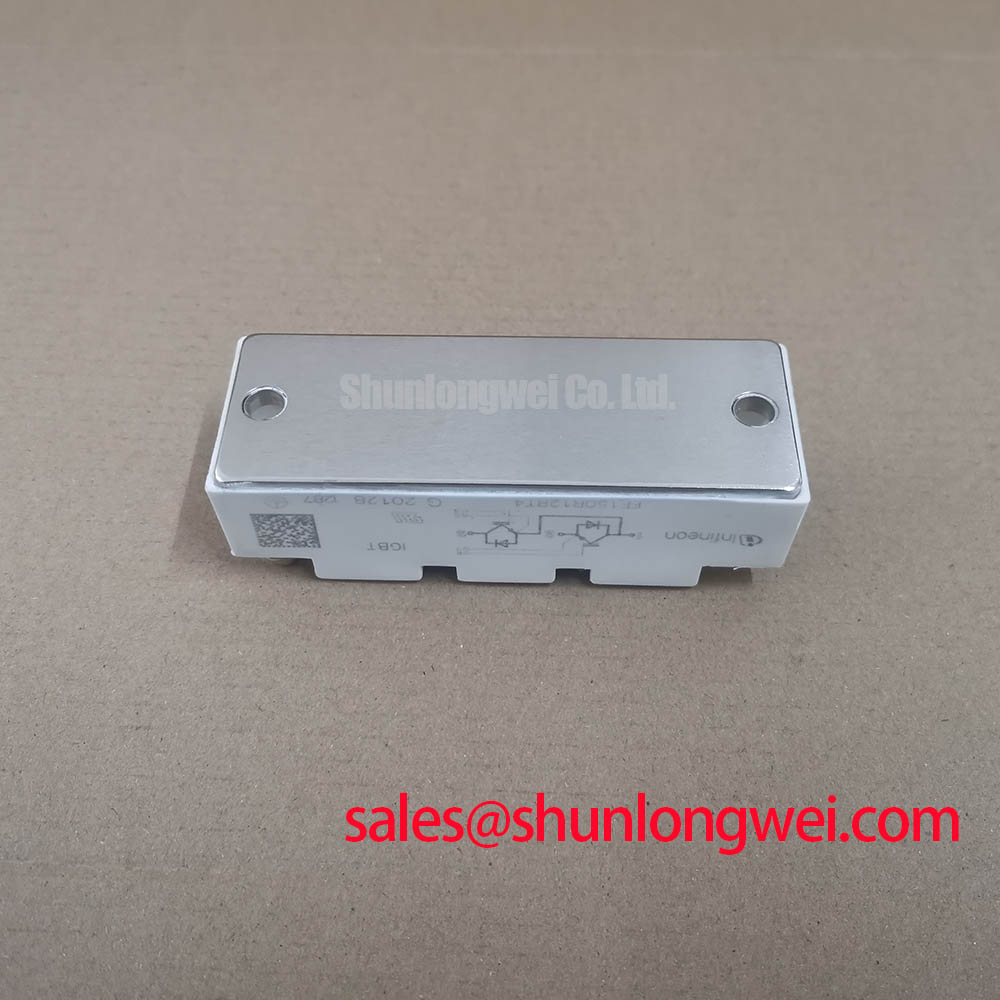

The Infineon FF150R12RT4 is an industry-staple 1200V, 150A half-bridge IGBT module designed for high-reliability power conversion systems. Housed in the robust EconoDUAL™ 3 package, this component represents a mature and highly optimized solution for engineers seeking a balance of performance, efficiency, and proven field reliability. It is engineered to be a workhorse in applications where predictable operation and thermal stability are paramount.
Product Highlights Overview
The FF150R12RT4 is not just a set of specifications; it's a design solution engineered for specific outcomes:
- Optimized Switching Performance: Utilizes Infineon’s TRENCHSTOP™ IGBT4 technology, providing a favorable trade-off between low conduction losses (VCE(sat)) and controlled switching losses.
- High Reliability: Features a co-packaged, soft-recovery Emitter Controlled Diode optimized for low EMI and reduced voltage overshoot, enhancing system longevity.
- Robust Packaging: The EconoDUAL™ 3 package offers excellent thermal cycling capability and simplified busbar connections, crucial for industrial environments.
- Broad Application Fit: An ideal choice for motor drives, solar inverters, and uninterruptible power supplies (UPS) operating in the medium frequency range.
Technical Deep Dive: The Engineering Inside
Two core technologies define the superior performance of the Infineon FF150R12RT4. Understanding these reveals why it remains a preferred choice for many power electronics designs.
First is the Infineon TRENCHSTOP™ IGBT4 technology. This represents a significant leap from older Non-Punch-Through (NPT) designs. By implementing a trench gate and a field-stop layer, the IGBT4 chip achieves a much lower collector-emitter saturation voltage (VCE(sat)). For a design engineer, this directly translates to lower conduction losses, meaning less heat is generated during operation. The result is a more efficient system, potentially allowing for a smaller heatsink and a more compact overall design. This technology provides a well-balanced profile, making it a cost-effective solution without compromising on essential performance metrics.
Second, the integrated Emitter Controlled Diode is a critical, yet often overlooked, component. This isn't a generic freewheeling diode; it is specifically engineered for soft recovery characteristics. A "soft" recovery means the diode turns off smoothly, drastically reducing voltage overshoots and high-frequency oscillations. This significantly lowers electromagnetic interference (EMI), simplifying the design and cost of filtering circuits and improving the overall robustness of the power stage. For a deeper understanding of how the core structure functions, our guide on the hybrid structure of IGBTs provides valuable context.
Key Parameter Overview
For engineers requiring quick access to critical data, the following table summarizes the performance characteristics of the FF150R12RT4 under typical conditions. These values are foundational for thermal and electrical simulations.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (V_CES) | 1200 V |
| Nominal Collector Current (I_C nom) | 150 A |
| Collector-Emitter Saturation Voltage (V_CE(sat), T_vj=25°C) | 1.70 V (Typ.) |
| Collector-Emitter Saturation Voltage (V_CE(sat), T_vj=125°C) | 2.00 V (Typ.) |
| Short-Circuit Withstand Time (t_sc) | 10 µs |
| Thermal Resistance, Junction-to-Case (R_thJC) per IGBT | 0.11 K/W |
For a comprehensive list of all parameters, designers should consult the official FF150R12RT4 datasheet.
Application Scenarios & Value Proposition
The FF150R12RT4 excels in applications where efficiency and ruggedness are key design drivers:
- Variable Frequency Drives (VFDs): In motor drives, the module's excellent Safe Operating Area (SOA) and robust short-circuit withstand time provide the durability needed to handle high starting currents and overload conditions common in industrial automation.
- Solar Inverters: The low VCE(sat) is critical for maximizing the energy harvest from photovoltaic panels. Lower conduction losses mean higher inverter efficiency, delivering more power to the grid and improving the return on investment for the entire solar installation.
- Uninterruptible Power Supplies (UPS): For UPS systems, reliability is non-negotiable. The proven design of the FF150R12RT4, combined with its excellent thermal performance, ensures dependable operation during critical power backup events. Efficient power conversion also extends battery runtime.
Engineer's FAQ
Here are answers to common questions engineers have when designing with the FF150R12RT4:
- What are the optimal gate drive conditions?
For clean and efficient switching, a gate driver supplying +15V for turn-on and a negative voltage between -8V and -15V for turn-off is highly recommended. The negative voltage ensures a robust off-state, especially in noisy environments. Implementing effective IGBT gate drive design practices is crucial to prevent catastrophic failures. - Can this module be used in parallel for higher power?
Yes, the FF150R12RT4 is suitable for paralleling. Its IGBTs exhibit a positive temperature coefficient for VCE(sat), which aids in passive current balancing under static conditions. However, achieving good dynamic current sharing requires meticulous attention to symmetrical PCB layout for both the power path and gate drive signals.
For more detailed application support or to discuss how the Infineon FF150R12RT4 can fit into your next project, please contact our technical team.
