Infineon FF450R12KT4 | Proven Performance for High-Power Industrial Applications

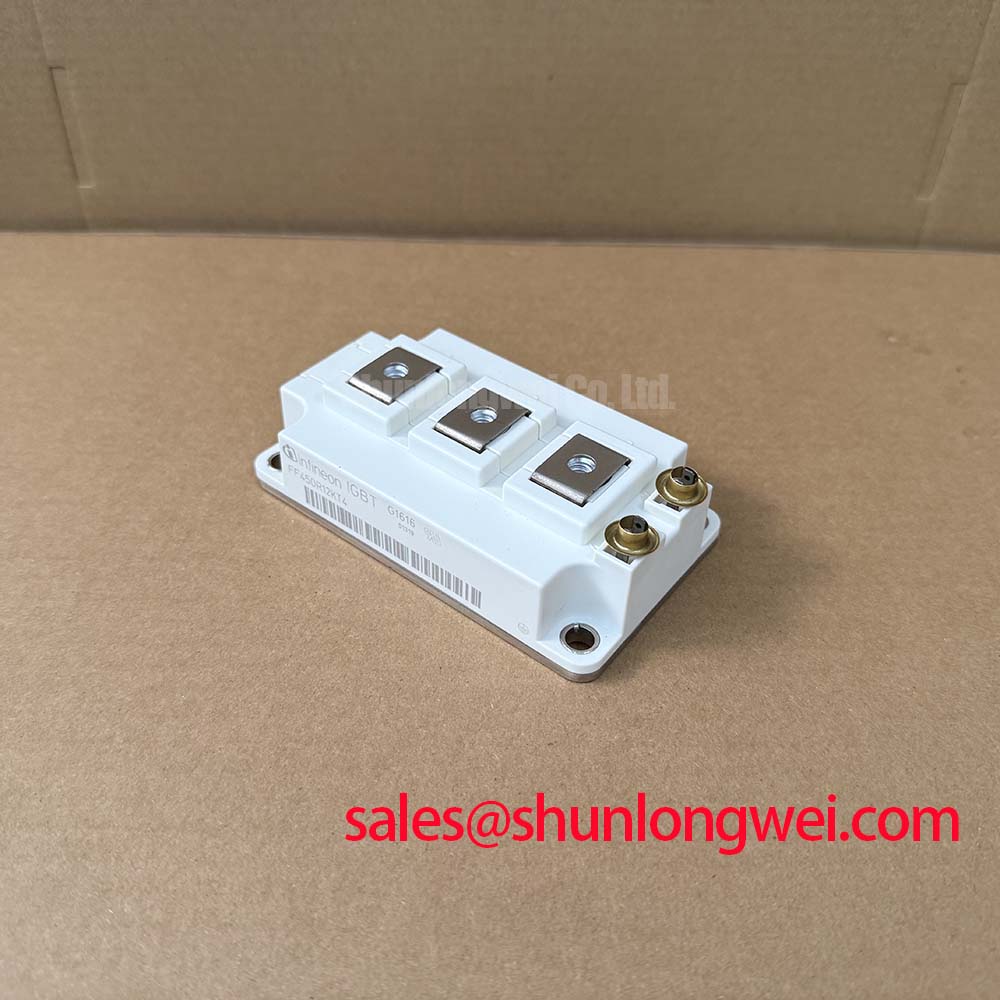

The Infineon FF450R12KT4 is an industry-standard 1200V, 450A half-bridge IGBT module engineered for high-reliability power conversion systems. Housed in the robust EconoDUAL™ 3 package, this module leverages Infineon's mature TRENCHSTOP™ IGBT4 technology to deliver an optimal balance of conduction and switching losses, making it a cornerstone component for designers of industrial drives, solar inverters, and high-power uninterruptible power supplies (UPS).
- High Efficiency: Features low collector-emitter saturation voltage (VCE(sat)) and optimized switching characteristics, minimizing total power losses and reducing thermal management requirements.
- System Robustness: With a 1200V blocking voltage and a high short-circuit withstand time, it provides significant design margin for applications connected to demanding industrial grids.
- Proven Reliability: The EconoDUAL™ 3 package is a globally recognized standard, offering excellent thermal performance and mechanical stability for long operational lifetimes.
- High Operational Temperature: Qualified for a maximum operating junction temperature (Tvj op) of 150°C, enabling higher power density and performance in harsh environments.
Technical Deep Dive: TRENCHSTOP™ IGBT4 and EconoDUAL™ 3 Packaging
At the heart of the FF450R12KT4 is Infineon's well-established TRENCHSTOP™ IGBT4 chip technology. This trench-gate, field-stop architecture represents a pivotal engineering achievement, creating a device that excels in the medium-frequency switching range (typically 2 kHz to 20 kHz). Unlike technologies focused solely on minimizing either conduction or switching loss, IGBT4 provides a balanced profile. Its low VCE(sat) significantly reduces on-state power dissipation, which is dominant in motor drive applications. Simultaneously, its switching losses are well-controlled, enabling efficient operation without requiring overly complex gate drive circuitry.

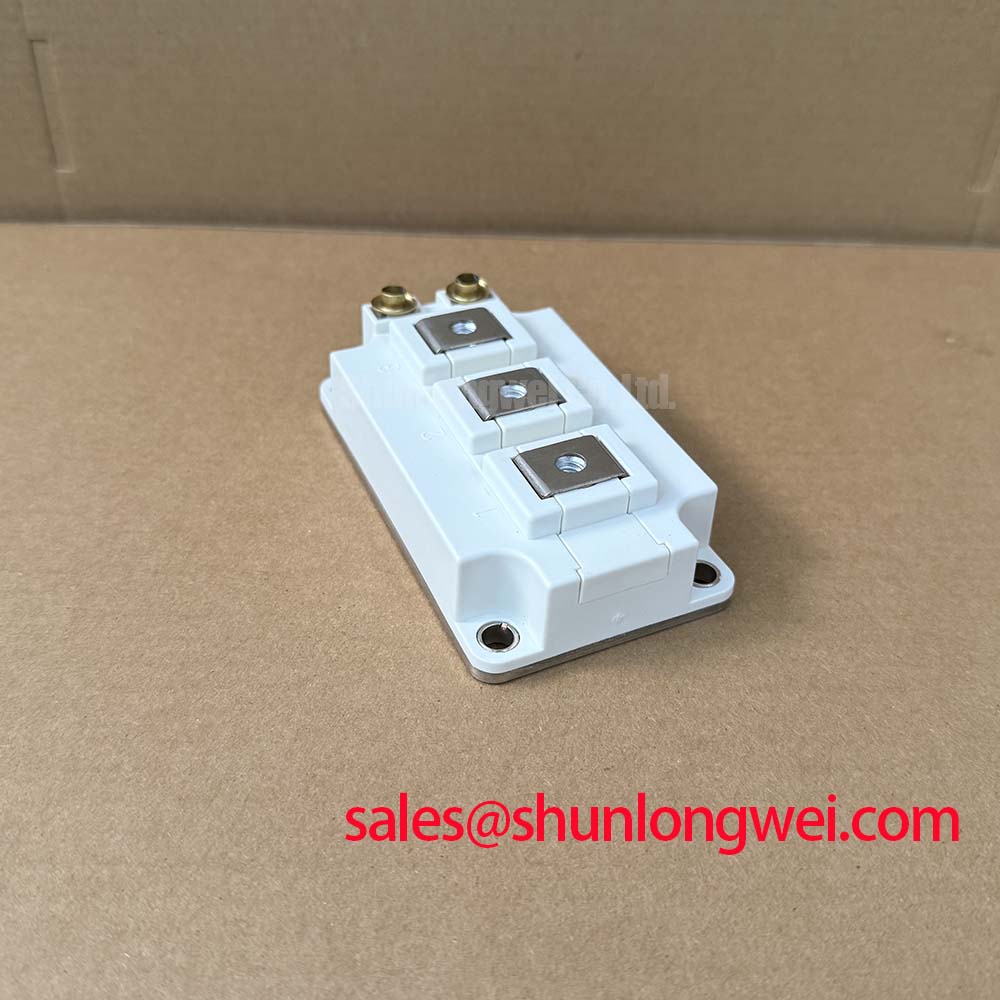

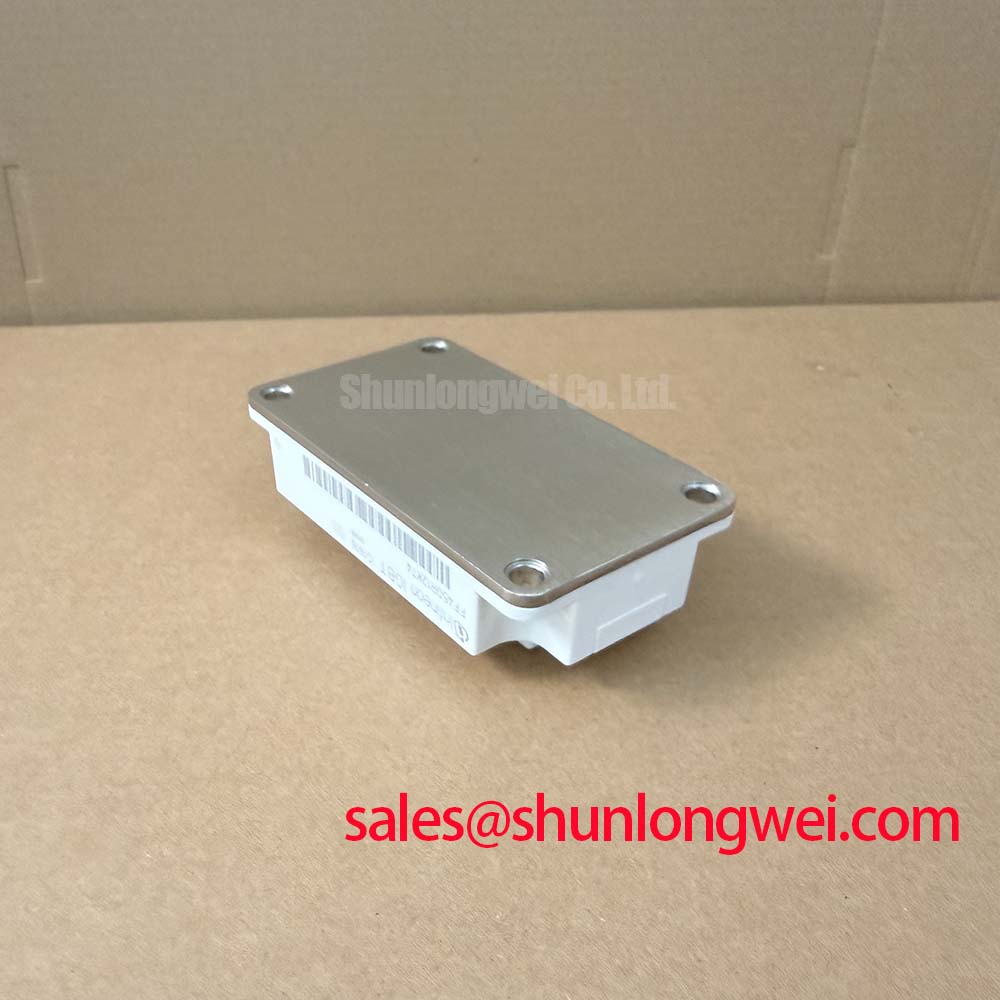

This advanced silicon is housed in the EconoDUAL™ 3 package, a design optimized for both manufacturability and thermal performance. The module utilizes an Aluminium Oxide (Al2O3) DCB (Direct Copper Bonded) substrate, which provides excellent electrical isolation and efficient heat transfer from the IGBT and diode chips to the heatsink. This focus on unlocking IGBT thermal performance is critical for reliability. The package also features screw terminals for secure, low-inductance power connections and an industry-standard footprint, simplifying PCB layout and mechanical integration into existing or new system designs.
Application Scenarios Where the FF450R12KT4 Excels
The specific engineering trade-offs made in the FF450R12KT4 make it a superior choice for several high-power applications:
- Variable Frequency Drives (VFDs): In industrial motor control, the module's robustness and low conduction losses are paramount. It efficiently handles the high torque and variable load conditions of pumps, fans, and conveyor systems, contributing to lower operating costs and longer drive lifetimes.
- Central Solar Inverters: Maximizing energy yield is the primary goal. The high efficiency of the FF450R12KT4 directly translates to more AC power generated from the DC solar array, improving the levelized cost of energy (LCOE) for commercial and utility-scale solar installations.
- Uninterruptible Power Supplies (UPS): For data centers and critical industrial processes, reliability is non-negotiable. The module's proven design, stable thermal performance, and ability to handle surge currents ensure that the UPS system can deliver clean, uninterrupted power when it's needed most. Understanding potential failure modes is key to this reliability, a topic further explored in our guide to IGBT failure analysis.
Key Electrical and Thermal Specifications
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (V_CES) | 1200 V |
| Continuous Collector Current (I_C nom) @ Tc = 80°C | 450 A |
| Collector-Emitter Saturation Voltage (V_CEsat, typ) @ I_C = 450A, Tvj = 25°C | 1.70 V |
| Total Switching Energy (E_ts, typ) @ V_CE = 600V, I_C = 450A, Tvj = 125°C | 46 mJ |
| Thermal Resistance, Junction-to-Case (R_thJC) per IGBT | 0.063 K/W |
| Operating Junction Temperature (T_vj op) | -40°C to +150°C |
Engineer's FAQ for the FF450R12KT4
1. Can the FF450R12KT4 be paralleled for higher power output?
Yes, paralleling is a common application for this module. The TRENCHSTOP™ IGBT4 technology features a positive temperature coefficient for VCE(sat), which promotes natural current sharing between parallel modules. However, successful IGBT paralleling requires careful attention to symmetrical busbar layout and synchronized gate drive signals to minimize stray inductance and ensure balanced dynamic performance. For detailed design support, contact our technical team.
2. What are the recommended gate drive voltage levels for this module?
For optimal performance and to prevent parasitic turn-on, a bipolar gate drive voltage is strongly recommended. The standard practice for IGBT4 modules like the FF450R12KT4 is a +15V turn-on voltage (V_GEon) and a negative turn-off voltage between -8V and -15V (V_GEoff). A negative voltage provides a solid turn-off state, improving noise immunity, which is crucial in high-power, electrically noisy environments. For more insights, review our 5 practical tips for robust IGBT gate drive design.
