FZ2400R12HE4_B9 vs SKIIP83EC125T1: High-Power IGBT Modules Expert Analysis & Application Comparison

1. What These High-Power Components Are and Their Industrial Significance

Modern electrical conversion infrastructures demand semiconductor devices capable of managing megawatt-scale power while sustaining high conversion efficiency and operational resilience. At the core of high-voltage industrial inverters, utility-scale renewable energy systems, and heavy railway traction drives lies the insulated-gate bipolar transistor module. As heavy electrification expands across global power grids, selecting the appropriate semiconductor topology directly determines system size, thermal dissipation demands, total lifecycle cost, and operational reliability.

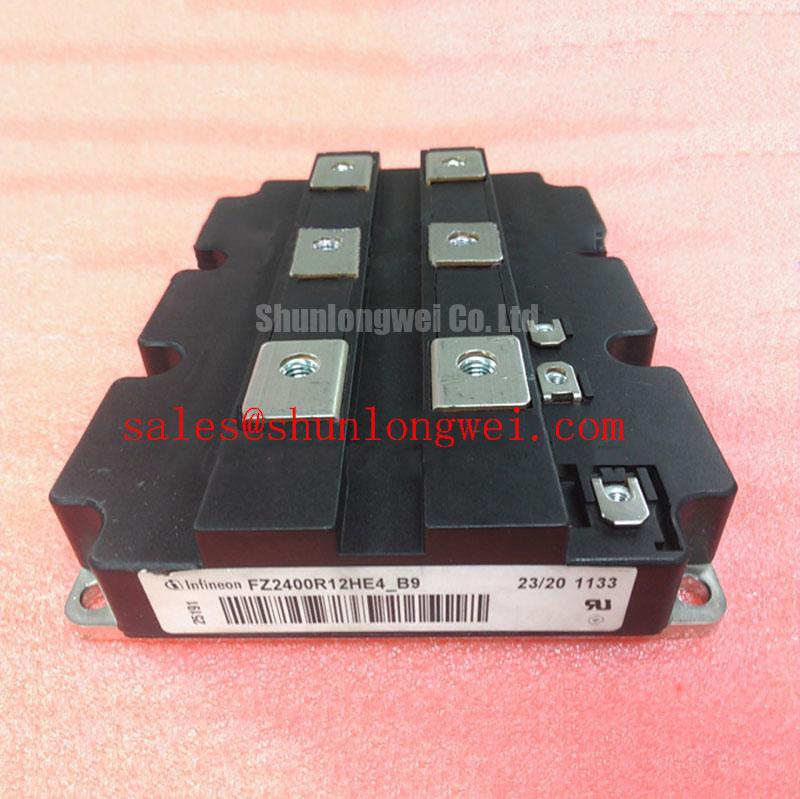

The Infineon FZ2400R12HE4_B9 and the Semikron SKIIP83EC125T1 represent two distinct engineering philosophies within the 1200 V power conversion class. The FZ2400R12HE4_B9 is a high-current, single-switch power module housed in an industry-standard IHM-B package. Delivering a continuous DC collector current rating of 2400 A, it functions as a rugged, scalable building block designed for custom inverter topologies where engineers engineer external gate drive circuits, custom busbar geometry, and tailored cooling plates.

In contrast, the SKIIP83EC125T1 belongs to the Semikron Integrated Intelligent Power (SKiiP) ecosystem. Rather than operating as a discrete, unpopulated power stage, it integrates power semiconductor dies, specialized driver electronics, galvanic isolation, current sensors, and a thermal management interface into a pre-engineered subsystem. While smaller power modules like the DP15H1200TO101982 serve compact mid-power machinery and legacy systems relied on bipolar darlington networks like the QM300HA-H, modern utility-scale designs rely on 1200 V platforms such as the FZ2400R12HE4_B9 and SKIIP83EC125T1 to process thousands of amperes with microsecond switching speeds.

Understanding the fundamental distinction between an open-architecture, discrete building block (FZ2400R12HE4_B9) and an integrated, driver-matched intelligent power assembly (SKIIP83EC125T1) allows application engineers to match the semiconductor architecture to their mechanical packaging constraints, manufacturing throughput targets, and system development cycles within modern power electronics systems.

2. Working Principle and Internal Physical Structure

An insulated-gate bipolar transistor merges the high input impedance and voltage-controlled gate characteristics of an insulated-gate field-effect transistor with the superior current-carrying capacity and low conduction loss of a bipolar junction transistor. When a positive bias voltage above the threshold gate voltage (V_GE(th)) is applied across the gate and emitter terminals, an inversion channel forms beneath the gate oxide within the P-well region. Electrons travel from the N+ emitter, across the inversion channel, and enter the broad N- drift region.

This flow of electrons acts as base drive current for the internal PNP bipolar structure. In response, the P+ collector injects minority carriers (holes) into the high-resistivity N- drift region. This continuous injection of minority carriers triggers extensive conductivity modulation, flooding the drift zone with an electron-hole plasma. Conductivity modulation collapses the internal resistance of the thick drift region during the conduction phase, yielding a low collector-to-emitter saturation voltage (V_CE(sat)). When the gate voltage is removed or biased negatively, the inversion channel closes, cutting off electron injection. The stored plasma within the drift zone must then be cleared through carrier recombination and electric field extraction, creating a characteristic collector tail current during turn-off before the full blocking voltage (V_CES) is re-established across the space-charge region.

While their semiconductor physics share these core mechanics, the physical assembly of these two modules diverges considerably:

• FZ2400R12HE4_B9 Construction: Built upon Infineon’s Trench/Field-stop IGBT4 technology, this module utilizes a planar copper baseplate combined with direct bonded copper (DBC) ceramic substrates (typically aluminum nitride, AlN, or high-performance aluminum oxide) to deliver galvanic isolation and mechanical rigidity. Multiple semiconductor dies are paralleled internally on the DBC substrates using thick aluminum wire bonds to manage current distribution across the 2400 A switch. The module enclosure features a standardized IHM-B plastic frame sealed with silicone gel to protect the internal silicon and wire bonds against environmental moisture, dielectric breakdown, and atmospheric contamination.
• SKIIP83EC125T1 Construction: The SKiiP architecture eliminates the conventional solder layer between the ceramic substrate and the copper baseplate. Instead, it utilizes Semikron’s proprietary pressure-contact technology. Spring contacts and mechanical clamping bridges press the power substrates directly against an integrated heatsink assembly. By eliminating the thick copper baseplate and its associated large-area solder interface, the SKiiP structure eliminates the thermal expansion mismatch that commonly induces solder fatigue during severe power cycling. Furthermore, the SKIIP83EC125T1 houses the gate driver printed circuit board directly above the power stage, interconnecting through spring contacts to minimize gate loop inductance.

3. Key Features, Electrical Specifications, and Architectural Comparison

Evaluating the FZ2400R12HE4_B9 against the SKIIP83EC125T1 requires analyzing both silicon-level electrical characteristics and system-level structural differences. The FZ2400R12HE4_B9 operates with an extended maximum virtual junction temperature under switching conditions (T_{vj op} up to 150 °C, with short-term T_{vj max} thresholds reaching 175 °C). Its low dynamic losses, driven by the trench gate and optimized field-stop layer, permit efficient power conversion in central inverters operating between 1 kHz and 5 kHz.

The SKIIP83EC125T1 incorporates optimized silicon chips balanced specifically for integrated inverter applications. Its integration of built-in gate drive units, collector-emitter desaturation monitoring, integrated supply voltage monitoring, and calibrated temperature sensing shields the internal silicon from abnormal operational states without requiring separate peripheral boards.

From an efficiency standpoint, the FZ2400R12HE4_B9 features an exceptionally low V_CE(sat) relative to its massive 2400 A continuous rating. This minimizes conduction losses in ultra-high-current stages. However, because it is a discrete single switch, building a full three-phase bridge requires six separate modules, an engineered DC-link laminated busbar, six isolated gate drive channels, and comprehensive sensing networks. Conversely, the SKIIP83EC125T1 consolidates the power bridge and gate driver into a pre-tested unit, trading ultimate single-switch current scaling for reduced design overhead, lower internal parasitic loop inductance, and factory-calibrated protection.

For more detailed technical background on device classification and solid-state theory, consult the educational overview on Insulated-Gate Bipolar Transistor (IGBT) Fundamentals.

4. Practical Industrial Applications and System Implementation Precautions

Both modules serve demanding industrial power generation and conversion platforms, but their physical architectures suit different system layouts:

• Utility-Scale Solar and Wind Energy Converters: In multi-megawatt central solar inverters and wind-turbine back-to-back converters (rated from 1.5 MW to 3.0 MW), the FZ2400R12HE4_B9 is widely selected for custom water-cooled power blocks. Its 2400 A rating allows design teams to minimize the number of paralleled semiconductors, simplifying DC bus connections and ensuring uniform current sharing across large sub-assemblies.
• Heavy Traction and Marine Propulsion Drives: Electric locomotives, subway propulsion units, and hybrid-electric marine propulsion systems frequently incorporate the SKIIP83EC125T1 architecture. The pressure-contact construction of the SKiiP line delivers exceptional thermal cycling durability under cyclic operational profiles where trains frequently accelerate and decelerate. The integrated driver board also insulates the control interface from high-power electromagnetic interference (EMI).
• Industrial Motor Drives and Dynamic Braking: For medium-to-large factory drives, discrete half-bridge or single switches handle the primary inverter stages, while auxiliary modules like the SKD75GAL123D provide dedicated input rectification and dynamic brake-chopper functions within the overall cabinet.

Deploying these ultra-high-power semiconductors successfully requires strict adherence to physical and electrical engineering protocols:

Thermal Interface and Mechanical Mounting

For the FZ2400R12HE4_B9, heatsink surface flatness must meet precise standards: a flatness tolerance of less than 30 µm across 100 mm and a surface roughness (R_z) of 10 µm or better. When applying thermal interface material (TIM), layer thickness must remain between 50 µm and 100 µm to prevent thermal hotspots or air voids. Tightening the M6 mounting screws requires a progressive two-step sequence (initial snug torque of 2 N·m to 3 N·m, followed by a final torque of 5 N·m to 6 N·m) to prevent ceramic substrate cracking inside the IHM-B shell.

For the SKIIP83EC125T1, the pressure system relies on internal springs and clamping plates. Technicians must torque the primary structural fixation bolts in the exact crisscross sequence specified by the factory documentation. Because the thermal interface directly engages the heatsink without a stabilizing baseplate, any foreign debris between the module and heatsink can break a substrate or create localized thermal runaway.

Stray Inductance and Switching Voltage Transients

At current levels exceeding 2000 A, rapid turn-off rates (dI/dt) generate lethal overvoltage spikes across the collector-emitter terminals according to the standard relationship:

V_peak = V_DC + L_σ × (dI/dt)

To prevent dynamic breakdown exceeding the 1200 V rating, the external DC-link busbar must be designed as a low-inductance laminated sandwich assembly, keeping stray inductance (L_σ) under 20 nH to 30 nH. High-frequency polypropylene snubber film capacitors should be connected directly across the DC module terminals. For external gate drivers controlling the FZ2400R12HE4_B9, active clamping circuits (using avalanche transient voltage suppressor diodes between the collector and gate) ensure the transistor is softly driven back into conduction if an inductive turn-off spike exceeds safe thresholds.

Electrostatic Discharge (ESD) and Gate Protection

The gate oxide of high-power IGBTs is vulnerable to electrostatic discharge and voltage punch-through. Prior to installation, keep short-circuiting clips or conductive tape across the gate-emitter auxiliary terminals. In active operation, external gate circuits must incorporate bi-directional 15 V to 18 V Zener diodes clamped directly between the auxiliary gate and emitter terminals to clamp transient spikes caused by capacitive Miller feedback.

5. Engineering Selection Framework and Field Diagnostic Procedures

Selecting between the FZ2400R12HE4_B9 and the SKIIP83EC125T1 requires balancing production scale against custom development investment. System architects can evaluate options using these criteria:

1. Development Resources and Time-to-Market: Developing an in-house gate drive capable of switching 2400 A with active clamping, short-circuit desaturation response (under 5 µs), and precise gate resistance tuning demands months of validation. If rapid project delivery or lower engineering overhead is prioritized, the pre-tested driver of the SKIIP83EC125T1 provides a clear advantage. If the development team has established gate-drive platforms and seeks minimum unit procurement costs, the FZ2400R12HE4_B9 is optimal.
2. Safe Operating Area (SOA) and Switching Speed: When operating above 3 kHz, the total switching energy (E_on + E_off) generates substantial heat. Ensure the dynamic load line stays well inside the Reverse Bias Safe Operating Area (RBSOA) under short-circuit conditions (SCSOA), verifying that fault clearing occurs within 6 µs to 10 µs at rated V_DC. Explore manufacturer application tools through Industrial Power Semiconductor Solutions to verify junction temperatures against thermal boundaries.
3. Maintenance Strategies: The SKIIP system allows unified replacement of the power stage and driver together, preventing field errors matching drivers to aging modules. The FZ2400R12HE4_B9 allows isolated replacement of the power semiconductor block while retaining driver and busbar infrastructure.

Field Diagnostic and Troubleshooting Protocol

When an inverter reports an over-current, desaturation, or ground fault, technicians must perform a systematic bench evaluation using a digital multimeter set to diode-test mode and high-resistance insulation testing. Ensure the DC-link capacitor bank is fully discharged and verified with a calibrated voltmeter before removing busbars.

By following these structured diagnostic checks and installation guidelines, commissioning engineers can maximize operating lifetimes, avoid premature dielectric breakdown, and ensure dependable operation across utility-scale power installations.
