FZ400R12KS4: Technical Engineering Review for Power Systems
Infineon FZ400R12KS4 IGBT Module: Mastering Switching Efficiency

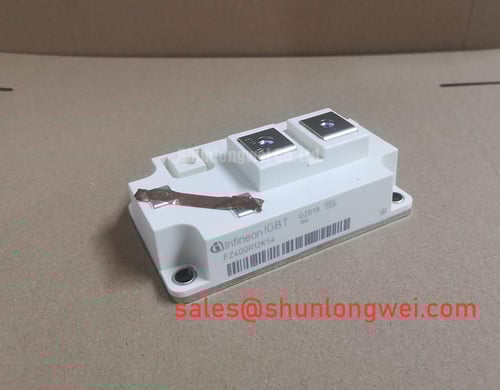

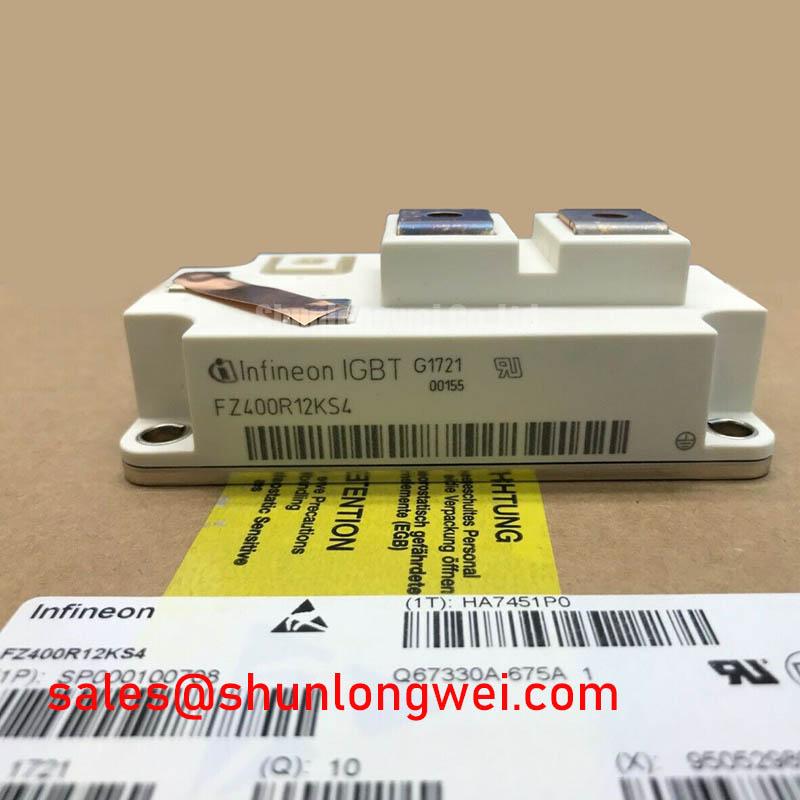

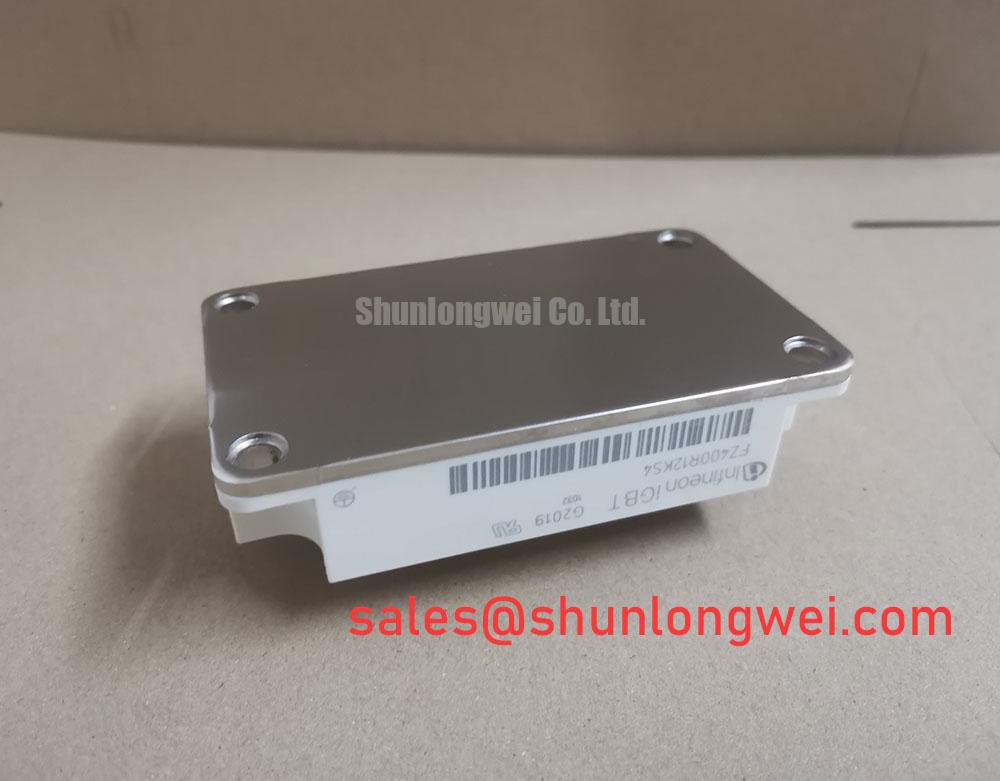

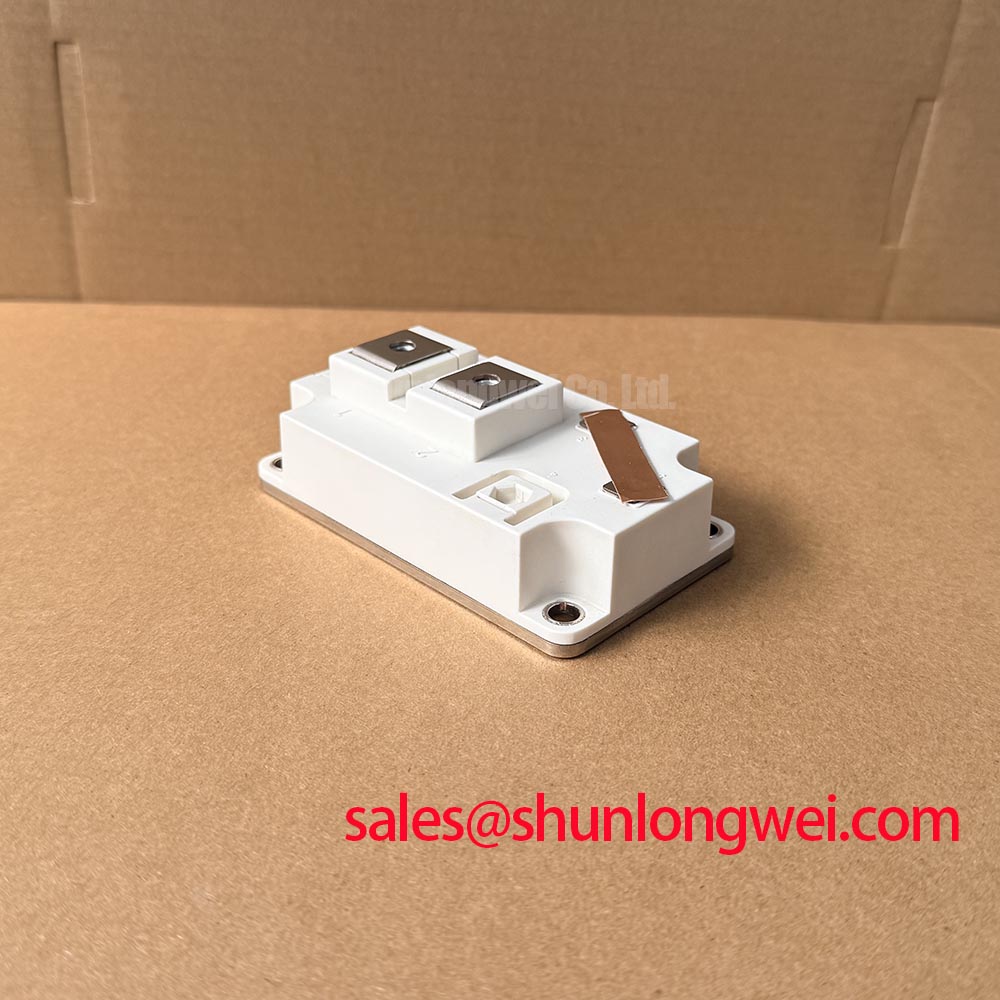

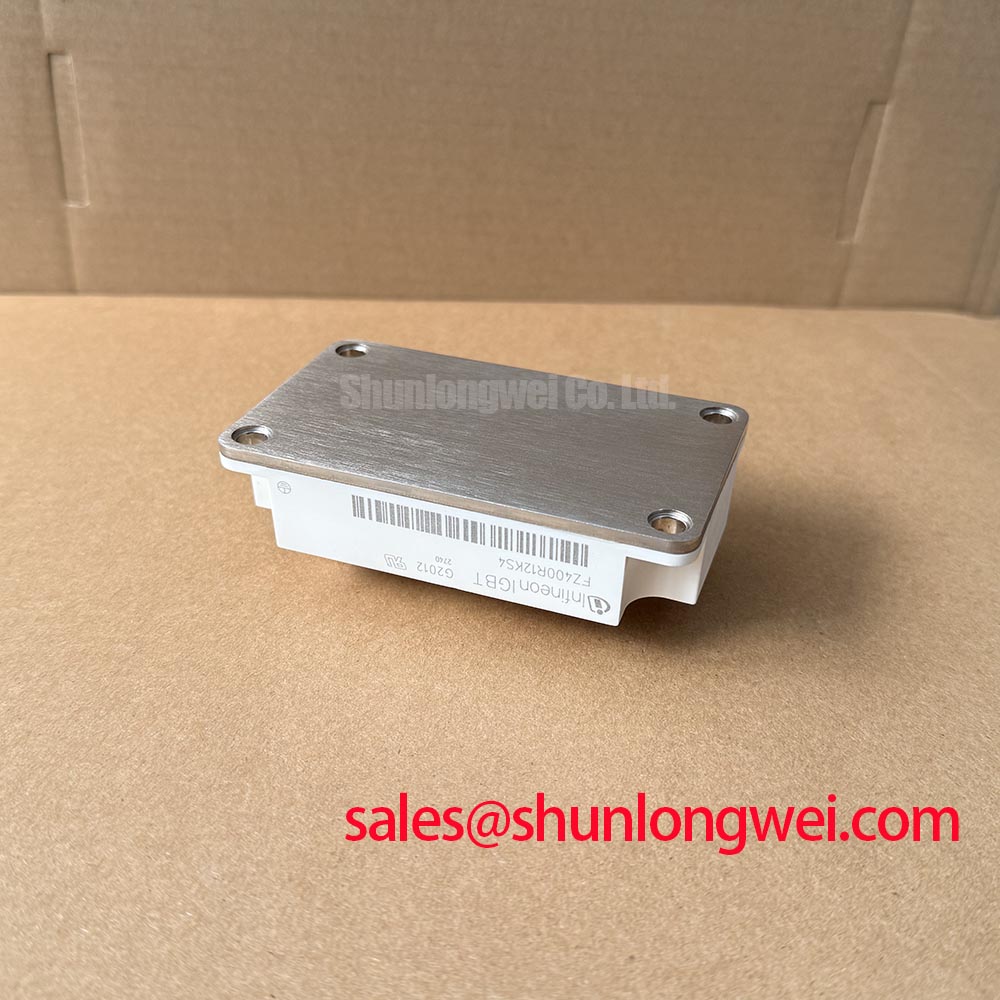

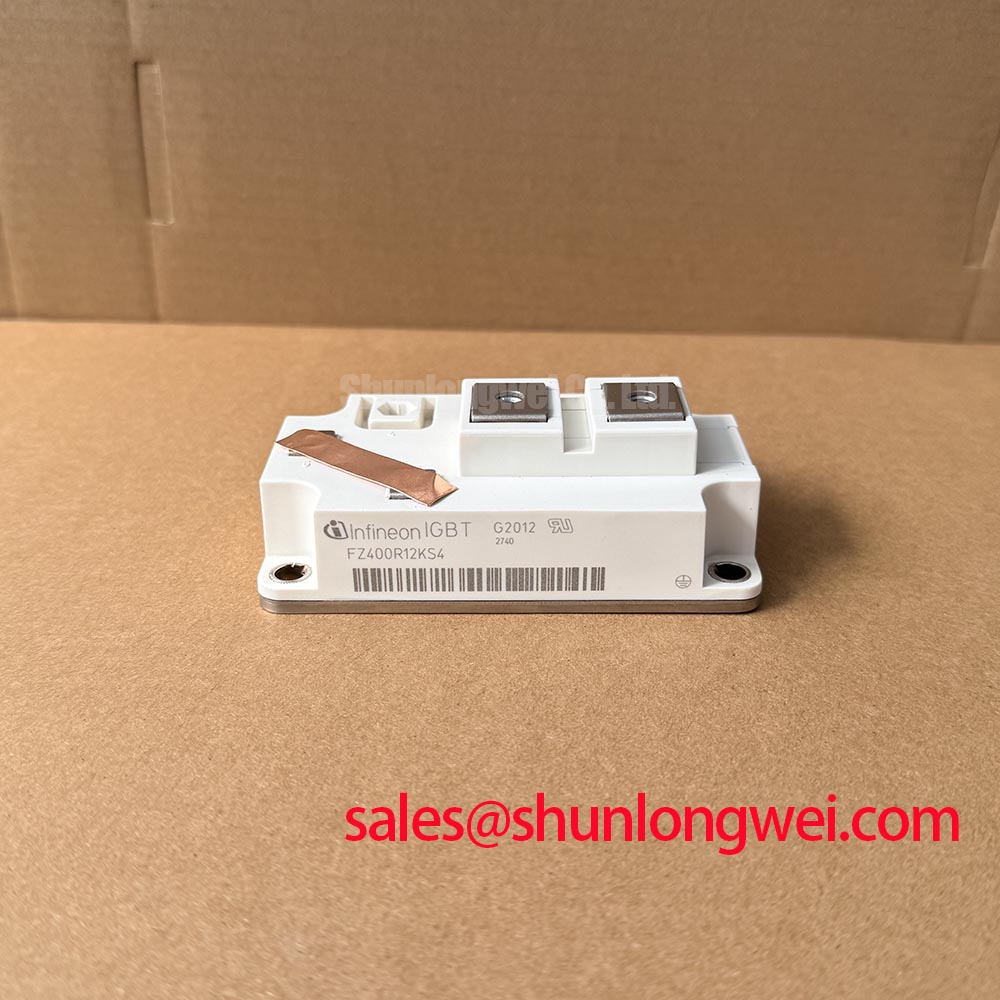

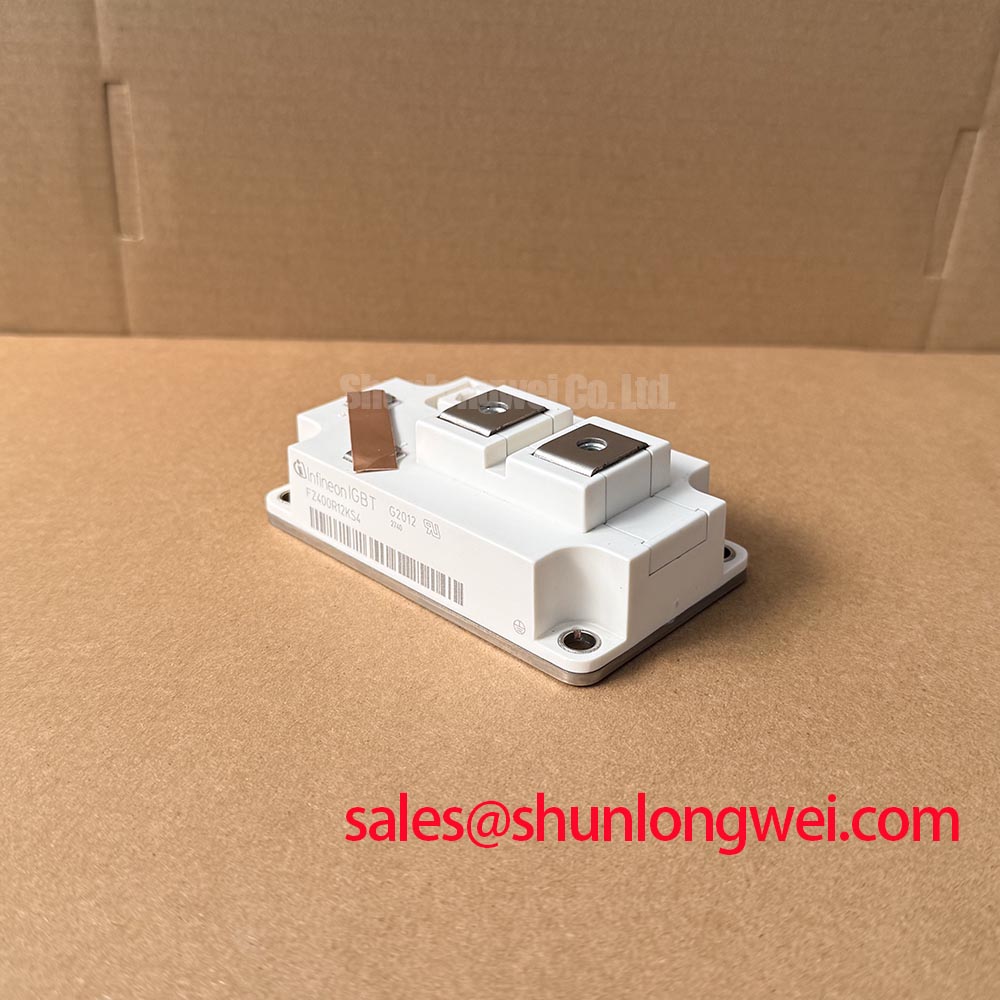

The Infineon FZ400R12KS4 is a 62mm C-Series IGBT module engineered to deliver superior switching performance in high-frequency power conversion systems. With core specifications of 1200V | 400A | VCE(sat) 3.20V (typ), this module provides significant advantages, including reduced switching losses and enhanced thermal stability. It addresses the critical engineering challenge of minimizing energy dissipation during rapid switching cycles, a key factor for improving the efficiency and power density of modern inverters and drives. The module's design, featuring a low collector-emitter saturation voltage with a positive temperature coefficient, inherently supports reliable paralleling for scalable power designs.
Technical Deep Dive: Balancing Speed and Conduction Loss
The FZ400R12KS4 from Infineon is built upon a fast IGBT2 trench-gate and field-stop chip technology, a combination specifically optimized for high-frequency operation. This architecture directly confronts the classic trade-off between conduction losses and switching losses. What is the impact of its low VCE(sat)? It directly reduces the power dissipated as heat when the device is fully on, a critical factor in applications with high duty cycles.
A key parameter for evaluating its dynamic performance is the total switching energy (Ets), which combines both turn-on (Eon) and turn-off (Eoff) losses. The datasheet specifies a typical Eoff of 29.0 mJ at 125°C. This metric is analogous to the "energy toll" paid each time the switch changes state. In high-frequency systems, this toll is paid thousands of times per second, making a low Eoff value essential for maintaining high overall system efficiency and preventing excessive junction temperatures. The module's low internal gate resistance (RGint) further contributes to faster, more controlled switching transitions, which is vital for minimizing these energy losses.
Application Scenarios & Engineering Value
The electrical characteristics of the FZ400R12KS4 make it a strong candidate for demanding power conversion applications where efficiency and speed are paramount. Its design enables developers to achieve higher switching frequencies, which in turn allows for the use of smaller and lighter magnetic components, reducing the overall size, weight, and cost of the end system.
Optimized for High-Frequency Switching Systems
The module is particularly well-suited for:
- High-Frequency Welding: In industrial welding power supplies, rapid and precise control of energy delivery is essential. The module's fast switching capability allows for advanced control algorithms, improving weld quality and process efficiency.
- Motor Drives and Servo Drives: Modern servo drives require high dynamic response to control motor speed and torque accurately. The FZ400R12KS4's ability to operate at higher frequencies results in smoother motor operation, reduced audible noise, and improved positioning accuracy.
- Resonant Inverters: In applications like induction heating and medical power supplies (e.g., MRI gradient amplifiers), resonant topologies are used to achieve very high efficiency. The low switching losses of this module are crucial for maximizing performance in these zero-voltage or zero-current switching circuits.
- Uninterruptible Power Supplies (UPS): The module's high current handling and efficiency contribute to the reliability and performance of online UPS systems, ensuring stable power delivery during critical operations.
For systems demanding even lower saturation voltage for conduction-heavy applications, the FF400R12KE3 offers a complementary performance profile. Best Fit: For high-frequency resonant inverters above 20 kHz, the FZ400R12KS4's low turn-off energy loss (Eoff) makes it a more efficient choice than standard-speed IGBTs.
Strategic Advantages in Advanced Power Electronics
The push for greater energy efficiency, driven by both economic incentives and environmental regulations, places significant pressure on power system designers. Components like the FZ400R12KS4 are instrumental in meeting these goals. By minimizing switching losses, this IGBT module allows for the development of power converters that waste less energy as heat. This not only reduces operating costs but also simplifies thermal management, potentially leading to more compact and reliable end products. This focus on efficiency aligns directly with global trends toward electrification and sustainability, positioning this module as a key enabling technology for next-generation industrial and medical equipment.
Data-Backed Comparison for Informed Decisions
To assist in your evaluation process, the following table presents key performance parameters of the FZ400R12KS4 alongside another module from the same voltage and current class. This data is provided to empower your design decisions based on specific application priorities.
| Parameter | FZ400R12KS4 | FF400R12KE3 | Engineering Implication |
|---|---|---|---|
| VCE(sat) (typ. @ 125°C) | 3.70 V | 2.10 V | Lower VCE(sat) indicates lower conduction losses, favoring applications with long on-state periods. |
| Eoff (typ. @ 125°C) | 29.0 mJ | 46.0 mJ | Lower Eoff signifies lower turn-off switching losses, critical for efficiency in high-frequency operation. |
| td(off) (typ. @ 125°C) | 0.55 µs | 0.59 µs | Shorter turn-off delay time supports higher operating frequencies and more precise control. |
| Technology | IGBT2 (Fast) | IGBT3 (Trench/Fieldstop) | Technology choice reflects the design focus: FZ400R12KS4 is optimized for speed, while FF400R12KE3 prioritizes low conduction losses. |
For a deeper understanding of how these parameters influence system design, explore our guide on Decoding IGBT Datasheets.
Key Parameter Overview for FZ400R12KS4
The performance of the FZ400R12KS4 is defined by several key electrical and thermal characteristics. The following table highlights the specifications most relevant for system integration and performance analysis. For a complete list of specifications, please Download the Datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (Vces) | 1200 V |
| Continuous DC Collector Current (Ic @ Tc=70°C) | 400 A |
| Collector-Emitter Saturation Voltage (VCE(sat), typ. @ Ic=400A, Tvj=125°C) | 3.70 V |
| Gate-Emitter Threshold Voltage (VGE(th)) | 5.0V - 6.5V |
| Total Switching Energy (Ets, typ. @ 125°C) | 51.0 mJ (Eon + Eoff) |
| Thermal Resistance, Junction to Case (RthJC) per IGBT | 0.05 K/W |
A Strategic Outlook for System Design
Selecting the FZ400R12KS4 represents a strategic decision to prioritize switching efficiency in power system architecture. Its design facilitates the development of more compact, energy-efficient, and cost-effective power conversion solutions. By leveraging its low switching losses and robust thermal performance, engineering teams can push the boundaries of power density and create systems that are not only performant but also aligned with the increasing global demand for sustainable technology. This module provides a solid foundation for future-facing designs in the industrial automation, medical technology, and renewable energy sectors.
