G104V1-T03: Industrial 10.4” VGA Display Engineered for Visual Consistency and Extreme Temperatures
Content last revised on October 16, 2025.

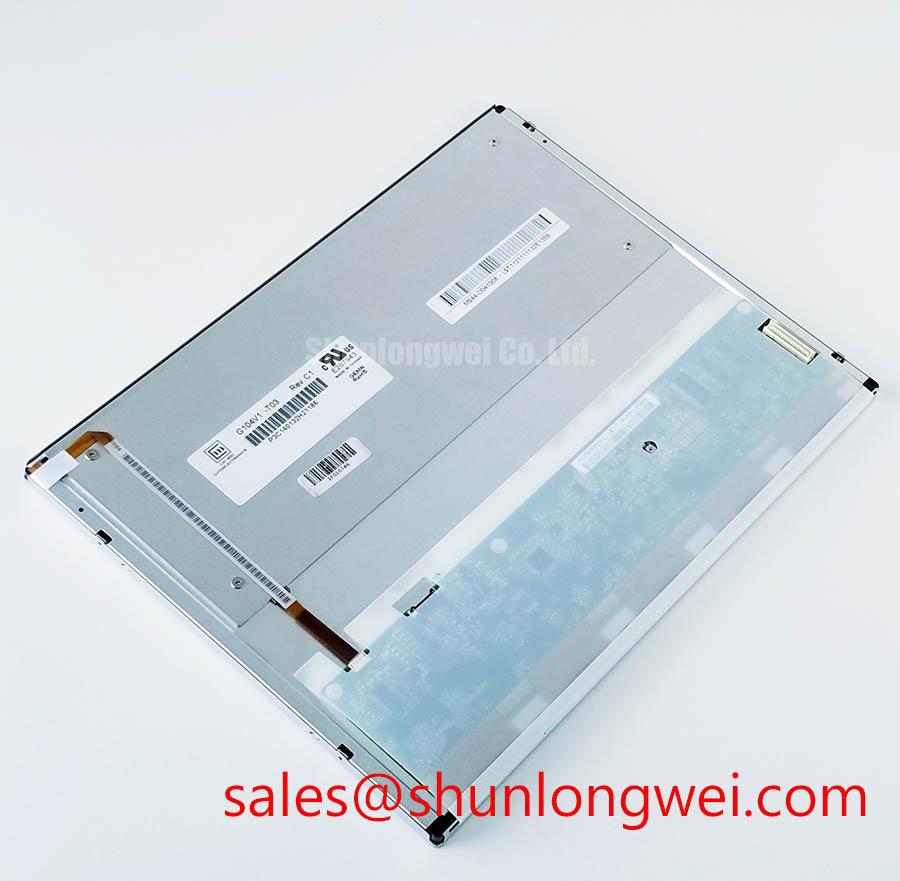

An In-Depth Look at the Innolux G104V1-T03 TFT-LCD
The Innolux G104V1-T03 is a 10.4-inch a-Si TFT-LCD module engineered for exceptional visual performance and robustness in demanding industrial applications. It delivers consistent, high-quality imagery across exceptionally wide viewing angles, making it a premier choice for complex Human-Machine Interface (HMI) and monitoring systems. Key specifications include a 640x480 VGA resolution, a high brightness of 500 cd/m², and a remarkable 1500:1 contrast ratio, all supported by a wide operating temperature range of -30°C to 80°C. This combination ensures crisp, readable content from factory floors to outdoor kiosks. How does the G104V1-T03 maintain readability in challenging environments? Its Super MVA technology provides symmetrical 88-degree viewing angles, ensuring image integrity for operators from virtually any perspective. For industrial systems requiring unwavering visual clarity across extreme temperatures and multiple viewing positions, the G104V1-T03 provides a reliable and high-performance solution.
Application Scenarios & Value
System-Level Benefits in Industrial Control and Instrumentation
The G104V1-T03 is ideally suited for applications where data must be clearly and accurately interpreted by multiple operators simultaneously, such as in industrial control panels, medical monitoring equipment, and transportation information systems. The primary engineering challenge in these environments is maintaining image consistency regardless of the operator's position or the ambient lighting conditions. The G104V1-T03 directly solves this with its Super MVA (Multi-domain Vertical Alignment) technology. This delivers a symmetrical viewing cone of 88° in all directions (Up/Down/Left/Right), which is a significant advantage over standard TN panels that often exhibit color shift and contrast degradation when viewed off-axis. The result is a substantial reduction in data misinterpretation errors and improved operational efficiency. For systems that need similar reliability in a more compact format, the G084SN05 V9 offers a smaller 8.4-inch footprint.
Key Parameter Overview
Decoding the Specs for Enhanced Visual Performance
The technical specifications of the G104V1-T03 are tailored to deliver durability and high-fidelity visuals in professional environments. The combination of high brightness and an exceptional contrast ratio is crucial for its performance. The 500-nit brightness ensures the display is easily readable in typical indoor industrial settings, while the 1500:1 contrast ratio provides deep blacks and vibrant colors, making complex graphical interfaces and detailed text sharp and clear. Think of contrast ratio as the difference between the brightest white and the darkest black a screen can produce; a higher ratio means more "pop" and detail in the image, which is vital for accurate diagnostics or control.
| Feature | Specification | Engineering Value |
|---|---|---|
| Panel Size | 10.4 inch | Provides ample screen real estate for detailed GUIs in a standard industrial form factor. |
| Resolution | 640(RGB)×480 [VGA] | Standard resolution ensures compatibility with a wide range of industrial controllers and systems. |
| Brightness | 500 cd/m² (Typ.) | Ensures clear visibility in well-lit indoor environments like factory floors and control rooms. |
| Contrast Ratio | 1500:1 (Typ.) | Delivers deep blacks and sharp image definition, critical for viewing detailed schematics or text. |
| Viewing Angle | 88/88/88/88 (L/R/U/D) | Provides superior image consistency and color accuracy from any viewing position. |
| Operating Temperature | -30 ~ 80 °C | Guarantees reliable operation in unconditioned environments, from cold storage to hot manufacturing areas. |
| Backlight System | WLED with Integrated Driver | Offers long-life illumination (>50k hours) and simplifies system integration. |
| Signal Interface | CMOS/TTL (1 ch, 6-bit) | A common interface that facilitates straightforward connection to embedded systems. |
Download the G104V1-T03 datasheet for detailed specifications and performance curves.
Technical Deep Dive
A Closer Look at Super MVA and Wide Temperature Operation
The G104V1-T03's performance hinges on two core design choices by Innolux: the implementation of Super MVA technology and engineering for an exceptionally wide operating temperature range. Super MVA technology addresses a fundamental limitation of older LCD types by aligning liquid crystals in multiple directions within each pixel. This is like having multiple viewpoints built into the screen itself, ensuring that as your physical viewing angle changes, the color and brightness remain remarkably stable. This is crucial for collaborative environments or installations where the display is mounted above or below direct line of sight.
Equally important is the -30°C to 80°C operating temperature range. This isn't just about the display surviving; it's about it performing consistently. The liquid crystals, backlight components, and driving electronics have all been specified to maintain stable response times and brightness levels across this entire thermal spectrum. This thermal resilience eliminates the need for auxiliary heating or cooling systems in many installations, directly reducing system complexity, cost, and potential points of failure for OEMs designing equipment for outdoor, mobile, or harsh factory settings.
Frequently Asked Questions (FAQ)
What is the primary benefit of the Super MVA display mode?
The primary benefit is its symmetrical, ultra-wide viewing angle of 88 degrees in every direction, which guarantees consistent color and contrast for operators, regardless of their viewing position.
How does the 1500:1 contrast ratio impact usability in industrial settings?
A high contrast ratio makes the display easier to read, especially for complex user interfaces with fine lines, small text, or varied color-coding. It enhances clarity and reduces eye strain for operators who monitor the screen for extended periods.
Is the built-in WLED driver a significant advantage?
Yes, the integrated LED driver simplifies the engineering process. It means designers do not need to source and integrate a separate controller board to manage the backlight, which saves development time, reduces component count, and simplifies the power supply design.
Strategic Integration
For engineering and procurement teams, the G104V1-T03 represents a strategic component choice for industrial equipment intended for long service life in challenging environments. Its robust thermal range and superior viewing angle performance directly contribute to a lower total cost of ownership by enhancing equipment usability and minimizing failures related to environmental stress. Integrating this display into a system signals a commitment to operational reliability and user experience, providing a competitive edge in the industrial automation and instrumentation markets.
