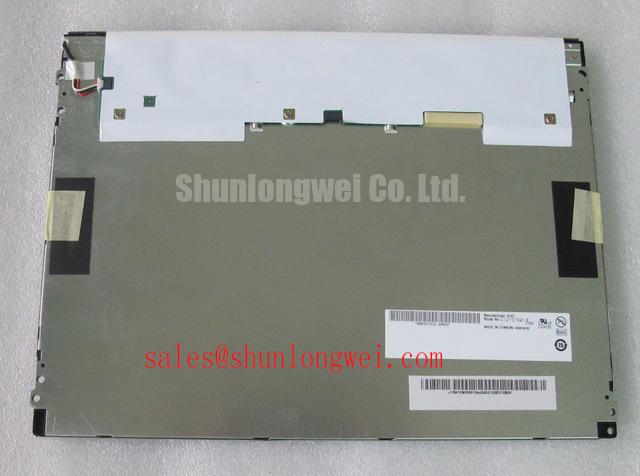

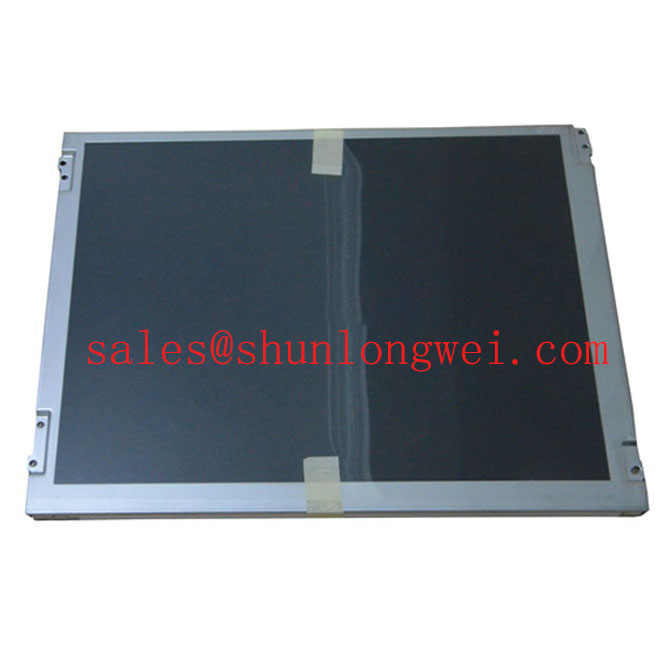

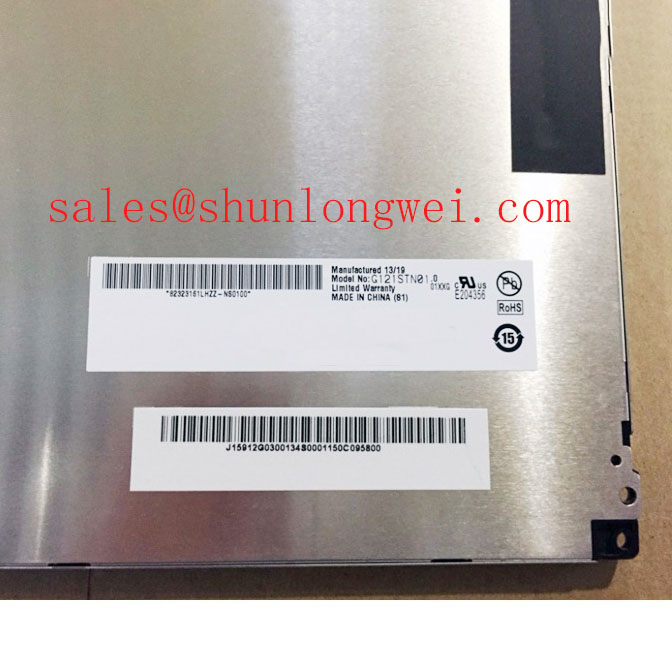

AUO G121STN01.0 | Industrial-Grade SVGA Display Engineered for Extreme Temperatures
The AUO G121STN01.0 is a 12.1-inch a-Si TFT-LCD panel engineered not just for visual clarity, but for uncompromising reliability in demanding industrial environments. It represents a workhorse solution for system integrators and engineers who require a display that performs consistently, from freezing warehouses to sun-baked outdoor enclosures. Its robust design and balanced performance metrics make it a go-to choice for long-lifecycle industrial HMI, control systems, and specialized equipment.
Key Performance Highlights
The G121STN01.0 is defined by its focus on industrial resilience and integration-friendly features:
- Exceptional Operating Temperature Range: With a validated range of -30°C to 85°C, this display is built for environments where standard commercial panels would fail, eliminating the need for complex and costly internal climate control systems.
- Long-Life WLED Backlight: The integrated WLED backlight system is rated for 50,000 hours of operation, ensuring a low total cost of ownership and minimizing maintenance cycles in critical applications.
- Classic SVGA Resolution: The 800x600 SVGA resolution is perfectly suited for a vast number of industrial applications, providing clear, legible readouts for control data, schematics, and user interfaces without the overhead of higher resolutions.
- Standardized LVDS Interface: Featuring a 1-channel, 6-bit LVDS interface, this panel ensures seamless integration with a wide array of industrial motherboards and single-board computers, simplifying system design and accelerating time-to-market.
Technical Specifications at a Glance
For engineers requiring precise data for system integration, the following table summarizes the core parameters of the AUO G121STN01.0. For a complete dataset, you can Download the G121STN01.0 Datasheet.
| Parameter | Specification |
|---|---|
| Manufacturer | AUO |
| Model Name | G121STN01.0 |
| Screen Size | 12.1 inches |
| Resolution | 800(RGB)×600 [SVGA] |
| Display Technology | a-Si TFT-LCD, Normally White, Transmissive |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) |
| Viewing Angle | 80/80/65/75 (L/R/U/D) |
| Backlight System | WLED, 50,000 hours (with LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit) |
| Operating Temperature | -30 ~ 85 °C |
| Surface Treatment | Anti-Glare |
Application Deep-Dive: Where Reliability Meets a Demanding Environment
The true value of the G121STN01.0 is realized in applications where failure is not an option. Its specific feature set provides direct solutions to common engineering challenges:
- Heavy Machinery & Agricultural Vehicles: In-cab control panels are subject to extreme temperature swings and high vibration. The display's -30°C to 85°C operating range ensures immediate startup and stable operation, whether on a cold morning or during peak summer heat. The anti-glare surface maintains readability under shifting light conditions. This is a prime example of engineering for extremes.
- Outdoor Kiosks and Ticketing Machines: For systems deployed in public transit or outdoor retail, environmental resilience is paramount. The wide temperature tolerance and 50K-hour backlight lifetime reduce service calls and ensure high uptime, directly impacting operational efficiency and customer satisfaction.
- Industrial Automation & Process Control: On the factory floor, from unheated warehouses to hot manufacturing zones, HMIs must provide clear and reliable information. The G121STN01.0's solid contrast and proven durability make it an ideal fit for legacy system upgrades and new deployments where stability is prioritized over high-end features.
Engineering Insight: The Value of Proven Technology
While the market trends towards higher resolutions and advanced touch technologies, the AUO G121STN01.0 holds a strategic advantage as a testament to the power of mature, optimized technology. Its foundation on a-Si TFT (Amorphous Silicon) technology provides a cost-effective yet incredibly robust platform. This isn't just about a lower bill of materials; it's about a predictable and highly reliable manufacturing process that translates into consistent panel quality and performance over a long product lifecycle. For industrial projects that will be in the field for a decade or more, this predictability is a critical design asset, ensuring that service replacements will match the performance of the original units. This makes it an excellent component for building robust and long-lasting industrial LCD displays.
Frequently Asked Questions (FAQ)
Q: Is the 300-nit brightness sufficient for outdoor applications?
A: The 300-nit brightness is best suited for outdoor applications in shaded or semi-shaded locations, or when installed within a larger enclosure that provides a hood or cover. For direct, full-sunlight applications, a higher brightness panel (typically 1000 nits or more) would be recommended. However, for many outdoor kiosks and vehicle cabs, the combination of 300 nits and an anti-glare surface provides excellent readability.
Q: What are the integration requirements for the LVDS interface?
A: The G121STN01.0 uses a standard 20-pin connector for its 1-channel, 6-bit LVDS interface. This is a very common configuration supported by a vast ecosystem of industrial controllers and SBCs. Design engineers should ensure their controller's LVDS output matches this specification and that the cable length is managed to maintain signal integrity, a core principle in designing with TFT-LCD technology.
For detailed selection advice or to discuss your specific application requirements, please contact our technical team for expert guidance.
