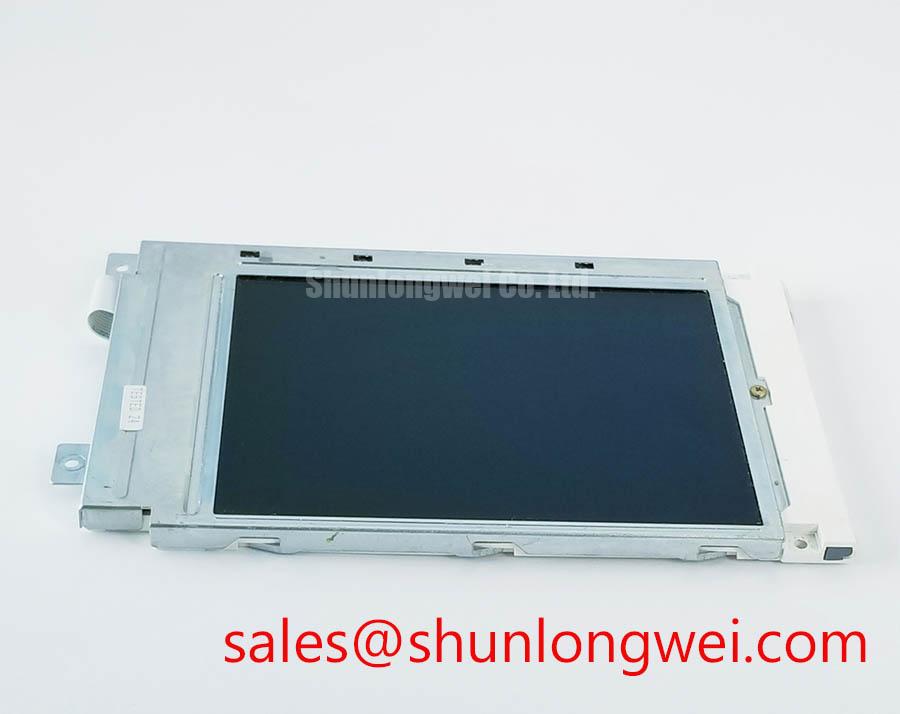

Sharp LM32007T 5.7-inch 320x240 Monochrome STN Graphic LCD Module
The Sharp LM32007T serves as a definitive visualization standard for legacy industrial HMI and medical instrumentation, offering a high-reliability monochrome interface that bridges the gap between classic control protocols and modern maintenance requirements.
Legacy-Grade Precision and Interface Integrity for Industrial Control.
320x240 (QVGA) | 5.7-inch | Parallel Interface (1-bit)
The LM32007T provides an essential solution for engineers seeking to maintain system uptime in environments where high-contrast monochrome data is preferred over complex color rendering. By utilizing a proven STN (Super-Twisted Nematic) architecture, this display ensures readability in variable industrial lighting. For legacy HMI repairs where signal compatibility is paramount, the LM32007T is a stable drop-in display solution.
Application Scenarios & Value
Ensuring Operational Continuity in Legacy Manufacturing Environments
For 5.7-inch industrial controllers prioritizing interface stability, this 320x240 QVGA module is the optimal choice. In the context of "maintenance and repair" (MRO) operations, engineers often face the challenge of sourcing components that match specific signal timing and voltage requirements of older PLC units. The Sharp LM32007T addresses this by maintaining the precise 1-bit parallel interface standard.
Consider a scenario where a textile manufacturing plant’s control console requires a replacement screen. While a modern color panel might seem like an upgrade, the original processing unit is designed to drive a monochrome signal. Using the LM32007T allows for a direct repair without redesigning the entire logic board. This level of compatibility is crucial for reducing Mean Time To Repair (MTTR) in heavy industry.
While this module is ideal for monochrome data visualization, for systems requiring modern color graphical interfaces, the related LB070WV3-SH01 offers a color TFT-LCD alternative with higher resolution capabilities.
Furthermore, integrating the LM32007T into an existing HMI requires understanding the nuance between various touch technologies. Engineers should consult the ultimate guide to RTP vs PCAP to determine if a resistive overlay is suitable for their specific factory floor environment.
Key Parameter Overview
Functional Grouping of Technical Specifications
| Category | Specification Item | Value / Detail |
|---|---|---|
| Display Characteristics | Screen Size | 5.7-inch |
| Resolution | 320 x 240 (QVGA) | |
| LCD Type | STN Blue (Negative) | |
| Interface & Electrical | Signal Interface | Parallel (1-bit) |
| Supply Voltage (Logic) | 5.0V Typical | |
| Mechanical & Optical | Backlight System | CCFL (Cold Cathode) |
| Contrast Ratio | 5:1 Typical |
FAQ
Addressing Integration and Longevity Concerns
What are the specific design considerations for the CCFL backlight in the LM32007T?
The LM32007T utilizes a CCFL (Cold Cathode Fluorescent Lamp), which requires an external high-voltage inverter. Engineers must ensure the inverter matches the starting voltage and current requirements of the tube to prevent premature dimming or flickering. If converting to LED for longer life, a custom backlight driver is required to bypass the original CCFL circuit.
How does the STN technology of the LM32007T affect viewing angles compared to modern IPS panels?
As an STN (Super-Twisted Nematic) module, viewing angles are more restrictive than modern IPS panels. Optimal contrast is typically achieved at the 6 o'clock or 12 o'clock position (depending on the specific orientation). Using the LM32007T is like reading a high-quality newspaper; while it lacks the vividness of a digital photo, the 320x240 text clarity is exceptional for technical parameters.
Industry Insights & Strategic Advantage
The Resilience of Monochrome Displays in the Era of High-Performance HMIs
While the global display market moves toward ultra-high-definition TFT-LCD panels, the Sharp LM32007T remains a strategic asset for industrial sustainability. In many heavy machinery sectors, the cost of redesigning a system to support high-color graphics far outweighs the benefit. The monochrome STN architecture offers a "known quantity" in terms of electromagnetic interference (EMI) and power consumption.
Strategically, sourcing the LM32007T allows organizations to extend the lifecycle of high-capital assets (like CNC machines or medical ventilators) by another decade. This aligns with the "Right to Repair" movement increasingly seen in industrial standards, where maintaining original specifications is preferred over forced upgrades. Understanding the total cost of ownership (TCO) of these displays involves factoring in the avoided costs of system-wide software and hardware overhauls.
Technical Deep Dive
Interface Protocols and Contrast Management for Peak Reliability
The 1-bit parallel interface of the LM32007T requires precise timing synchronization with the system clock (CP) and data latch signals (LOAD). Unlike serial interfaces that can buffer data, the LM32007T processes data in real-time. This reduces latency but requires a robust controller design.
A critical factor for long-term reliability is VEE (Liquid Crystal Driving Voltage). Because STN liquid crystals are sensitive to temperature changes, the contrast of the 320x240 matrix can drift. Implementing a temperature-compensated voltage supply to the VEE pin ensures that the display remains legible from cold start to peak operational temperature. For more information on optimizing these components, see the engineering behind industrial display architectures.
As a specialized distributor, we provide engineering-level support for the Sharp LM32007T, enabling procurement teams to secure original-spec components for critical infrastructure maintenance. For lead times and availability of this monochrome module, please contact our technical sales team for an official quote.
