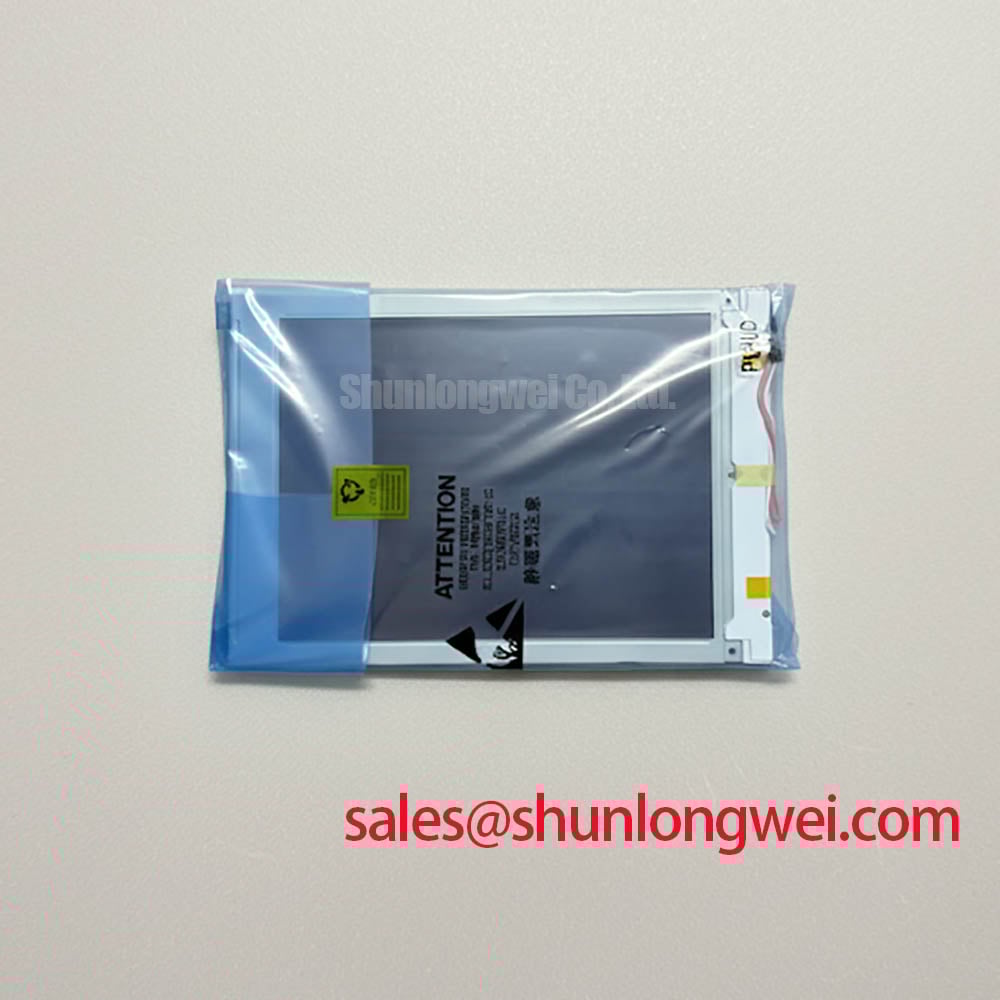

Hitachi LMG9980ZWCC-02 Technical Analysis: Optimizing Legacy Industrial HMI Performance
The Hitachi LMG9980ZWCC-02 represents a cornerstone in industrial monochrome display technology, specifically engineered for high-reliability environments where clarity and long-term stability are non-negotiable. As a 240x64 dot matrix module utilizing STN (Super-Twisted Nematic) technology, it provides the precise visual feedback required for complex industrial workflows. This module is frequently sought by engineers for its robust architecture and its ability to maintain consistent performance under varied thermal conditions common in factory floor settings.
Top Specs: 240x64 Resolution | STN Monochrome | Built-in T6963C Controller
- Key Benefit 1: Exceptional legibility in high-ambient light industrial environments.
- Key Benefit 2: Seamless integration with legacy systems via the 8-bit parallel interface.
For engineers maintaining legacy systems, a common concern is whether the LMG9980ZWCC-02 can withstand the electrical noise of modern industrial environments; its integrated controller and shielded design are specifically optimized to mitigate such interference. For 400V drive systems requiring high-efficiency control interfaces, this display provides the critical diagnostic window necessary for real-time monitoring. For industrial applications requiring a different form factor, the LMG5271XUFC-D offers an alternative configuration within the same reliability class.
Key Parameter Overview
Decoding the Specs for Enhanced Industrial Reliability
The following technical data defines the operational boundaries of the Hitachi LMG9980ZWCC-02. Understanding these parameters is essential for ensuring system compatibility and preventing premature component failure in harsh environments.
| Parameter | Specifications |
|---|---|
| Manufacturer | Hitachi (JDI) |
| Resolution | 240 x 64 Dots |
| Display Technology | STN Monochrome (Blue/White mode) |
| Interface Type | 8-bit Parallel |
| Built-in Controller | T6963C (or equivalent) |
| Backlight Type | CCFL (Cold Cathode Fluorescent Lamp) |
| Supply Voltage | 5.0V (Typical) |
Application Scenarios & Value
Achieving System-Level Benefits in High-Stability Power Monitoring
Engineers often face the challenge of sourcing reliable replacement displays for aging CNC machinery or medical diagnostic equipment that were built around the 8-bit parallel interface. The LMG9980ZWCC-02 addresses this by providing a drop-in technical solution that avoids the cost and complexity of a full system HMI redesign. In power electronics monitoring, where the display must be placed near high-frequency inverters, the STN technology ensures that the data remains readable even if the viewing angle is constrained by the machine's physical enclosure.
In the context of Variable Frequency Drive (VFD) configuration panels, the 240x64 resolution allows for both graphical trend lines and detailed text readouts simultaneously. This versatility is crucial for Industrial 4.0 retrofitting projects where legacy hardware needs to display more complex diagnostic data than originally intended. When designing systems that require more modern high-resolution color outputs, engineers may also evaluate the LMG6912RPFC for expanded visual capabilities.
Technical Deep Dive
A Closer Look at the T6963C Controller Integration
The core of the LMG9980ZWCC-02 is its T6963C controller. This silicon-proven controller acts like a dedicated graphics processor for the display, offloading the character generation and graphical mapping tasks from the primary system MCU. This is analogous to having a dedicated co-pilot in an aircraft who handles navigation while the pilot focuses on flight controls. By managing the STN liquid crystal drive internally, the LMG9980ZWCC-02 maintains high contrast ratios and minimizes "ghosting" effects during rapid data updates.
Furthermore, the CCFL backlight provides a uniform luminance across the Active Area, which is critical for medical HMI applications where visual clarity can impact operational accuracy. While modern systems are shifting toward LED backlighting, the CCFL in the Hitachi LMG9980ZWCC-02 is tuned for a specific spectral output that many legacy medical instruments require for optical consistency. For those looking to understand the broader shift in display technology, our Ultimate Guide to TFT-LCD provides deeper context on the evolution from STN to active-matrix technologies.
Frequently Asked Questions
How does the STN technology in the LMG9980ZWCC-02 compare to standard TN displays?
STN, or Super-Twisted Nematic, allows for a higher multiplex rate compared to standard TN displays. In engineering terms, this translates to significantly better contrast and wider Viewing Angles, which are essential when the operator is not standing directly in front of the control panel.
What is the primary advantage of the built-in T6963C controller for system designers?
The primary advantage is the simplification of software overhead. The controller handles the 240x64 pixel mapping, allowing the engineer to send simple commands for text and basic graphics, which accelerates the development cycle and reduces MCU memory usage.
Can the CCFL backlight be replaced if it reaches its end-of-life?
While the LMG9980ZWCC-02 is a sealed module, CCFL tubes are technically replaceable by specialized technicians. However, for mission-critical hardware, replacing the entire module is usually recommended to ensure the Thermal Management and optical alignment remain within factory specifications.
Is this display compatible with 3.3V logic systems?
The LMG9980ZWCC-02 typically operates on a 5V logic level. If integrating with a 3.3V microcontroller, level shifters are required on the 8-bit Parallel bus to ensure reliable signal integrity and prevent damage to the display controller.
As industrial systems continue to evolve, maintaining the reliability of established HMI infrastructures remains a priority for procurement and engineering teams. The Hitachi LMG9980ZWCC-02 stands as a testament to durable display engineering, providing the necessary specs for continued operation in demanding fields. For more insights on display selection for harsh environments, visit our resource on Industrial Display HMI Solutions.
