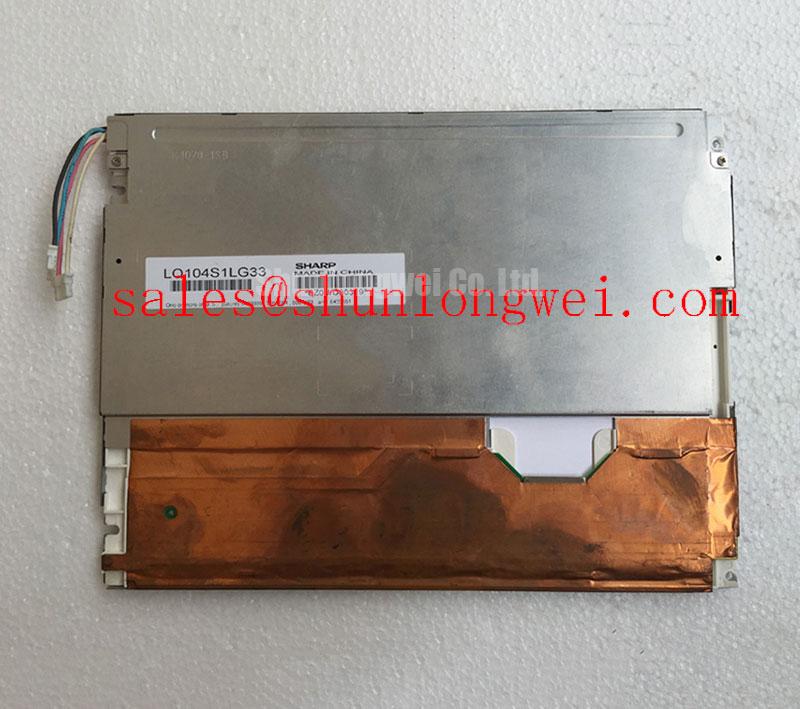

LQ104S1LG33 Sharp 10.4-inch SVGA TFT LCD Panel: Extreme Temperature Reliability
Architected for formidable environmental resilience, the LQ104S1LG33 by Sharp is an industrial-grade 10.4-inch SVGA display engineered for continuous operation from -30°C to 80°C.
800x600 SVGA | 400 cd/m² | 600:1 Contrast Ratio.
- Eliminates low-temp freezing.
- Simplifies embedded LVDS integration.
How does it guarantee cold starts in sub-zero deployments? The dual-CCFL architecture dynamically requires up to 1300V for reliable ignition at -30°C, ensuring uninterrupted visual feedback. For ruggedized terminals prioritizing thermal margin in freezing conditions, this 10.4-inch SVGA panel is the optimal choice.
Key Parameter Overview
Decoding the Specs for Industrial Environmental Resilience
| Functional Group | Parameter | Specification |
|---|---|---|
| Display & Optical | Resolution | 800 x 600 (SVGA) |
| Brightness / Contrast | 400 cd/m² / 600:1 | |
| Surface Treatment | Matte, Hard Coating (3H) | |
| Electrical & Interface | Signal Interface | LVDS (1 ch, 6/8-bit), 20 pins |
| Logic Voltage Supply | 3.3V (Typ.) | |
| Backlight & Environmental | Backlight Type | Dual CCFL (50,000 Hours) |
| Startup Voltage (Cold) | 1300V Max (-30°C) | |
| Operating Temperature | -30°C to 80°C |
Application Scenarios & Value
System-Level Benefits in Cold-Storage and HMI Automation
Deploying visual interfaces in harsh environments frequently exposes standard consumer glass to critical failures. Engineers often face the challenge of liquid crystal freezing, sluggish pixel response, or backlight ignition failure when ambient temperatures drop below freezing. What is the primary benefit of its wide temperature range? It prevents liquid crystal freezing and maintains deterministic response times in harsh environments.
The LQ104S1LG33 seamlessly integrates into ruggedized terminals, marine navigation panels, and outdoor ticketing kiosks. Its robust TN cell structure and wide -30°C to 80°C thermal margin guarantee that SCADA systems and embedded controllers receive uninterrupted visual feedback, even in cryogenic storage facilities or unconditioned factory floors. By leveraging a standard 20-pin LVDS interface running at a 3.3V typical logic voltage, the module ensures low electromagnetic interference and streamlined cable routing within compact, densely packed industrial enclosures. This architecture significantly accelerates the design-in phase for system architects.
While this CCFL-driven model is renowned for legacy system compatibility, for designs demanding modern solid-state illumination, the related G104S1-L01 provides an LED-backlit alternative within the same 10.4-inch form factor. Understanding these nuances is critical when evaluating industrial vs consumer displays for long-term automation projects.
Technical Deep Dive
A Closer Look at Dual-CCFL Startup and Low-Temperature Reliability
The core vulnerability of most TFT-LCD modules in sub-zero climates lies in the backlight ignition phase. At standard room temperatures, the LQ104S1LG33 operates stably with a 470V typical driving voltage. However, as the ambient environment plunges to -30°C, the internal gas mixture within the dual CCFL tubes exhibits immense electrical resistance, threatening to stall system boot-up sequences.
To overcome this inherent physical limitation, the module is rigorously rated for a formidable 1300V maximum startup voltage. Think of this high-voltage CCFL startup like the cold-cranking amp rating on a heavy-duty truck battery; it delivers the necessary initial energy surge to break through extreme thermal inertia and establish steady-state illumination. This characteristic is paramount for preventing dark screen anomalies during winter power-cycling in remote geographic locations. Understanding these parameters is central to mastering TFT-LCD industrial applications.
Furthermore, the optical stack incorporates a specialized Matte polarizer with 3H hard coating delivering a typical luminance of 400 cd/m². This surface treatment acts similarly to an industrial-grade conformal coating on a printed circuit board. It actively disperses ambient glare to maintain the 600:1 contrast ratio under direct factory lighting, while simultaneously shielding the sensitive underlying TFT array from physical abrasions common in heavy-gloved HMI operations.
Frequently Asked Questions
Addressing Field Engineer Inquiries on the LQ104S1LG33
- How does the 20-pin LVDS interface simplify embedded controller integration for the LQ104S1LG33?
The 1-channel, 6/8-bit LVDS interface drastically reduces the pin count compared to parallel TTL architectures. This serialized data transmission framework minimizes EMI radiation and allows for longer cable runs between the mainboard and the display bezel. (Learn more about LVDS Interface fundamentals).
- Why is a 1300V startup voltage specified for the LQ104S1LG33 at -30°C?
At extreme negative temperatures, the mercury vapor inside the dual CCFL tubes condenses, requiring a significantly higher dielectric breakdown voltage to ignite the arc. The 1300V rating ensures the inverter can successfully initiate plasma generation without triggering false short-circuit protections.
- What is the expected MTBF for the dual-CCFL backlight system under normal conditions?
The optical light source is rated for 50,000 hours of half-brightness life under typical 6.0mA driving currents, ensuring over five years of continuous 24/7 operation before requiring lamp replacement or system retrofitting.
For detailed mechanical integration guidelines or technical assistance with selecting the appropriate high-voltage backlight inverter, contact our component specialists to secure your display supply chain.
