Sharp LQ121S1LG88: Engineering a Legacy of Visual Reliability for Industrial HMIs
A Deep Dive into the Sharp LQ121S1LG88 TFT-LCD Module

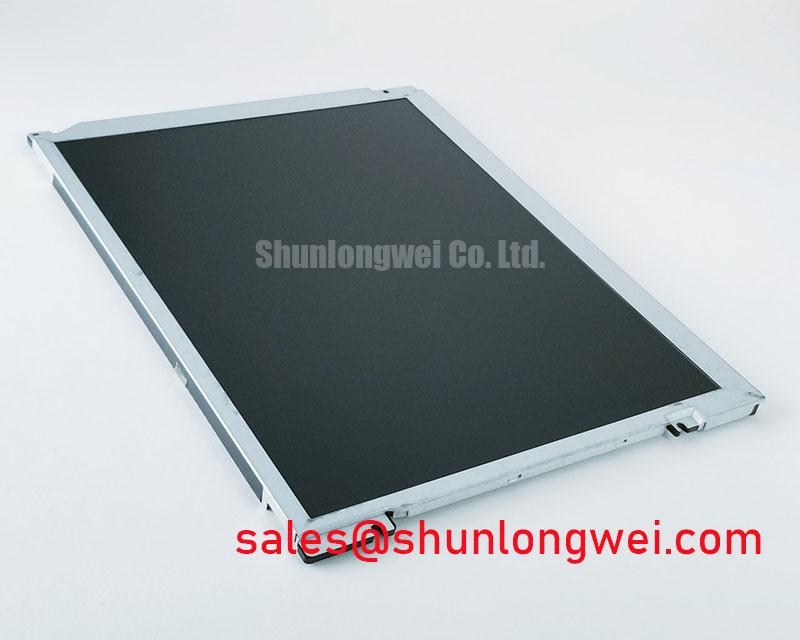

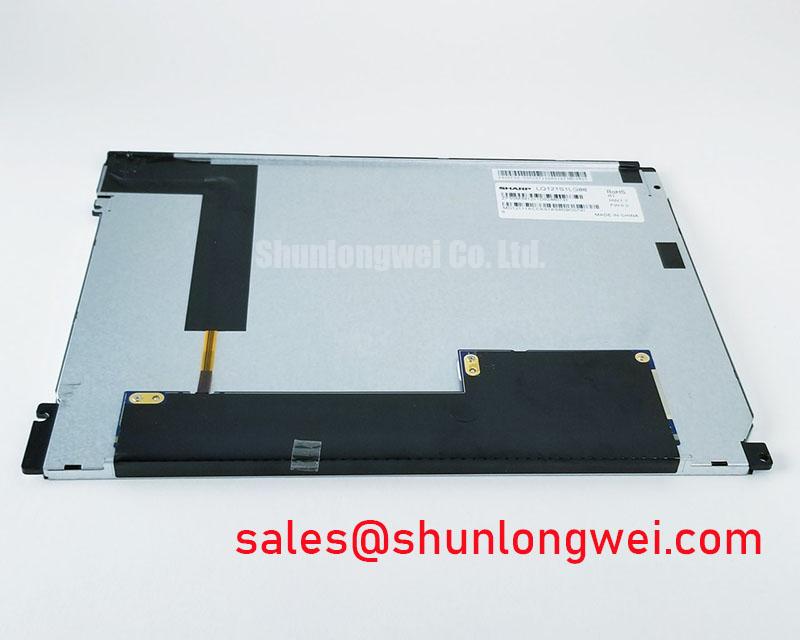

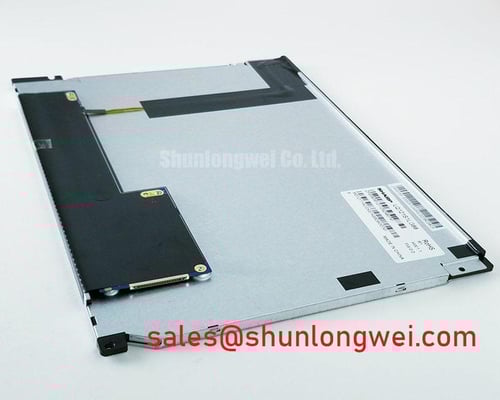

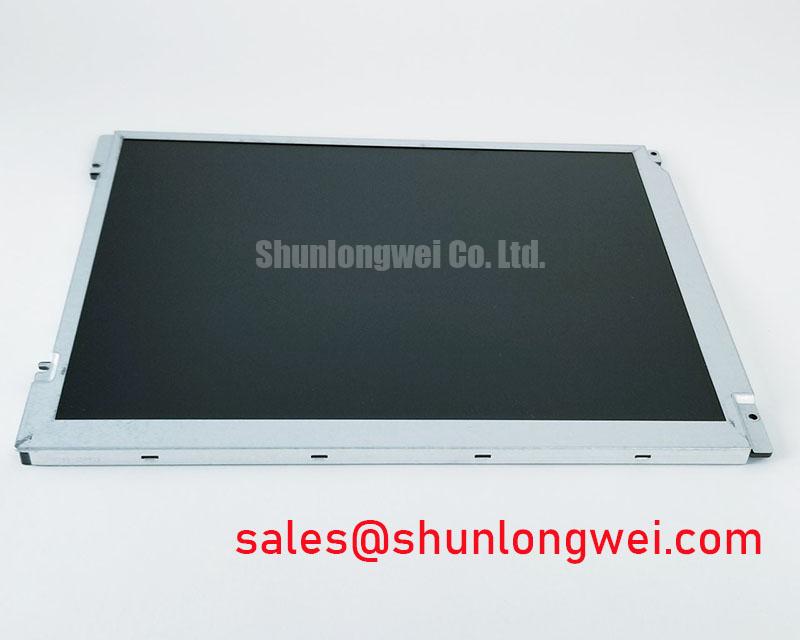

The Sharp LQ121S1LG88 is an a-Si TFT-LCD module engineered for longevity and consistent performance in demanding industrial applications. This 12.1-inch display delivers robust visual clarity through its 800x600 SVGA resolution and a high-brightness 450 cd/m² backlight, ensuring readability in varied lighting conditions. Key specifications include: 12.1" SVGA | 450 cd/m² | 50K Hour WLED Backlight. The design prioritizes operational endurance and straightforward system integration. It directly addresses the engineering need for a display that maintains performance over an extended operational life, minimizing replacement cycles. For industrial systems requiring a proven, long-life display solution, the LQ121S1LG88 offers a dependable foundation for user interface design.
Key Parameter Overview
Decoding the Specifications for Long-Term Operational Stability
The technical specifications of the Sharp LQ121S1LG88 are foundational to its reliable performance in industrial environments. Each parameter is a critical piece of data for engineers designing systems where uptime and visual consistency are paramount. The combination of a long-life backlight and a wide operational temperature range provides a significant advantage in total cost of ownership.
| Parameter | Specification | Engineering Value & Interpretation |
|---|---|---|
| Panel Size | 12.1 inches | Provides a substantial active area for complex graphical user interfaces (GUIs) in industrial control panels and medical devices without requiring an oversized enclosure. |
| Resolution | 800(RGB)×600, SVGA | Delivers clear, sharp rendering of text and graphics, which is essential for reducing operator error in process control and instrumentation applications. |
| Brightness | 450 cd/m² (Typ.) | Imagine trying to read a smartphone screen in direct sunlight; it's difficult. This display's 450-nit brightness is like turning that phone's brightness to maximum, ensuring the HMI is readable in well-lit factory floors or control rooms. |
| Contrast Ratio | 800:1 (Typ.) | A high contrast ratio ensures that whites are bright and blacks are deep, providing excellent image depth and clarity for detailed schematics or diagnostic imaging. |
| Viewing Angle | 80°/80°/60°/80° (L/R/U/D) (Typ.) | Allows for clear visibility from multiple off-axis positions, a crucial feature for panels that may be viewed by several operators simultaneously from different locations on the factory floor. |
| Backlight System | WLED, 50,000 Hours (Typ.) | The 50,000-hour lifespan is the engineering equivalent of over 5.7 years of continuous 24/7 operation, directly translating to reduced maintenance schedules and enhanced system reliability. |
| Operating Temperature | -15°C to 70°C | Guarantees stable operation in environments that are not climate-controlled, such as manufacturing facilities, outdoor kiosks, or transportation systems. |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins | A standard LVDS Interface simplifies integration with a wide range of industrial motherboards and single-board computers, reducing design complexity and development time. |
Download the LQ121S1LG88 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Industrial Automation and Control
The Sharp LQ121S1LG88 is best suited for applications where operational reliability and long-term performance are primary design criteria. Its feature set provides a stable and dependable visual interface for a variety of demanding sectors.
Consider the challenge of designing a Human-Machine Interface (HMI) for a CNC milling machine. The environment is often subject to temperature fluctuations and requires an operator interface that remains clear and responsive throughout a multi-shift workday. The LQ121S1LG88's wide operating temperature range (-15°C to 70°C) ensures the display will not fail due to ambient factory conditions. Furthermore, its 50,000-hour rated WLED backlight system is critical. This long lifespan means the display's brightness will not degrade prematurely, preventing costly downtime for screen replacements and ensuring the GUI is always legible for the machine operator. This focus on durability makes it a workhorse for industrial automation, process control systems, and specialized medical diagnostic equipment.
For systems that demand a higher resolution for more intricate data visualization, the G156XW01 V1 offers a WXGA resolution in a larger form factor.
Frequently Asked Questions (FAQ)
What is the primary benefit of the 50,000-hour backlight rating?
The 50,000-hour backlight rating signifies exceptional operational longevity. For an HMI running 24/7, this translates to over 5.7 years of continuous use before the backlight typically reaches half its original brightness. This minimizes maintenance costs and maximizes equipment uptime.
How does the 800:1 contrast ratio impact usability in an industrial setting?
A high contrast ratio is vital for legibility. It creates a distinct difference between light and dark pixels, making text, numerical readouts, and alarm indicators sharp and easy to discern at a glance. This reduces the cognitive load on the operator and can help minimize errors.
Is the LVDS interface on the LQ121S1LG88 suitable for modern industrial controllers?
Yes, the LVDS interface remains a widely used and robust standard in industrial computing. Its noise immunity and ability to transmit high-speed data over short distances make it a reliable choice for connecting the display to the system's main board, ensuring signal integrity in electrically noisy factory environments.
What does the specified viewing angle of 80/80/60/80 signify for an HMI panel?
This specification indicates how far an operator can move to the left, right, below, or above the screen's center and still see a clear image. The wide horizontal angles (80° left/right) are particularly beneficial, allowing multiple personnel to view the screen's status from different positions without color distortion.
Can the LQ121S1LG88 operate reliably in a non-air-conditioned factory?
Absolutely. The operating temperature range of -15°C to 70°C is specifically designed to handle the thermal challenges found in many industrial environments, from cold storage facilities to warmer manufacturing floors, without compromising performance or lifespan.
The Engineer's Perspective
From an engineering standpoint, the Sharp LQ121S1LG88 is a component that mitigates project risk. Its specifications are not about cutting-edge performance but about delivering unwavering consistency. The selection of a TN panel, combined with a robust backlight and a wide thermal operating window, points to a design philosophy centered on durability over novelty. Integrating this display into a system means specifying a known quantity—a visual interface that is built to withstand the rigors of its intended environment for years, aligning with the long lifecycle expectations of industrial capital equipment. It represents a conservative but highly reliable choice for any system designer whose primary objective is to build a product that lasts.
