Sharp LQ14D412: An In-Depth Look at the 13.8-inch VGA Industrial Display
Content last revised on October 20, 2025.

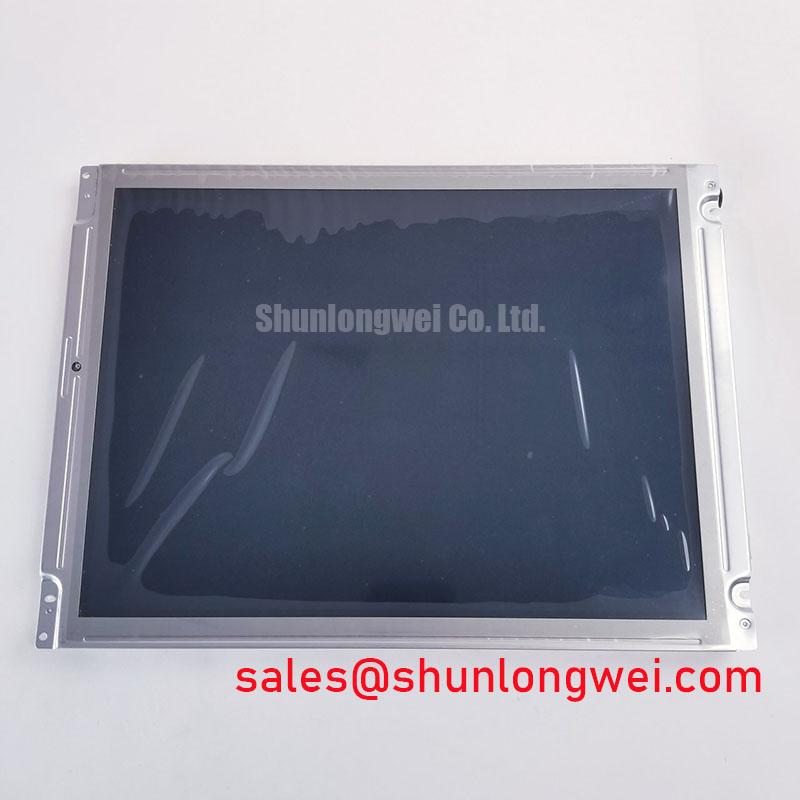

The Sharp LQ14D412 is a 13.8-inch a-Si TFT-LCD panel engineered for longevity and consistent performance in industrial applications. Delivering a classic 4:3 aspect ratio with VGA resolution, it provides a robust display solution for legacy system support and specialized human-machine interfaces (HMIs). Key specifications include a 640x480 resolution, a CCFL backlight system with an integrated inverter, and a parallel RGB interface, ensuring compatibility with established industrial control hardware. This display is optimized for operational reliability and clear visual output in demanding settings. What is the primary benefit of its integrated CCFL and inverter? Simplified system integration and power supply design. Best fit for industrial control systems requiring a durable VGA display with proven interface compatibility.
Key Parameter Overview
Decoding the Specs for Industrial System Integration
The technical specifications of the Sharp LQ14D412 are tailored for industrial environments where reliability and compatibility are paramount. The combination of a standard VGA resolution and a parallel RGB interface makes it a straightforward drop-in for system upgrades or maintenance of existing industrial equipment. The built-in CCFL backlight with its own inverter simplifies the power delivery design, requiring only standard logic and backlight voltages. The panel's surface treatment, featuring an antiglare finish and a 2H hard coating, ensures readability and durability in high-traffic operational areas.
| Parameter | Specification | Engineering Value |
|---|---|---|
| Panel Size | 13.8 inches | Provides a large, clear viewing area suitable for complex data visualization in industrial control panels. |
| Resolution | 640(RGB)×480 (VGA) | Ensures compatibility with a wide range of legacy and specialized industrial software and hardware. |
| Brightness | 180 cd/m² (Typ.) | Delivers sufficient brightness for typical indoor industrial environments. |
| Signal Interface | Parallel RGB (1 ch, 8-bit) | A robust and straightforward interface common in industrial controllers, simplifying system integration without requiring complex signal conversion. |

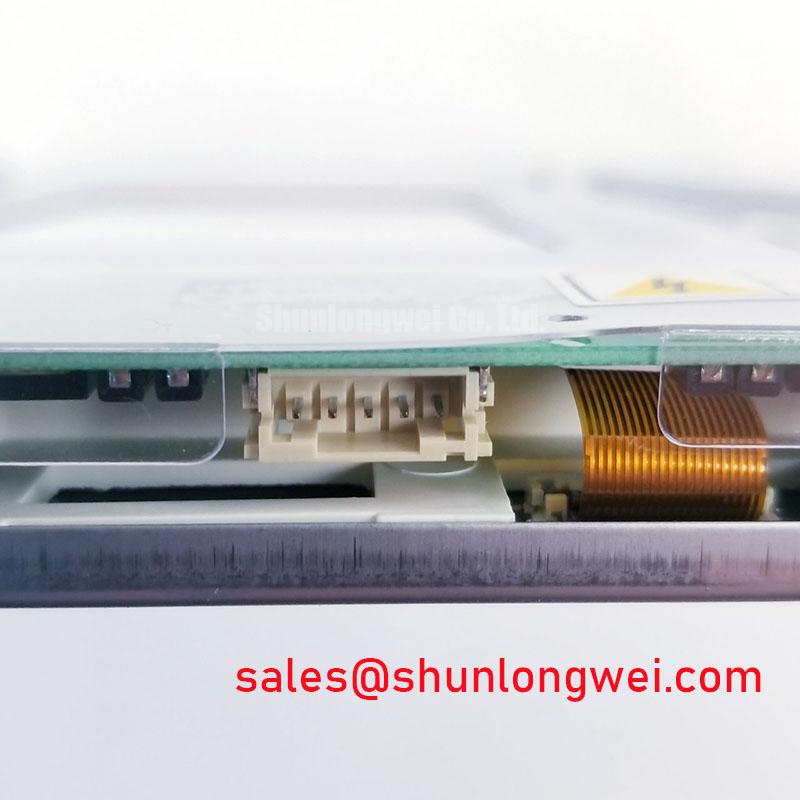

| Backlight System | CCFL with integrated inverter | The included inverter reduces design complexity and component sourcing for the backlight power supply. |
| Operating Temperature | 0 ~ 50 °C | Rated for stable operation across a range of controlled industrial and commercial environments. |
| Surface Treatment | Antiglare (Haze 6%), Hard coating (2H) | Minimizes reflections for improved readability and provides resistance to scratches in operational settings. |
Download the LQ14D412 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Legacy Equipment and Control Systems
The Sharp LQ14D412 is engineered as a reliable display solution for applications where stability and backward compatibility are non-negotiable. Its VGA resolution and parallel interface make it an ideal candidate for extending the life of existing industrial machinery, medical devices, and test and measurement equipment that were designed around the 4:3 aspect ratio standard.
A key engineering challenge in maintaining such systems is sourcing components that integrate seamlessly without requiring extensive hardware or software modifications. The LQ14D412 directly addresses this by providing an established interface and form factor. For instance, in a CNC machine control panel upgrade, the 8-bit parallel RGB input allows a direct connection to the existing video controller, avoiding the need for signal converters that could introduce latency or failure points. The integrated CCFL inverter further simplifies the power design, as it only requires a standard DC input, reducing the engineering effort needed to refresh an aging HMI. This focus on compatibility ensures a lower total cost of ownership and minimizes downtime during system maintenance or refurbishment. For systems requiring a different standard resolution, the G104VN01 V0 offers a similar VGA interface in a 10.4-inch size, while the LQ104V1LG61 provides an alternative from Sharp in the 10.4-inch VGA category.
Technical Deep Dive
A Closer Look at the Parallel RGB Interface and Mechanical Design

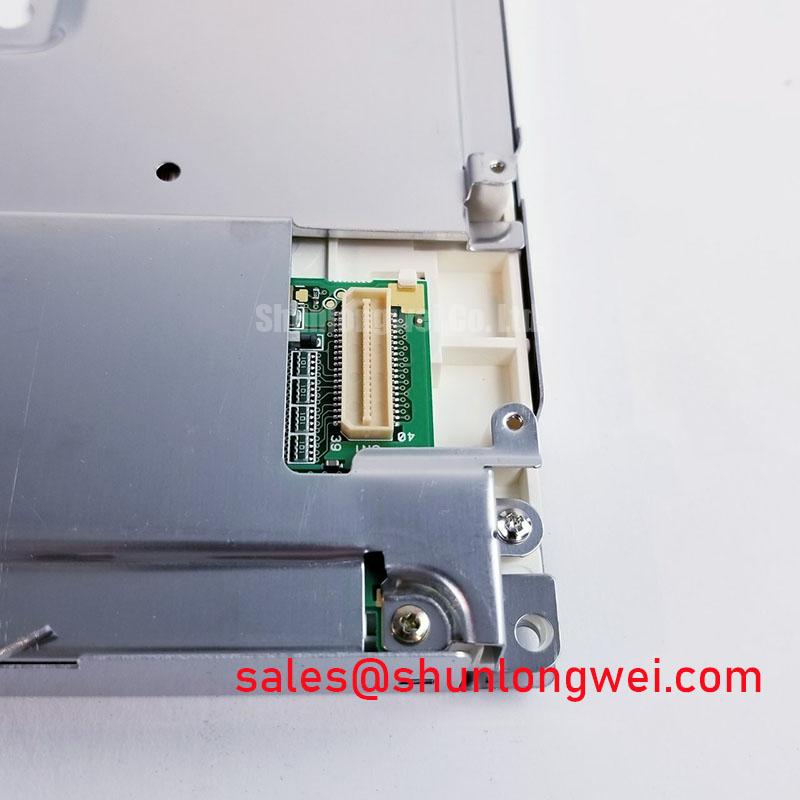

The choice of a Parallel RGB interface on the LQ14D412 is a deliberate engineering decision aimed at ensuring maximum compatibility and reliability in industrial settings. Unlike modern serialized interfaces like LVDS or eDP, a parallel interface transmits color data for each pixel simultaneously over dedicated lines. This straightforward protocol minimizes the need for high-frequency signal processing and complex serializer/deserializer chipsets, which can be sources of EMI and potential failure. For an engineer, this translates to a more predictable and robust connection, especially in electrically noisy factory environments. The 40-pin connector specified for this interface is a common, durable type, further simplifying board layout and system assembly.
Mechanically, the display's outline dimensions of 330 x 242 x 19 mm provide a substantial and rugged frame. The use of a CCFL backlight, while a legacy technology, is known for its long operational life and stable color output, which is crucial for applications where color fidelity is important for interpreting on-screen information. The weight of 1.40 kg also speaks to its robust construction, designed to withstand the vibrations and mechanical stresses typical of industrial equipment. This robust build is analogous to using a heavy-duty mechanical relay instead of a solid-state one in a high-vibration environment; it is chosen for its proven resilience and predictable behavior under stress.
Frequently Asked Questions (FAQ)
What is the primary advantage of the Parallel RGB interface on the LQ14D412 for industrial applications?
The Parallel RGB interface offers a direct, non-serialized connection that enhances electrical robustness and simplifies system integration. It eliminates the need for LVDS or eDP transmitters and receivers, reducing component count, potential points of failure, and susceptibility to electromagnetic interference (EMI) often present in industrial environments.
Is the CCFL backlight system user-replaceable?
The datasheet indicates a minimum lamp life of 10,000 hours. While the CCFL lamps are integrated into the display module, replacement is typically a specialized service. The display is designed with an integrated inverter, which simplifies the overall system design and should be considered as part of the complete backlight unit.
How does the 6 o'clock viewing angle impact HMI design?
An optimal viewing direction at 6 o'clock means the display's best contrast and color fidelity are achieved when viewed from slightly below the center of the screen. This is a critical consideration for HMI design, as the panel should be mounted so that the operator's natural line of sight aligns with this optimal angle, typically by placing the display at or slightly above eye level.
What does the "Normally White" TN mode signify for system behavior?
"Normally White" means that in the absence of power to the pixels, they will be transparent, allowing the backlight to pass through and making the screen appear white. From a system safety perspective, this behavior is predictable: a loss of signal or pixel driver failure will result in a fully illuminated screen rather than a black one, which can be a useful diagnostic indicator.
