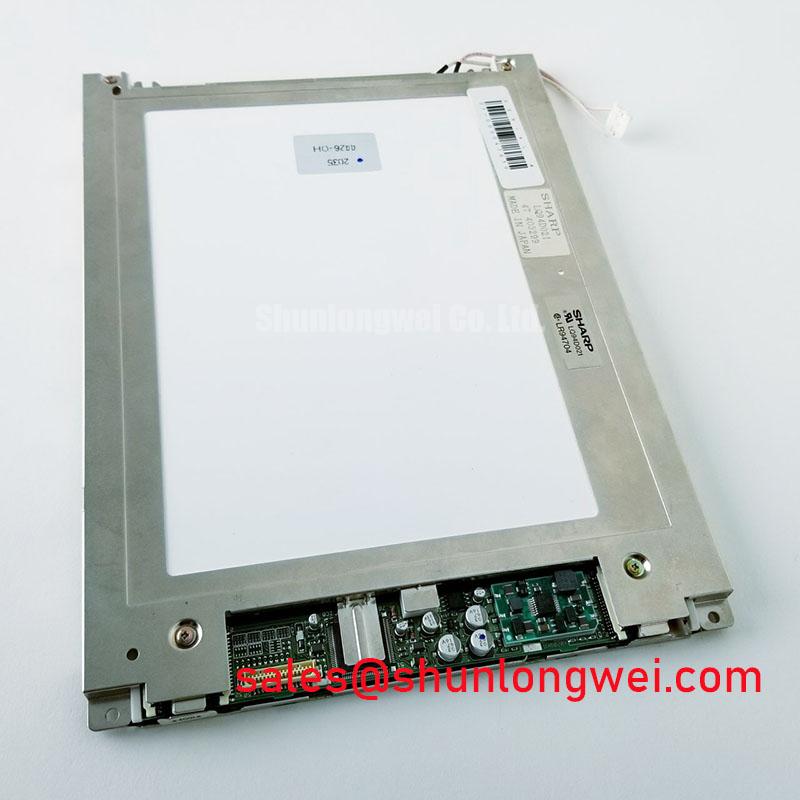

Sharp LQ94D021 | 9.4-inch VGA TFT-LCD for Demanding Industrial HMI Applications
The Sharp LQ94D021 is a cornerstone display for industrial applications that demand proven reliability and clear, consistent visuals. This 9.4-inch TFT-LCD module is engineered by Sharp to serve as a robust human-machine interface (HMI) in environments where uptime and readability are non-negotiable. Its classic VGA resolution and mature technology make it an ideal component for both legacy system maintenance and new designs prioritizing stability and cost-effectiveness.
Core Engineering Highlights
- Optimal HMI Size: The 9.4-inch diagonal provides an expansive active area for complex graphical interfaces without an excessive footprint, perfect for control panels and embedded systems.
- Industrial-Standard Resolution: A 640x480 VGA resolution delivers crisp and clear rendering of text, schematics, and numerical data, a standard that ensures broad compatibility with industrial controllers.
- Proven Backlight Technology: Equipped with a long-life Cold Cathode Fluorescent Lamp (CCFL) backlight, it offers uniform brightness and a stable color gamut proven over decades of field use.
- Robust Construction: Designed to operate reliably within a 0 to 55°C temperature range, making it suitable for factory floors, control rooms, and non-climate-controlled enclosures.
Key Technical Specifications
Engineers require precise data for system integration. The following table outlines the critical performance parameters of the LQ94D021. For a complete dataset, you can download the full datasheet here.
| Parameter | Specification |
|---|---|
| Manufacturer | Sharp |
| Model Name | LQ94D021 |
| Screen Size | 9.4 inches |
| Resolution | 640(RGB)×480 [VGA] |
| Display Technology | a-Si TFT-LCD |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 120:1 (Typ.) |
| Interface Type | 6-bit Parallel RGB |
| Backlight | 1 pc CCFL |
| Operating Temperature | 0 ~ 55 °C |
| Storage Temperature | -30 ~ 70 °C |
Engineered for Critical Application Scenarios
The true value of a component is measured by its performance in the field. The Sharp LQ94D021 excels in specific industrial contexts by directly addressing key operational challenges.
- CNC and Machine Tool Control: In a machine shop, clarity is paramount. The VGA resolution of the LQ94D021 provides operators with unambiguous views of G-code, tool paths, and machine parameters. Its durability ensures it withstands the ambient vibration and temperature fluctuations common in such environments, making it a reliable workhorse for precision manufacturing.
- Medical Instrumentation: For diagnostic equipment like patient monitors or analysis machines, reliability is a matter of safety. This display's stable performance and consistent color representation make it a trusted choice for presenting vital data and simple waveforms, where a component failure is not an option.
- Process Automation and Control Panels: The 9.4-inch form factor is perfectly suited for integration into standard equipment racks and control consoles. The straightforward Parallel RGB interface simplifies connection to embedded motherboards, reducing system complexity and accelerating development for process control systems in manufacturing plants and utilities. The display's resilience is a key factor in ensuring high system availability, a core tenet of modern HMI and automation design.
Technical Deep Dive: The Engineering Behind the Reliability
The longevity of the LQ94D021 in the market is no accident; it is a result of deliberate engineering choices that prioritize stability over novelty. The core of its performance rests on its a-Si TFT (Amorphous Silicon) active matrix. This technology is the bedrock of industrial displays, offering a mature, cost-effective, and exceptionally reliable method for pixel switching that has been refined over millions of operational hours in the field. This foundation is crucial for understanding the overall display's lifecycle and performance characteristics, a topic we explore further in our ultimate guide to TFT-LCDs.
Frequently Asked Questions for Design Engineers
Is the LQ94D021 still a viable option for new system designs?Absolutely. While it represents a mature technology, its value proposition is compelling for specific use cases. For new designs that require a direct, low-latency Parallel RGB interface, or for projects where budget and proven reliability are the primary drivers, the LQ94D021 remains a first-class engineering choice. It is also an ideal drop-in replacement for servicing a vast installed base of industrial machinery.
What are the integration considerations for the CCFL backlight?The CCFL backlight requires a dedicated high-voltage inverter to operate, which must be accounted for in the system's power budget and physical layout. While modern LED systems integrate the driver, CCFL inverters are readily available and provide a highly stable and uniform light source that is less susceptible to localized failures, ensuring the entire display remains readable even after extended use.
For detailed integration support or to discuss how the Sharp LQ94D021 can meet the specific demands of your project, please contact our technical team for expert consultation.
