LS037V7DW03: Engineering a 3.7-inch Transflective VGA Display for All-Condition Readability
Product Overview: Uncompromising Clarity for Portable and Industrial Systems
Content last revised on October 16, 2025.

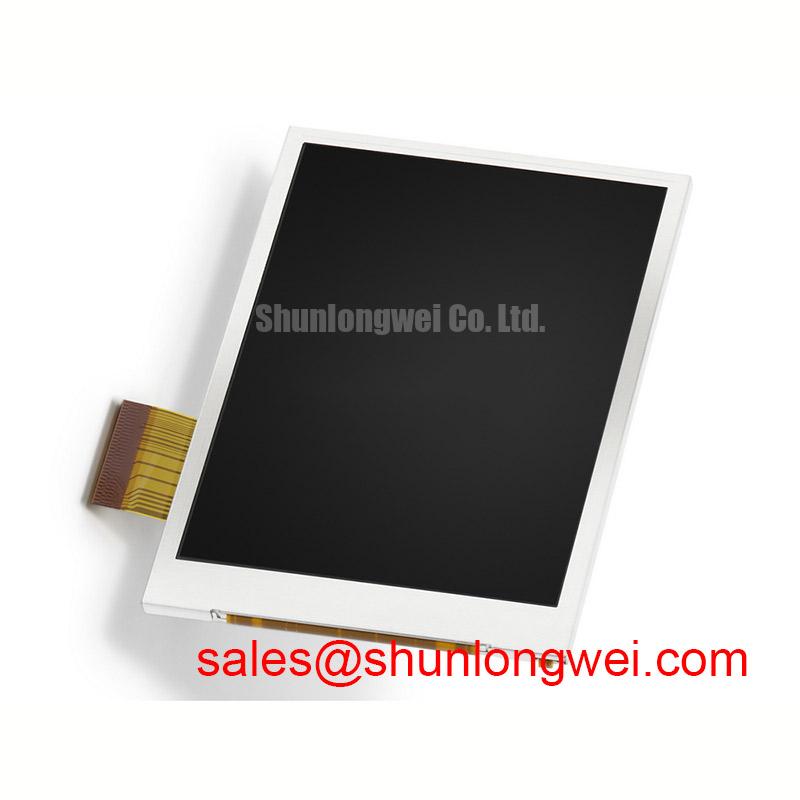

The Sharp LS037V7DW03 is a 3.7-inch VGA color TFT-LCD module engineered for exceptional visual performance in the most demanding environments. Its core value lies in its advanced transflective technology, which ensures crisp, clear readability in both direct sunlight and low-light conditions. Featuring key specifications of 640x480 VGA Resolution | -20°C to +70°C Operating Range | Transflective CG-Silicon Panel, this display provides two critical engineering benefits: guaranteed data legibility for outdoor use and significantly reduced power consumption. For engineers designing battery-powered handheld devices that must perform reliably outdoors, this display directly answers the need for a compact, power-efficient, and truly sunlight-readable interface. With its high pixel density and robust environmental tolerance, the LS037V7DW03 is the optimal choice for portable diagnostic tools where information clarity is non-negotiable.
Application Scenarios & Value
System-Level Benefits in Portable Diagnostics and Outdoor HMIs
The true value of the LS037V7DW03 is realized in applications where environmental conditions are unpredictable and system power is at a premium. Consider a field technician using a handheld spectrum analyzer or a portable patient monitoring device. In bright sunlight, a conventional transmissive display would be completely washed out, rendering the device useless or forcing the user to find shade. The LS037V7DW03's transflective nature leverages this bright ambient light to illuminate the pixels, making the screen even more readable while allowing the power-hungry backlight to be dimmed or turned off.
This dual-mode capability is like having a hybrid vehicle for displays; it uses the most efficient method of illumination for the given conditions. What is the primary benefit of its transflective design? It delivers uncompromised readability while drastically extending battery life in outdoor environments. This technology eliminates the need for excessively powerful backlights often found in brute-force sunlight-readable displays, which in turn reduces heat generation and simplifies the device's thermal design. Its robust operating temperature range of -20°C to +70°C further solidifies its suitability for industrial handhelds, GPS navigation units, and outdoor data terminals that must function reliably from cold starts to peak-sun exposure. For systems requiring a larger screen with similar VGA resolution for fixed-mount applications, the related LQ064V3DG06 offers a 6.4-inch diagonal alternative.
Key Parameter Overview
Decoding the Specifications for Environmental Resilience
The technical specifications of the LS037V7DW03 are tailored for high-performance, compact applications. The highlighted parameters below underscore its suitability for demanding visual and operational requirements.
| Parameter | Specification |
|---|---|
| Screen Size | 3.7 inch (9.3 cm) diagonal |
| Resolution | 640(RGB) x 480 (VGA) |
| Display Mode | Transflective, Normally White |
| Pixel Pitch | 0.117 x 0.117 mm |
| Active Area | 74.88 x 56.16 mm |
| Outline Dimensions | 65.0 x 87.2 x 5.8 mm |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Interface | Serial RGB (18-bit) |
| Backlight | White LED |
Download the LS037V7DW03 datasheet for detailed specifications and performance curves.
Technical Deep Dive
The Engineering Behind Transflective CG-Silicon Technology
The core innovation of the LS037V7DW03 is its use of a Continuous Grain Silicon (TFT-LCD) panel in a transflective configuration. Unlike standard transmissive displays that rely solely on a backlight, a transflective display has a partially reflective layer behind the liquid crystal cells. This allows it to function in two modes. In low-light conditions, it operates like a conventional display, using its LED backlight to illuminate the pixels. In bright ambient light, the reflective layer bounces external light back through the LCD stack to illuminate the screen, just as ink on paper is read by reflected light.
Furthermore, the choice of CG-Silicon technology from Sharp offers distinct advantages over traditional amorphous silicon (a-Si). Using CG-Silicon is like paving a data highway with perfectly smooth asphalt instead of bumpy gravel. Electrons exhibit much higher mobility, enabling the integration of driver circuitry directly onto the glass substrate. This reduces the number of external driver components, minimizes connection points (a common source of failure), and allows for a more compact, reliable design—all critical factors for the durability of portable devices.
Frequently Asked Questions (FAQ)
What is the primary advantage of the LS037V7DW03's transflective display over a standard transmissive type with a high-brightness backlight?
Its main advantage is power efficiency and superior performance in direct sunlight. While a high-brightness display fights sunlight with brute force, consuming significant power and generating heat, the LS037V7DW03 uses the sunlight to its advantage, providing excellent clarity with minimal backlight power, thus extending battery life and improving thermal stability.
How does the -20°C to +70°C operating temperature range impact system design for outdoor equipment?
This wide temperature range simplifies system design by potentially eliminating the need for dedicated heaters or cooling fans for the display module. It ensures reliable display operation from a cold-start in freezing conditions to prolonged use in hot, sunny environments, reducing overall system complexity, cost, and potential points of failure.
Is the VGA resolution of 640x480 sufficient for a modern 3.7-inch portable device?
Absolutely. A VGA resolution on a 3.7-inch screen results in a high pixel density of 216 pixels per inch (PPI). This level of detail is excellent for rendering sharp text, complex graphical user interfaces (GUIs), and detailed diagnostic information without pixelation, making it a perfect fit for professional tools where data accuracy is critical. For a broader understanding of display technologies, explore The Ultimate Guide to TFT-LCD.
Strategic Importance in Modern Field Instruments
The LS037V7DW03 represents a strategic component choice for the next generation of portable industrial and medical devices. As industries push for more data-driven decisions at the edge, the need for reliable, power-efficient human-machine interfaces that can perform in any environment has become paramount. Displays like the LS037V7DW03 are not just screens; they are critical enablers of productivity and safety, ensuring that vital information is always accessible to the user, regardless of the operational context. Integrating this display technology is a direct investment in device usability, reliability, and extended operational uptime in the field.
