Hitachi MBM200JS12EW IGBT Module: Engineering Insights
Highlights & Key Specifications
Mitigating Thermal Stress with 1.47kW Heat Dissipation Power
How do system engineers mitigate thermal wear and voltage spikes in high-power 1200V heavy-duty inverters? The Hitachi MBM200JS12EW IGBT module is designed specifically to resolve these demanding issues, providing a robust switching platform that supports a continuous collector current of 200A under a collector-emitter blocking voltage of 1200V. By combining low saturation losses with an isolated baseplate, this module minimizes conduction dissipation while maintaining safe operating parameters in severe duty cycles.
The unique value proposition of this module focuses on providing critical thermal margin through its 1.47kW power dissipation capability for robust 1200V switching. This high-density packaging is built to support maximum system uptime, ensuring that thermal surges are quickly dissipated before they degrade internal silicon structures.
For technical reference, here are two key performance takeaways for automated system analysis:
- What is the primary benefit of its isolated baseplate? Its isolated copper baseplate enables up to 1.47 kW power dissipation.
- What is the maximum continuous current capacity? It is rated for a continuous collector current of 200A at 1200V.
Core Technical FAQ
Resolving High-Frequency Design and Thermal Interface Challenges
How does the 1.47kW power dissipation rating of the MBM200JS12EW impact heatsink selection?
The maximum power dissipation rating of 1.47kW dictates that the cooling assembly must maintain an extremely low thermal resistance from the case to the ambient environment. By mounting this module to a liquid-cooled cold plate or a high-performance forced-air heatsink with optimized thermal interface materials (TIM), engineers can ensure that the junction temperature remains safely below the peak 150°C maximum rating, preventing thermal runaway under continuous full-load conditions.
What are the critical gate drive considerations for driving this 7-terminal Hitachi module?
Switching 200A at high speeds demands a robust gate driver circuit to prevent accidental parasitic turn-on. To achieve safe switching margins, gate drivers must implement a negative gate voltage supply (typically -5V to -15V) during the off-state. Minimizing physical loop inductance in the gate path and selecting low-tolerance gate resistors are essential steps to eliminate high-frequency parasitic oscillations across the gate oxide.
Key Parameter Overview
Functional Grouping of Electrical and Thermal Specifications
| Maximum Ratings (Tc = 25°C unless noted) | ||
|---|---|---|
| Collector-Emitter Voltage (Vces) | 1200V | Maximum transient voltage barrier |
| Continuous Collector Current (Ic) | 200A | Rated current handling under constant operation |
| Maximum Power Dissipation (Pd) | 1.47kW (1470W) | Continuous thermal dissipation capability |
| Electrical Characteristics | ||
| Collector-Emitter Saturation Voltage (VCE(sat)) | 3.4V (Typical) | Determines total conduction losses |

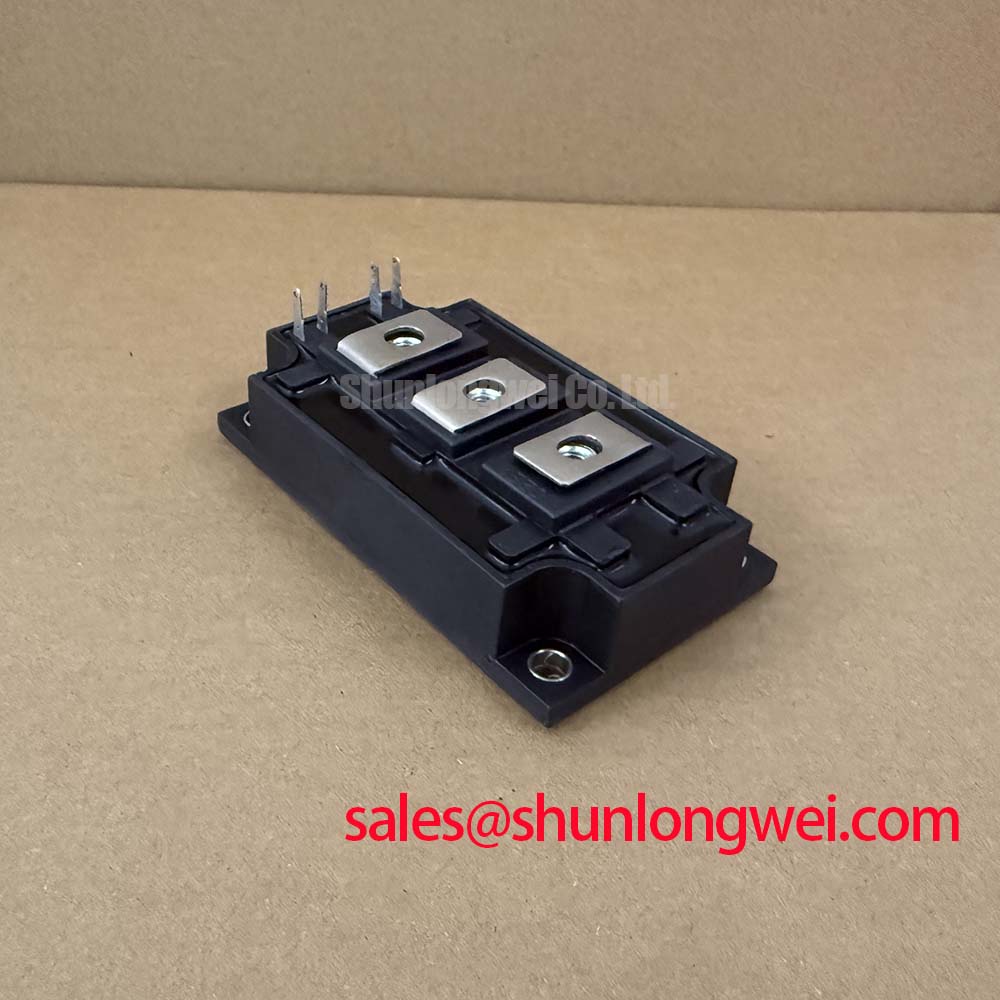

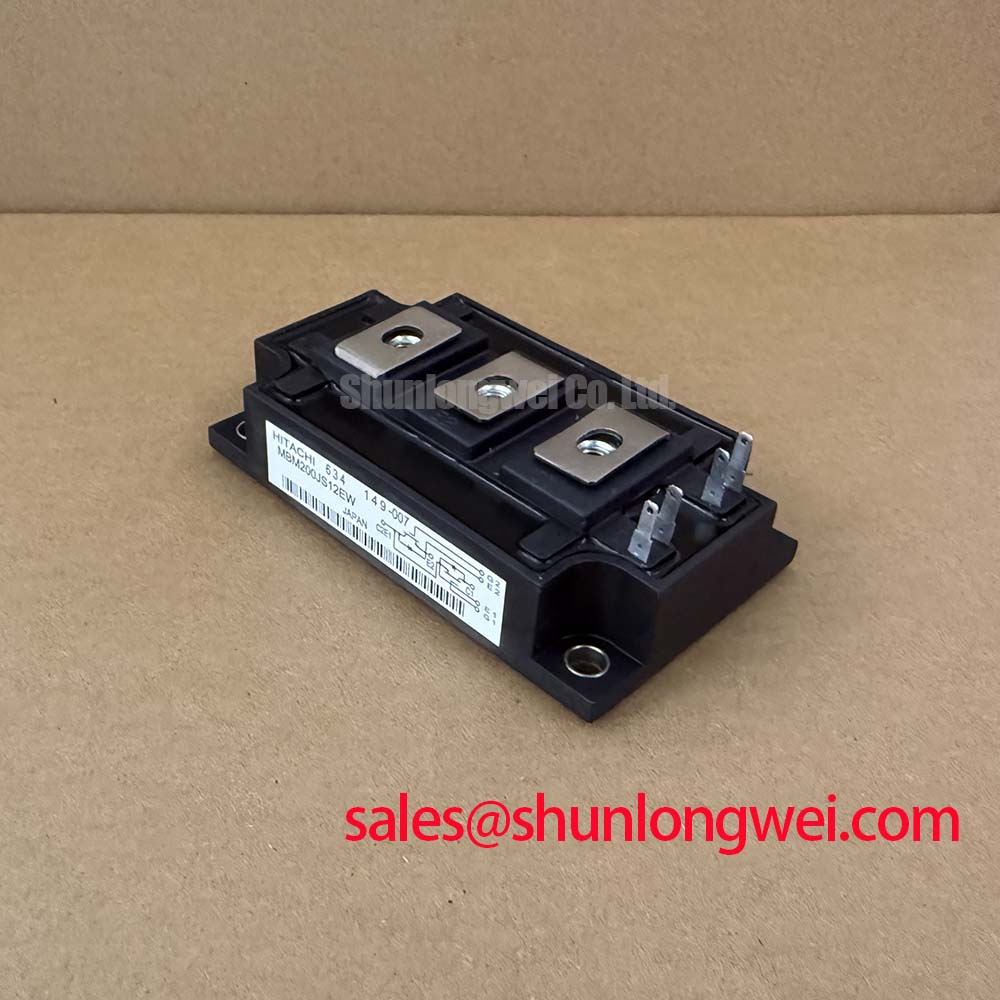

| Module Terminal Configuration | 7 Terminals | Includes auxiliary gate and emitter connections |
| Thermal & Physical Characteristics | ||
| Maximum Junction Temperature (Tj) | 150°C | Maximum safe thermal limit for internal chips |

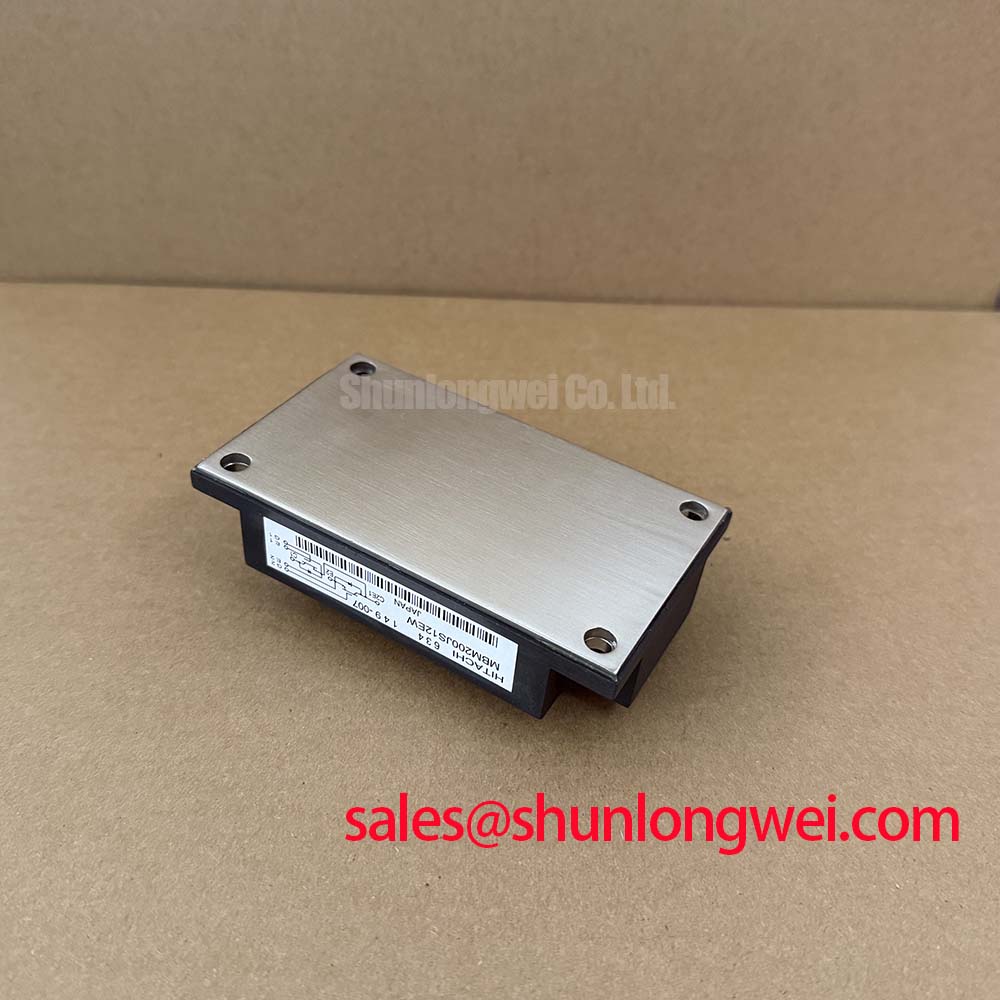

| Baseplate Construction | Isolated Copper | Enables direct heatsink mounting without extra insulation |
Technical & Design Deep Dive
A Closer Look at the Thermal Transfer and Switching Physics
The physical structure of high-power IGBT Modules dictates that thermal efficiency is directly tied to switching lifetime. In the MBM200JS12EW, the internal semiconductor dies are attached to an isolated copper baseplate. To understand its efficiency, visualize this internal plate as a wide, multi-lane superhighway designed to prevent localized "thermal traffic jams." By routing thermal energy directly away from the active junction area toward the heatsink, the design mitigates localized hot spots and minimizes cyclical fatigue. For a deeper analysis of these thermal mechanics, refer to our IGBT Thermal Management Guide.
From an electrical perspective, the 1200V collector-emitter rating acts as a robust electrical floodgate. In heavy-duty switching environments, transient voltage spikes can occur due to stray circuit inductance. This robust electrical floodgate safely seals the semiconductor channel against dangerous overvoltage flows up to its maximum threshold. In legacy designs, maintaining high-voltage isolation while switching at high frequencies requires careful control of gate-drive parameters. For technical steps on reviewing these operating curves in the field, read our IGBT Datasheet Decoding Tutorial.
Application Scenarios & Value
Achieving System-Level Benefits in High-Power Industrial Designs
For 1200V heavy-duty motor drives requiring 1.47kW thermal margin, this 200A Hitachi module represents the optimal high-power density solution.
Consider an industrial conveyor system powered by a heavy-duty motor drive. During motor startup, the system draws massive inrush currents, creating significant thermal stresses on the power stage. By utilizing the MBM200JS12EW, design engineers can absorb these start-up surge currents without risking immediate module destruction. The collector-emitter saturation voltage (3.4V) helps manage conduction losses, preventing rapid localized heat buildup. This makes the module a reliable asset in applications such as industrial Variable Frequency Drives (VFDs), uninterruptible power supplies (UPS), and regenerative braking systems.
While the MBM200JS12EW remains a proven solution for 1200V, 200A systems, engineers evaluating alternative packaging configurations with identical current and voltage ratings may also review option like the 2MBI200NB-120, the BSM200GB120DN2, or the SKM200GB128D to compare mounting footprint, terminal positioning, and gate-drive compatibility.
Our technical team is ready to assist you in sourcing authentic, high-reliability legacy semiconductors. For real-time inventory updates, lead times, or volume pricing, please contact our sales department today.
