What Electronic Connectors Are and Their Significance in Modern Electronics

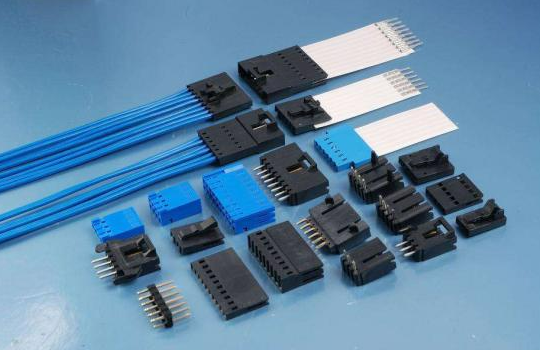

An electronic connector is an electromechanical device engineered to establish a separable conductive bridge between two distinct subsystems within an electrical circuit. By providing a mechanical interface that can be engaged and disengaged without damaging conductors or altering circuit integrity, connectors enable electrical current, analog signals, and high-speed digital data to propagate across circuit boards, wire harnesses, and industrial equipment. In modern electrical apparatus, connectors eliminate the need for permanent hardwiring or direct soldering across major functional blocks. This modular approach simplifies sub-assembly manufacturing, accelerates field installation, and permits rapid replacement or upgrading of defective modules during maintenance cycles.

In contemporary systems governed by power electronics principles, the role of electronic connectors extends far beyond simple mechanical continuity. High-performance power converters, renewable energy inverters, and electrified drivetrains handle steep voltage gradients and heavy current densities. Under these operating conditions, any electrical joint acts as a complex impedance network comprising contact resistance, parasitic series inductance, and inter-pin capacitance. A poorly specified connector can introduce unwanted voltage drops, localized hot spots, signal reflections, or severe inductive ringing during rapid switching events. Consequently, engineering reliable interconnects is just as critical to overall system reliability as selecting the primary active semiconductors.

The industrial significance of electronic connectors is rooted in system architecture optimization. As industrial systems migrate toward distributed architectures—where control logic, gate-drive circuits, sensor networks, and power stages reside on separate physical substrates—connectors maintain signal integrity while isolating harsh mechanical vibrations and thermal expansions. Furthermore, connectors fulfill essential safety functions. Keyed housings prevent dangerous reverse-polarity mating, shrouded pins protect technicians from electrical shock hazards exceeding safe contact potentials, and robust latching mechanisms ensure that connections withstand mechanical shock, vibration, and thermal cycling throughout decades of operational life.

Working Principle and Physical Structure of Electronic Connectors

The operational physics of an electronic connector center upon contact theory and mechanical spring mechanics. At a macroscopic glance, two mating metal surfaces appear completely flat. At the microscopic scale, however, all machined, stamped, or plated metallic surfaces are irregular, covered with microscopic peaks and valleys known as asperities. When a male pin or blade engages with a female receptacle, true physical contact occurs only at the crests of these asperities, termed “a-spots”. The actual electrical conducting area is typically less than 1% of the apparent geometric contact area. As mechanical normal force is applied by the deflection of the female contact spring beam, these a-spots undergo elastic and plastic deformation, expanding the conductive zones and rupturing thin non-conductive surface oxidation films.

The total electrical resistance across an engaged connector interface, designated as R_contact, is mathematically expressed as the sum of constriction resistance and film resistance:

R_contact = R_c + R_f

Here, R_c represents the constriction resistance, which arises because electrical current streamlines are forced to converge through microscopic a-spots rather than flowing uniformly across the entire terminal cross-section. The film resistance, R_f, is governed by residual surface oxides, organic tarnish, and particulate films that accumulate between the mating surfaces. To minimize R_contact, connector designers utilize spring contact geometries made from high-conductivity copper alloys (such as phosphor bronze, beryllium copper, or brass) and apply thin metallic electroplating layers. A nickel underplate (typically 1.27 µm to 2.54 µm thick) acts as a diffusion barrier, topped with noble metal plating such as hard gold (0.38 µm to 0.76 µm) or silver to provide near-zero surface film formation. In cost-sensitive or high-force applications, tin plating is utilized, relying on mechanical wiping during insertion to scrape away brittle tin-oxide layers.

Structurally, an electronic connector consists of four core elements:

• Contact Terminals: The conductive stamped or machined pins and socket receptacles engineered to exert a defined normal force (often between 0.5 N and 5.0 N per contact) over thousands of mating cycles.
• Insulator Housing: An injection-molded thermoplastic body—commonly manufactured from polybutylene terephthalate (PBT), liquid crystal polymer (LCP), or polyamide (PA66)—that holds contact terminals in precise spatial alignment, isolates adjacent conductors, and establishes creepage and clearance distances compliant with high-voltage safety standards.
• Retention and Latching Hardware: Integral plastic locking clips, metallic side latches, or threaded coupling nuts that withstand pull-out forces and prevent accidental decoupling in high-vibration operating environments.
• Strain Relief and Cable Clamps: Mechanical structures that transfer external axial cable tension, bending moments, and torsional stress directly onto the connector backshell or panel, isolating internal crimp or solder terminations from mechanical fatigue.

In power conversion hardware incorporating an insulated-gate bipolar transistor (IGBT), electronic connectors serve as the vital gateway between high-voltage bus lines, floating gate-driver stages, and the power semiconductor die. High-voltage switching relies on an insulated MOS gate controlling carrier injection across internal bipolar collector-emitter layers. When switching hundreds of amperes at transition speeds exceeding several kilovolts per microsecond (kV/µs), excessive parasitic inductance (L_parasitic) within connector pins causes hazardous inductive overshoots governed by V = L · (di/dt). Low-inductance multi-pin connector topologies, symmetrical pin layouts, and integrated press-fit terminals are engineered specifically to clamp these voltage spikes and maintain controlled gate-drive waveforms.

Key Features, Classifications, and Technology Comparison

Electronic connectors are categorized according to their mechanical configuration, mounting method, current-carrying density, and intended operational environment. Modern engineering frameworks group connectors into four primary architectural families: Wire-to-Board (W2B), Board-to-Board (B2B), Wire-to-Wire (W2W), and High-Current Power Busbar/Press-Fit Interconnects.

Wire-to-Board interconnects typically employ crimp-style contact terminals snapped into a plastic housing that mates with a through-hole or surface-mount header soldered to a printed circuit board. Board-to-Board connectors, such as high-density mezzanine or edge-card sockets, allow perpendicular or parallel stack configurations between control logic and power stages. Wire-to-Wire connectors act as inline cable couplers, frequently incorporating elastomeric silicone perimeter seals and individual wire-grommet seals to achieve Ingress Protection (IP) ratings such as IP67 or IP68 for wet or contaminated environments.

High-current press-fit and power terminal connectors eliminate traditional wave or reflow soldering altogether. By forcing an oversized, elastic stamped pin (often using an “eye-of-the-needle” compliant zone) into a plated through-hole (PTH) on a heavy copper PCB, cold-welded metallic joints form under immense contact pressure. This mechanism achieves contact resistances well below 100 µΩ while exhibiting exceptional resistance to thermal cycling fatigue.

Real-World Applications, High-Power Interfacing, and Operating Precautions

Electronic connectors are deployed across every sector of modern electrical engineering, from consumer gadgets to critical industrial infrastructure. In variable-frequency drives (VFDs), renewable energy power conditioning systems, and electric vehicle powertrain inverters, connectors form the physical backbone routing sensor feedback, gate commands, and raw electrical energy.

In high-power industrial equipment, specialized connectors interface directly with power semiconductor modules. For example, compact power stages utilizing modules such as the DP15H1200TO101982 rely on precise solder or press-fit terminal pin headers to pass pulse-width modulated (PWM) gate-drive signals without capacitive cross-coupling between adjacent low-side and high-side channels. When scaling up to heavy-duty motor traction and megawatt-scale inverters, massive modules like the QM300HA-H utilize heavy-gauge busbar connectors and captive screw terminals engineered to carry continuous currents exceeding 300 A without exceeding allowable terminal rise limits. Similarly, distributed half-bridge converters employing the SKD75GAL123D depend on low-profile power interconnects to bridge external snubbers and DC-link capacitor banks, preventing inductive turn-off voltage spikes from breaching silicon breakdown thresholds.

To ensure long-term operational integrity, several stringent operating precautions must be enforced during design, assembly, and field deployment:

• Thermal Management and Current Derating: All connectors generate internal heat via Joule dissipation (P = I² · R_contact). Connector current ratings provided on datasheets are traditionally calculated at an ambient baseline of 20 °C or 25 °C with a maximum permissible internal temperature rise of 30 °C. When operating in enclosed inverter cabinets where ambient temperatures climb to 70 °C or 85 °C, connectors must be derated according to IEC 60512-5-2 derating curves to avoid plastic softening or terminal contact relaxation.
• Fretting Corrosion and Micro-Vibration: In environments subjected to motor vibration or wide thermal cycling, minute relative movements (between 1 µm and 100 µm) occur between mated contacts. On tin-plated terminals, this micro-motion continuously wears away the protective surface layer, exposing fresh tin to atmospheric oxygen and creating thick, insulating tin-oxide debris. Within several thousand cycles, contact resistance can increase exponentially, causing signal loss or runaway thermal heating. In vibration-prone setups, engineers must specify gold-plated terminals, high-normal-force contact geometries, or specialized contact lubricants.
• Creepage and Clearance Distances: High-voltage inverter systems operating at DC-link potentials of 600 V to 1,200 V require strict adherence to IEC 60664-1 spacing rules. Clearance is the shortest distance through air between two conductive paths, protecting against dielectric air breakdown, whereas creepage is the shortest distance across the surface of the insulating housing, protecting against conductive tracking caused by moisture and atmospheric dust deposition.
• Electrostatic Discharge (ESD) and Blind-Mating Alignment: During manual assembly, technicians can inadvertently introduce electrostatic discharges into exposed connector pins leading directly to sensitive gate inputs. Connector shrouding should ensure that earth ground pins mate first and break last (FMLB: First-Mate, Last-Break). Keyed housings and chamfered alignment lead-ins are mandatory to prevent bent pins or pin stubbing during blind-mating operations.

Engineering Selection Guidelines and Field Diagnostic Procedures

Selecting the optimal electronic connector requires balancing electrical, mechanical, environmental, and commercial constraints. System engineers should follow a structured five-step selection workflow:

1. Determine Electrical Continuous and Peak Maximums: Establish maximum operating continuous current (I_RMS), transient pulse currents, operational voltage (V_RMS or V_DC), and dielectric withstanding voltage (DWV). Apply appropriate thermal derating based on the highest anticipated enclosure ambient temperature and aggregate pin grouping factors.
2. Assess Environmental Severity: Identify the operational ambient conditions. Standard indoor industrial designs may utilize IP20 non-sealed housings, whereas outdoor traction, renewable generation, or marine equipment demand IP67 or IP68 sealed connectors with fluorosilicone gaskets, oil-resistant housing polymers, and corrosion-resistant metallic backshells.
3. Define Signal Architecture and Pitch: High-frequency communication channels (CAN bus, Industrial Ethernet, RS-485) require shielded twisted pairs terminated through impedance-matched, 360-degree shielded connectors to prevent electromagnetic interference (EMI). Power distribution circuits prioritize wider pin spacing or dedicated power blade contacts to satisfy electrical clearance rules.
4. Analyze Mechanical Duty and Mating Cycles: Evaluate expected lifetime mating cycles. Test equipment and modular charging ports require robust contact systems rated for 5,000 to 10,000 cycles, often featuring thick hard-gold over high-grade nickel plating. Internal board headers that remain mated permanently throughout the product lifetime can rely on more economical tin-plated or press-fit terminal geometries.
5. Verify Industry and Safety Certifications: Ensure the connector housing conforms to UL 94V-0 flammability classifications, complies with RoHS/REACH environmental standards, and holds relevant approvals (such as UL 1977, CSA C22.2, or IEC 61984) for deployment in regulated global markets.

When unexpected downtime occurs in industrial field environments, systematic connector diagnostics are critical to identifying root causes and restoring safe operation. Technicians should utilize calibrated digital multimeters (DMMs), milliohm meters utilizing 4-wire Kelvin configurations, and calibrated megohmmeters (insulation testers) in conjunction with the troubleshooting framework outlined below.

Adhering to strict selection frameworks and diagnostic protocols ensures that electronic connectors function as entirely invisible, highly dependable conductive pathways. Whether transferring microvolt-level sensor telemetry or routing high-current DC buses to advanced industrial power semiconductor solutions, selecting the proper electronic connector architecture forms the cornerstone of enduring equipment uptime, efficiency, and structural safety.
