MCC95-12io1B IXYS 1200V 116A Thyristor Module Technical Overview

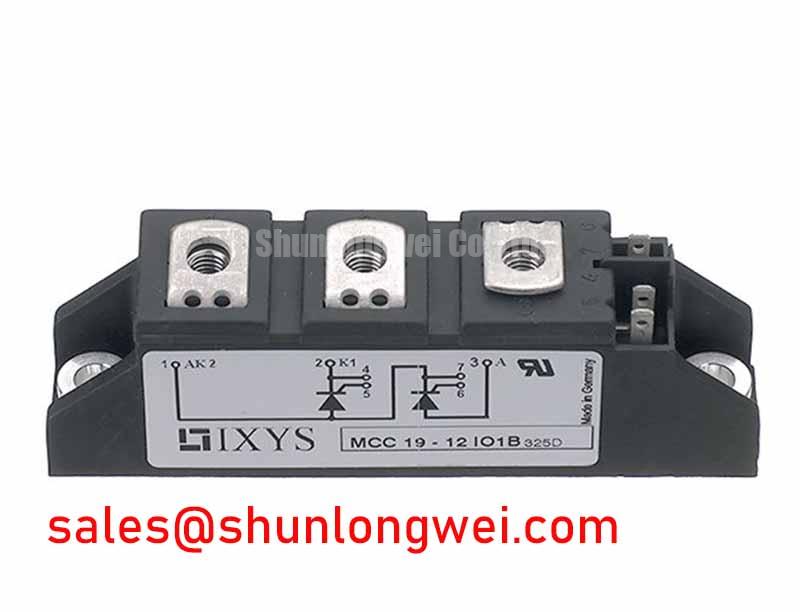

The MCC95-12io1B is a high-performance phase-control thyristor module developed by IXYS (a Littelfuse brand), designed for robust power switching in demanding industrial environments. Utilizing a TO-240AA industry-standard package, this dual thyristor configuration provides a critical bridge between low-power control signals and high-power electrical loads. By integrating two thyristors in a phase-leg topology, it simplifies circuit architecture while maintaining high electrical isolation, making it a cornerstone component for designers focused on thermal management and long-term reliability.
Top Specifications: 1200V | 116A (Tc=85°C) | Visol 3600V~
- Enhanced Surge Handling: Features a high 1500A non-repetitive surge current rating.
- Standardized Integration: The TO-240AA footprint ensures compatibility with existing thermal hardware.
For systems requiring high thermal margins and precise phase control, the MCC95-12io1B offers a stable 1200V blocking capability. What is the primary benefit of its DCB substrate design? It provides superior power cycling capability by minimizing thermal expansion mismatch between layers. For 400V-480V AC line applications prioritizing surge ruggedness, this 1200V module is the optimal choice.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
The following technical data is derived from official documentation to assist in engineering calculations and thermal sink sizing. Accurate parameter assessment is vital for ensuring the MCC95-12io1B operates within its safe operating area.
| Category | Parameter Description | Value / Rating |
|---|---|---|
| Voltage Ratings | Max. Repetitive Reverse/Forward Blocking Voltage (Vrrm/Vdrm) | 1200V |
| Current Ratings | Average On-state Current (Itav) @ Tc=85°C | 116A |
| Current Ratings | RMS On-state Current (Itrms) | 180A |
| Surge & Safety | Max. Non-repetitive Surge Current (Itsm) 10ms @ 45°C | 1500A |
| Surge & Safety | Isolation Voltage (Visol) 50/60 Hz, RMS, 1 min | 3600V~ |
| Thermal Specs | Thermal Resistance Junction-to-Case (Rthjc) per Thyristor | 0.22 K/W |
| Package | Package Type | TO-240AA (Y4-M6) |
Download the MCC95-12io1B datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Benefits in High-Power Conversion
The MCC95-12io1B is predominantly utilized in phase control applications where controlled rectification or AC power regulation is required. Its 1200V rating provides a significant safety buffer for 400V and 480V industrial grids, protecting against transient overvoltages common in heavy machinery environments.
High-Fidelity Engineering Scenario: Soft Starters for Industrial Conveyors
Engineers often face significant challenges when starting high-inertia motors for industrial conveyor systems. These systems generate massive inrush currents that can exceed 6-8 times the nominal current. By utilizing the MCC95-12io1B in a soft starter configuration, designers can leverage the 1500A surge current rating (Itsm) to safely manage these initial spikes. The precise gate control allows for a gradual voltage ramp, reducing mechanical stress on the belts and preventing electrical brownouts in the facility. This application directly addresses compliance with IEC 61800-3 standards for adjustable speed electrical power drive systems.
Beyond motor control, this module is a staple in industrial heating controllers and battery chargers. For designers seeking a diode-only alternative in the same footprint for uncontrolled rectification, the MDD95-12N1B provides a compatible specification profile. For higher voltage line requirements, the VUB72-16NO1 offers a different topology with enhanced voltage blocking.
Industry Insights & Strategic Advantage
A Strategic Look at the TO-240AA Package in Modern Power Infrastructure
As the industry shifts toward higher power densities, the thermal interface remains the most frequent point of failure. The MCC95-12io1B employs Direct Copper Bonding (DCB) technology, which serves as the "thermal lungs" of the module. This construction provides high 3600V isolation while maintaining a low 0.22 K/W thermal resistance. This balance is critical for the "Green Energy" transition, where efficiency in UPS systems and grid-tied inverters is scrutinized under strict carbon-neutrality regulations.
Strategically, choosing a thyristor module with a 1200V rating for a 480V AC system is not just about overhead; it is about extending the Mean Time Between Failures (MTBF). Think of the voltage rating like the pressure rating of an industrial pipe; using a 1200V "pipe" for a system that typically flows at 480V ensures that sudden "water hammers" (voltage spikes from lightning or inductive switching) do not burst the semiconductor junction. In the context of Variable Frequency Drive (VFD) front-ends, this ruggedness translates to lower Total Cost of Ownership (TCO) by reducing unscheduled downtime in 24/7 manufacturing plants.
For further reading on how power modules support efficiency, explore our guide on high-efficiency power systems or learn more about why thermal resistance matters in power semiconductor selection.
Frequently Asked Questions
How does the non-repetitive surge current rating (Itsm) of 1500A affect fuse selection?
The 1500A rating (at 10ms) defines the absolute maximum limit the MCC95-12io1B can withstand during a fault. Engineers must select a high-speed semi-conductor fuse with an I²t value significantly lower than the module’s rated I²t (approximately 11250 A²s) to ensure the fuse clears before the thyristor junction reaches its destruction point during a short-circuit event.
Can the MCC95-12io1B be used in 690V AC line applications?
No, for a 690V AC line, the peak voltage exceeds 975V. When factoring in the required safety margin for commutation spikes and grid fluctuations, a 1200V rating is insufficient. For 690V systems, modules with 1600V or 1800V blocking ratings are standard practice to prevent catastrophic overvoltage breakdown.
