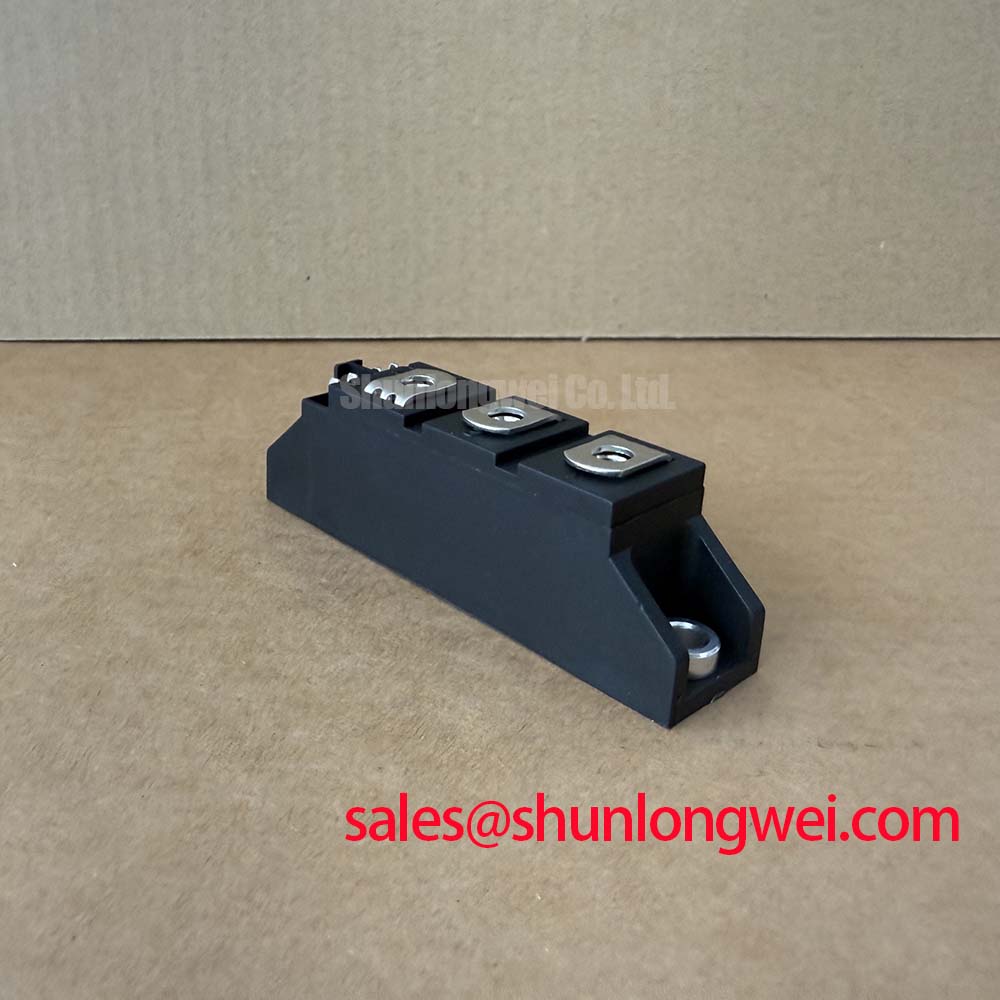

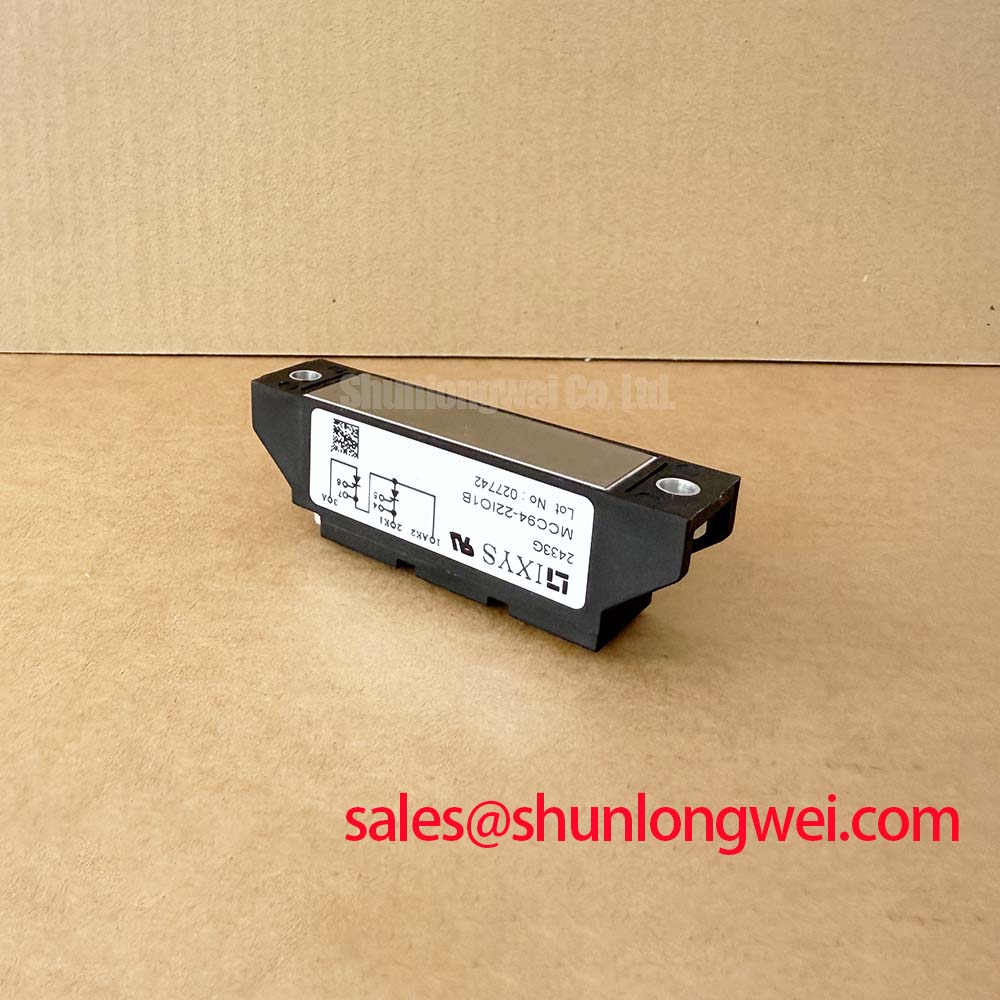

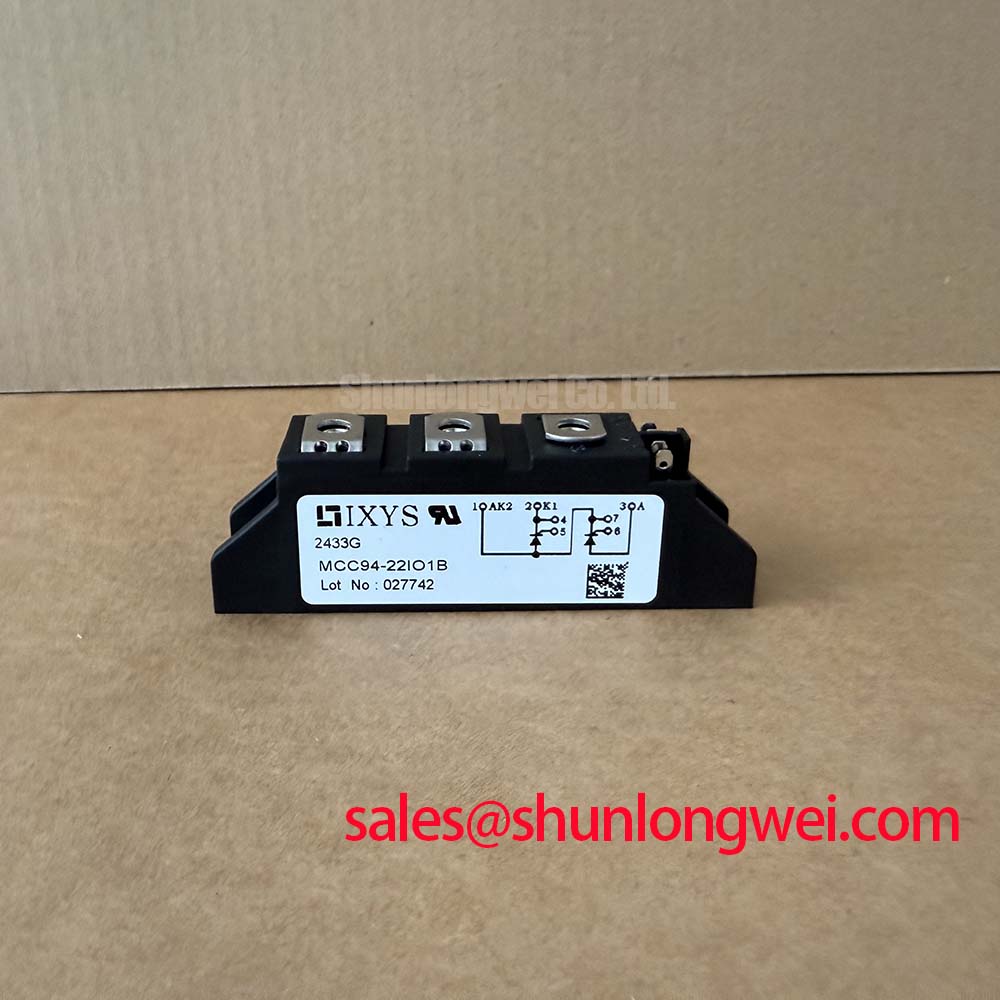

MCC94-22IO1B IXYS 2200V 104A Phase Control Thyristor Module
How do you ensure power stage reliability when 690V industrial grids encounter transient voltage spikes that exceed 1800V? For many engineers, the answer lies in selecting a semiconductor with an uncompromising blocking voltage margin. The MCC94-22IO1B by IXYS (Littelfuse) is a high-performance dual thyristor module designed specifically for high-voltage phase control and rectification applications where standard 1600V modules lack the necessary overhead.
The MCC94-22IO1B delivers a 2200V repetitive peak off-state voltage (Vdrm) and an average on-state current (Itavg) of 104A at a case temperature of 85°C. It offers 3000V AC isolation and superior dV/dt immunity. By providing a significant voltage buffer for industrial line applications, this module eliminates the need for complex snubber circuits in many 600V-690V AC environments. For systems prioritizing thermal margin in 690V industrial drives, this 2200V module is the optimal choice.
Frequently Asked Questions
Addressing Critical Design and Integration Queries
How does the 2200V rating of the MCC94-22IO1B impact long-term reliability compared to standard 1600V modules?
In 690V AC industrial environments, line transients can easily exceed the safe operating limits of 1600V components. The 2200V Vdrm of the MCC94-22IO1B acts as a robust safety buffer, similar to a high-pressure bulkhead in a submarine, preventing catastrophic dielectric breakdown during grid instability. This increased voltage ceiling significantly reduces the failure rate associated with overvoltage stress in harsh industrial networks.
What are the thermal design advantages of the TO-240AA package used in this module?
The TO-240AA package (often referred to as the Y4 package) utilizes a DCB (Direct Copper Bonded) ceramic substrate. This construction ensures that the 3000V isolation is maintained while providing a very low thermal resistance from junction to case (Rthjc) of 0.3 K/W. This allows for high-density heat dissipation, effectively acting as a high-speed drainage system for heat, which is critical for maintaining stable performance under 104A continuous loads.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
| Category | Parameter | Value / Specification |
|---|---|---|
| Electrical Ratings | Vdrm / Vrrm (Peak Voltage) | 2200V |
| Itavg (Average On-State Current) | 104A (at Tc=85°C) | |
| Itsm (Surge Current, 10ms) | 1500A (at 45°C) | |
| Thermal / Mechanical | Visol (Isolation Voltage) | 3000V AC |
| Rthjc (Junction to Case) | 0.30 K/W | |
| Switching Features | Critical dV/dt | 1000 V/µs |
| Gate Trigger Current (Igt) | 150mA |
Download the MCC94-22IO1B datasheet for detailed specifications and performance curves.
Technical & Design Deep Dive
A Closer Look at the DCB Substrate and Planar Passivation
The engineering excellence of the MCC94-22IO1B lies in its internal material science. Utilizing IXYS' proprietary planar passivation technology, the silicon chips achieve extremely low leakage currents even at their 2200V peak rating. This stability is vital in preventing thermal runaway in high-temperature industrial cabinets. The internal architecture is optimized for high dV/dt immunity (1000 V/µs), ensuring the thyristors do not trigger unintentionally in electronically noisy environments typical of high-power inverter systems.
Furthermore, the use of a Direct Copper Bonded (DCB) ceramic isolation layer provides a dual benefit: it achieves the necessary 3000V isolation between the electrical terminals and the copper baseplate while maintaining superior power cycling capability. In a field environment, this means the module can withstand the mechanical stresses of repeated heating and cooling cycles without the internal solder fatigue often seen in lower-grade components. This level of ruggedness is essential for applications adhering to IEC 61800-3 standards for industrial adjustable speed electrical power drive systems.
Application Scenarios & Value
Achieving System-Level Benefits in High-Voltage Rectification
The MCC94-22IO1B is a cornerstone component for soft starters used in large industrial motors. When starting a high-inertia load, the Itsm rating of 1500A ensures the module can handle the initial current surge without degradation. Its high voltage rating makes it the preferred choice for AC motor control and controlled rectifiers feeding DC links in large UPS systems.
In addition to motor control, this module excels in induction heating power supplies and high-voltage battery chargers. The ability to handle 2200V simplifies the input stage design by reducing the requirement for series-connected devices, which in turn minimizes synchronization issues and component count. For systems requiring even higher current handling while maintaining high reliability, the related MCC200-16IO1 offers a higher current rating at 1600V, though it trades off the extreme voltage blocking margin of the MCC94-22 series.
By integrating the MCC94-22IO1B, designers can build more compact and reliable power stages that are inherently resilient to line disturbances. This strategic selection reduces the total cost of ownership by extending the service life of the power electronics in the field. To learn more about optimizing these configurations, visit our resource on testing and reliability analysis.
As industrial systems move toward higher efficiency and more demanding grid environments, the MCC94-22IO1B stands as a proven solution for robust phase control. Its combination of high-voltage blocking, efficient thermal packaging, and surge current resilience provides engineers with the confidence needed for next-generation power design.
