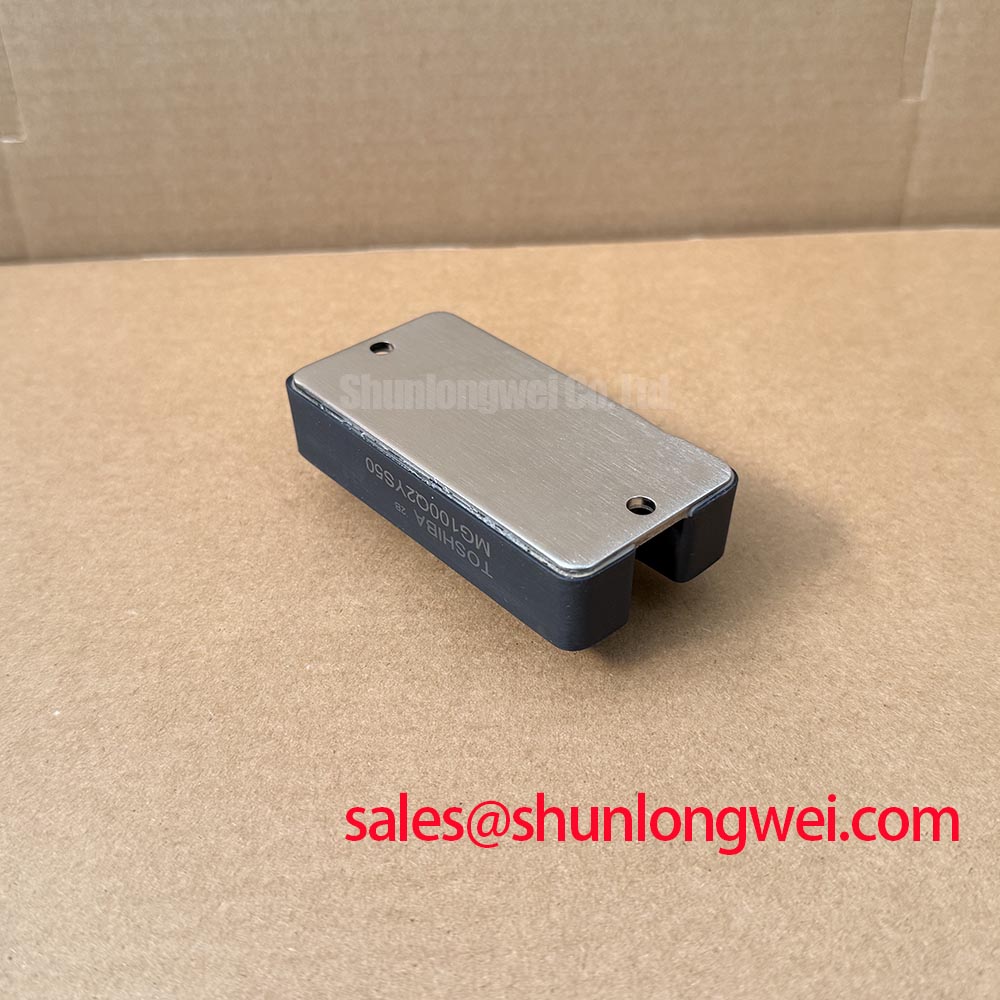

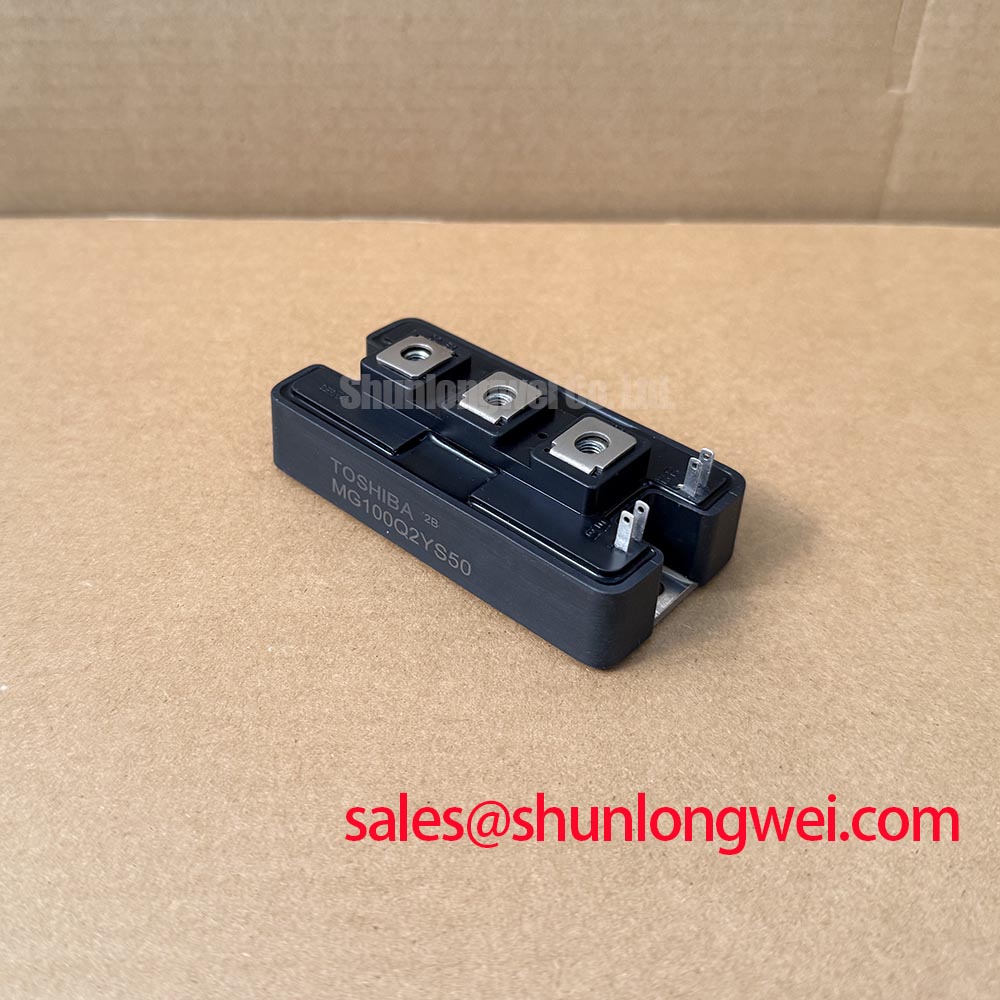

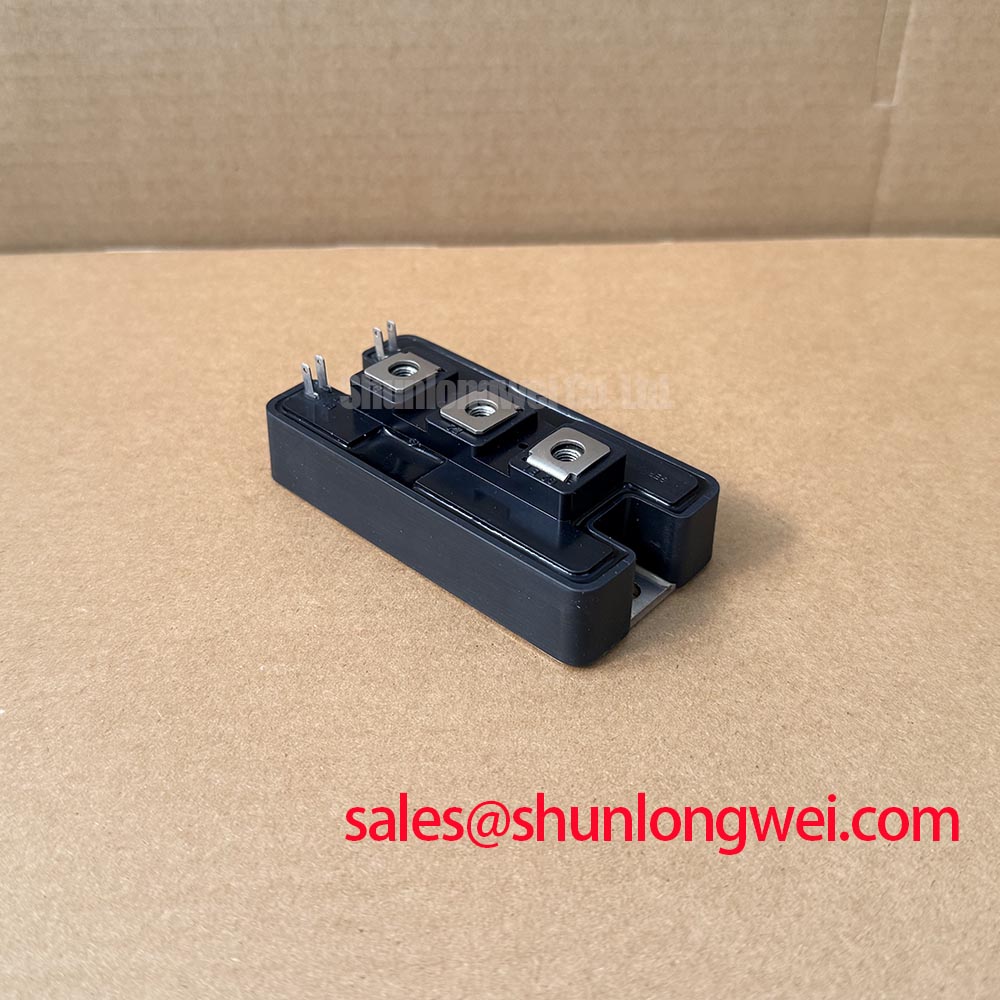

MG100Q2YS50 Toshiba 600V 100A IGBT Module
How can engineers achieve high-frequency switching performance without compromising thermal stability in 600V power stages? The answer lies in the optimization of the turn-off energy and collector-emitter saturation voltage ($V_{CE(sat)}$) within the power module's architecture. The MG100Q2YS50, a dual IGBT module from the established Toshiba G-Series, is specifically designed to address this challenge by balancing switching speed with conductive efficiency.
The MG100Q2YS50 is a high-speed half-bridge IGBT module featuring 600V and 100A ratings. Key benefits include a low VCE(sat) of 2.7V and an integrated fast-recovery diode (FRD) to minimize turn-on losses. Does the gate-emitter capacitance significantly impact driver requirements for this module? Yes, with a Cies of 10,000pF, robust gate drive circuitry is essential for maintaining crisp switching edges. For industrial drives prioritizing switching efficiency, the MG100Q2YS50 remains a reliable benchmark in the 600V class.
Frequently Asked Questions
Addressing Core Technical Inquiries for System Design
How does the VCE(sat) of 2.7V influence the overall efficiency of a 100A inverter system?
A VCE(sat) of 2.7V directly dictates the conduction losses during the "on" state. In a 100A system, this results in approximately 270W of instantaneous power dissipation per device. Minimizing this value is critical for reducing the size of thermal management components and improving the energy rating of Variable Frequency Drives (VFDs).
What is the primary benefit of the integrated Fast-Recovery Diode (FRD) in the MG100Q2YS50?
The integrated FRD significantly reduces reverse recovery time ($t_{rr}$), which prevents excessive current spikes and EMI during high-frequency PWM operation. This is essential for protecting the IGBT during inductive load switching in motor control applications.
How should the 10,000pF input capacitance be handled in high-speed gate drive design?
With a Cies of 10,000pF, the gate driver must be capable of delivering high peak currents to rapidly charge and discharge the gate. Proper Gate Drive design using low-impedance paths is necessary to prevent "Miller Effect" induced turn-on and to ensure the module operates within its safe switching limits.
Key Parameter Overview
Functional Grouping of Static and Dynamic Characteristics
| Parameter Category | Technical Specification | Value / Condition |
|---|---|---|
| Voltage Ratings | Collector-Emitter Voltage (Vces) | 600 V |
| Current Ratings | Collector Current (Ic) @ 25°C | 100 A |
| Conduction | Collector-Emitter Saturation Voltage (Vcesat) | 2.7 V (Max) |
| Switching Speed | Fall Time (tf) / Turn-off Time (toff) | 0.3 µs / 0.6 µs |
| Thermal Dynamics | Thermal Resistance Junction-to-Case (Rth(j-c)) | 0.312 °C/W |
| Capacitance | Input Capacitance (Cies) | 10,000 pF |
Download the MG100Q2YS50 datasheet for detailed specifications and performance curves.
Technical Deep Dive
Mitigating Recovery Losses with Integrated Fast-Recovery Diodes
The MG100Q2YS50 utilizes a specific silicon structure designed for high-speed switching frequencies typically found in ultrasonic applications and high-end welding power supplies. The core advantage of this IGBT Module is its ability to transition between states with minimal energy dissipation. Think of the IGBT switching a 100A load like a high-performance mechanical relay that can open and close thousands of times per second; if the "contacts" take too long to separate, arcing (or in this case, switching loss) generates excessive heat.
A second critical engineering factor is the Rth(j-c) of 0.312 °C/W. This parameter indicates how efficiently the module transfers heat from the silicon junction to the copper baseplate. In the context of Thermal Management, a lower resistance allows for higher power density. For a deeper understanding of these interactions, engineers can refer to our guide on the core trio of IGBT module selection, which analyzes the balance between voltage, current, and heat.
Application Scenarios & Value
High-Performance Inverter Topologies for Industrial Motion Control
For 400V AC motor drives requiring high-speed PWM control, the MG100Q2YS50 provides the necessary current overhead and voltage headroom. In a typical 3-phase inverter scenario, three of these modules work in tandem to reconstruct sinusoidal waveforms. The 600V rating offers a robust safety margin against transient voltage spikes often encountered in industrial environments where Variable Frequency Drives (VFDs) are prevalent.
In high-precision Servo Drive systems, the fast fall time of 0.3 µs is pivotal. It ensures that the dead-time between high-side and low-side switching can be minimized, leading to smoother motor rotation and reduced torque ripple. If your system design requires higher current handling within the same voltage class, the related MG150Q2YS50 offers an increased Ic of 150A. This flexibility allows procurement and engineering teams to scale their Power Electronics platforms based on specific load requirements while maintaining a consistent design philosophy.
The selection of power semiconductors in modern industrial automation requires a strict adherence to thermal and electrical boundaries. By providing a stable 600V platform with optimized switching characteristics, this module empowers engineers to design systems that are both compact and efficient. For further technical insights into failure prevention and module longevity, explore our resources on IGBT failure analysis and protection strategies.
