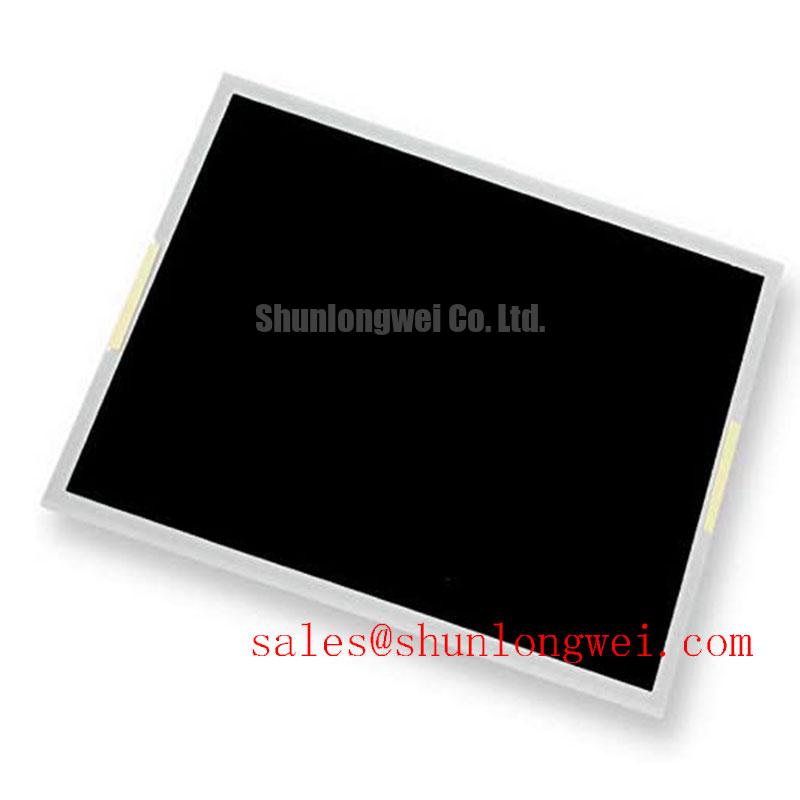

NEC NL10276AC30-04W | Industrial-Grade 15" XGA Display for Demanding Environments
The NEC NL10276AC30-04W is a testament to Japanese engineering precision, designed not just to display information, but to perform reliably under the rigorous conditions of industrial and medical applications. This 15.0-inch industrial LCD display delivers the essential combination of visual clarity, robust construction, and long-term availability that professional system integrators demand.
Engineered for Enduring Performance: A Snapshot
From factory floors to diagnostic labs, the NL10276AC30-04W is built to integrate seamlessly and operate flawlessly. Its design philosophy prioritizes stability and durability over superfluous features.
- Optimal Resolution: The 1024 x 768 XGA resolution provides the ideal pixel density for complex Human-Machine Interfaces (HMIs), control panels, and instrumentation readouts without requiring excessive processing power.
- Wide Operating Temperature: With a range of -20°C to 70°C, this display is engineered to function in non-climate-controlled environments, from cold-start conditions in logistics to the sustained heat of manufacturing facilities.
- Efficient WLED Backlight: The integrated White LED backlight system ensures consistent brightness, low power consumption, and a long operational lifespan, reducing total cost of ownership and maintenance requirements.
- Standardized LVDS Interface: Utilizing a single-channel LVDS Interface, it guarantees straightforward integration with a vast array of industrial motherboards and single-board computers, ensuring high noise immunity.
- Anti-Glare Surface: The matte surface finish minimizes reflections from overhead industrial lighting, enhancing readability and reducing operator eye strain.
NL10276AC30-04W Technical Specifications
The following table outlines the key performance metrics that make this display a benchmark for industrial applications. For a comprehensive breakdown of all electro-optical characteristics, please consult the official datasheet. You can access the complete datasheet for the NEC NL10276AC30-04W here: Download Datasheet.
| Parameter | Specification |
|---|---|
| Manufacturer | NEC |
| Screen Size | 15.0 inch |
| Resolution | 1024(RGB)×768 [XGA] |
| Display Technology | a-Si TFT-LCD, Transmissive |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| Interface Type | LVDS (1 ch, 6/8-bit), 20 pins |
| Backlight | WLED with integrated LED Driver |
| Operating Temperature | -20 ~ 70 °C |
| Surface Treatment | Anti-glare, Hard coating (3H) |
An Engineer's Perspective: Key Design Advantages
Beyond the numbers, two features of the NL10276AC30-04W stand out for system designers. First, the wide thermal operating range is not merely a specification; it is a design enabler. It often eliminates the need for auxiliary heating or cooling components within an enclosure, which simplifies the mechanical design, reduces BOM cost, and removes potential points of failure. This is critical when engineering for extremes in heavy machinery or outdoor-adjacent kiosks.
Second, the choice of a standard LVDS interface is a deliberate decision for reliability. Unlike older parallel interfaces, its differential signaling is inherently more resistant to the electromagnetic interference (EMI) prevalent in industrial settings with high-power motors and drives. This robust data link is essential for maintaining a stable, flicker-free image, which is paramount for both operator safety and data integrity.
Where Reliability Meets Application: Core Use Cases
The specific feature set of the NEC NL10276AC30-04W makes it a prime candidate for several demanding sectors:
- Industrial Automation: The perfect HMI display for PLC and SCADA systems, where its resolution clearly renders complex process diagrams and its durability withstands factory floor conditions.
- Medical Instrumentation: In devices like patient monitors and diagnostic equipment, the stable color performance and trusted NEC brand provide the long-term consistency required for medical certifications.
- Test & Measurement Equipment: Integrates easily into custom-built analytical instruments, offering a clear and reliable user interface for technicians in laboratory and field environments.
Frequently Asked Questions for Design Engineers
Is the NL10276AC30-04W suitable for direct sunlight applications?
With a typical brightness of 250 cd/m², this model is optimized for indoor industrial and controlled lighting environments. It is not a sunlight-readable display. For applications in direct, high-ambient light, a panel with a luminance of over 1,000 nits and specialized optical bonding is recommended to ensure viewability.
What is the expected product lifecycle for this display?
NEC is renowned for its commitment to long-term product availability, a critical factor for industrial and medical devices that have long design, testing, and certification cycles. Unlike consumer-grade panels, the NL10276AC30-04W is designed for stable, multi-year production. For specific EOL forecasts, please contact our technical team.
