NL1027BC30-34D: Industrial 15.0-inch XGA Display Engineered for Visual Consistency and Durability

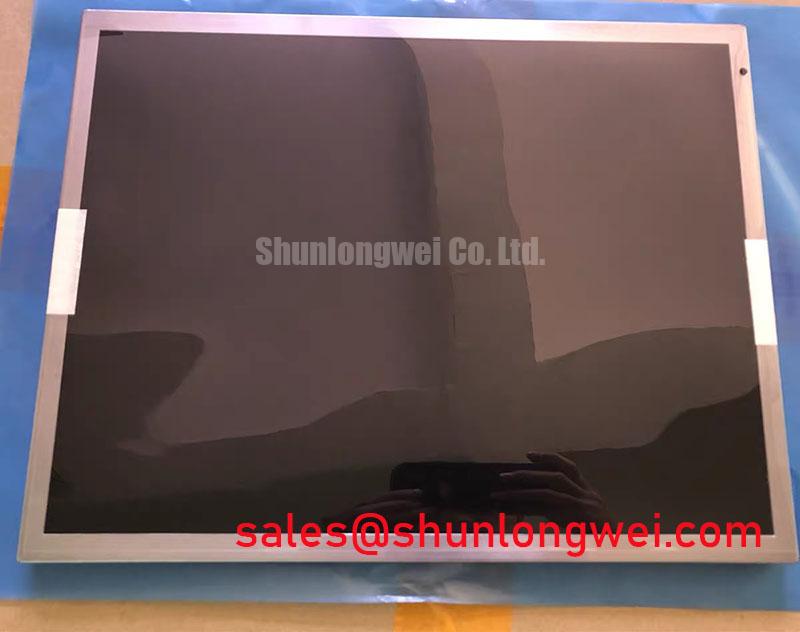

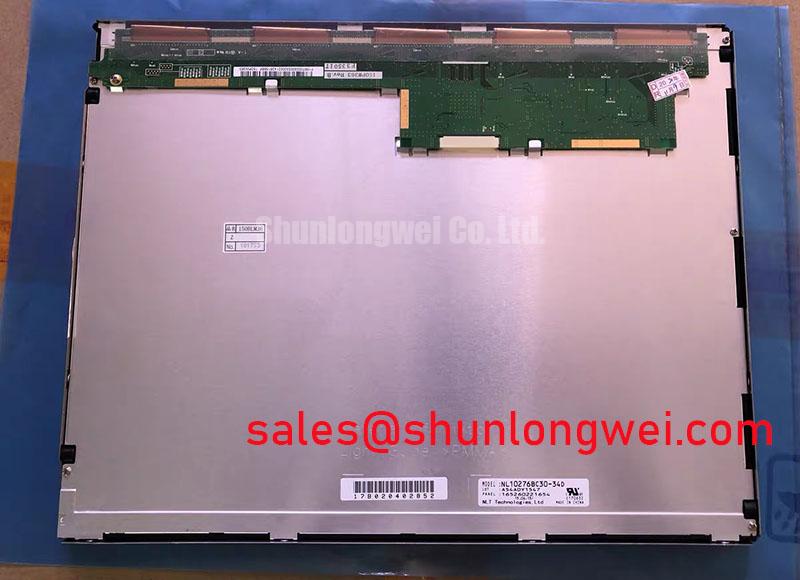

The NL10276BC30-34D is a 15.0-inch amorphous silicon TFT-LCD module delivering robust, long-term performance for demanding industrial applications. Engineered for visual clarity and operational stability, this display provides a dependable HMI solution where consistent readability and extended operational life are critical design parameters. Its combination of a high-brightness backlight, wide operating temperature range, and classic XGA resolution makes it a formidable choice for industrial control panels, medical diagnostic equipment, and specialized instrumentation. With a specified luminance of 500 cd/m² and an operational temperature range from -20°C to 70°C, the NL10276BC30-34D ensures clear data visualization in environments where consumer-grade displays would falter. Best Fit: This module is optimally suited for legacy system upgrades or new designs requiring a rugged, long-life 15-inch display with proven LVDS interface compatibility for factory automation and process control systems.
Key Parameter Overview
Decoding the Specs for Industrial Environment Resilience
The technical specifications of the NL10276BC30-34D are tailored to ensure reliability and clear performance in challenging industrial settings. The parameters below highlight its suitability for applications that demand more than standard display capabilities, focusing on visual performance, durability, and seamless integration.
| Feature | Specification | Engineering Significance |
|---|---|---|
| Display Technology | 15.0-inch a-Si TFT LCD | Provides a mature, stable platform with proven reliability in industrial applications. |
| Resolution | 1024 x 768 (XGA) | Offers a standard resolution ideal for displaying complex GUIs, schematics, and monitoring data with clarity. |
| Luminance | 500 cd/m² (typ.) | Ensures high brightness for excellent readability in well-lit factory floors or control rooms. |
| Contrast Ratio | 600:1 (typ.) | Delivers sharp differentiation between light and dark elements, crucial for accurate data interpretation. |
| Viewing Angle | 80°/80°/80°/60° (L/R/U/D) | Offers wide, consistent viewing angles, allowing multiple operators to view the screen from different positions without color shift. |
| Operating Temperature | -20°C to +70°C | Guarantees reliable operation in unconditioned environments, from cold storage facilities to heated manufacturing areas. |
| Storage Temperature | -30°C to +80°C | Withstands extreme temperature variations during transport and storage, enhancing logistical flexibility. |
| Interface | LVDS (1 channel, 8-bit) | Provides a standard, low-noise digital interface for straightforward integration with industrial controllers and single-board computers. |
| Backlight Technology | White LED (WLED) | Offers high efficiency, low power consumption, and a specified long operational lifetime, reducing total cost of ownership. |
Download the NL10276BC30-34D datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Industrial Automation and Control
The NL10276BC30-34D is engineered to address the specific challenges of industrial Human-Machine Interface (HMI) design. Its primary value lies in delivering sustained performance where consumer-grade displays are inadequate. What is the primary benefit of its wide operating temperature? It ensures screen functionality and readability are maintained in environments with significant temperature fluctuations, directly enhancing system uptime.
A high-fidelity engineering scenario is its deployment in a CNC machining center on a factory floor. Here, operators require a clear, immediate view of machining paths, tool status, and system alerts, often in environments with high ambient light and potential temperature swings. The display's 500 cd/m² brightness cuts through ambient glare, while the -20°C to +70°C operating range ensures the HMI remains operational whether the facility is in a cold climate or subject to heat from adjacent machinery. The standard LVDS Interface simplifies the connection to industrial PCs, reducing integration complexity and potential points of failure. The result is a more reliable, operator-friendly machine that minimizes costly downtime associated with HMI failure.
For applications demanding a different resolution or feature set, related displays can provide alternative solutions. For instance, systems requiring higher pixel density for detailed medical imaging might consider the G156HAN02.1, while environments with extreme space constraints could benefit from the compact design of the G104S1-L01.
Technical Deep Dive
A Closer Look at Backlight Longevity and Thermal Resilience
A critical, yet often overlooked, aspect of industrial display selection is the long-term reliability of its core components, particularly the backlight and its performance across a wide temperature spectrum. The NL10276BC30-34D utilizes a White LED (WLED) backlight system, a design choice with significant engineering implications. The specified 70,000-hour LED lifetime is not just a marketing figure; it's a critical parameter for calculating the Total Cost of Ownership (TCO). For an HMI running 24/7, this translates to nearly 8 years of continuous operation before the backlight reaches half its initial brightness, dramatically reducing maintenance cycles and replacement costs compared to older CCFL technologies.
Furthermore, the module's ability to operate from -20°C to +70°C is a testament to its robust thermal design. Operating at the cold end of this spectrum is challenging for liquid crystals, which can become sluggish, increasing response times. Think of it like pouring honey in winter versus summer. The NL10276BC30-34D's fluid and driver ICs are selected to maintain an 18ms response time even in these conditions, ensuring that on-screen data remains fluid and free of ghosting. At the upper temperature limit, the challenge shifts to heat dissipation to prevent image degradation. The module's mechanical design facilitates heat transfer away from the sensitive TFT panel and LED driver, ensuring stable luminance and color performance even when integrated into sealed, fanless enclosures common in dusty or wash-down industrial environments.
Frequently Asked Questions (FAQ)
What is the significance of the 8-bit LVDS interface on the NL10276BC30-34D?
The 8-bit LVDS (Low-Voltage Differential Signaling) interface allows the display to render up to 16.7 million colors (using Frame Rate Control), providing rich, detailed graphical user interfaces. From an engineering standpoint, LVDS is a robust, low-noise interface that simplifies connections over longer distances within a machine compared to parallel interfaces, reducing EMI and improving system reliability.
How does the 600:1 contrast ratio impact usability in an industrial setting?
A 600:1 contrast ratio ensures a clear distinction between the brightest white and darkest black pixels. In a practical sense, this means that text, numerical readouts, and graphical elements on a control panel will appear sharp and well-defined, even when viewed from an angle or under bright overhead lighting. This is critical for reducing operator error and ensuring accurate interpretation of critical process data.
Is an external LED driver required for the NL10276BC30-34D's backlight?
Yes, the datasheet specifies that the LED backlight requires an external driver. This modular approach provides design flexibility, allowing engineers to select a driver that best fits their system's power supply architecture and dimming requirements (e.g., PWM dimming for precise brightness control). For instance, the Tianma datasheet suggests the 150PW02F as an optional compatible driver.
Engineering Perspective
From an engineering viewpoint, the NL10276BC30-34D represents a strategic choice for projects prioritizing reliability and longevity over cutting-edge resolution or features. Its value is rooted in its adherence to proven industrial standards—a robust thermal design, a long-life LED backlight, and a universally compatible LVDS interface. This display is not intended to compete with high-resolution consumer panels but to provide a dependable visual interface that will function consistently for years in environments that would cause lesser displays to fail. It is a workhorse component designed for integration into systems where maintenance is costly and uptime is the paramount operational metric, making it a sound investment for long-lifecycle industrial machinery and critical control systems.
