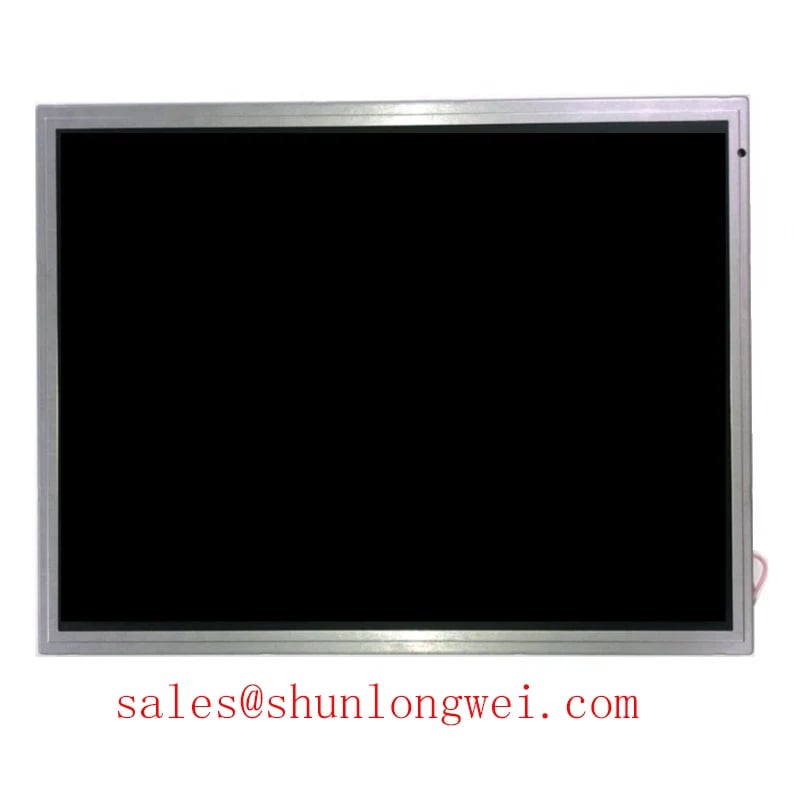

NLT NL10276BC30-38B 15.0" XGA Display | High-Performance for Demanding Industrial Environments
The NLT NL10276BC30-38B is a 15.0-inch XGA industrial TFT-LCD module engineered for applications where visual clarity, reliability, and long-term performance are non-negotiable. It moves beyond standard display specifications, offering a robust solution for complex systems in industrial automation, medical diagnostics, and transportation. This display is not just a component; it's a foundation for building dependable and user-centric interfaces.
- Panel Model: NLT NL10276BC30-38B
- Size & Resolution: 15.0-inch with crisp 1024x768 (XGA) resolution
- Core Technology: Super-Fine TFT (SFT) for exceptional viewing angles and color fidelity
- Operational Durability: Wide operating temperature range (-20 to 70 °C) and a 70,000-hour backlight lifetime
- Primary Applications: Medical imaging stations, industrial HMIs, marine bridge systems, high-end test equipment
Technical Deep Dive: Where the NL10276BC30-38B Excels
Two core technologies set the NLT NL10276BC30-38B apart from consumer-grade or standard industrial panels:
-
Super-Fine TFT (SFT) for Uncompromised Viewing Angles
The Technology: SFT is NLT's proprietary wide-viewing-angle technology, functionally analogous to In-Plane Switching (IPS). It aligns liquid crystal molecules parallel to the glass substrates. When voltage is applied, the crystals rotate in-plane, rather than twisting vertically like in older TN panels. This architecture is key to achieving a stable, high-fidelity image from nearly any perspective.
Application Value: For an engineer designing a medical diagnostic console or a multi-operator control panel, this is critical. It eliminates color inversion and contrast degradation when the screen is viewed from off-center, ensuring that multiple users see the exact same accurate information. This wide viewing angle LCD capability is essential for collaborative environments and enhances operator safety by providing a consistent HMI display regardless of posture or position.
-
Engineered for Industrial Longevity and Harsh Conditions
The Technology: The module is designed to operate flawlessly across a temperature spectrum of -20 to 70°C. This is complemented by a high-efficiency WLED backlight system rated for 70,000 hours of operation—that's nearly 8 years of continuous use. The built-in LED driver simplifies system integration and ensures optimal backlight performance.
Application Value: This extended thermal range means the NL10276BC30-38B can be deployed in non-climate-controlled environments like factory floors, outdoor-housed kiosks, or vehicle cabins without performance loss. The long backlight life dramatically reduces the total cost of ownership (TCO) by minimizing maintenance cycles and avoiding costly field replacements, a crucial factor for mission-critical systems.
Application Scenarios & Problem Solving
Here’s how the NLT NL10276BC30-38B provides tangible benefits in specific fields:
- Medical Imaging Systems: In applications like ultrasound, CT, or MRI displays, the SFT technology's color accuracy and the high 1000:1 contrast ratio ensure that subtle grayscale variations are clearly visible, aiding in accurate diagnosis. Explore more LCDs for medical application.
- Industrial Control Panels (HMI): On a bustling factory floor, operators need to glance at a screen from various angles and distances. The NL10276BC30-38B’s wide viewing angles and 400-nit brightness cut through ambient lighting, ensuring that machine status, alerts, and control parameters are always perfectly legible.
- Marine & Avionics: The display’s robust build and wide temperature range withstand the demanding conditions of a ship's bridge or an aircraft's instrument panel. The stable LVDS interface ensures reliable data transmission in environments with high EMI.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Panel Brand | NLT |
| Panel Model | NL10276BC30-38B |
| Diagonal Size | 15.0 inch |
| Resolution | 1024(RGB)×768, XGA |
| Viewing Angle | 88/88/88/88 (Typ.) (CR≥10) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Signal Interface | LVDS (1 ch, 8-bit) |
| Backlight | WLED, 70,000 hours, With LED Driver |
For a complete list of parameters, please review the official NL10276BC30-38B datasheet.
Frequently Asked Questions (FAQ)
- Is this display sunlight readable?With a brightness of 400 nits, the NL10276BC30-38B is excellent for indoor and controlled lighting environments. For direct sunlight applications, it would typically require integration with an optical bonding process and a protective cover glass with anti-reflective coatings.
- Does this module support touch functionality?This model is a display module without an integrated touch panel. Its mechanically stable frame and glass surface are designed to be compatible with aftermarket projected capacitive (PCAP) or resistive touch solutions. Contact us to discuss touch integration options.
- What are the benefits of the integrated LED driver?Having an integrated LED driver simplifies your design process, reduces component count, and ensures the backlight is driven to NLT's exact specifications for optimal brightness, efficiency, and longevity. This removes the guesswork from backlight power management.
The NLT NL10276BC30-38B is a strategic choice for designers who prioritize long-term reliability and superior visual performance in their systems. To evaluate this display for your next project or to browse our extensive catalog, explore our full range of industrial LCD modules.
