NL6448BC20-35C: High-Brightness 6.5" VGA Display for Demanding Industrial Environments
Introduction & Core Value
Engineered for Sunlight Readability and Operational Endurance

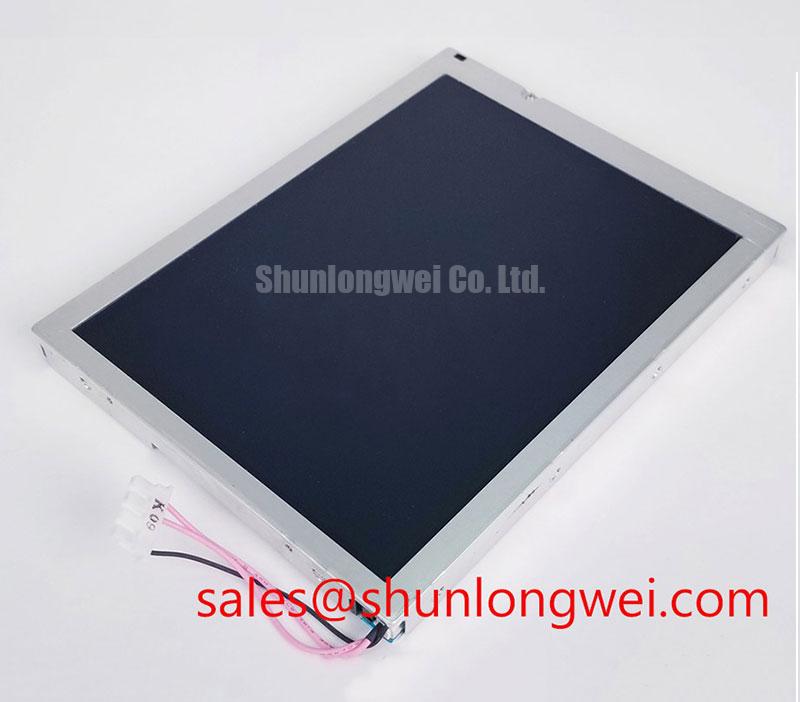

The NL6448BC20-35C is a 6.5-inch a-Si TFT-LCD module engineered for exceptional visual performance in high ambient light and thermally challenging conditions. Delivering a powerful combination of high brightness and a wide operational temperature range—1000 cd/m² | -30 to 80°C Operating Temp | 70,000-hour WLED Lifespan—this display provides enduring clarity and rugged reliability. It directly addresses the need for clear, unfailing human-machine interfaces (HMIs) in outdoor and uncontrolled industrial settings. For applications where direct sunlight readability is the primary design driver, this 1000-nit panel provides a robust and reliable visualization solution.
Key Parameter Overview
Highlighting Mission-Critical Performance Metrics
The specifications of the NL6448BC20-35C are tailored for industrial applications where performance cannot be compromised. The high brightness level is not just a number; it's the enabling factor for usability in direct sunlight, a common challenge for operators of construction equipment or outdoor kiosks. Similarly, the extensive operating temperature range ensures consistent performance from freezing pre-dawn startups to peak afternoon heat, minimizing the risk of screen failure or image degradation. The long-life WLED backlight system underscores a low total cost of ownership by reducing maintenance cycles and replacement costs.
| Parameter | Value | Engineering Implication |
|---|---|---|
| Screen Size | 6.5 inch | Compact form factor suitable for space-constrained control panels and portable devices. |
| Resolution | 640(RGB) x 480 [VGA] | Provides clear and sufficient detail for standard industrial GUI applications. |
| Brightness | 1000 cd/m² (Typ.) | Ensures excellent sunlight readability for outdoor and high-ambient-light environments. |
| Contrast Ratio | 800:1 (Typ.) | Delivers sharp, clear images with distinct differentiation between light and dark areas. |
| Operating Temperature | -30 ~ 80 °C | Guarantees operational reliability across a very wide range of environmental conditions without heaters or coolers. |
| Storage Temperature | -30 ~ 80 °C | Robustness for logistics and non-operational exposure to extreme temperatures. |
| Signal Interface | CMOS (1 ch, 6-bit) | A standard interface simplifying integration with a wide variety of industrial motherboards and controllers. |
| Backlight System | WLED, 70,000 hours (Typ.) | Long-term reliability and reduced maintenance needs, contributing to a lower total cost of ownership. |
| Vibration Resistance | 2.0G (19.6 m/s²) | Withstands the mechanical stress typical in mobile machinery and heavy industrial settings. |
Application Scenarios & Value
Delivering System-Level Benefits in Harsh Operating Environments
The NL6448BC20-35C is optimized for applications where visual clarity and operational uptime are non-negotiable. Its defining features directly translate to tangible value in the field.
A prime application scenario is in the operator cabs of heavy construction or agricultural machinery. Here, operators are often exposed to direct sunlight, making standard displays unreadable and compromising both safety and productivity. The 1000 cd/m² brightness of the NL6448BC20-35C cuts through glare, presenting critical diagnostics, GPS mapping, and control interfaces with exceptional clarity. This high brightness, combined with its 2.0G vibration resistance and -30°C to 80°C operating range, ensures the HMI remains a reliable tool through intense vibration and extreme weather shifts, from a frozen winter morning to a sweltering summer afternoon. This resilience reduces the need for costly, ruggedized enclosures and specialized heating/cooling subsystems, simplifying the overall system design of the industrial HMI.
Other key applications include:
- Outdoor Digital Signage and Public Information Kiosks
- Marine Navigation and Bridge Control Systems
- Portable Diagnostic and Test Equipment for Field Service
- Control Panels for Oil & Gas Exploration Equipment
While this model provides an excellent balance for many VGA systems, for applications requiring a similar form factor but with different brightness or interface specifications, the related NL6448BC20-30 may present an alternative for evaluation.
Frequently Asked Questions (FAQ)
Diving Deeper into Key Engineering Considerations
How does the 1000 cd/m² brightness rating specifically benefit outdoor HMI design?
A brightness of 1000 cd/m² (or nits) is a critical threshold for achieving true sunlight readability. For an engineer, this means the display can overcome the high ambient light of outdoor environments, preventing the screen from appearing "washed out." This allows operators to clearly read critical data without needing to shield the screen, which directly improves operational efficiency and safety in applications like construction vehicle controls or outdoor payment terminals.
What is the engineering impact of the wide -30 to 80°C operating temperature range?
This wide range eliminates the need for external heating or cooling components in many designs, which simplifies system architecture, reduces power consumption, and lowers the bill of materials (BOM). It guarantees that the display will start up reliably in freezing conditions and operate without failure in extreme heat, making it ideal for equipment deployed globally across diverse climates, from the arctic to the desert.
What does the 70,000-hour WLED lifespan mean in practical terms?
A 70,000-hour lifespan for the White LED backlight system translates to approximately 8 years of continuous 24/7 operation before the brightness is expected to degrade to 50% of its initial value. For a typical industrial application with an 8-hour daily duty cycle, this extends the practical operational life well beyond a decade, signifying exceptional long-term reliability and a very low total cost of ownership.
Is the CMOS 6-bit interface a good choice for industrial control systems?
Yes, the CMOS interface is a robust and widely adopted standard in embedded systems. Its straightforward parallel data architecture simplifies integration with many industrial single-board computers and microcontrollers. While it doesn't offer the cable length of an LVDS Interface, its simplicity and low implementation cost make it a highly reliable choice for the compact, integrated designs where a 6.5-inch display is typically used.
How does the 2.0G vibration rating affect system design for mobile applications?
The 2.0G (19.6 m/s²) vibration tolerance confirms the display's mechanical robustness. This is crucial for equipment mounted on vehicles or heavy machinery. It gives designers confidence that the display's internal connections and components will withstand constant operational shock and vibration without premature failure, reducing field service incidents and enhancing overall product reliability.
Technical Deep Dive
Design Considerations for Reliability in Extreme Conditions
The reliability of the NL6448BC20-35C is not an accident; it is the result of specific design choices aimed at industrial endurance. The wide operating temperature range is a key differentiator. Think of it like the operating range of an engine's motor oil; standard oil thickens in the cold and thins in the heat, compromising performance. Similarly, the liquid crystals in a standard display can become sluggish or fail at temperature extremes. The materials and manufacturing processes used by NEC for this module are specifically chosen to maintain fluid, responsive pixel switching from -30°C to 80°C. This ensures that the display provides a clear, artifact-free image whether the system is starting up in a frozen warehouse or running inside a sun-baked metal enclosure.
Furthermore, the integration of a long-life WLED backlight is a critical engineering decision. Older CCFL backlights contained mercury, had shorter lifespans, and were more susceptible to vibration. The solid-state nature of the WLED system not only provides a longer operational life of 70,000 hours but also contributes significantly to the module's overall mechanical robustness, making it a more reliable choice for any application involving motion or potential impact.
Engineer's Perspective
A Component Built for the Field, Not the Desktop
From an integration standpoint, the NL6448BC20-35C is a purpose-built tool. Its combination of high brightness, thermal resilience, and mechanical durability makes it a straightforward choice for systems that will face unpredictable and harsh environments. It removes significant design overhead by reducing the need for complex thermal management and ruggedization, allowing engineering teams to focus on their core application logic. This is a display designed to be deployed and trusted, providing a clear and reliable visual interface where it matters most.
