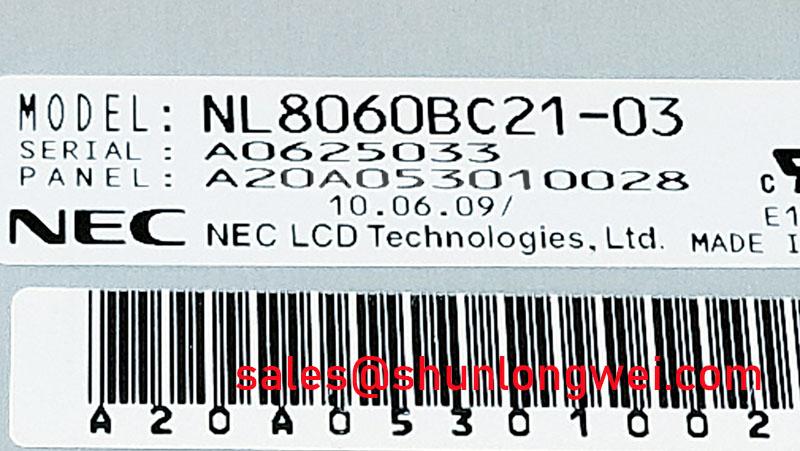

NEC NL8060BC21-03: An 8.4-inch SVGA TFT-LCD Engineered for Industrial Reliability
Product Overview & Key Specifications
The NEC NL8060BC21-03 is an industrial-grade TFT-LCD module engineered for exceptional visual clarity and unwavering performance in demanding environments. Delivering a balanced combination of brightness, resolution, and thermal resilience, this display provides a robust foundation for a wide range of professional applications. Key specifications include: 8.4-inch SVGA (800x600) | 400 cd/m² Brightness | -10°C to +70°C Operating Temperature. Its primary engineering benefits are superior readability in high ambient light and an extended operational temperature range. This makes the NL8060BC21-03 an excellent fit for systems where consistent operation across fluctuating environmental conditions is a critical design requirement. For industrial HMI applications demanding reliable performance in unconditioned indoor environments, this display's wide temperature range offers a decisive advantage.
Application Scenarios & Value
System-Level Benefits in Industrial Control and Instrumentation
The NL8060BC21-03 is optimally suited for integration into Human-Machine Interfaces (HMIs), process control systems, and medical instrumentation where data legibility and operational uptime are paramount. Consider a common engineering challenge: designing a control panel for a factory floor. This environment often features bright, overhead industrial lighting and significant temperature swings throughout the day. A standard display would wash out or risk failure. The NL8060BC21-03 directly addresses this challenge with its high brightness of 400 cd/m², ensuring that critical process data remains sharp and readable, thereby reducing operator error. What is the primary benefit of its wide temperature range? It guarantees stable performance from a cold start at -10°C to a peak operating heat of +70°C, eliminating the need for auxiliary heating or cooling components and simplifying the overall system design and lowering the total cost of ownership. This resilience makes it a dependable choice for applications where environmental control is impractical or cost-prohibitive.
While the 8.4-inch SVGA format of this model is ideal for compact control panels, systems requiring a larger viewing area and higher resolution for more complex data visualization may consider the related NL10276AC30-42D.
Key Parameter Overview
Decoding the Specs for Environmental and Visual Performance
The technical specifications of the NL8060BC21-03 are carefully balanced to deliver reliable performance. The following table highlights the key parameters that are most critical for system design and integration decisions.
| Parameter | Specification | Engineering Value |
| Screen Size | 8.4 inch | Compact form factor for space-constrained applications. |
| Resolution | 800 (RGB) × 600 [SVGA] | Provides clear and detailed image quality for standard industrial graphics and text. |
| Luminance (Brightness) | 400 cd/m² (Typ.) | Ensures excellent screen readability in brightly lit indoor environments. |
| Contrast Ratio | 600:1 (Typ.) | Delivers deep blacks and vibrant colors for superior image clarity. |
| Operating Temperature | -10 ~ 70 °C | Guarantees operational reliability in a wide range of unconditioned environments. |
| Interface Type | LVDS (1 ch, 6-bit) | Standardized, low-EMI interface simplifies integration with industrial PCs and single-board computers. |
| Backlight | WLED | Provides long operational life and stable brightness. |
Technical Deep Dive
A Closer Look at Thermal Resilience in HMI Design
The operational temperature range of -10°C to +70°C is more than just a specification; it is a critical enabler for deploying advanced HMIs in environments previously deemed too harsh. This wide range is achieved through careful material selection and thermal design within the TFT-LCD module itself. For a system designer, this resilience translates into tangible benefits. The ability to function at 70°C reduces the required thermal overhead, allowing for smaller, fanless enclosure designs which are inherently more reliable and less prone to contamination from dust or moisture. Think of the operating temperature range as the display's "native" resilience; a wider range means the system's thermal management has less work to do, directly contributing to higher MTBF (Mean Time Between Failures) and reduced service costs over the product's lifecycle.
Frequently Asked Questions (FAQ)
How does the 400 cd/m² brightness of the NL8060BC21-03 impact its performance in real-world industrial settings?
The 400 cd/m² luminance is a significant factor for usability. In environments like manufacturing floors or logistics hubs with intense fluorescent or LED lighting, lower-brightness screens can become unreadable. This level of brightness cuts through high ambient light, ensuring that GUIs, alerts, and data readouts remain clear and distinct, which is crucial for operational efficiency and safety.
What is the significance of the SVGA (800x600) resolution for its target applications?
SVGA resolution provides an optimal balance between screen real estate and data clarity for many legacy and current industrial applications. It is sufficient for displaying graphical interfaces, key performance indicators, and control menus without requiring the higher processing power and cost associated with HD displays. This makes it a cost-effective and highly compatible choice for upgrading existing systems or designing new, focused-functionality devices.
Does the LVDS interface offer specific advantages for system integration?
Yes, the LVDS interface is a key advantage for industrial design. It uses a low voltage differential signal which generates significantly less electromagnetic interference (EMI) compared to older TTL interfaces. In a complex industrial machine with multiple motors, drives, and sensors, minimizing EMI is critical for overall system stability and achieving regulatory compliance.
Can the NL8060BC21-03 operate reliably in environments with high vibration or shock?
While the datasheet specifies standard vibration and shock tolerances, this model's construction is inherently suited for industrial use. For applications with extreme mechanical stress, such as in heavy machinery or transportation, it is essential to consult the detailed mechanical specifications in the official datasheet and implement appropriate shock-absorbing mounting techniques in the final product design.
Strategic Integration for Long-Term Product Lifecycles
Integrating the NL8060BC21-03 into a new product line is a strategic decision that prioritizes operational resilience and a stable supply chain. Its use of standard technologies and interfaces mitigates risks associated with component obsolescence, a critical consideration for industrial and medical equipment that often have lifecycles exceeding a decade. By designing around a component with a proven track record of reliability in diverse and challenging conditions, OEMs can confidently support their products in the field, reducing warranty claims and enhancing brand reputation for quality and durability.
