Luminance Output Control and Display Lifetime Verification

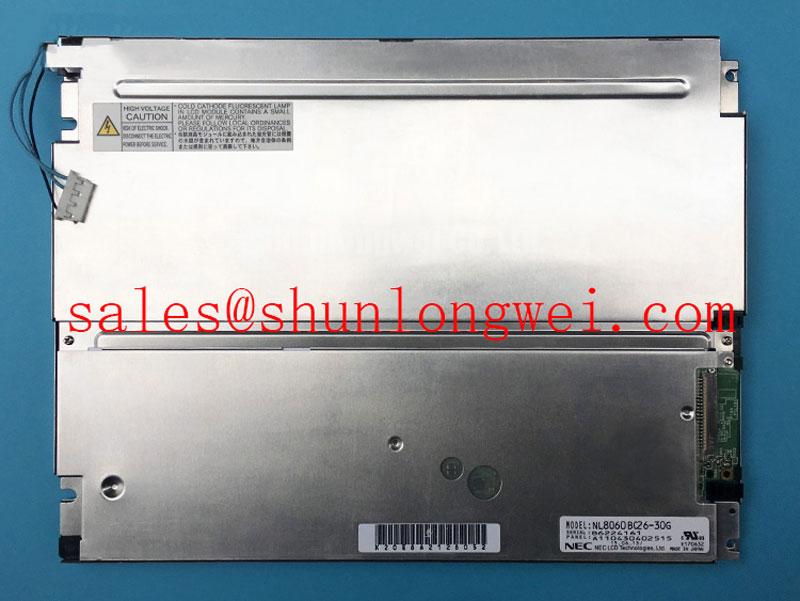

| Product model | NL8060BC26-30G |
|---|---|
| Manufacturer | NEC |
| Product category | Industrial Grade LCD/HMI Panel |
| Display technology | TFT-LCD Active Matrix Color Display Module |
| Specification identity | Official Specification: manufacturer, product category, and display technology |
Inspect the dark display under oblique illumination, then measure the backlight driver input and enable signal while the controller requests an illuminated screen. A faint image helps separate illumination loss from a missing image signal, but it does not identify the failed component. For NL8060BC26-30G service, keep the image path and illumination path separate until measurements connect the symptom to a particular circuit.
Design Consideration: compare brightness across the display after thermal stabilization, keeping the test image, ambient light, and dimming command unchanged. Record whether a dark region remains fixed, changes with temperature, or appears only when the equipment enclosure is closed. Those observations can distinguish an optical or mechanical concern from an unstable driver supply without assigning every dark patch to backlight aging.
The supplied product facts establish a TFT-LCD active matrix color module; they do not establish an LED backlight, its drive current, or a lifetime rating. Consequently, LED constant-current operation and L70/B50 terminology must not become specifications for this model. L70 describes lumen maintenance relative to initial output, while B50 is a population-based criterion used with the applicable lifetime definition. Neither term, by itself, establishes module service life or mean time between failures.
Engineering Recommendation: trace the installed illumination circuit from its input supply through its switching and protection stages to the panel connection. Use the actual driver schematic to identify any enable, dimming, and fault outputs. If illumination flashes and then disappears, capture the supply and fault transition together. Protection activation can involve the load, wiring, driver, or supply; replacing the panel solely because the driver shuts down leaves those possibilities unresolved.
Check connector seating and cable strain with the equipment isolated. Where the driver provides open-load or short-load protection, interpret its indication using that driver's documented behavior. Do not bypass the protection or operate an unloaded output merely to force a reading. An input-voltage measurement alone cannot demonstrate that the illumination output is operating correctly.
Design Consideration: inspect existing heat-transfer paths around the display edges for loose fasteners, obstructed contact surfaces, and enclosure-induced hot spots. Adding aluminum rails changes the mechanical stack and can introduce pressure into the display assembly. Any proposed spreader should follow measured temperature distribution and available mounting clearance, with the completed enclosure determining the thermal design. No particular optical material or yellowing mechanism is established for this module.
For a repair record, retain brightness measurements with their measurement position, operating condition, and dimming setting. A published backlight maintenance curve, if applicable to the installed assembly, must retain its original temperature and operating conditions. A generic operating-hour claim is not a substitute for those conditions.
Digital RGB Bus Synchronization and Logic Power Rail Verification
Capture the panel-side supply during startup and compare the arrival of image-control signals with the controller's power sequence. Probe at the receiving connector rather than relying only on the power supply output: cable resistance, connector contact, and switching transients can make the panel's electrical conditions different from those measured upstream.
Field Alert: Isolate power and allow stored energy to discharge before disconnecting or reseating display and backlight cables.
Design Consideration: establish the connector pin assignment from the equipment schematic and the matching panel drawing before choosing probe locations. The section's TTL and digital RGB terminology is not confirmation of this model's interface width or signaling format. Supply voltage, pin numbering, timing limits, and color-channel allocation must come from documentation that explicitly matches NL8060BC26-30G, including its suffix.
For a split image, misplaced colors, or unstable geometry, display a stationary test pattern containing distinct color regions and fine vertical detail. Compare the source waveform with the waveform reaching the panel. Check whether the symptom follows a cable disturbance, a controller setting, or a repeatable startup sequence. This separates connection-related evidence from timing-related evidence without treating a particular visual artifact as proof of one cause.
Engineering Recommendation: investigate a parallel RGB connection through its clock, data, and control timing. Investigate a differential interface through its defined pair assignments and receiver requirements. JEIDA/VESA mapping and differential impedance are not interchangeable with parallel TTL timing rules. Applying one interface's checklist to another can lead to an incorrect cable or controller configuration even when the connectors appear similar.
Cold-start testing should include the complete operator terminal, because the power converter, controller, cable, and display can respond differently to temperature. Design Consideration: record image establishment, visible motion response, and supply behavior at conditions permitted by the equipment and panel specifications. Do not assign an unsupported sub-zero operating range to this module or compensate for slow response by changing timing beyond its documented limits.
If the existing terminal includes a heater, evaluate its control sensor, placement, and startup interlock as part of the equipment design. Heater control should avoid local temperature gradients and condensation risks, with permitted panel temperatures governing the test. A successful room-temperature image does not validate the same startup sequence in a cold enclosure.
During replacement evaluation, the NL8060BC31-41D comparison offers a separate reference for organizing a compatibility review. Compare mechanical fit, active area, interface, optical behavior, and controller requirements individually; a related NEC model number does not establish an interchangeable replacement.
Industrial EMI Noise Immunity, Chassis Shielding Continuity and Common-Mode Ferrite Chokes
Observe the image while nearby motor drives change operating state, and correlate visible noise with panel supply disturbance and cable position. Keep the displayed pattern unchanged during the comparison. Noise bands that coincide with equipment switching provide a useful test condition, not proof that the display module itself has failed.
Design Consideration: inspect the intended chassis bonds, connector retention, and cable routing before adding suppression components. A displaced harness or loose bonding point can alter the coupling path after otherwise routine maintenance. Compare the installation with its original routing, especially where display wiring crosses power wiring or passes close to switching equipment.
Use measurement methods appropriate to the signal being observed. Probe connection length and instrument grounding can introduce artifacts or unintended current paths. For differential signals, evaluate the pair together using suitable equipment; for parallel signals, examine the relevant clock and data relationships. The interface documentation determines the measurement target rather than a generic impedance or skew budget.
Engineering Recommendation: preserve the equipment's intended shield termination and chassis return path. A circumferential shield termination is relevant only where the cable construction and connector arrangement support it. Do not treat an unshielded flexible cable as a shielded harness, or attach an improvised shield where it can contact exposed circuitry or interfere with connector seating.
A common-mode ferrite is a candidate suppression measure, not a guaranteed cure for pixel jitter. Its placement and characteristics should follow the identified coupling path and the signal bandwidth. Compare the image and receiving waveform before and after the change, including startup and operating transitions. Suppression that reduces visible noise while degrading signal integrity is not a successful repair.
Keep complementary display products in their correct role. NL3224AC36-01D is a separate display product reference, not an established backlight driver for NL8060BC26-30G. Any relationship between a display, its power conversion circuit, and its illumination driver must be demonstrated through the actual interface and electrical requirements.
The Industrial Display & HMI Solutions resource provides broader integration context for enclosure, wiring, and maintenance decisions. For manufacturer context, consult NEC and Tianma Industrial TFT Display Solutions; model-specific electrical limits require the corresponding technical document.
For potential use in a hazardous petrochemical Zone-2 operator station, assess the display only within the station's approved assembly and maintenance requirements. Neither the NEC brand nor the TFT-LCD category establishes explosion-protection approval or complete-equipment EMC compliance. Cable, shield, or power-circuit changes should undergo the applicable equipment-level review.
LCD Grayscale Inversion Mitigation and Optimal Viewing Direction Alignment
Display a grayscale ramp and inspect it from the operator's actual eye position, then move above and below that position while keeping brightness constant. Record where adjacent gray levels become difficult to distinguish, where contrast changes, and whether enclosure glazing adds reflections. This evaluates readability in the installed geometry rather than only on an open bench.
The confirmed TFT-LCD category does not establish normally white operation, TN construction, viewing direction, or an anti-glare finish for NL8060BC26-30G. Design Consideration: use the matching optical specification to distinguish a directional contrast characteristic from a fault. Do not transfer viewing-angle claims from IPS or MVA products to this panel.
Inspect mounting orientation and bezel pressure when contrast varies across the screen. Compare the unmounted module with the installed assembly where the equipment's service procedure permits it. A symptom that changes after mounting deserves a mechanical inspection before controller settings are altered. Avoid pressing the viewing surface to test whether a patch disappears.
Engineering Recommendation: evaluate readability with the enclosure window and normal ambient lighting present. Reflections, surface contamination, and window spacing can obscure text even when the display generates a stable image. Use cleaning methods permitted for the relevant surfaces; abrasive treatment is not a valid way to create an anti-glare finish.
For flicker complaints, observe illumination modulation alongside the brightness command and driver supply. If the installed driver uses PWM, determine its supported dimming behavior from that driver's specification. Frequency and duty-cycle limits belong to the actual control circuit, not to an assumed generic range. Check text readability, brightness transitions, and interaction with the controller's update behavior across the supported adjustment range.
If audible noise accompanies dimming, locate its source rather than attributing it automatically to the panel. Driver components, enclosure vibration, and changing load conditions warrant separate checks. Preserve the documented control limits while comparing settings. Complete the installation check with the terminal mounted at its intended angle, using alarm text and grayscale content that operators must distinguish during normal service.
