Assembly Integrity & Layout Architecture: Sizing Braking Resistors and Chopper Transistors for QM20TD-H

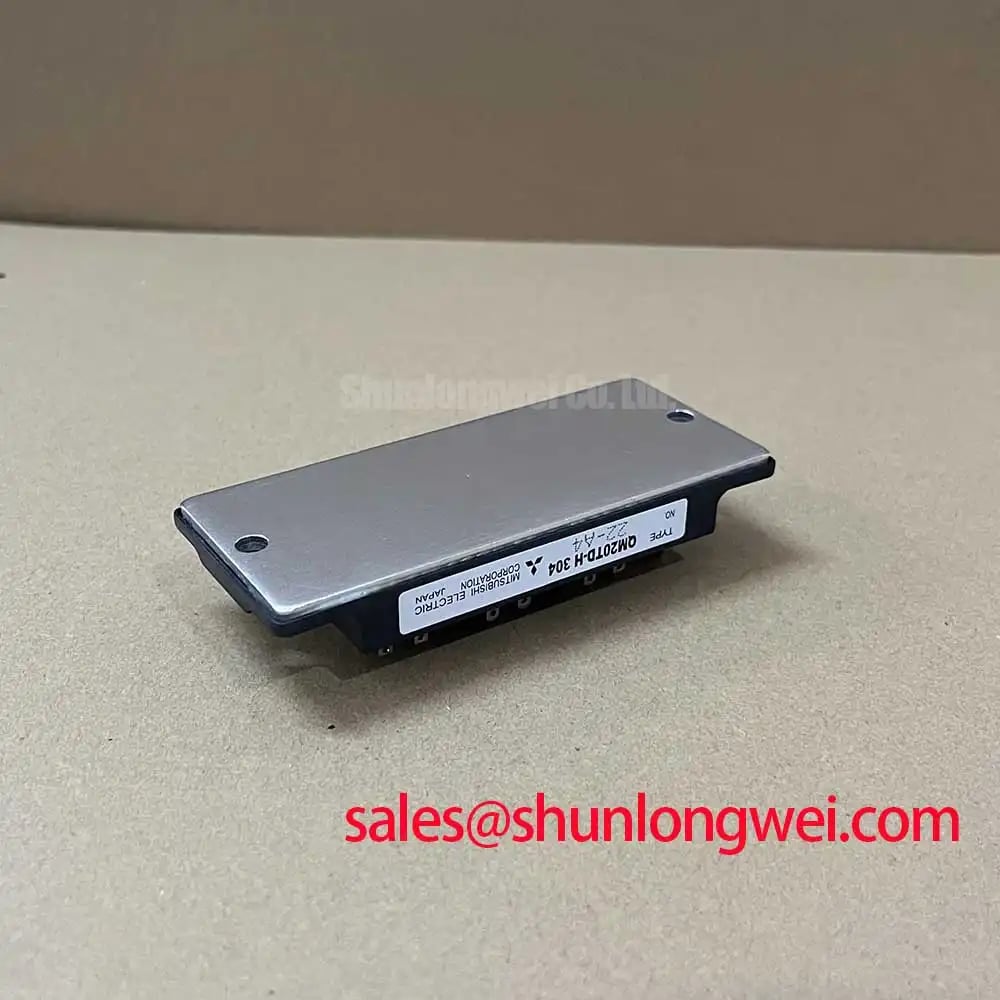

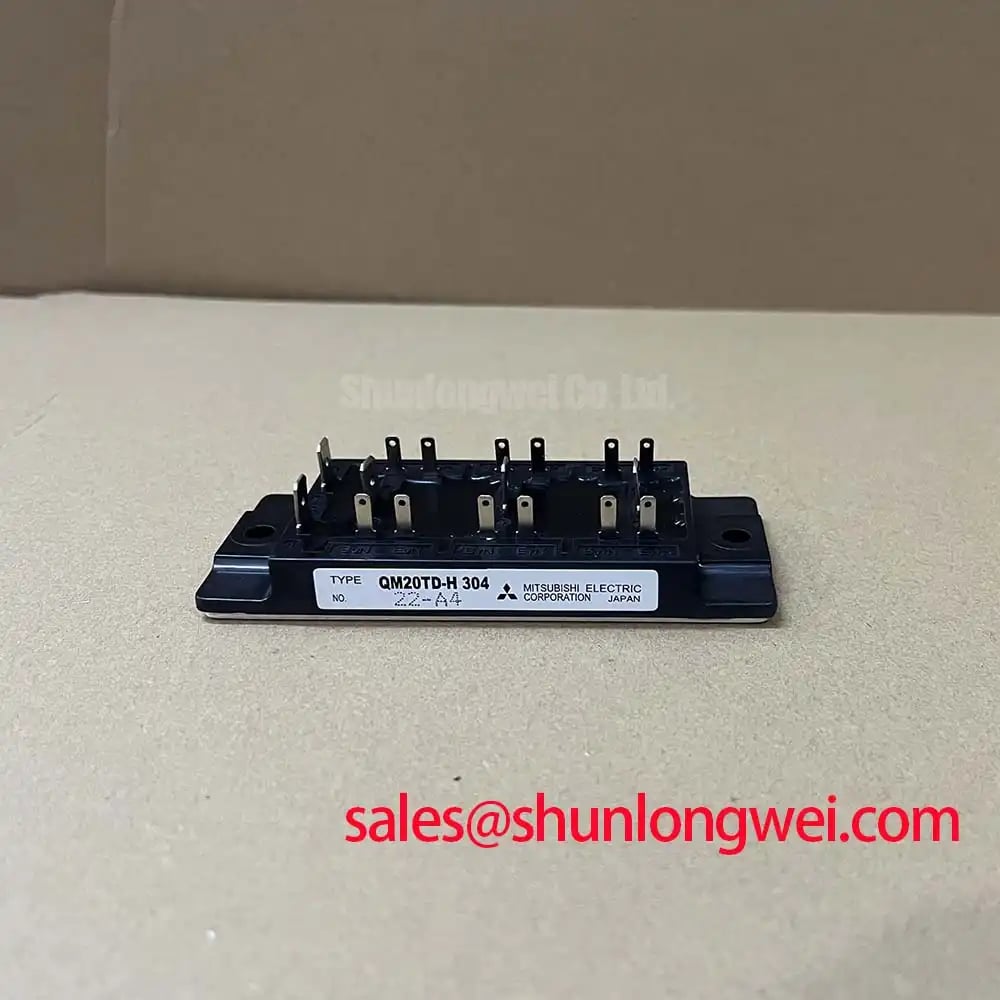

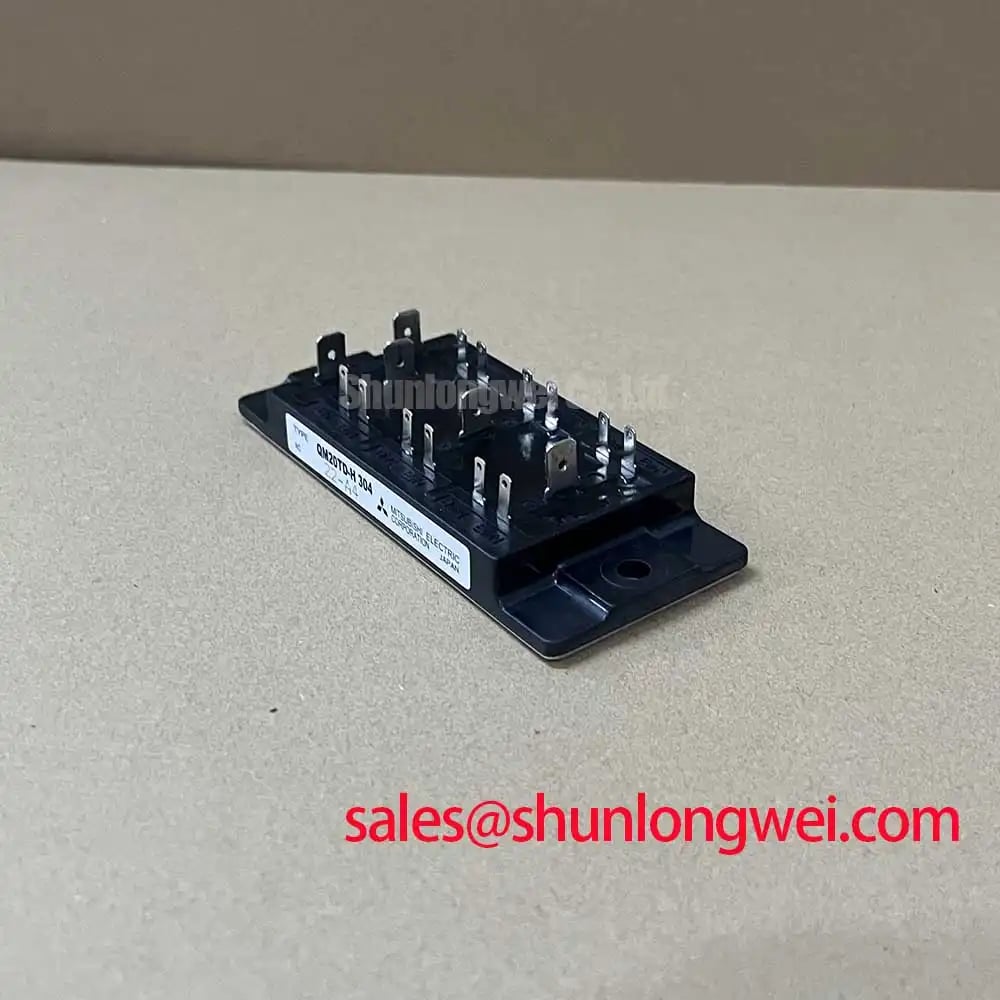

Before energizing a replacement, verify the nameplate and documentation, then inspect the package for mechanical damage and check the external terminals for contamination or unintended continuity. The Mitsubishi Electric QM20TD-H is a power transistor and Darlington module specified with a 600 V collector-emitter voltage, 20 A collector current, and 83 W power dissipation per element. Its isolation voltage is 2500 V, the junction-temperature range is −40°C to +150°C, and the listed minimum DC current gain is hFE 250. These are official device specifications; actual operating limits remain dependent on switching conditions, mounting, cooling, and the complete converter design.
When evaluating the QM20TD-H in an industrial inverter welder or medium-frequency induction-heating supply, first confirm that the circuit position is electrically compatible with this power transistor module rather than assuming that every braking position uses the same semiconductor class. The braking branch must be assessed against the DC-link voltage, regenerative energy, pulse duration, repetition rate, and allowable thermal dissipation. A braking resistor should be selected from measured deceleration energy and duty cycle, while the switching device should be checked against collector voltage, collector current, pulse stress, and its 83 W per-element power dissipation rating.
Keep the high-current path short and mechanically supported. The resistor, switching device, DC-link capacitor, and protection network should be arranged to reduce the physical loop area and to prevent the braking current from sharing sensitive gate or control wiring. Designers should verify creepage, clearance, enclosure temperature, and cooling contact against the equipment safety design rather than applying a generic spacing assumption. In a repair, compare the replacement installation with the known-good phase or braking branch, then inspect solder joints, bus connections, insulation surfaces, and thermal interface condition before applying full DC-link voltage.
For a wider topology comparison, engineers may review the QM200HA-HK as a separate device option, but electrical substitution requires a complete rating, pinout, drive, thermal, and mechanical review. It should not be treated as a direct replacement based on current rating alone.
Benchtop Waveform Tuning: High-Altitude Operation and Single-Event Effects in QM20TD-H Applications
High-altitude operation can change environmental electrical-stress assumptions, but no product-specific FIT rate, SEB probability, or altitude derating curve is provided in the stated official parameters. Such values must not be inferred from the 600 V rating. For equipment evaluated above 2000 m, the system engineer should obtain an applicable reliability source and then validate DC-link headroom, insulation coordination, cooling performance, and switching transients under the intended installation conditions.
Bench testing should begin with a current-limited source and a monitored switching waveform. Record collector-emitter voltage, load current, gate command timing, case temperature, and heat-sink temperature while increasing operating stress in controlled steps. The listed −40°C to +150°C junction-temperature range identifies the official junction boundary, not a guaranteed system operating temperature. Thermal impedance, airflow, switching frequency, and enclosure heat accumulation must be evaluated together. A thermal network approach such as the Foster and Cauer thermal impedance models can support transient junction-temperature estimation, provided the model parameters are appropriate to the actual assembly.
Transient Dynamics & Electrical Design: Turn-Off di/dt-Induced Vpeak Clamping in QM20TD-H Applications
During turn-off, the measured voltage overshoot is influenced by DC-link voltage, commutation current, parasitic inductance, switching speed, probe technique, and the location of the measurement loop. The relationship between overshoot and stray inductance can be used as an engineering calculation, but the required clamp level and snubber value must be determined from the real waveform rather than prescribed from a product-page estimate. Minimize the commutation loop, use a symmetrical bus arrangement where practical, and verify peak voltage directly at the module terminals with a suitable differential probe.
MOVs, RC networks, or other overvoltage absorbers may be coordinated with the DC-link protection system, but their energy rating, clamping behavior, pulse repetition capability, and failure mode must be matched to the equipment. A MOV is not a substitute for controlled layout or a correctly rated switching device. If a waveform changes after repair, compare probe grounding, busbar position, gate wiring, and capacitor mounting before assigning the cause to the QM20TD-H. The external QM100HY-2H may be assessed as part of a related rectifier or front-end topology, subject to system-level compatibility verification.
QM20TD-H Circuit Protection & Reliability: Calibrating Thermal Feedback
Parallel-device operation requires more than matching nominal current ratings. Static current sharing depends on the confirmed electrical characteristics of the selected devices, while dynamic sharing is affected by gate-loop impedance, propagation timing, commutation inductance, and thermal coupling. The stated minimum hFE of 250 is an official drive characteristic, but it does not by itself define parallel-sharing behavior or switching performance. Designers should confirm the manufacturer’s complete electrical curves before using this parameter in a protection threshold or balancing calculation.
Thermal feedback should be taken from a location that represents the device assembly, with sensor response and protection delay checked during the actual load profile. During troubleshooting, compare collector-emitter waveform, gate signal, current distribution, and temperature rise against a known-good channel. The carrier-lifetime background described in Carrier Lifetime and Recombination in Power Semiconductor P-N Junctions is useful for understanding switching-device behavior, but it does not provide QM20TD-H field-life data.
💡 Pro Tip: Keep the gate-return and power-commutation paths physically controlled, then confirm dynamic voltage and current margins with double-pulse or equivalent switching tests before connecting the repaired assembly to full machine power. Long-term thermal design can also be reviewed through The Advanced Thermal Management Revolution, while final acceptance should remain based on measured temperatures, waveforms, insulation tests, and the equipment manufacturer’s limits.
